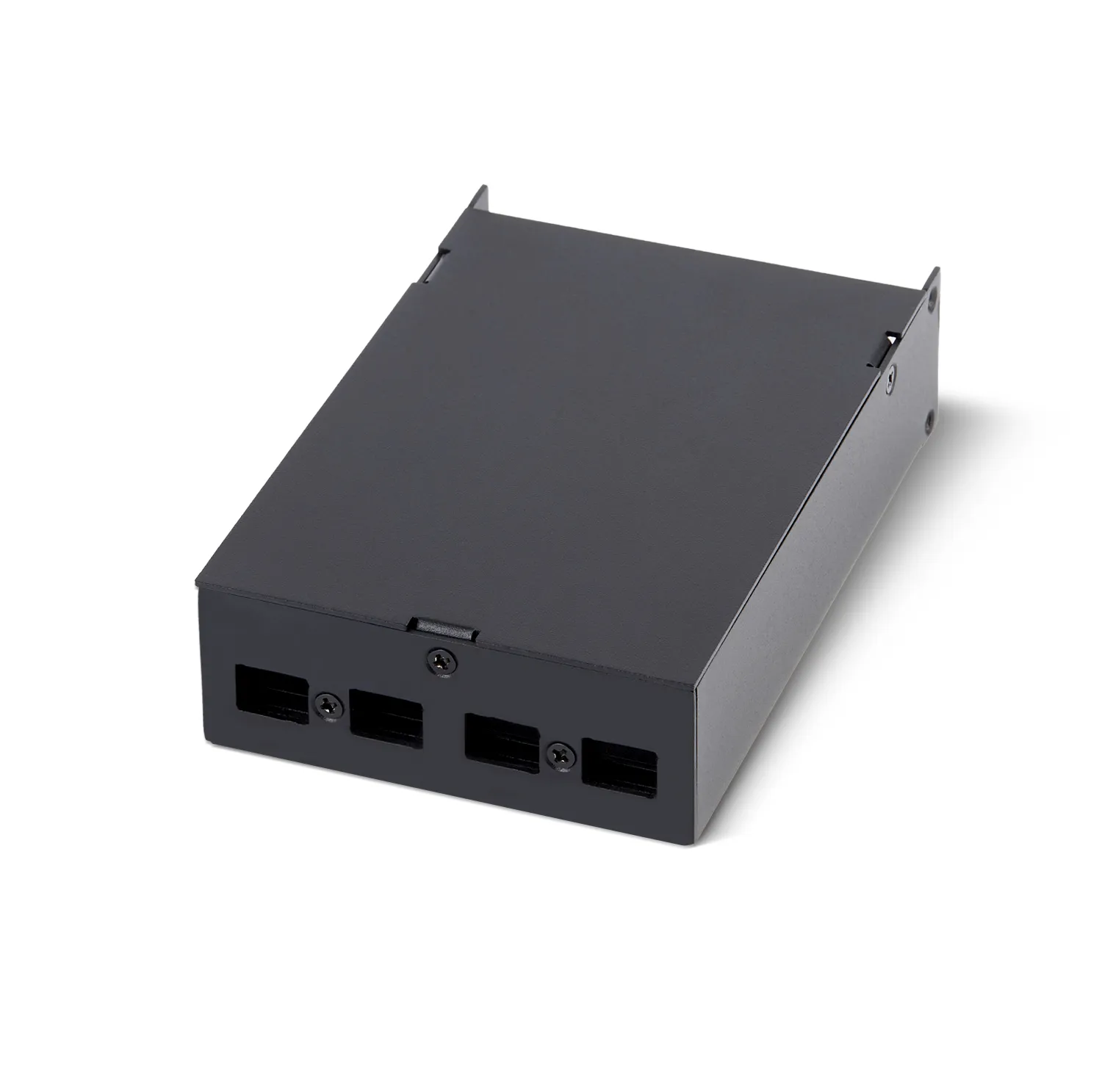

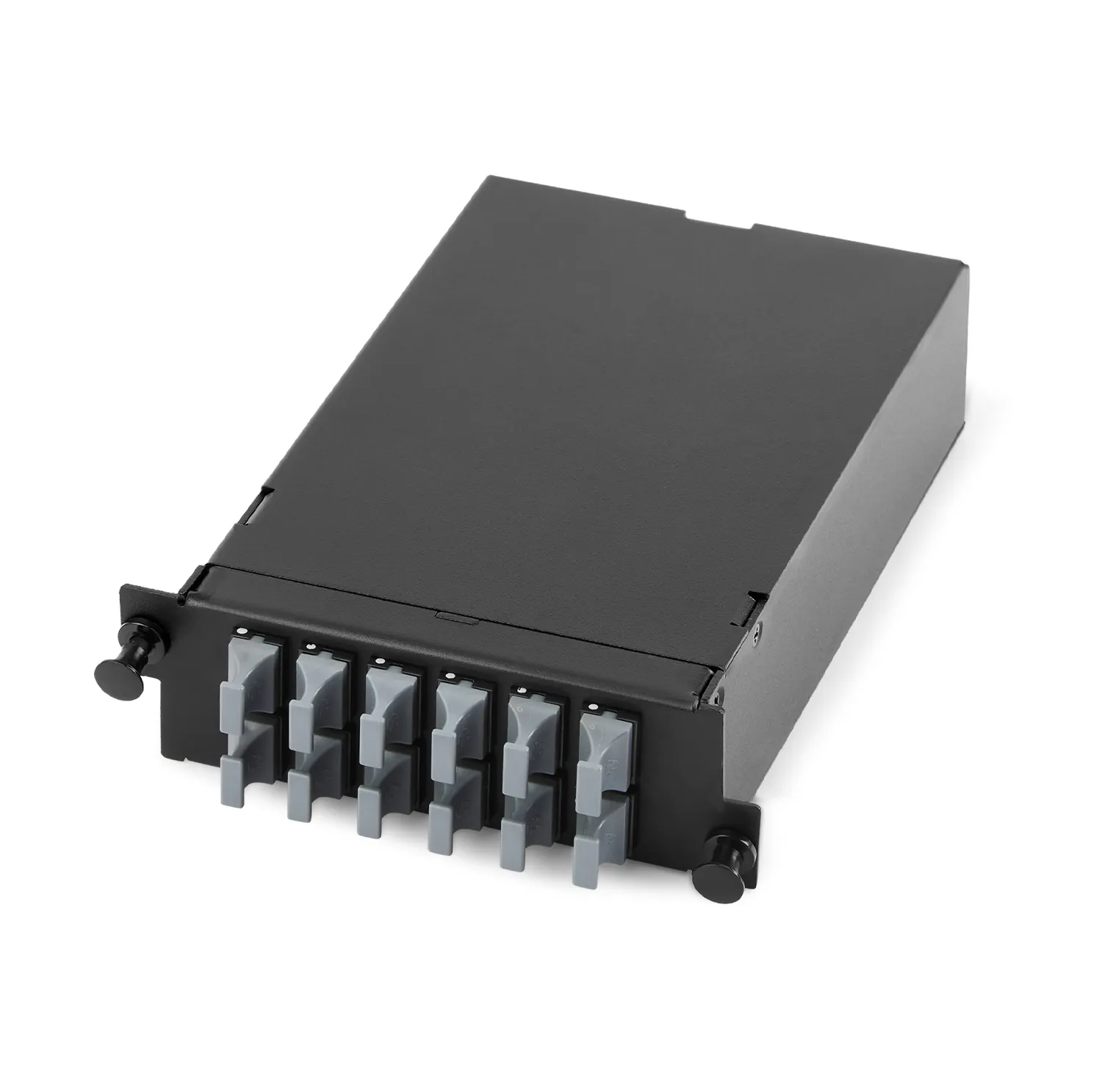

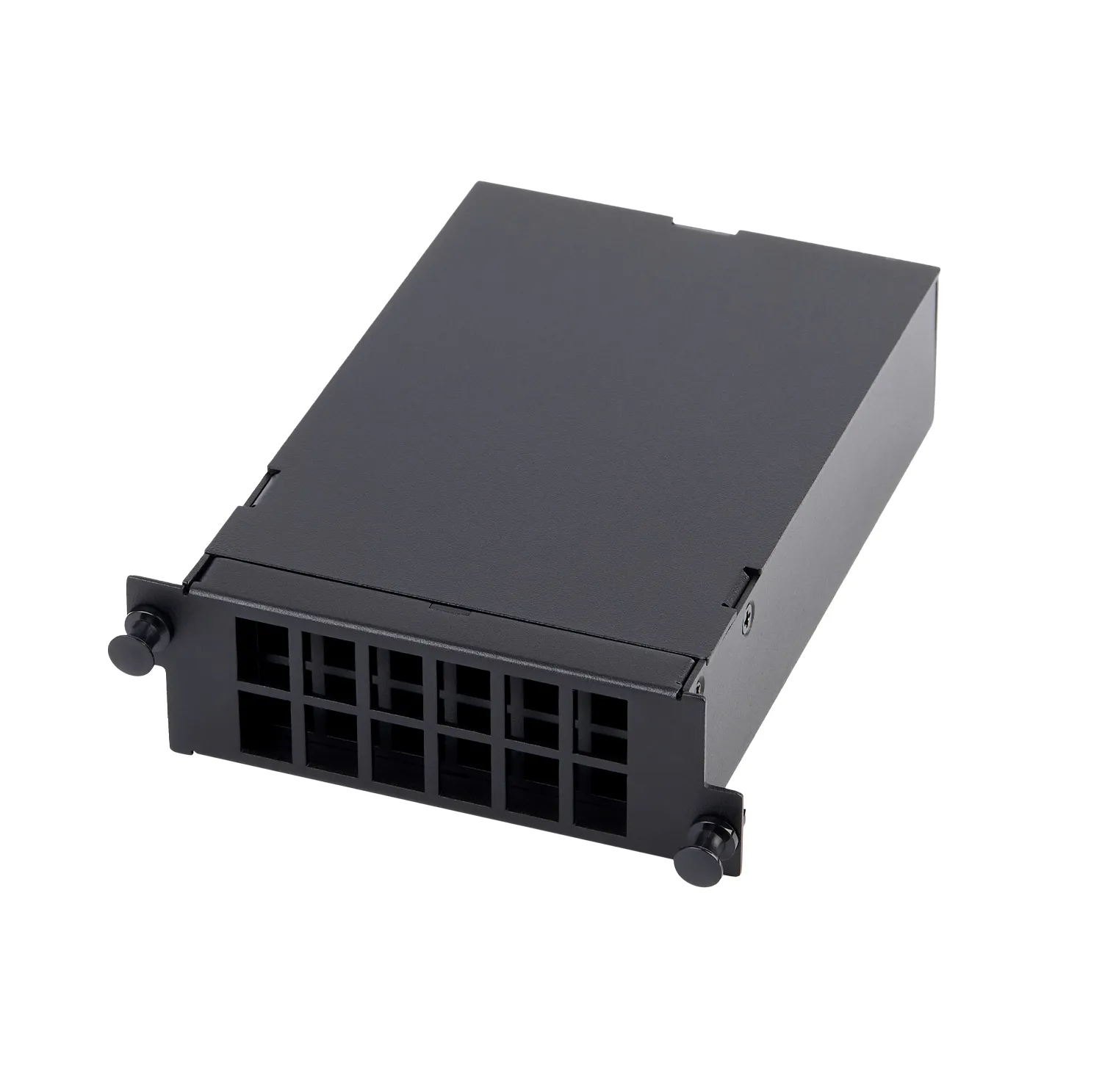

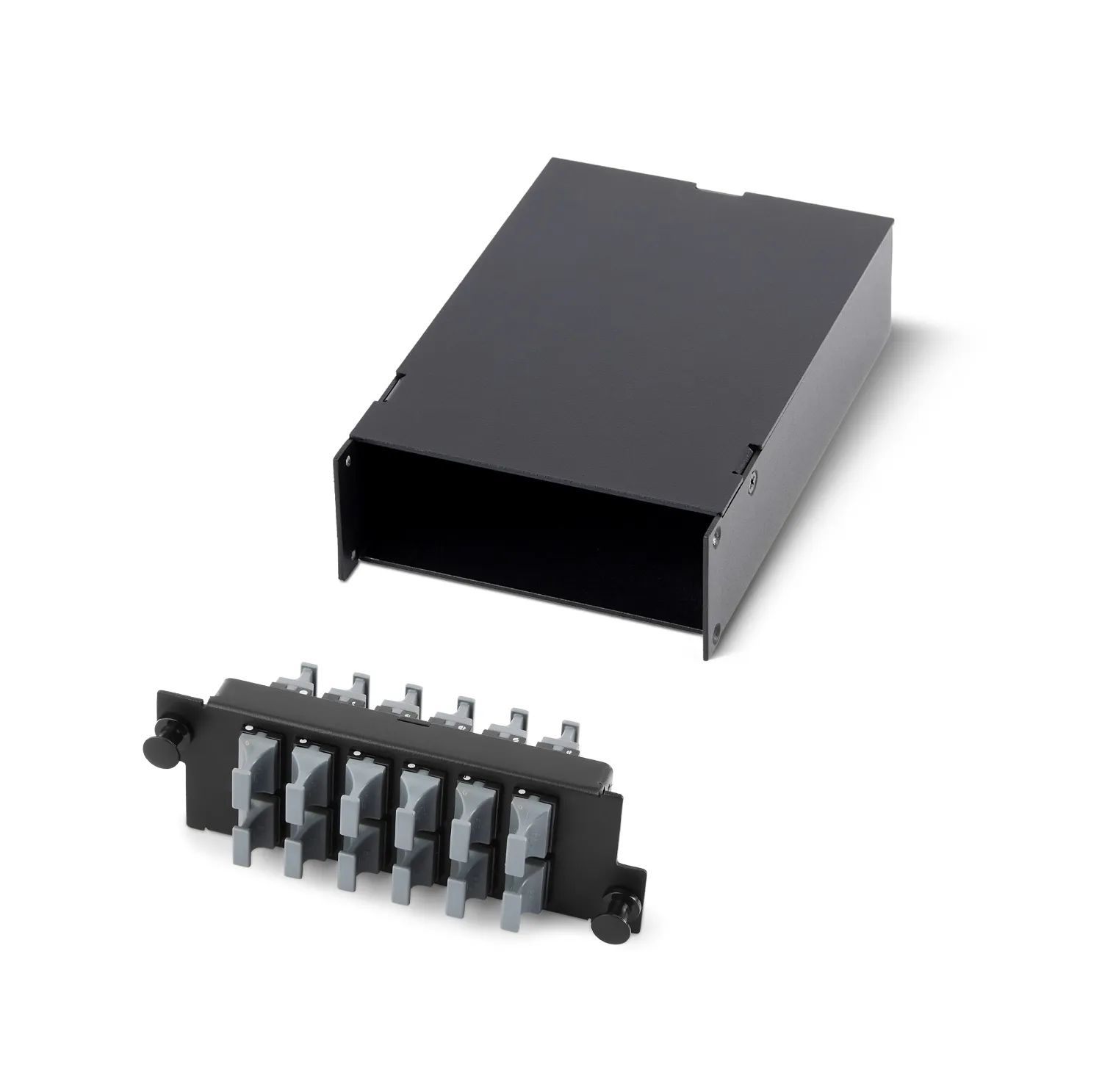

4MPO/MTP®-12MPO/MTP® Metal Module Cassettes, Match for UltraX/Y/N/S Series Enclosures

Identifier: 540037

Metal  |  MPO/MTP®

Features

+ View More

Product Description of 4MPO/MTP®-12MPO/MTP® Metal Module Cassettes, Match for UltraX/Y/N/S Series Enclosures

T&S optical module cassettes from the Ultra family are designed to efficiently break out four MPO/MTP® connectors into twelve MPO/MTP® connectors. Four metal cassettes accommodate 96 channels within a 1U space with 8F MPO/MTP® connectors, streamlining the deployment of optical networks in a modular fashion. This makes it an ideal solution for projects requiring compact, fast cabling.

Optic Performance

ParametersSMSMMM(OM3)MM(OM4)
MPO/UPC-MPO/MTP®MPO/APC-MPO/MTP®MPO/PC-MPO/MTP®MPO/PC-MPO/MTP®
Max Insertion Loss (dB)0.60.60.60.6
Typical (dB)0.350.350.30.3
Min Return Loss (dB)55602020


General Information

Cassette MaterialFront AdapterRear AdapterAdapter Color (Front)① Adapter Color (Rear)①
AluminumMPO/MTP®MPO/MTP®Black/Gray/Yellow or OthersBlack/Gray/Yellow or Others
CapacityStandardDimension(mm)Weight(g)②Applications
96F (MPO-8F)RoHS/REACH109.5x35x140248Match for UltraX/Y/N/S Enclosure


note

① More housing colors are available upon request;

② The weight includes the weight of the front and rear adapters, but excludes the weight of the cables.

Compliance

RoHS/ REACH
