MTP®/MPO Harness Cable

MTP®/MPO Harness Cable

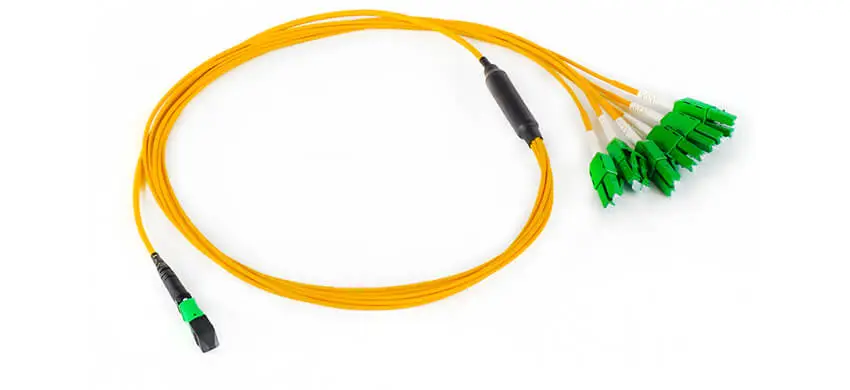

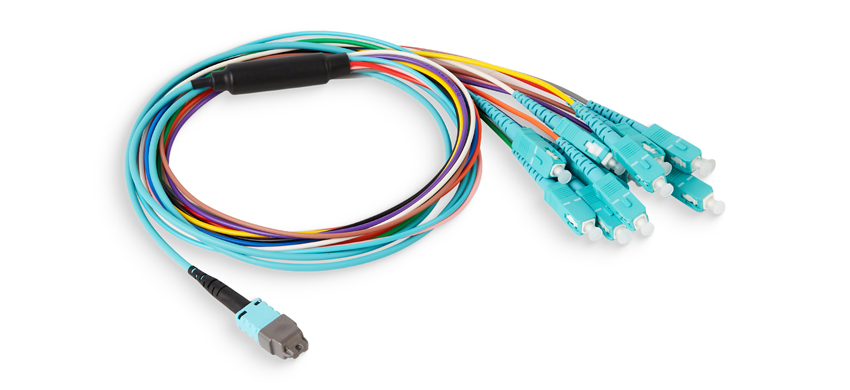

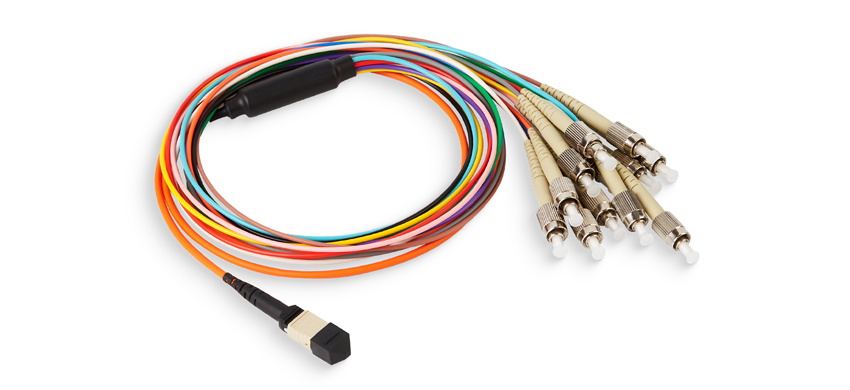

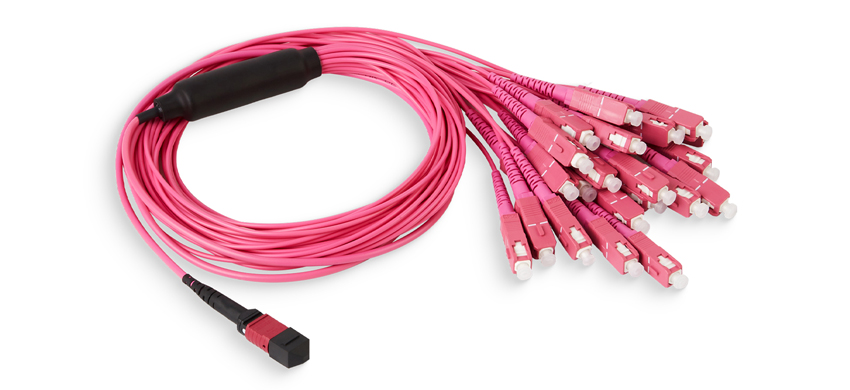

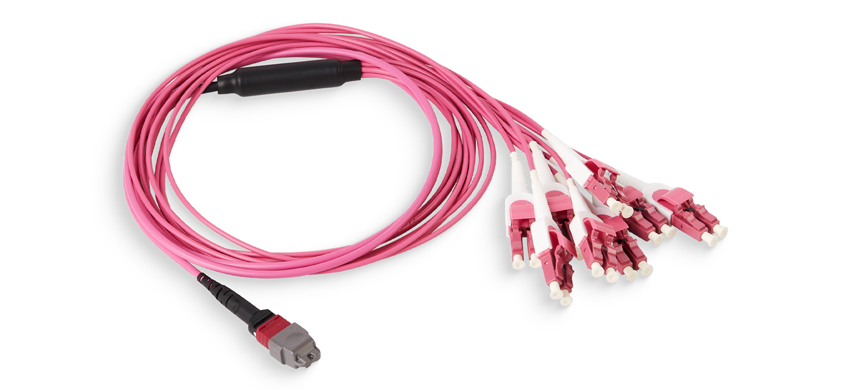

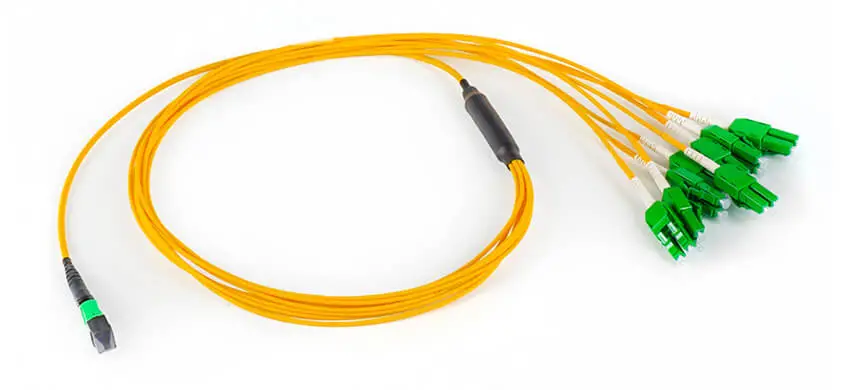

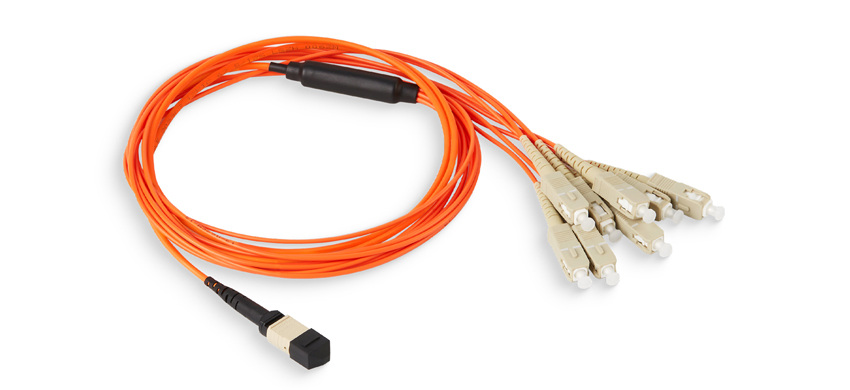

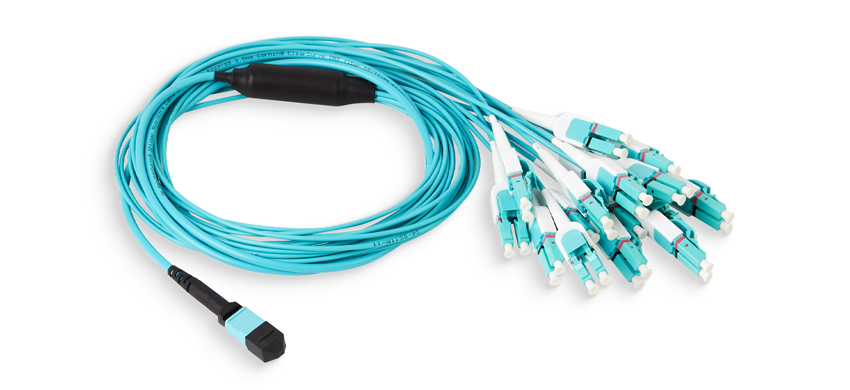

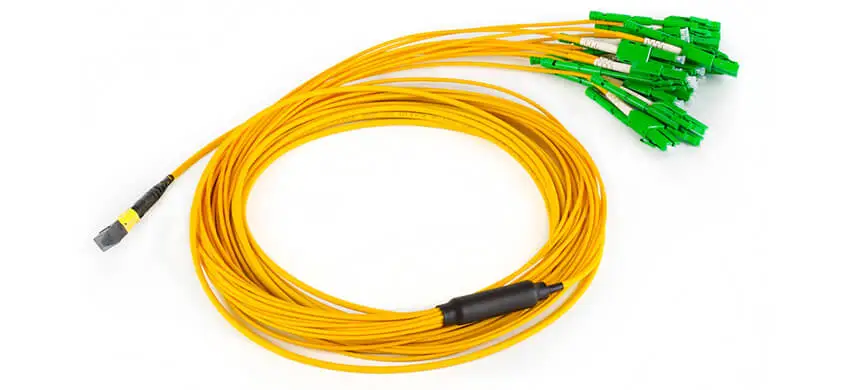

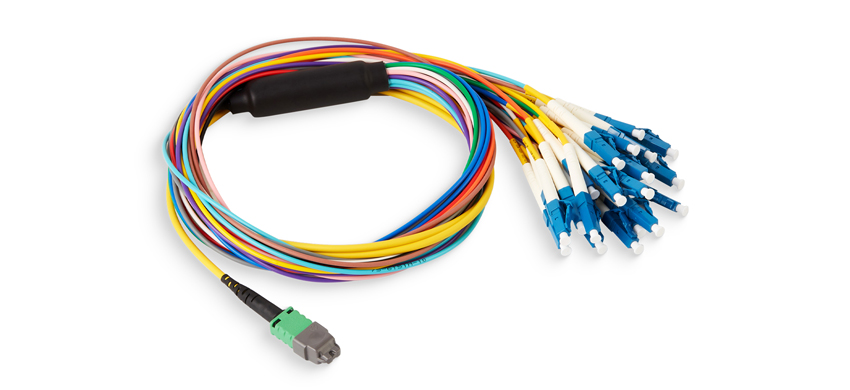

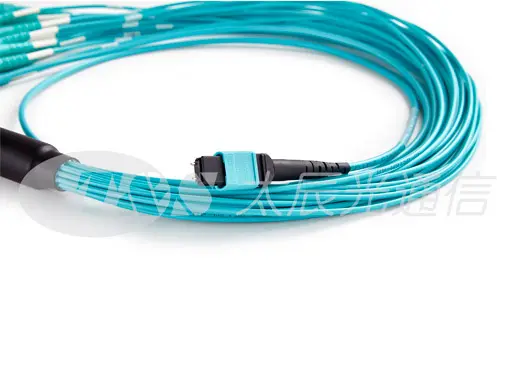

MTP®/MPO harness cables are a kind of MTP®/MPO fanout harness cable or breakout cable assembly with one MTP®/MPO connector on one end and multiple single-fiber connectors (LC, SC, FC, etc.) on the other end, designed for data distribution and routing to patch panels. It is used to transition from trunk backbone assemblies to fiber rack systems. The MTP® harness cable is fully configurable, available with a variety of cable and connector combinations. For the hardware and equipment in the same cabinet, the longer MPO cord can provide flexibility at any location, and the branch MTP®/MPO cable can be winded into the vertical cable organizer.


MTP®/MPO Harness Cable Features

  • Our MPO/MTP harness cable is with low loss performance.

  • MPO / MTP in 8/12/16/24/32 fibers interfaces for choices.

  • This MTP/MPO fanout harness cable is available in OS1, OS2, G.657A2, OM3, OM4 Fiber Grades – OM1 and OM2 available upon request.

  • Option for LSZH, OFNP or OFNR cable jacket.

  • 100% factory terminated and tested.

  • Pulling eyes are provided as an option to protect the fiber ends during installation.

  • Save installation and reconfiguration time.


MTP®/MPO Harness Cord Applications

MPO-LC harness cables are dedicated for direct connection between MPO trunk cables and equipment with SFP+ ports via an MPO adapter. Available in polarity A, B or C, these MPO-LC harness cables as well enable connection to SFP+ ports in adjacent racks.

MPO-LC harness cables are compatible with all other MPO module cassette-based systems without any loss of optical performance.

MPO-LC harness cable is typically constructed with a mini cable that features by small diameter, low weight, and low bend radius. In a typical scenario, it’s used to make connections within the same rack or go-between adjacent racks via overhead cabling trays, slots or open ducting systems.

  • Data Center Interconnect

  • High-Density Fiber Management

  • Telecommunication Networks and CATV networks

  • LAN/WAN Premises


Standards Compliance of MTP®/MPO Harness Cable

  • TIA/EIA-568.3-D and ISO/IEC 11801;

  • IEC-61754 & EIA/TIA-604-5;

  • NFPA 262 or IEC 60332;

  • EN 50575;

  • Our MPO/MTP harness cable complies with GR-1435-CORE, GR-2866-CORE, GR-326-CORE;

  • Our 100g harness cable is compliant to Directive 2002/95/EC (RoHS) and REACH SvHC.


Technical Drawings of MTP®/MPO Harness Cable


Technical Drawings of MTP/MPO Harness Cable

MTP®/MPO Harness Cables Specifications

General Specification
Technical Specification

Construction

Description

Fiber Count

8-288 Fibers

Fiber Mode

Single mode: OS2/G657 9/125um
Multimode: OM4 50/125um, OM3 50/125um

Fiber Brand

SMF-28® Ultra optical fiber

Corning ClearCurve® multimode fiber

Cable Jacket Ratings

Riser (OFNR)

Plenum (OFNP)
Low Smoke Zero Halogen (LSZH)

Cable Jacket Color

OS2/G657: Yellow
OM3: Aqua; OM4: Aqua/Magenta
or Customized

Polarity

A/B/C or Customized

MTP/

MPO

Ferrule

12F/16F/ 24F/32F

Ferrule Brand

US Conec, HANKUSAN, Nissin

Connector Type

MTP Female, Male; MPO Female, Male

Connector Brand

US Conec MTP, Senko MPO, Nissin MPO, Sanwa MPO, FURUKAWA MPO

Connector Color

Ferrule

SM(APC)

SM(PC)

OM3

OM4

or

Customized

Low loss

Yellow

Yellow

Aqua

Magenta

Standard

Green

Blue

Aqua

Magenta

Boot Color

Green/Black/ or Customized

Single-fiber connector

LC, SC, FC, etc.

Pulling eye

Customized

Operating Temperature

-20°C to +70°C

Storage Temperature

-40°C to +85°C


MPO / MTP Termination

Optical Properties

Single mode

Multimode

Insertion Loss (dB)

Low loss

Standard

Low loss

Standard

≤0.35(Typical:≤0.25)

≤0.75(Typical:≤0.4)

≤0.35(Typical:≤0.2)

≤0.5(Typical:≤0.35)

Return Loss (dB)

PC≥50; APC≥60

PC≥20; APC≥40

Wavelength (nm)

1310/1550

850/1300

Durability

≤0.3 (dB)typical change, 50 matings


Generic Connector Termination

Optical Properties

Single mode

Multimode

Insertion Loss (dB)

≤0.2

≤0.2

Return Loss (dB)

PC≥55; APC≥60

PC≥25

Wavelength (nm)

1310/1550

850/1300

Durability

≤0.2(dB)typical change, 500 matings


Typical Cable Structure of MTP®/MPO-LC Harness Cables


Typical Cable Structure of MTP/MPO-LC Harness Cables

Typical Cable Structure of MTP/MPO-LC Harness Cables


Fiber Count

OD(mm)

Nominal Weight(kg/km)

Max. Tension(N)

Max. Crushing Resistance (N/100)

Short term

long Term

Short term

long Term

12

3.0±0.1

8.1

150

80

500

150

24

3.0±0.1

8.5

160

80

500

150

24

9.0±0.5

72

500

180

1000

300

36

9.0±0.5

78

500

180

1000

300

48

9.0±0.5

79

600

200

1000

300

60~72

11.2±0.5

126

1000

300

1000

300

96

13.5±0.5

178

1000

300

1000

300

144

17.5±0.5

285

1000

300

1000

300


Note: The actual weight of optical cable may have some tolerance against values stated above.



Pulling Elements of MTP®/MPO Harness Cord

Pulling Elements of MTP/MPO Harness Cord



Spool Packaging of MTP®/MPO Harness Cable

Spool Packaging of MTP/MPO Harness Cable
