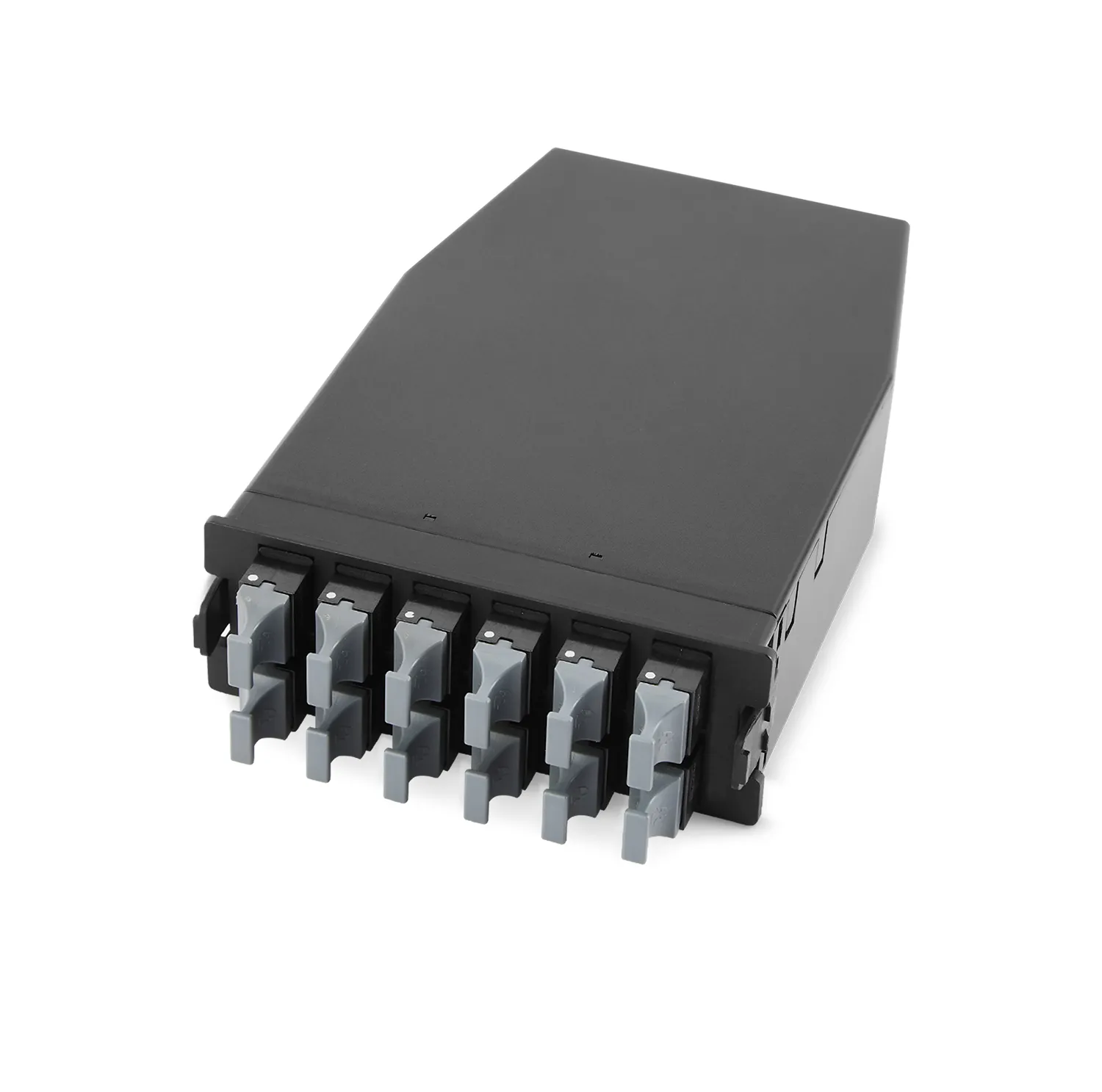

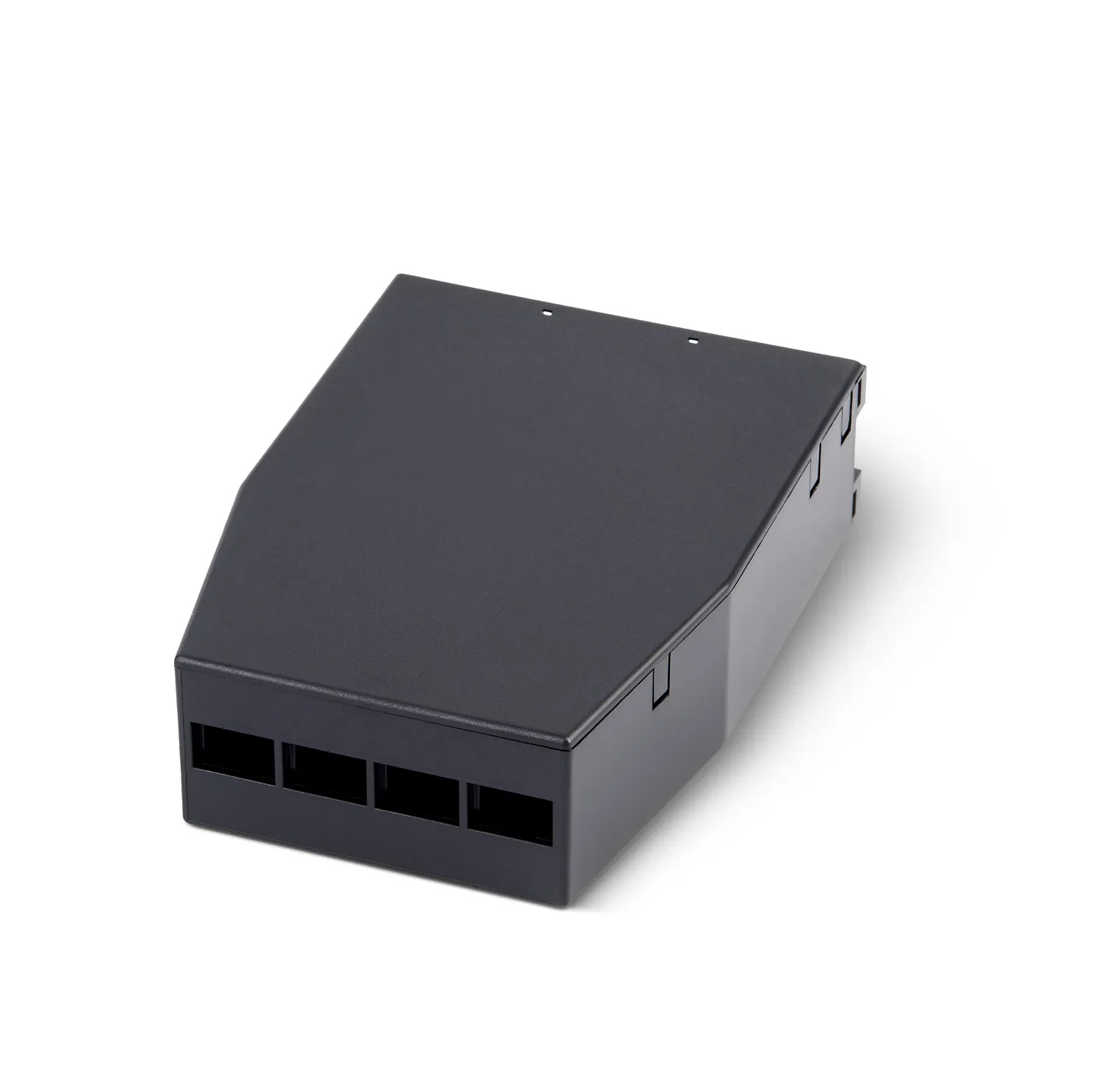

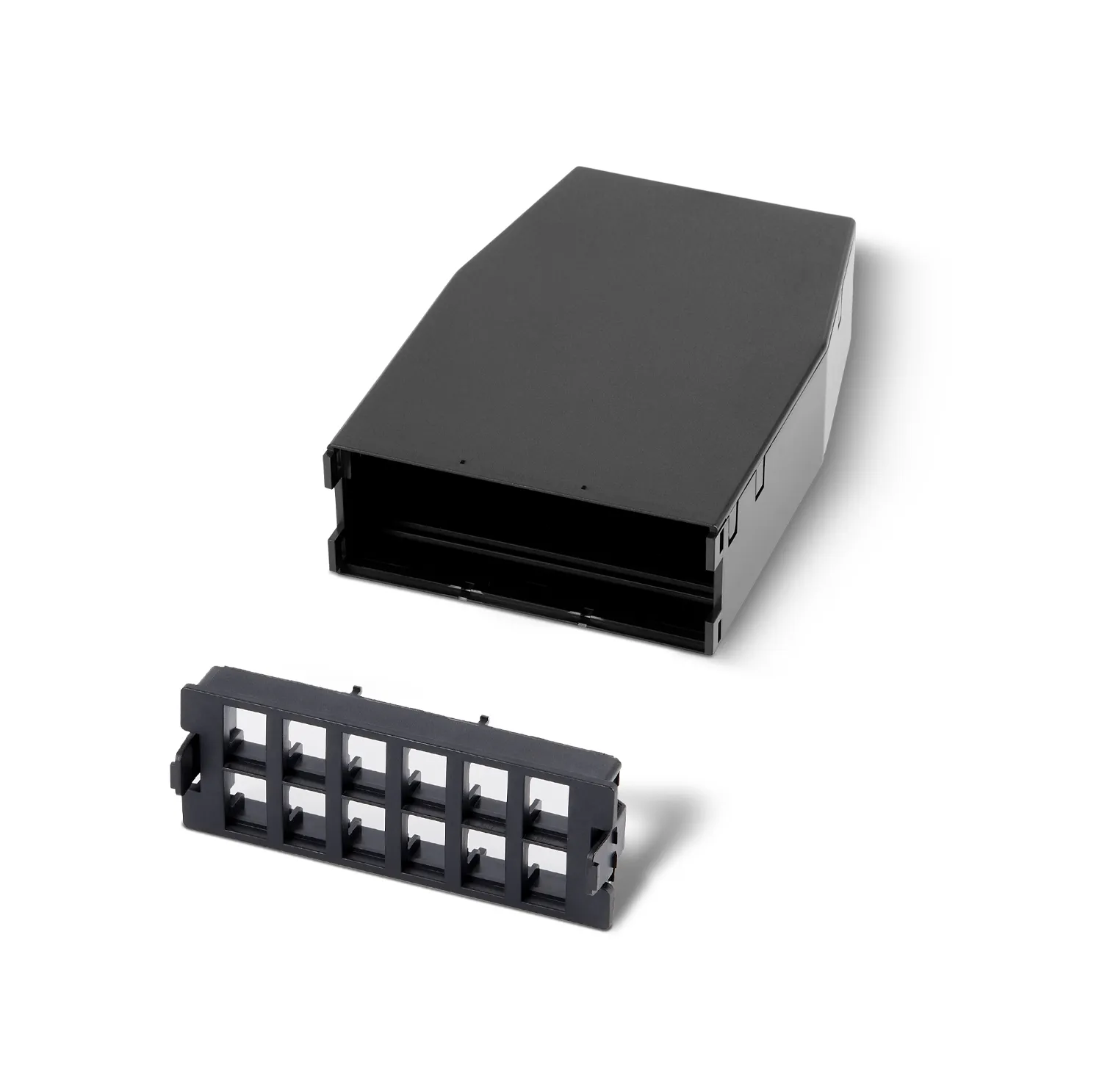

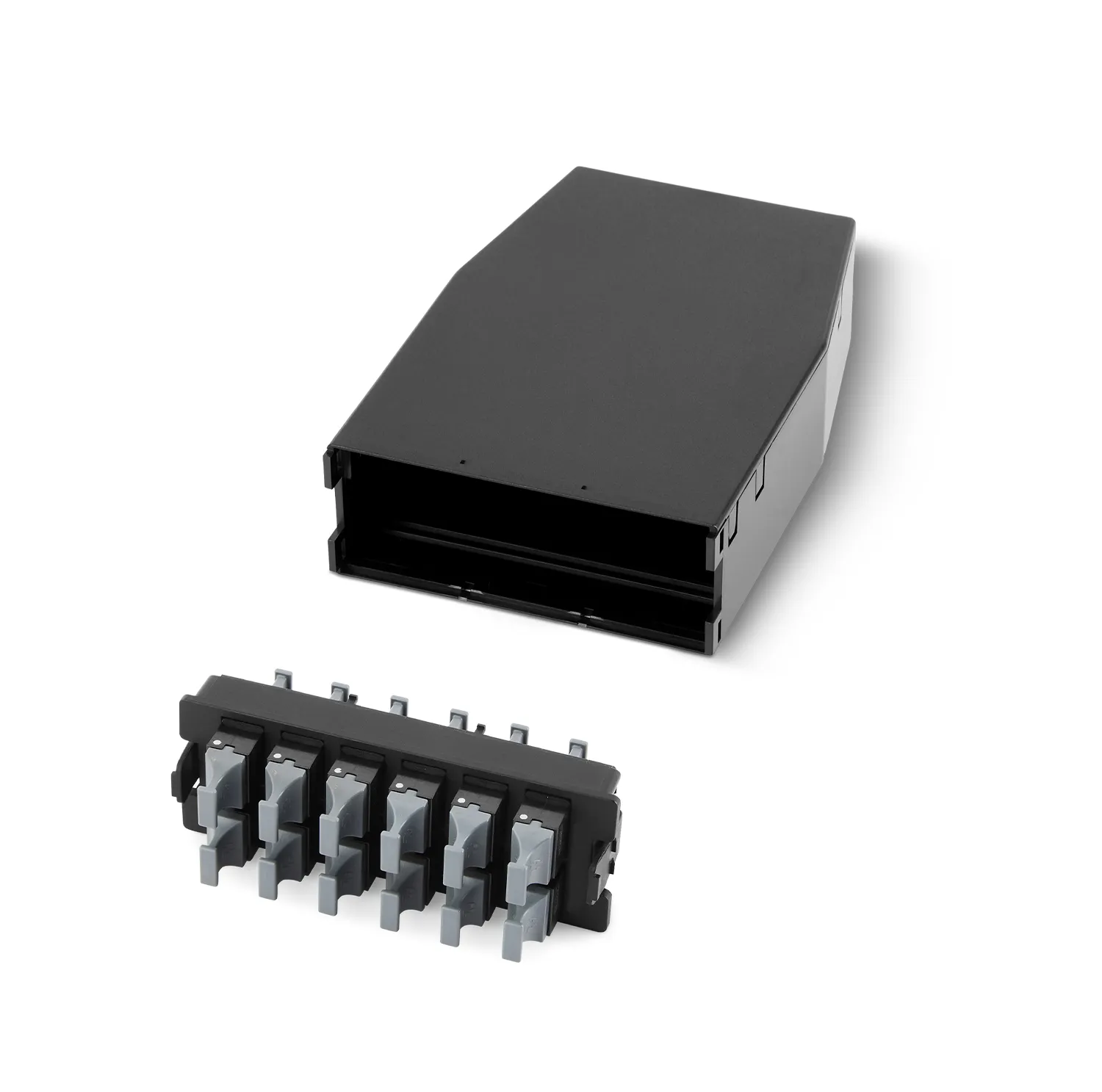

T&S optical module cassettes from the Ultra family are designed to efficiently break out four MPO/MTP® connectors into twelve MPO/MTP® connectors. This cassette accommodates 96 channels with 8F MPO/MTP® connectors, streamlining the deployment of optical networks in a modular fashion. This makes it an ideal solution for projects requiring compact and fast cabling.
| Cassette Material | Front Adapter | Rear Adapter | Adapter Color (Front)① | Adapter Color (Rear)① |
| PC+ABS | MPO/MTP® | MPO/MTP® | Black/Gray/Yellow or Others | Black/Gray/Yellow or Others |
| Capacity | Standard | Dimension(mm) | Weight(g)② | Applications |
| 96F (MPO-8F) | RoHS/REACH | 95x35x145.5 | 146 | Match for UltraX/Y/N/S Enclosure |
note
① More housing colors are available upon request；
② The weight includes the weight of the front and rear adapters, but excludes the weight of the cables.
