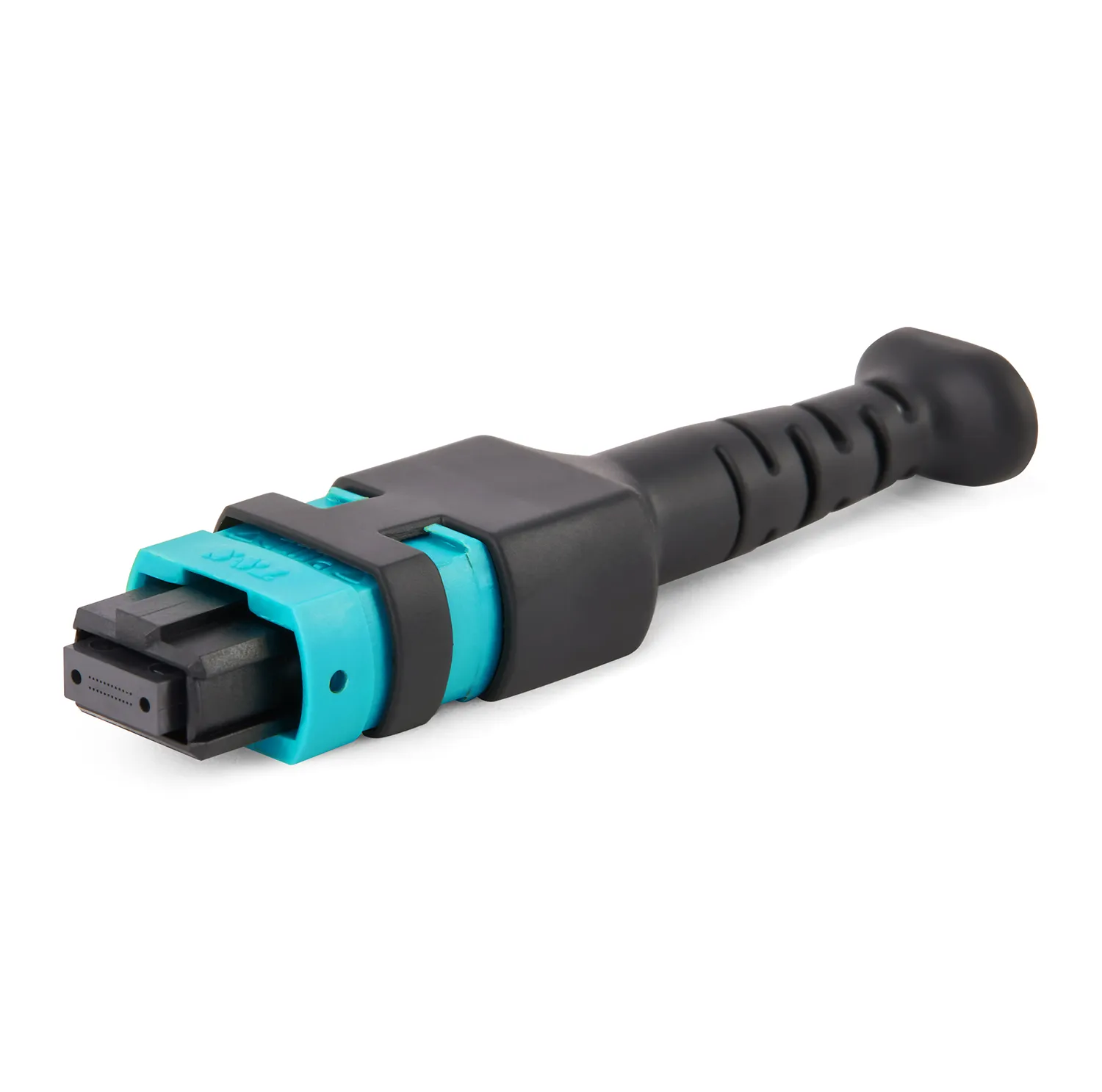

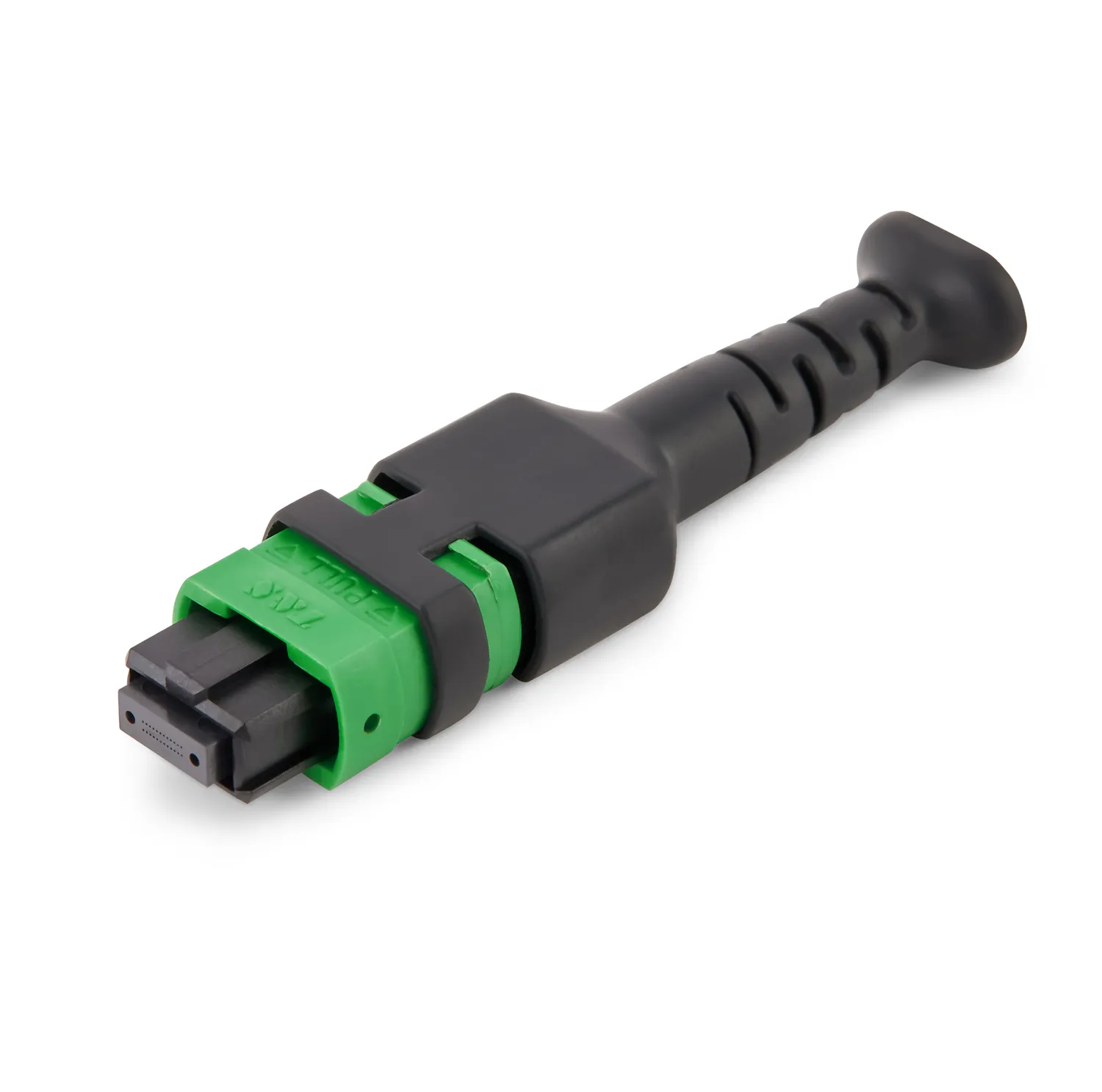

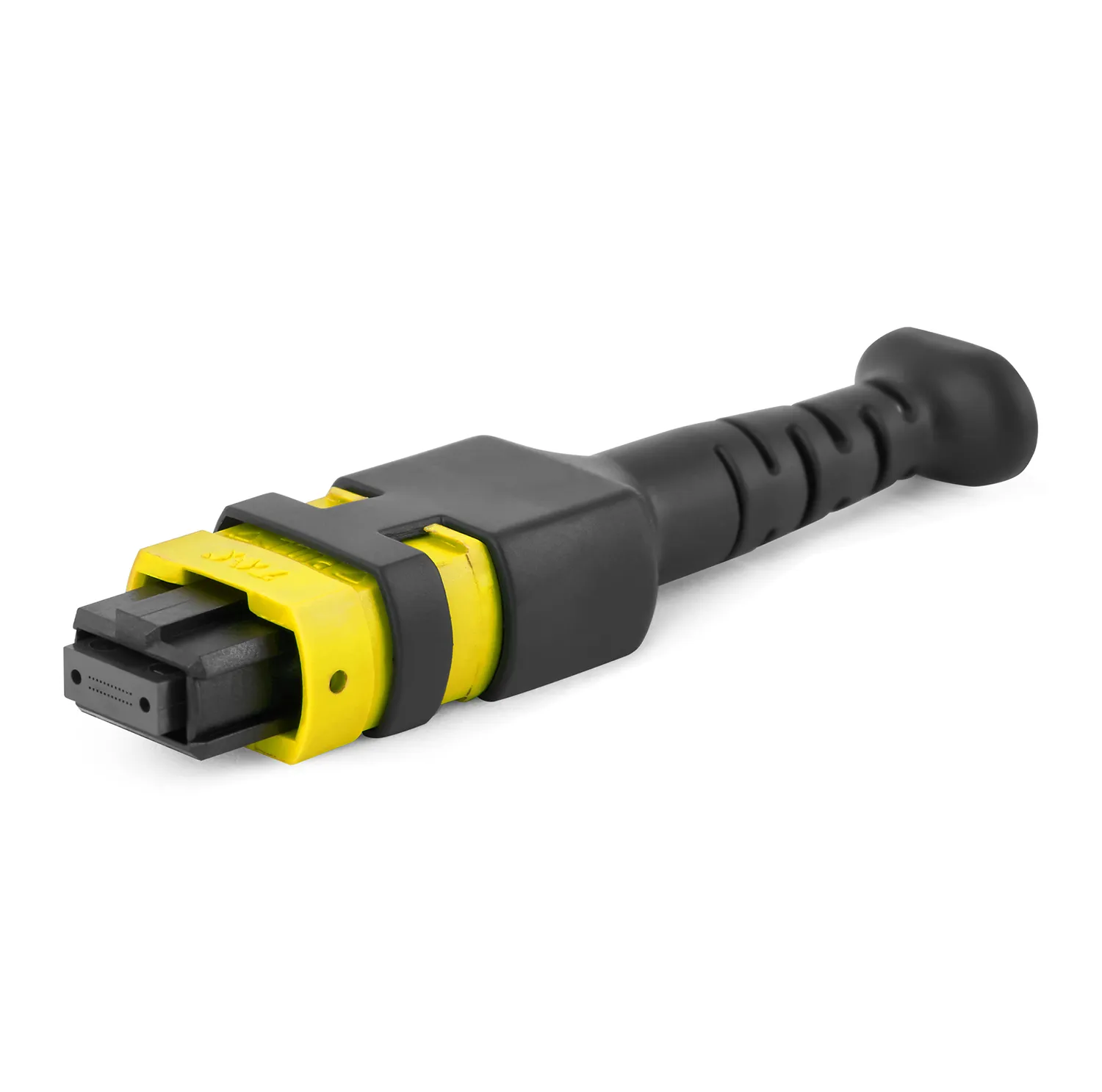

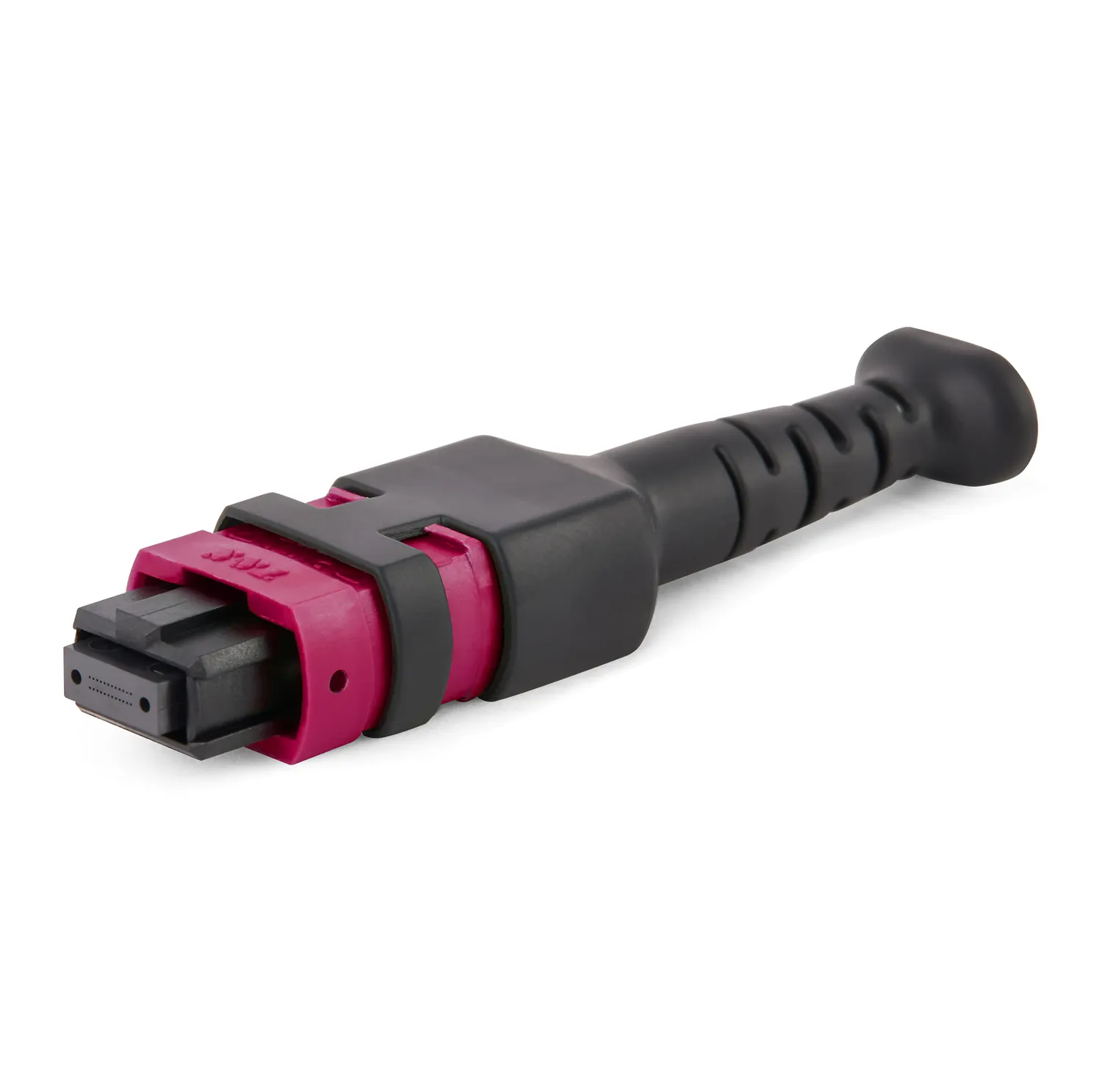

T&S’s MPO Connector with Push-Pull Boot design is engineered for high-density, space-constrained environments, delivering maximum functional density without requiring pull tabs or field tools. Its compact push-pull boot design enables quick, tool-free insertion and removal, making it ideal for 800G dual-MPO transceivers and streamlining patching operations in dense fiber cabling systems.
Fully compliant with industry-standard MPO interfaces, this connector ensures seamless integration with existing infrastructure. The ergonomic push-pull mechanism enhances accessibility, even in the most congested setups, offering a smoother, more efficient cabling experience.
| Value |
Fiber Count | Up to 32 fibers |
Cable | 2.0mm to 3.0mm round cable |
Durability | 50 matings |
Optical Performance
| Singlemode | Multimode |
Insertion Loss (Low Loss) | Max | 0.35dB | 0.35dB |
Insertion Loss (Low Loss) | Typical | 0.25dB | 0.20dB |
Insertion Loss (Standard) | Max | 0.75dB | 0.60dB |
Insertion Loss (Standard) | Typical | 0.40dB | 0.35dB |
Return Loss | PC | 50dB | 20dB |
Return Loss | APC | 60dB | 40dB |
Note: Low loss random mating test with master cords.
Environment Data
| Value |
Operating Temperature | -40℃ to +75℃ |
RoHS Compliance | Yes |
REACH Compliance | Yes |
