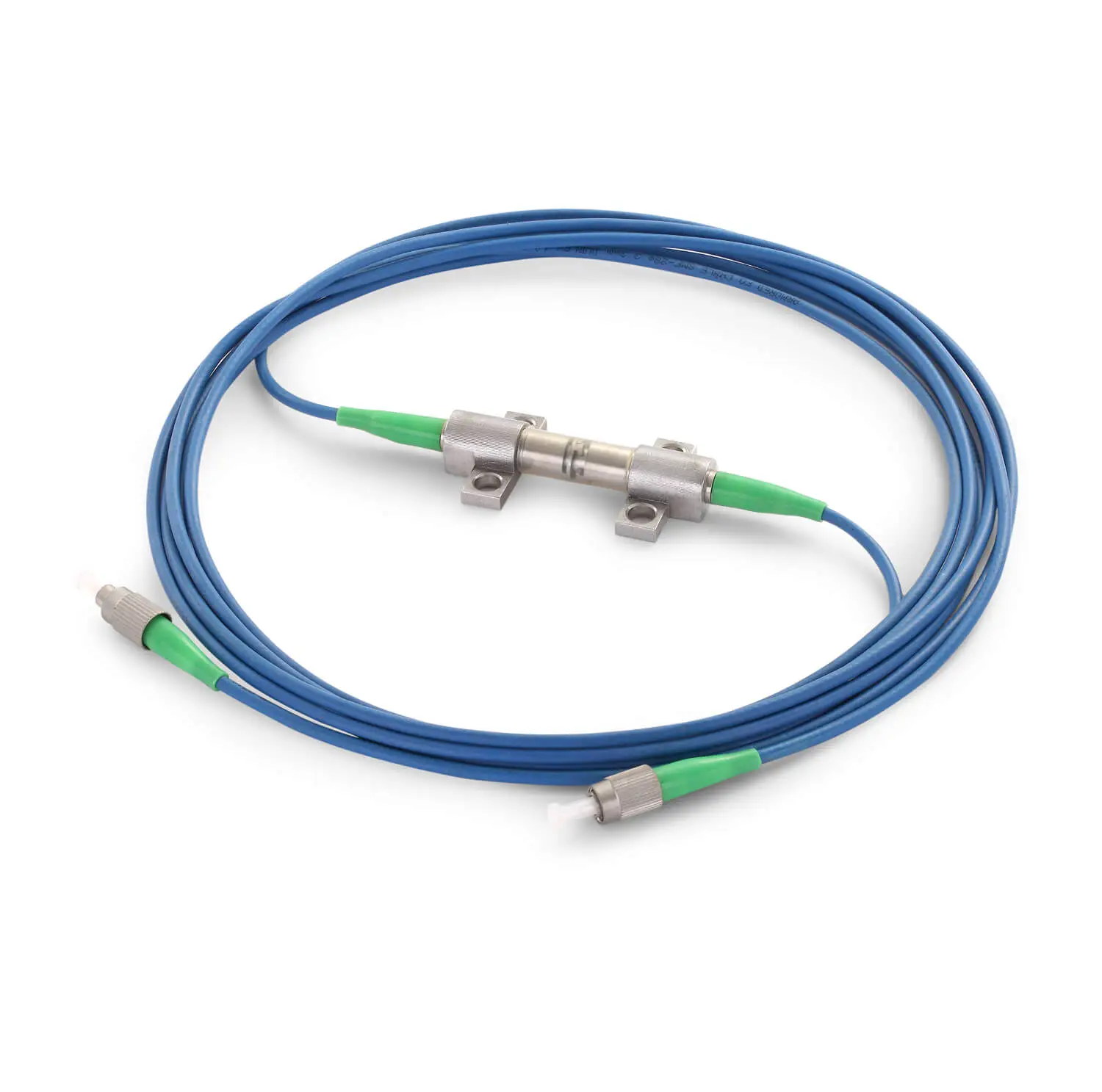

FBG Strain Sensor (S03)

FBG Strain Sensor

FBG(Fiber Bragg Grating) Strain Sensor measures the strain by utilizing the inherent feature of strain sensitivity of FBG. The kind of FBG sensor fits to be embedded to measure the strain in a ban, bridge, tunnel, and other constructions.


FBG Strain Sensor Features

TS S03 strain sensor can be fixed directly on the surface of the object to be tested, and no coating removal is required before fixation. TS S03 strain sensor shows excellent long-term stability under mechanical fatigue conditions, making them well suited for long-term condition monitoring.

FBG strain measurements are absolute measurements, which are ideal for off-line monitoring. As well, FBG strain sensors are immune to electromagnetic interference (even lightning interference). In addition, FBG sensors are passive devices, which means no electrical power is included) and therefore can be fixed in high voltage and even explosive atmosphere areas. Also, the measurement result can be read out over long distances without amplification. Besides, FBG sensors shows a good corrosion resistance owing to optical fiber material nature.

  • High precision

  • Our fiber Bragg grating strain sensor is resistant to electromagnetic interference

  • This kind of FBG sensor is with quick response

  • High stability and reliability

  • Effective lattice network for multi-point measurement



FBG Strain Sensor Applications

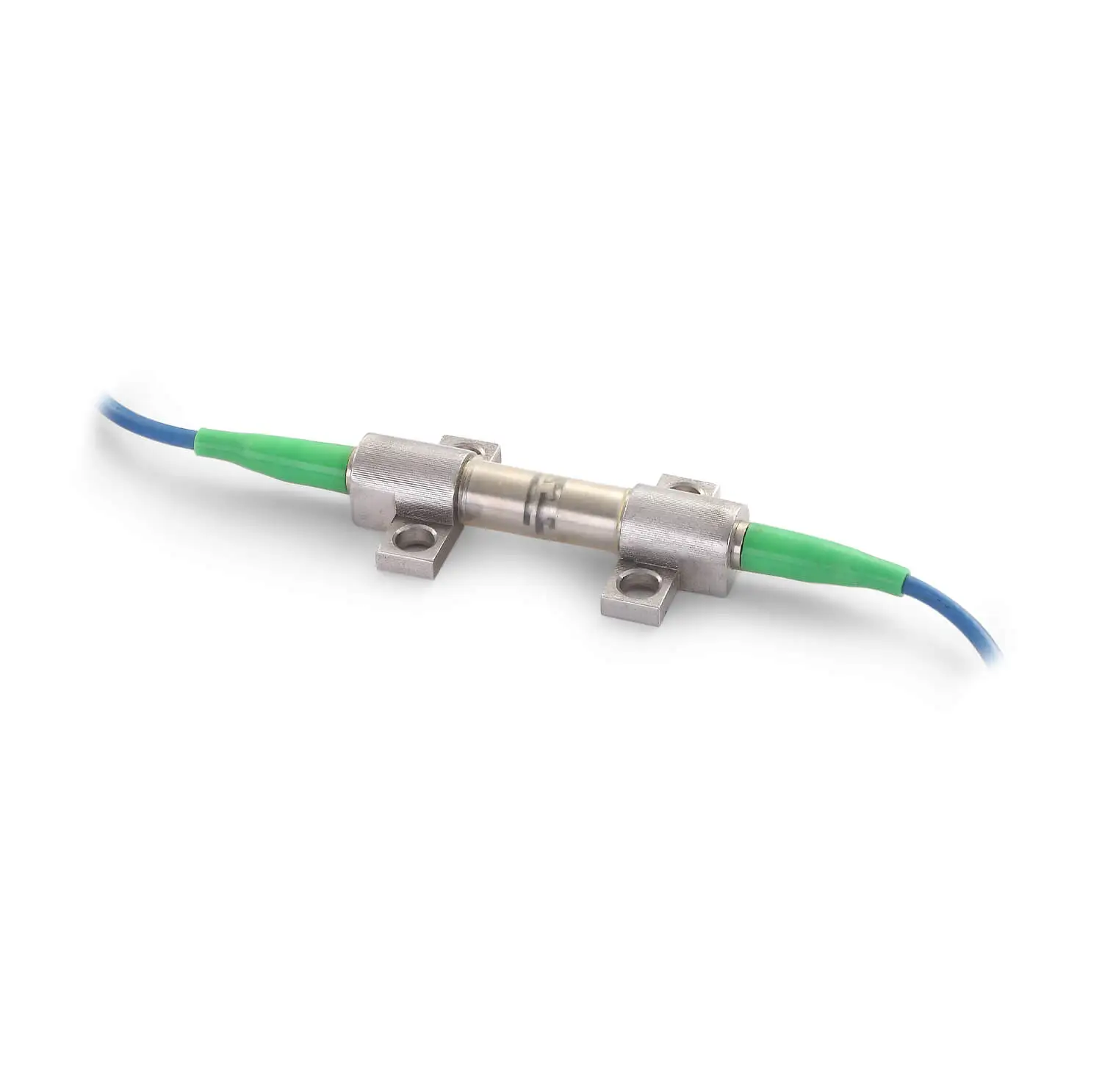

FBG strain sensor is fixed with screws or welded directly onto the surface of metal structures like pipes, beams, walls, or other structures, Also, they are designed with a metal protective cover. TS FBG strain sensors are durable and stable, which are widely used in engineering constructions of various applications.

Fiber Bragg Grating Strain Sensor Specifications

Specification

Item

Unit

Value

Wavelength

nm

1510~1590

range

με

5000

Resolution

με

1

precision

με

5

Connector type

---

FC/APC or Customize

Cable type

mm

Φ3

Size

mm

Φ17×70
