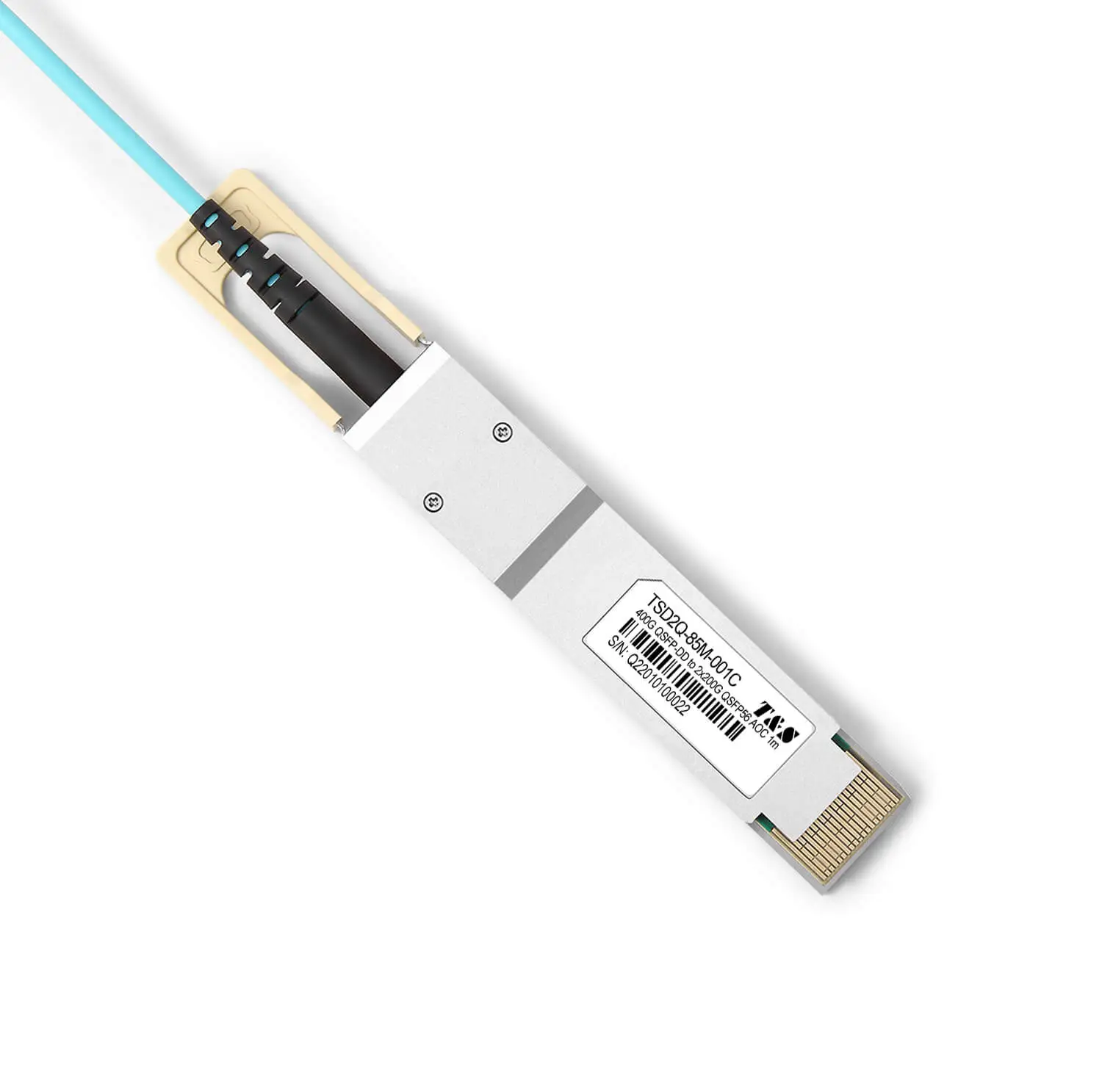

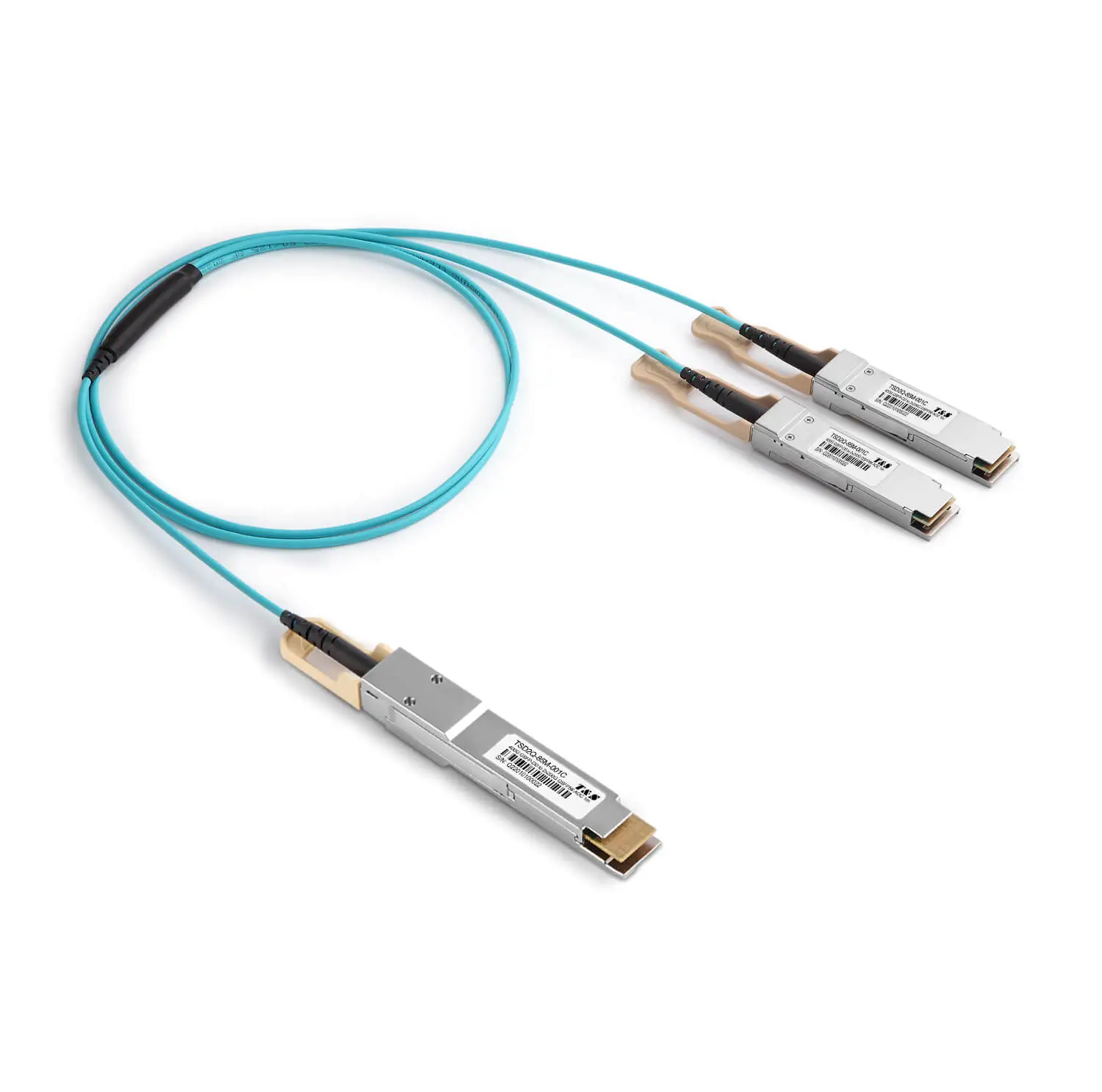

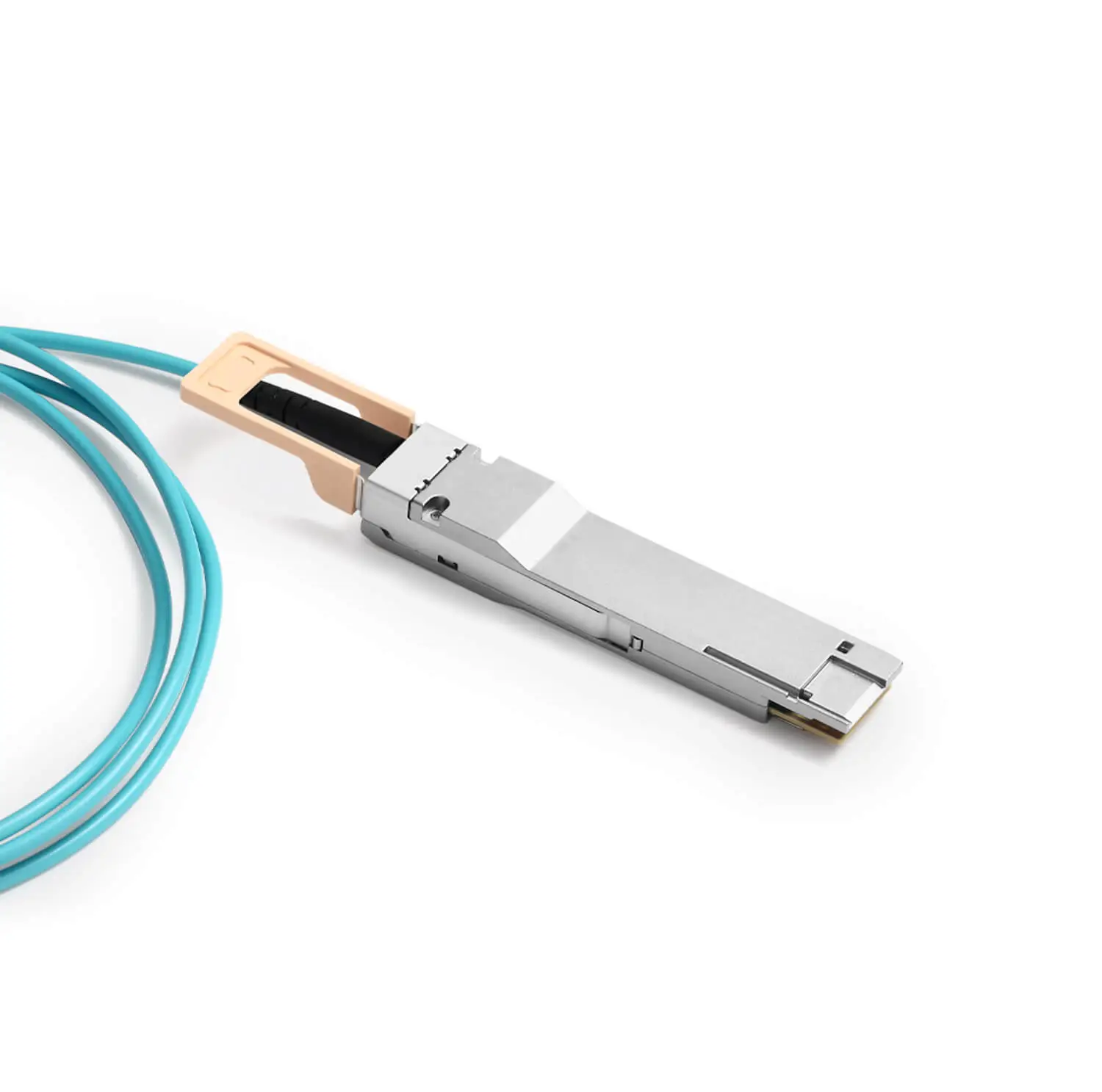

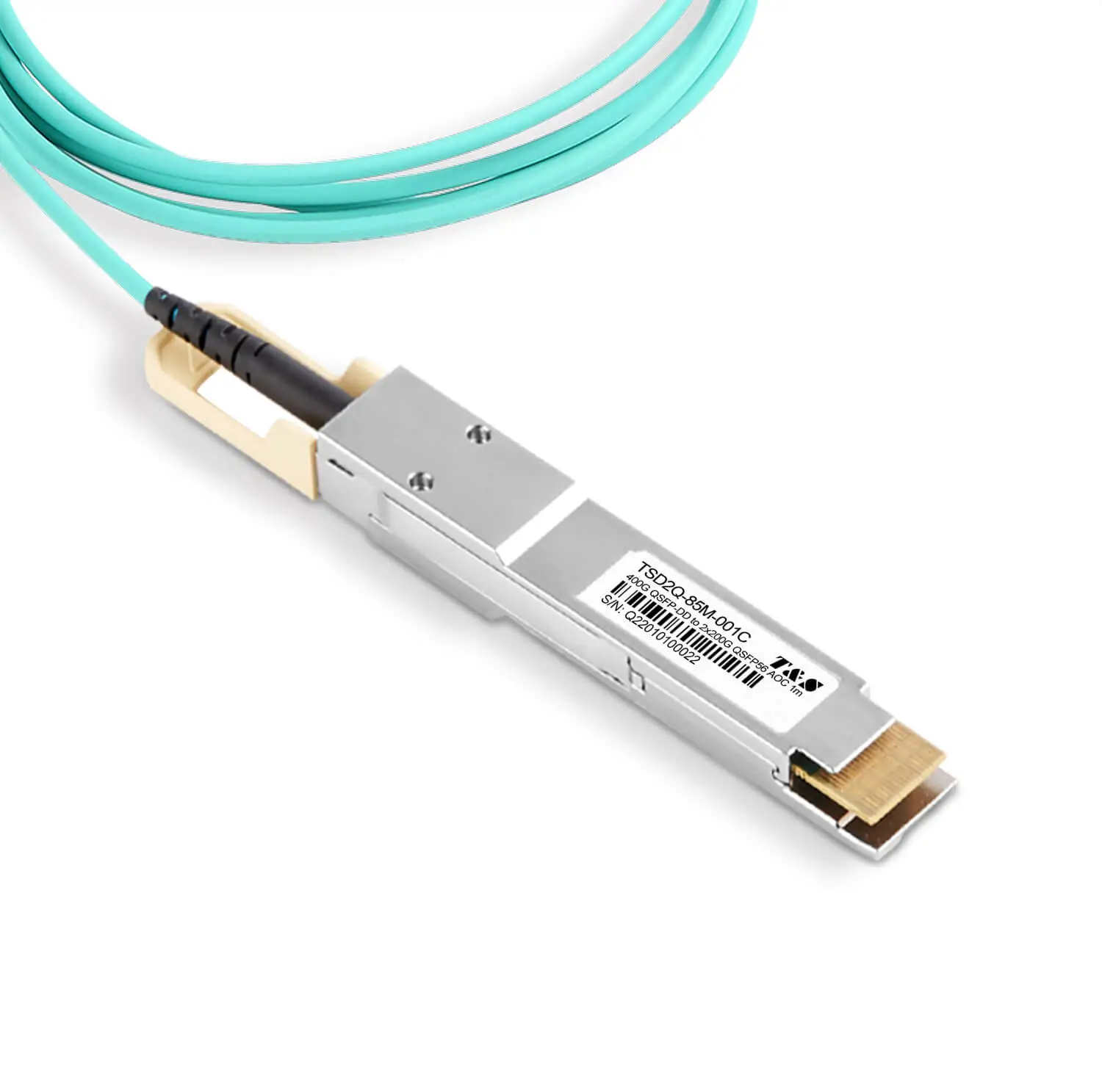

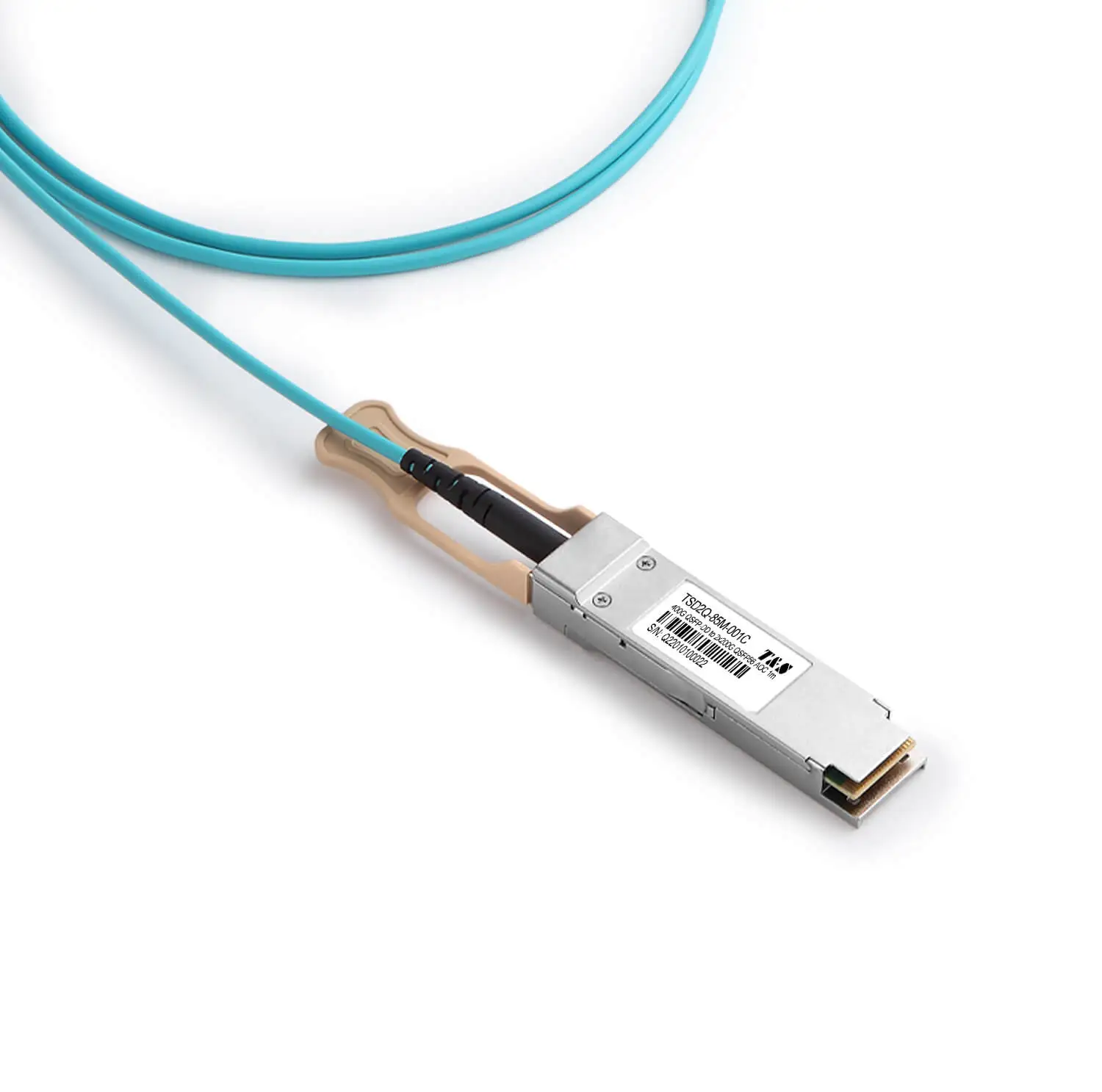

400G QSFP56-DD to 2 x 200GBASE QSFP56 Active Optical Cable

Name: 400G QSFP56-DD to 2 x 200GBASE QSFP56 Active Optical Cable
Brand: T&S Communications Co., Ltd.

Identifier: 120043

60mm | ≤10W@QSFP56-DD, ≤5.5W@QSFP56

Features

Hot-pluggable QSFP-DD form factor / QSFP28 form factor
Data rate 8x53Gbps PAM4 at QSFP-DD end
Data rate 2x25.78Gbps NRZ at QSFP28 end
Power consumption < 10W at QSFP-DD end
Power consumption < 5.5W at QSFP28 end
CMIS V4.0 compliant for QSFP-DD
SFF8636 compliant for QSFP28
Operating case temperature: 0℃~+70℃
RoHS6 compliant (lead free)

+ View More

Specification Drawings Request Quote

Product Description of 400G QSFP56-DD to 2 x 200GBASE QSFP56 Active Optical Cable

The TSD8Q-85M-XXXXA is an 8-Channel, Pluggable, Parallel, Fiber-Optic 400G QSFP56-DD to 8 x 50G QSFP28 AOC. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 76 contacts edge type connector at QSFP-DD end and 38 contacts edge type connectors at QSFP28 end.

Specifications

Part Number	TSD2Q-85M-XXXC	Application	400G Ethernet，200G Ethernet
Form Factor	QSFP56-DD to QSFP56	Data Rate	425Gbps
Wavelength	850nm	Max Length	70m
Cable Jacket	LSZH	Fiber	OM3
Min. Bending Radius	60mm	Receiver	PIN
Transmitter	VCSEL	Power Comsumption	≤10W@QSFP56-DD,≤5.5W@QSFP56
Power Supply	3.3V	DDM/DOM	Supported
Packaging	COB	Modulation	PAM4
DSP or CDR	DSP or CDR	Inbuilt FEC	No
Storage Temperature	-40℃ ~ + 85℃	Operating Temperature	0℃ ~ + 70℃
Compatibility	Generic	Class	Commercial
Protocols	IEEE 802.3cm	Warranty

Applications

400GBASE Ethernet

Compliance

RoHS/ UL/ CE/ TUV/ ISO14001/ ISO45001/ ISO9001
