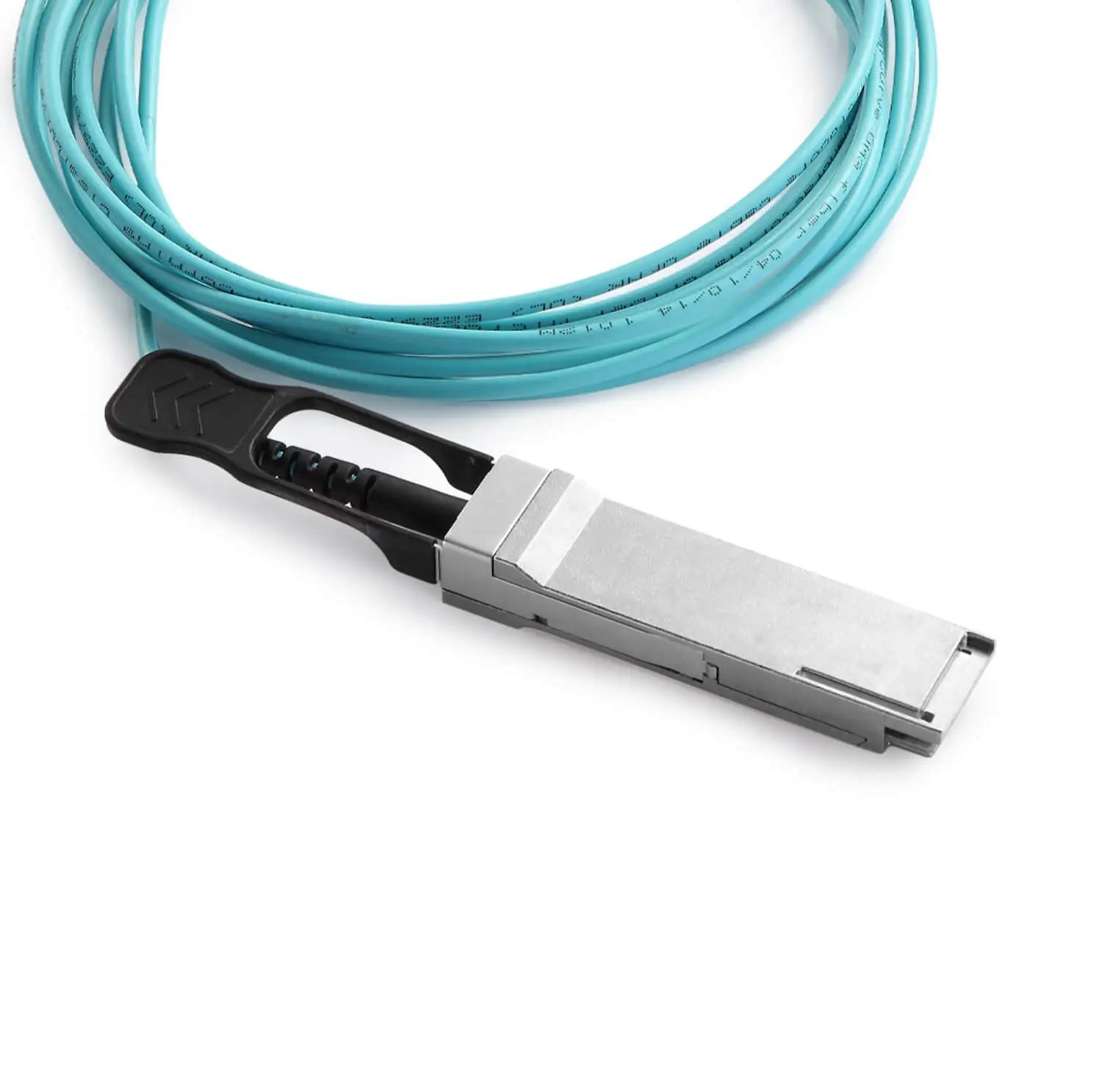

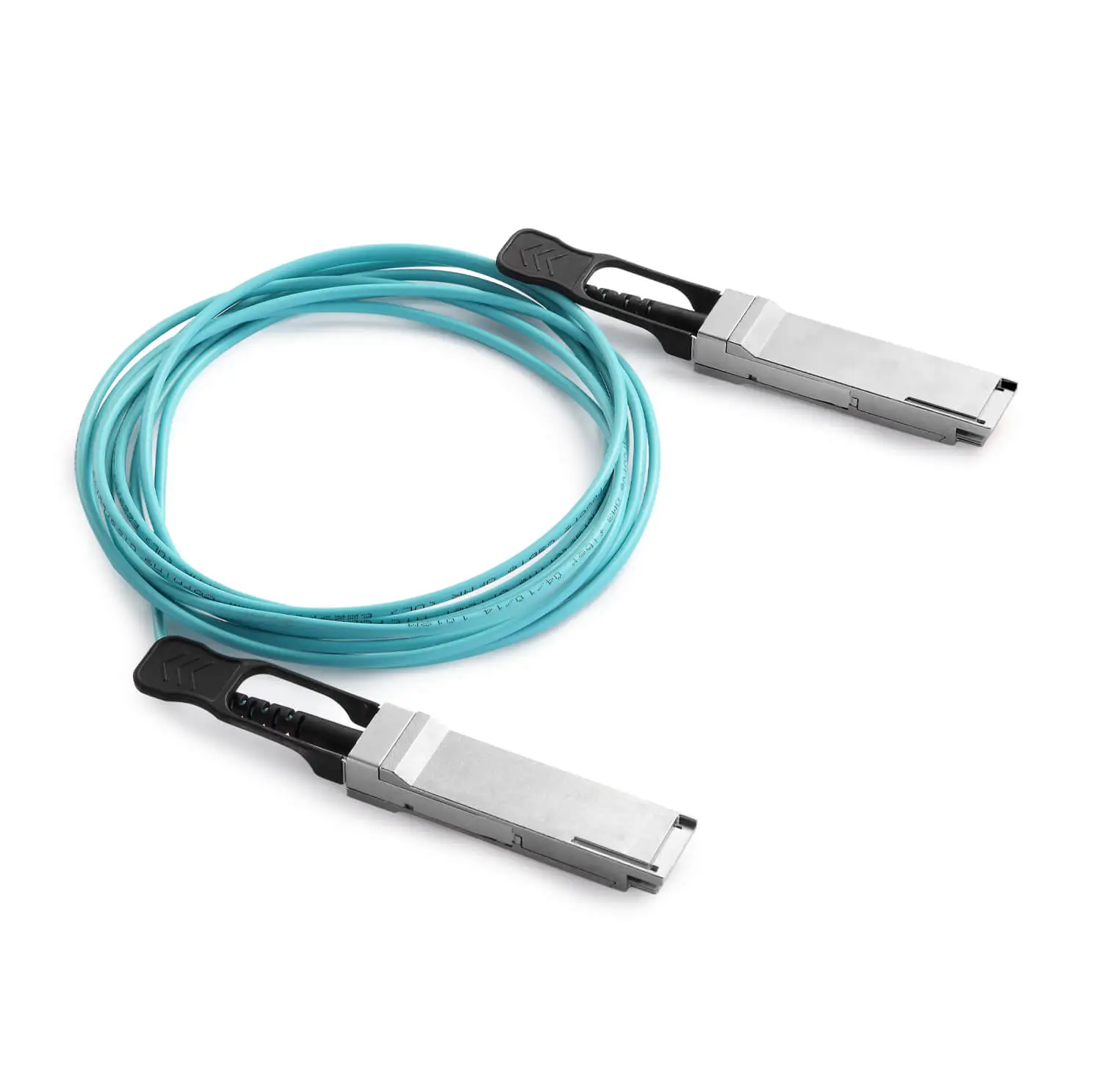

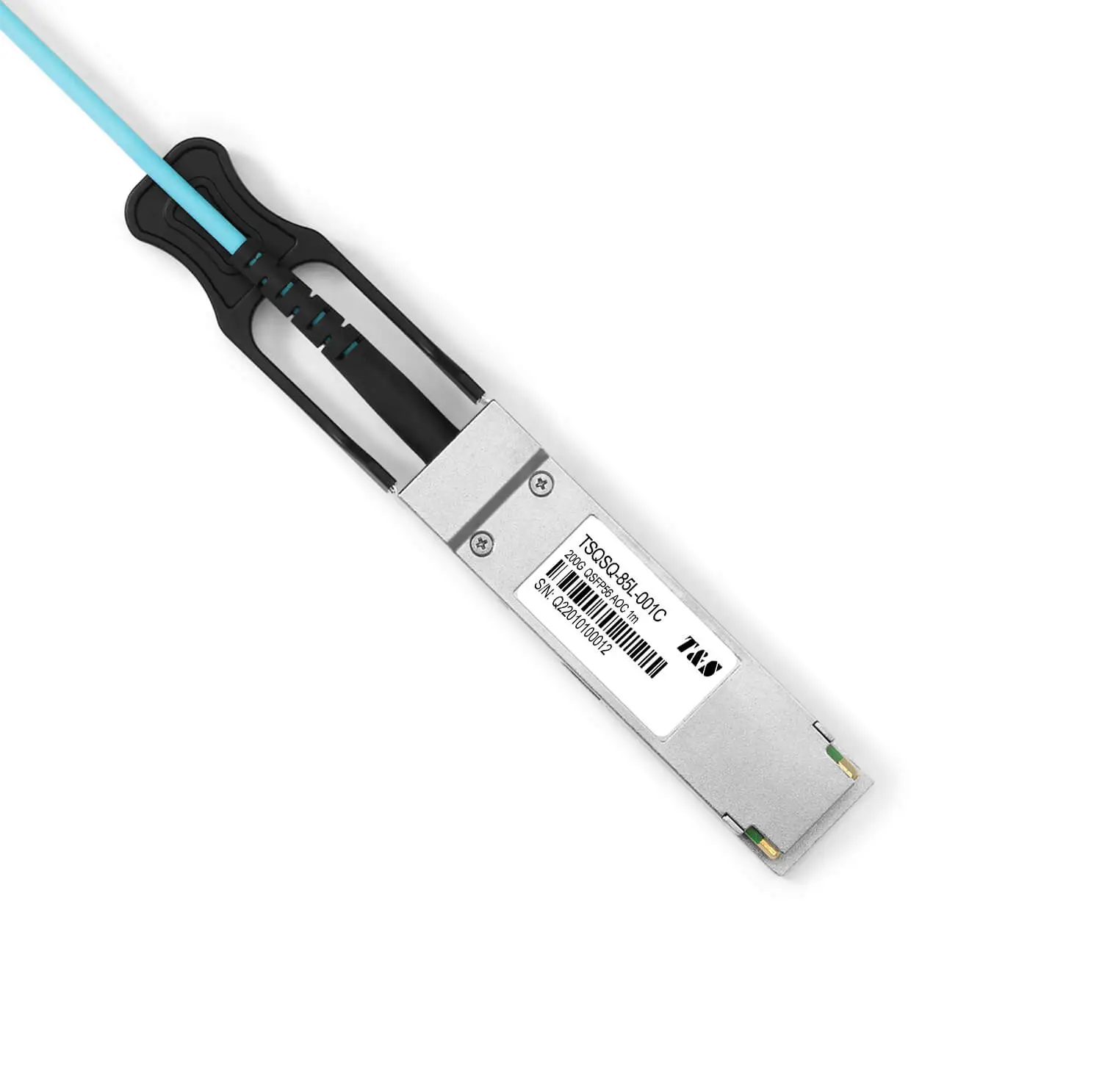

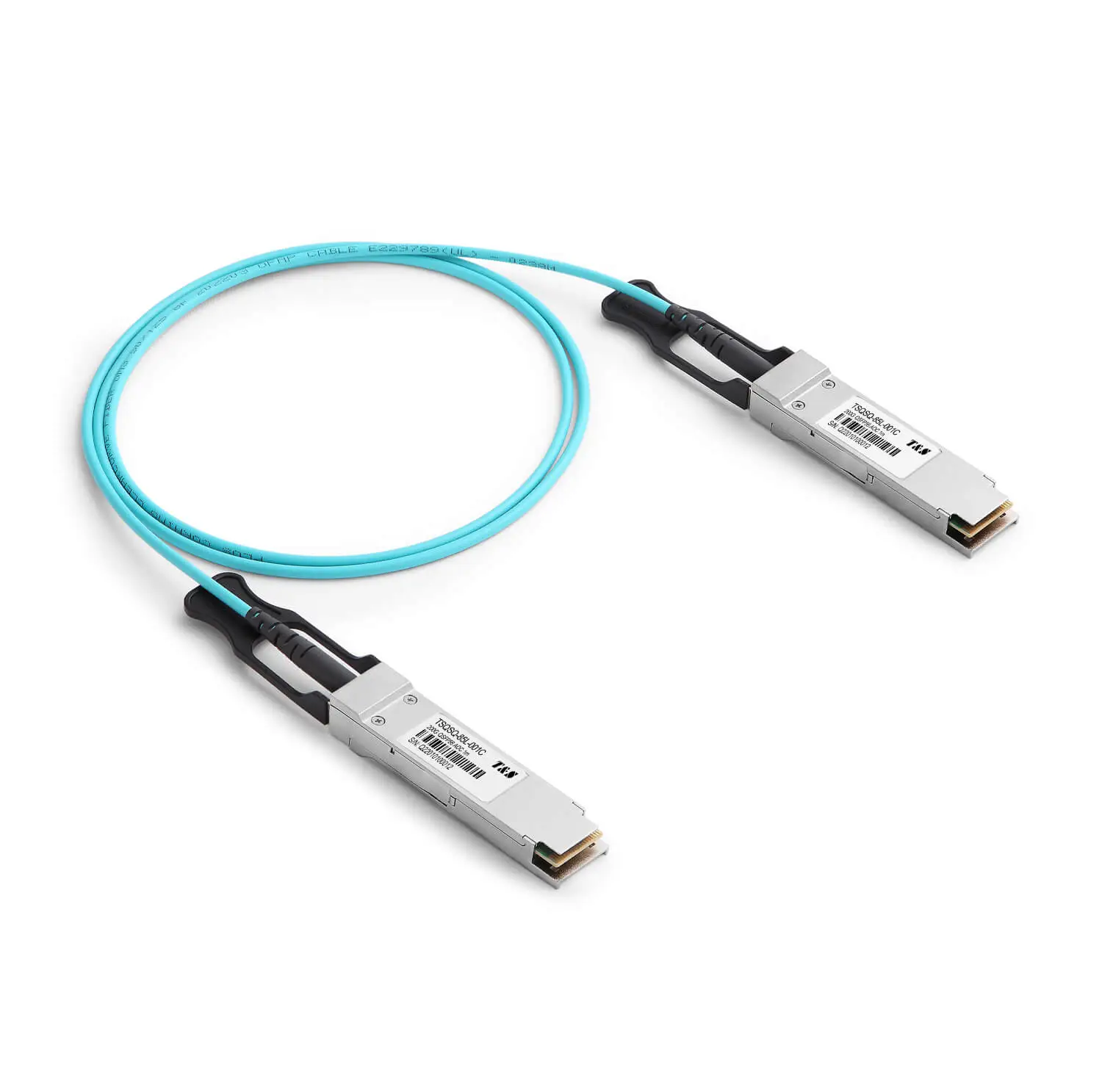

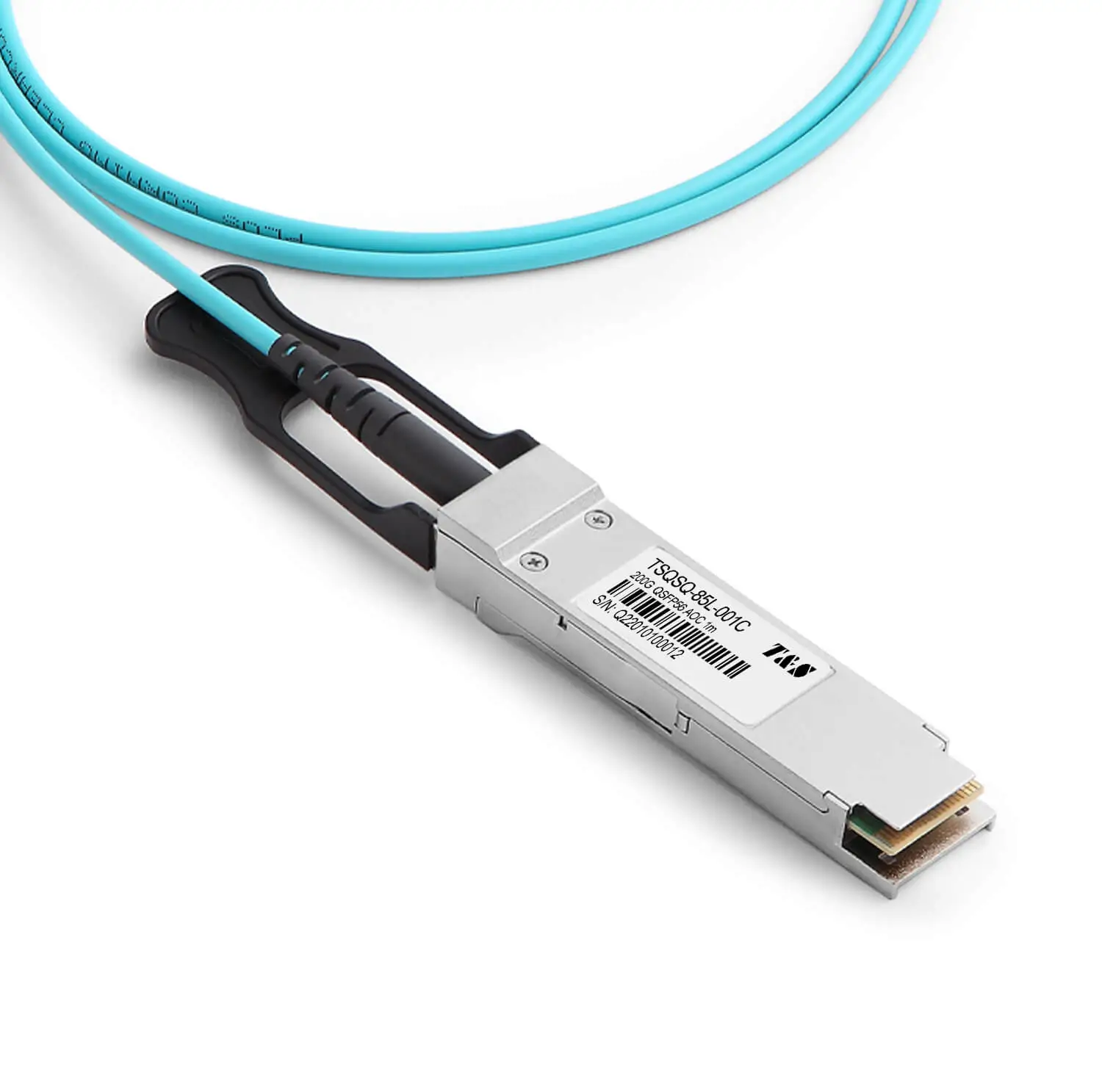

200G HDR QSFP56 Active Optical Cable

Identifier: 120026

60mm  |  ≤5.5W

Features

  • Hot-pluggable QSFP56 form factor

  • 4 channels full-duplex transceiver modules

  • Transmission data rate up to 53Gbps per channel

  • 4 channels 850nm VCSEL array

  • 4 channels PIN photo detector array

  • Low power consumption < 5.5W per end

  • Post FEC Bit Error Rate (BER) better than 1E-15

  • Built-in digital diagnostic functions

  • Operating case temperature: 0℃~+70℃

  • RoHS6 compliant (lead free)

+ View More
Specification Drawings Request Quote Share

Product Description of 200G HDR QSFP56 Active Optical Cable

The TSQSQ-85L-XXXCB is a Four-Channels, Pluggable, Parallel, Fiber-Optic QSFP56 for InfiniBand HDR Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnection applications. It integrates four data lanes in each direction.

Specifications

Part NumberTSQSQ-85L-XXXCBApplicationInfiniBand HDR
Form FactorQSFP56Data Rate212.5Gbps
Wavelength850nmMax Length70m
Cable JacketLSZHFiberOM3
Min. Bending Radius60mmReceiverPIN
TransmitterVCSELPower Comsumption≤5.5W
Power Supply3.3VDDM/DOMSupported
PackagingCOBModulationPAM4
DSP or CDRDSP or CDRInbuilt FECNo
Storage Temperature-40℃ ~ + 85℃Operating Temperature0℃ ~ + 70℃
CompatibilityGenericClassCommercial
ProtocolsIEEE 802.3cdWarranty


Applications

  •  InfiniBand HDR

Compliance

RoHS/ UL/ CE/ TUV/ ISO14001/ ISO45001/ ISO9001
