WIFI Smart Temperature and Humidity Sensor

Name: WIFI Smart Temperature and Humidity Sensor
Brand: T&S Communications Co., Ltd.

Identifier: 160021

IP55 | WIFI | Temp. -20℃ to 80℃ | Humidity 0-100%RH

Features

Supports modification of key sensor parameters and calibration of temperature and humidity data.
Supports multi-user access, allowing users to view temperature and humidity data from all monitoring points.
Supports historical data export.
High measurement accuracy, wide measurement range, and good data consistency.
Other language versions can be provided upon request.

Specification Drawings Request Quote

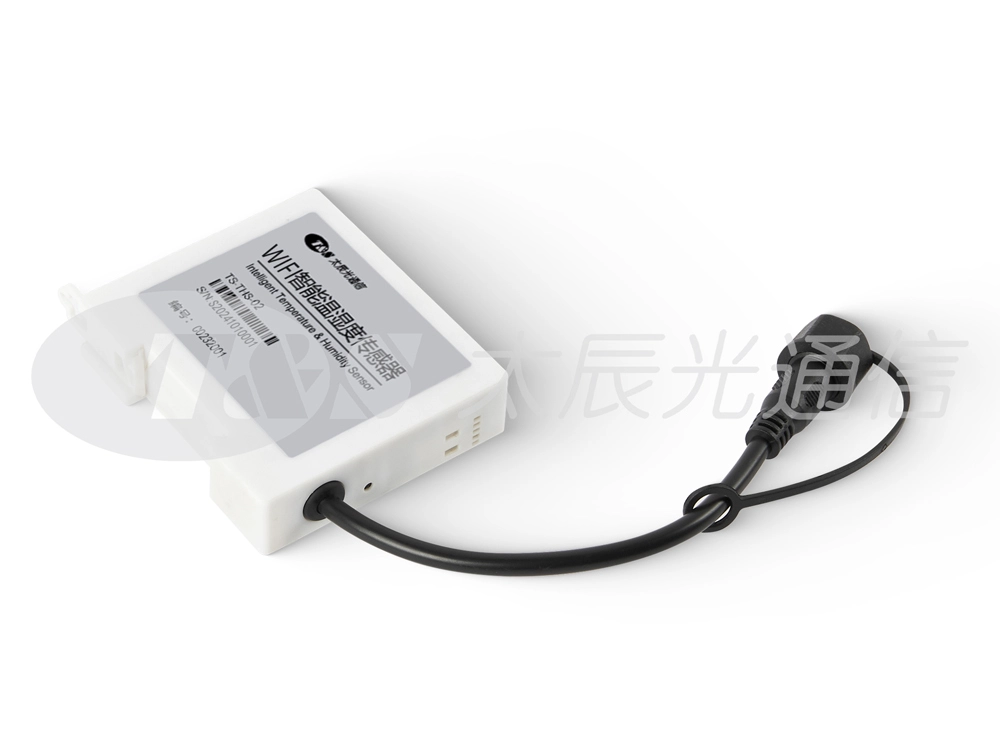

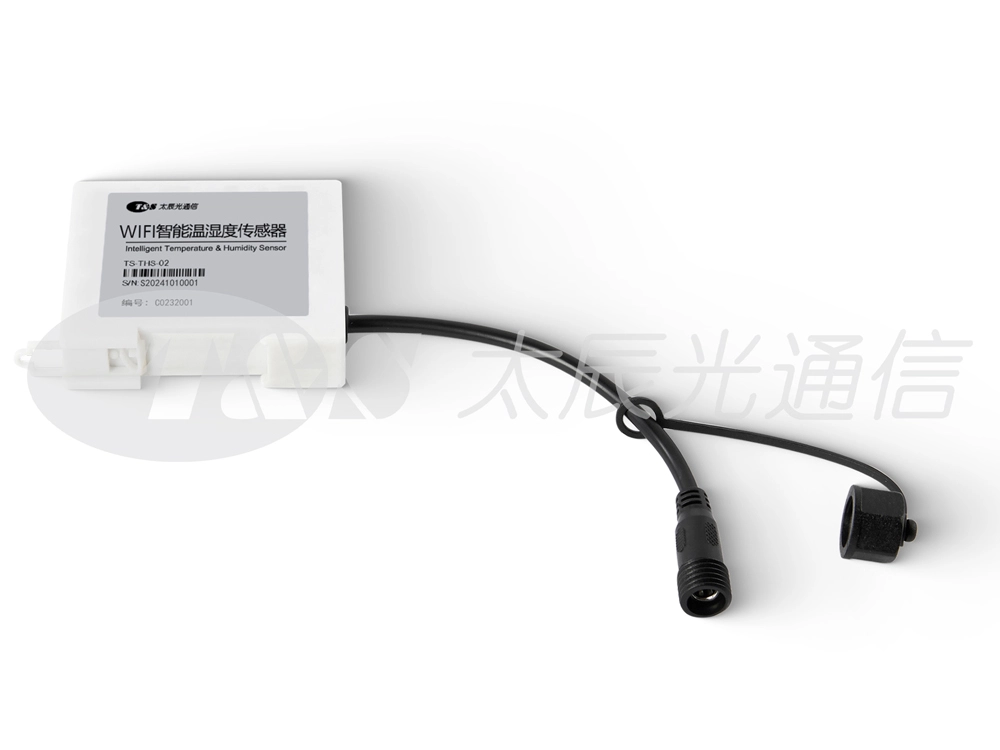

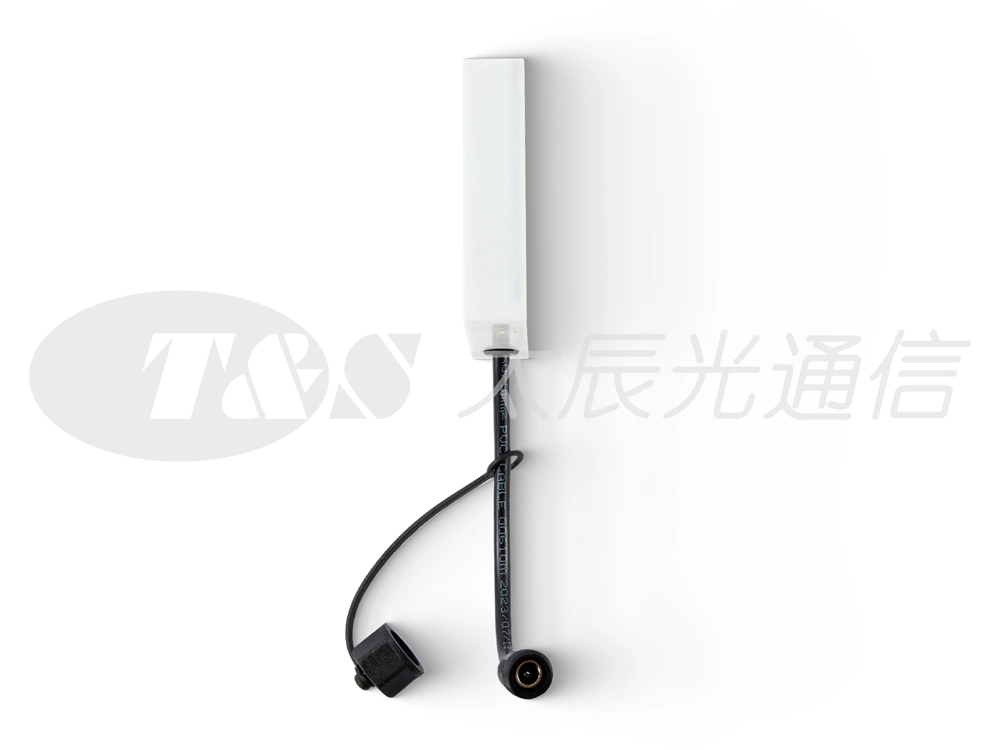

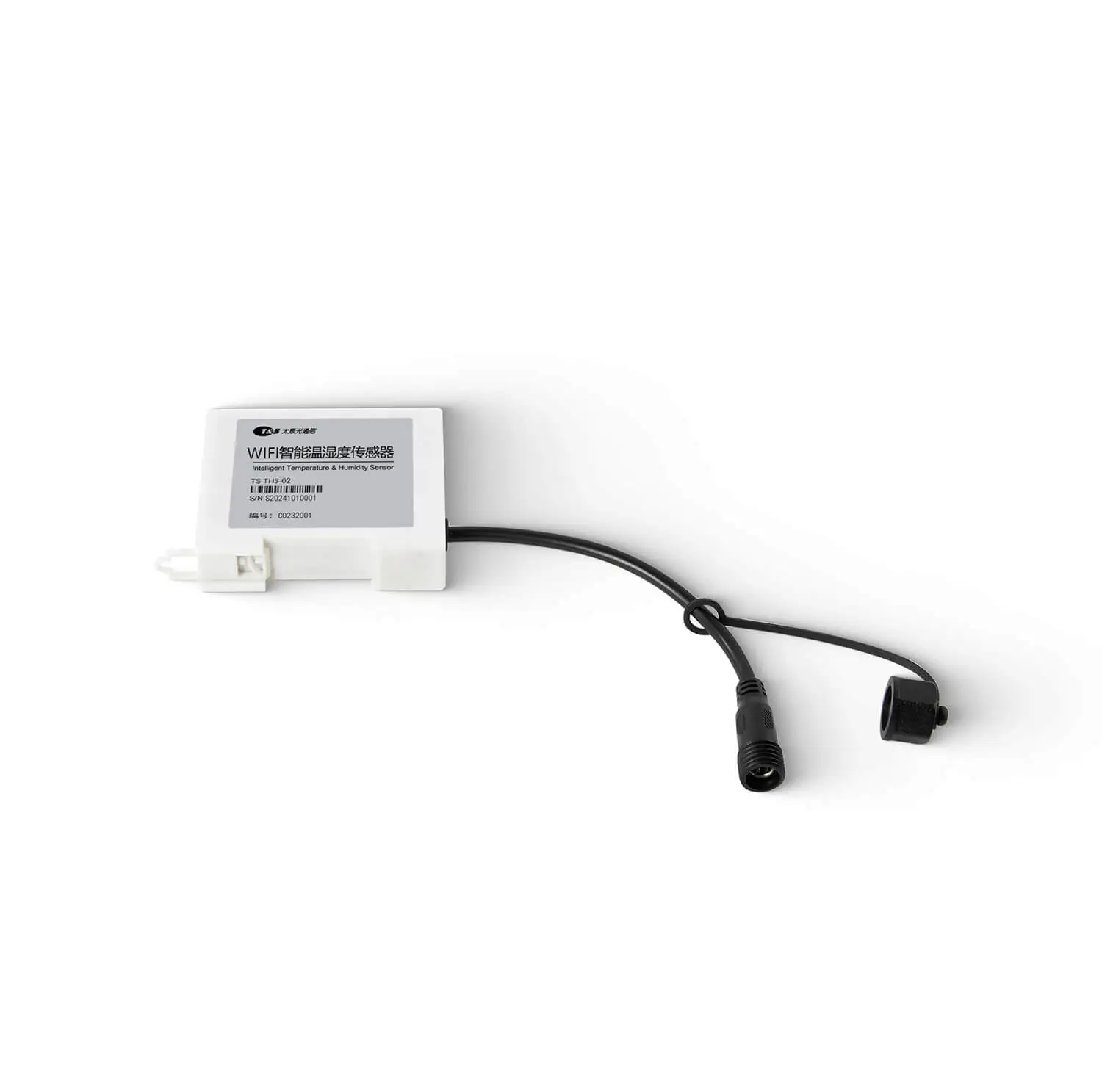

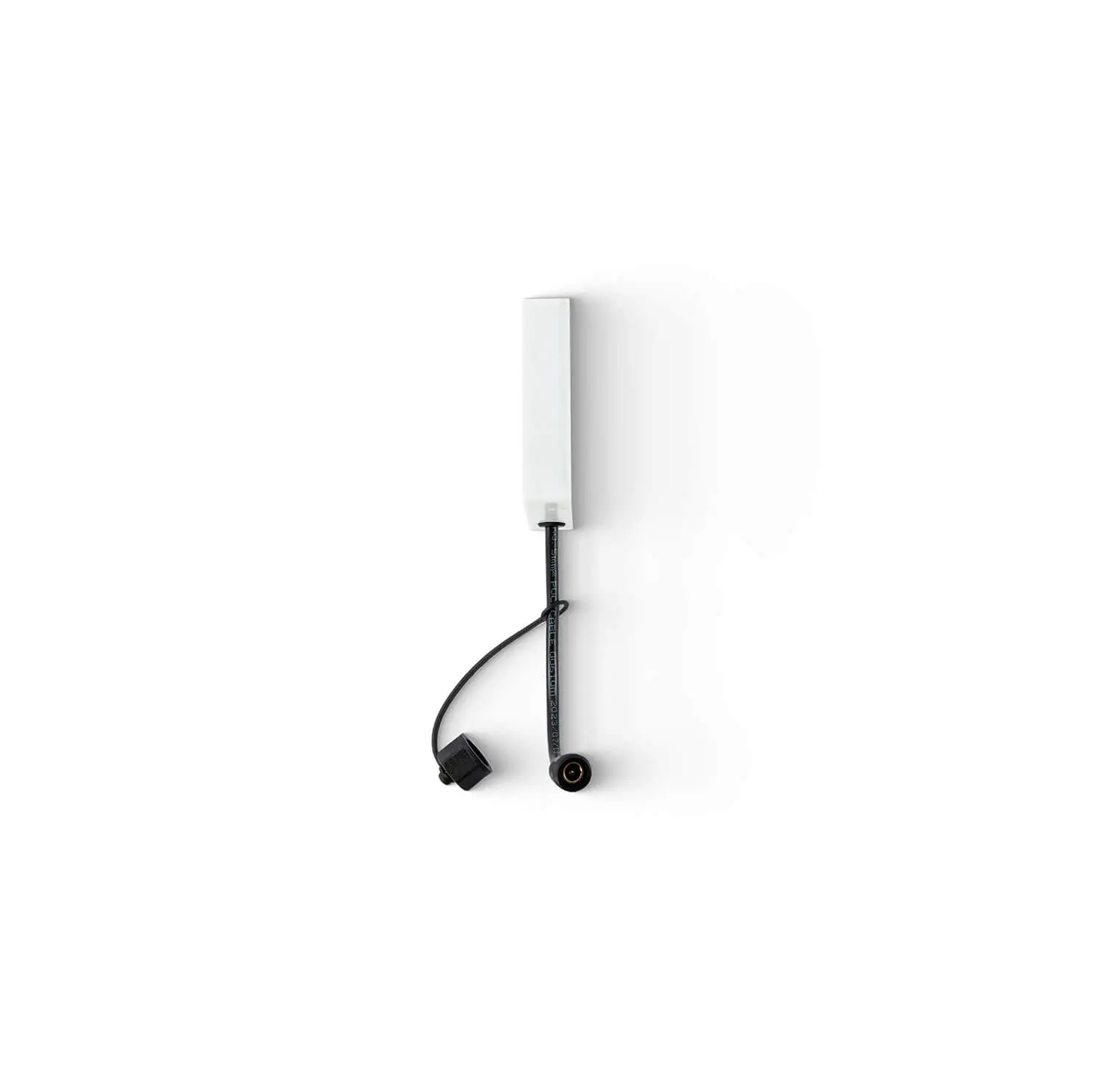

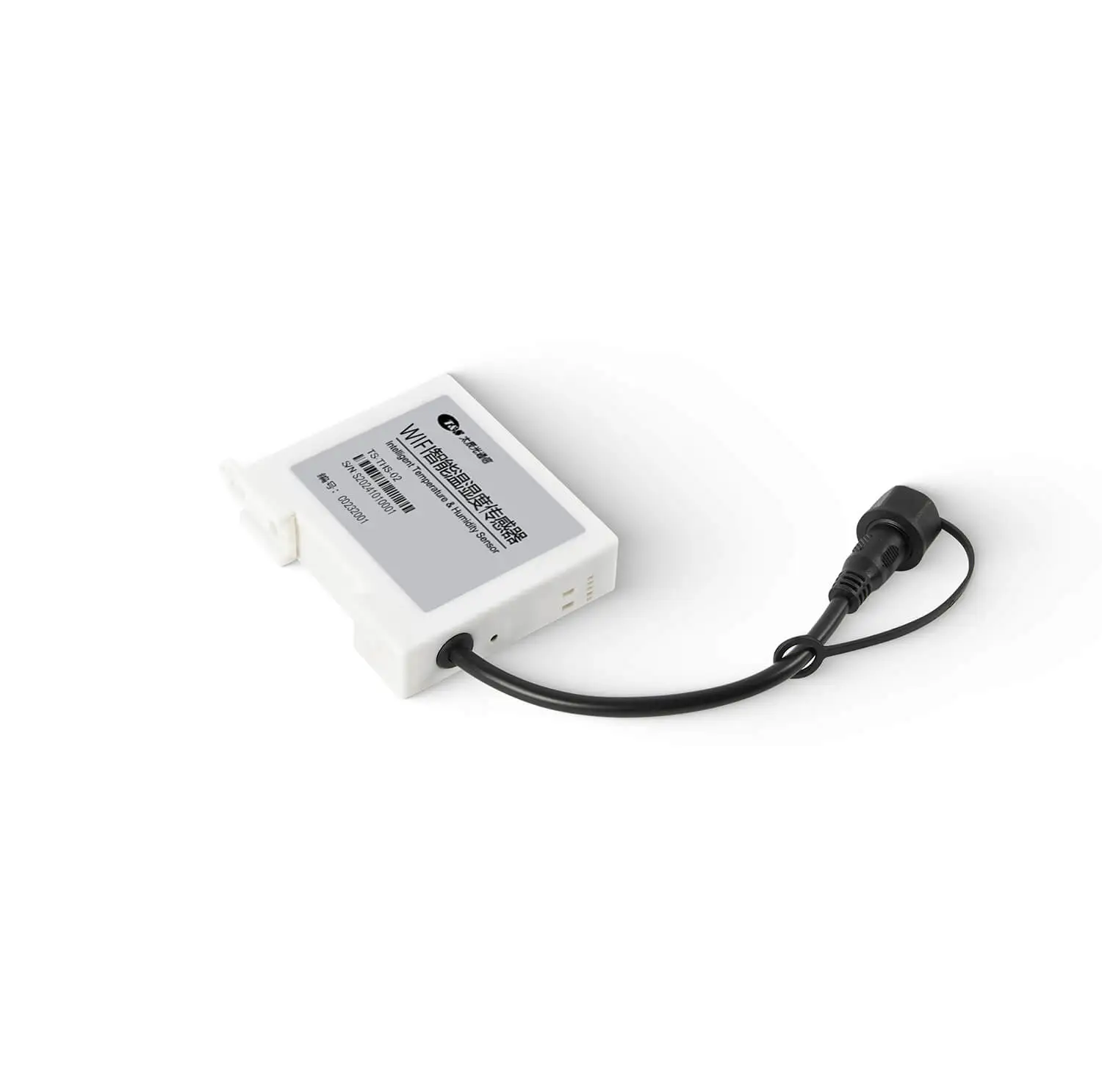

Product Description of WIFI Smart Temperature and Humidity Sensor

The WIFI Temperature and Humidity Sensor is a device that communicates wirelessly via WIFI, enabling real-time data transmission to a backend server for remote monitoring. This sensor does not require additional wired network connections.

Specifications

Item	Specification
Power Supply	5V-12V DC
Communication Method	WIFI
Power Consumption	≤1W
Temperature Range	-20℃ to 80℃
Recommended Operating Environment	5℃ to 60℃ and 20%RH to 80%RH for optimal measurement performance
Temperature Accuracy	±0.5℃
Temperature Resolution	0.1℃
Humidity Range	0-100%RH
Humidity Accuracy	±5%RH
Humidity Resolution	0.1%RH
WIFI Standard	802.11 b/g/n WIFI @2.4 GHz
Waterproof Rating	IP55
Dimensions	36mm × 64mm × 75mm

Applications

With an IP55-rated waterproof and dustproof industrial design, this sensor is suitable for workshops, cold chain logistics, archives, shopping malls, laboratories, offices, data centers, warehouses, and other environments.
