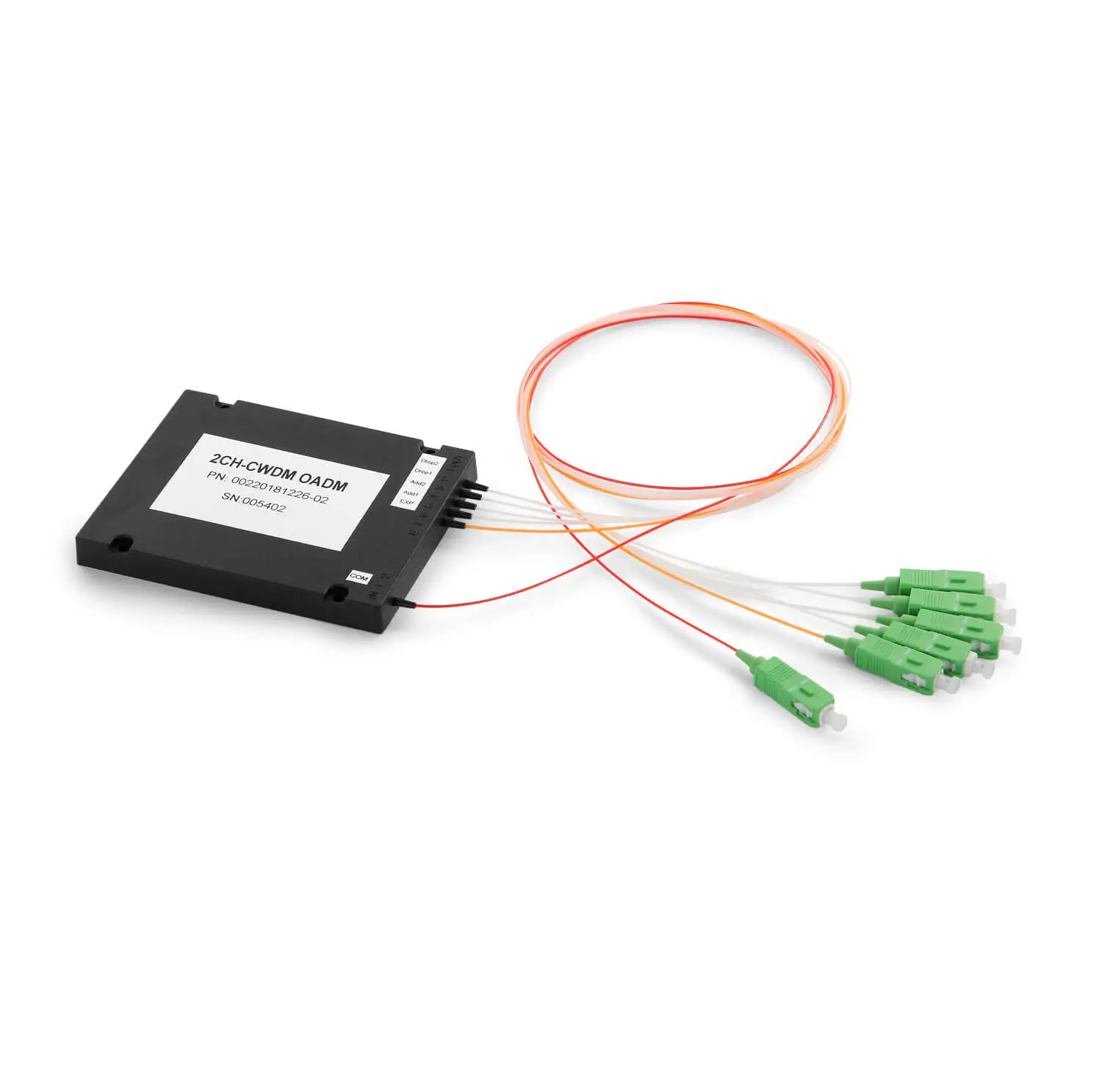

The T&S CWDM OADM (Optical Add-Drop Multiplexer) module is based on wavelength division multiplexing (WDM) technology utilizing thin film filter (TFF) technology. This module offers a wide range of package sizes and wavelength options to suit various network requirements. In the optical transmission path, the OADM enables the addition or removal of specific WDM signals without the need for photoelectric conversion, making it a crucial element in WDM optical networks. By incorporating the OADM into a network, operators can enhance flexibility, simplify upgrades, and easily scale their systems. This versatility makes the T&S CWDM OADM module an ideal solution for applications in LAN, MAN, and other optical communication fields.
| Parameters | Unit | Specification |
| Channel Central Wavelength | nm | 1270,1290…1610 or 1271, 1291...1611 |
| Channel Spacing | nm | 20 |
| Pass Band@-0.5dB | nm | ≥13 (λc±6.5nm) |
| Channel Count | CH | 1 | 2 | 4 | 8 |
| Insertion Loss | In to Drop @λdrop | dB | ≤0.8 | ≤1.2 | ≤2.0 | ≤3.2 |
| Add to Out @λadd | dB | ≤0.8 | ≤1.2 | ≤2.0 | ≤3.2 |
| In to Out @λother | dB | ≤0.8 | ≤1.5 | ≤2.6 | ≤5.0 |
| Pass Band Ripple | dB | ≤0.5 |
| Isolation | Adjacent Channel | dB | >30 |
| Non-Adjacent Channel | dB | ≥40 |
| Insertion Loss Thermal Stability | dB/℃ | ≤0.005 |
| Wavelength Thermal Stability | nm/℃ | ≤0.002 |
| Return Loss | dB | ≥45 |
| Polarization Dependent Loss | dB | ≤0.15 | ≤0.2 |
| Polarization Mode Dispersion | Ps | ≤0.10 |
| Directivity | dB | ≥45 |
| Power Handling | mW | 300 |
| Operating Temperature | ℃ | -40~ +85 |
| Storage Temperature | ℃ | -40 ~ +85 |
| Fiber Type | -- | Corning SMF-28 Ultra, G657A1/A2 or customer specified |
| Pigtail type | -- | Ø0.9mm loose tube or Ø1.6mm/Ø2.0mm/Ø3.0mm optical cable; |
| Fiber length | m | 1.0, or customer specified |
| Connector Type | -- | LC,SC, or customer specified |
| Package Dimension | mm | ABS Box with L100 x W80 x H10(1CH/2CH/4CH) |
| or L120 x W80 x H18(8CH) |
| Cartridge: 130X100X25 |
Note:
Insertion loss excluding connector loss. With connectors add 0.3dB;
Customized dimension is available.
Tap monitoring port and express port is optional.
