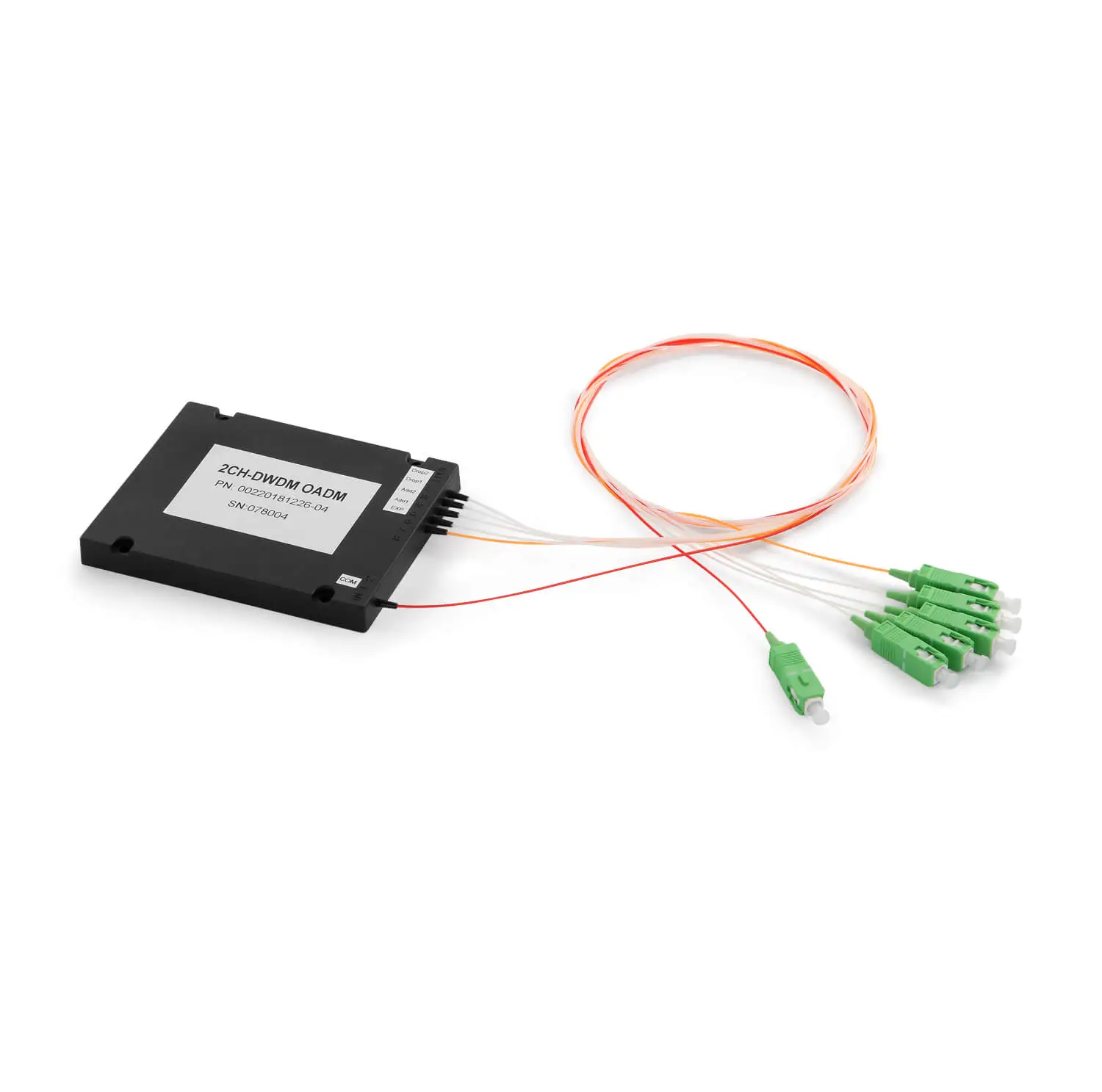

The T&S TFF 200GHz DWDM OADM Module (Optical Add-Drop Multiplexer) is a critical component for flexible and efficient wavelength routing in Dense Wavelength Division Multiplexing (DWDM) networks. Featuring 200GHz channel spacing, this OADM module allows selective addition or subtraction of optical wavelengths, enabling dynamic network reconfiguration without disrupting the entire system. It provides high isolation, low insertion loss, and excellent channel performance, making it an essential solution for modern telecom and data center applications.
| Parameters | Unit | Specification |
| Central Wavelength | nm | ITU-T Grid |
| Channel Spacing | GHz | 200 |
| Channel Pass Band@-0.3dB | nm | >0.5 (λITU ±0.25nm) |
| Channel Count | CH | 1 | 2 | 4 | 8 |
| Insertion Loss | In to Drop @λdrop | dB | ≤1.0 | ≤1.3 | ≤2.0 | ≤3.2 |
| Add to Out @λadd | dB | ≤1.0 | ≤1.3 | ≤2.0 | ≤3.2 |
| In to Out @λother | dB | ≤0.8 | ≤1.3 | ≤2.5 | ≤5.0 |
| Pass Band Ripple | dB | ≤0.5 |
| Isolation | Adjacent Channel | dB | ≥30 |
| Non-Adjacent Channel | dB | ≥40 |
| Insertion Loss Thermal Stability | dB/℃ | ≤0.005 |
| Wavelength Thermal Stability | nm/℃ | ≤0.001 |
| Return Loss | dB | ≥45 |
| Polarization Dependent Loss | dB | ≤0.15 | 0.2 |
| Polarization Mode Dispersion | Ps | ≤0.10 |
| Directivity | dB | ≥45 |
| Power Handling | mW | 300 |
| Operating Temperature | ℃ | -40~+85 |
| Storage Temperature | ℃ | -40 ~ +85 |
| Fiber Type | -- | Corning SMF-28 Ultra, G657A1/A2 or customer specified |
| Pigtail type | -- | Ø0.9mm loose tube or Ø1.6mm/Ø2.0mm/Ø3.0mm optical cable; |
| Fiber length | m | 1.0, or customer specified |
| Connector Type | -- | LC, SC, or customer specified |
| Package Dimension | mm | ABS Box with L100xW80xH10(1CH/2CH/4CH) |
| or L120xW80x H18(8CH) |
| Cartridge: 130X100X25 |
Note:
Insertion loss excluding connector loss. With connectors add 0.3dB;
Customized dimension is available.
Tap monitoring port and express port is optional.
