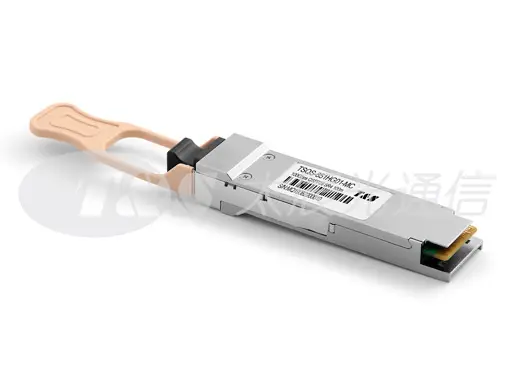

The QSFP28 100G-SR4-100m module is a highly integrated 4x25G transceiver focused on reach, bandwidth, density and cost for high port-count 100G systems, and client-side 100G interfaces. Each lane can operate at 25Gbps up to 70m using OM3 fiber or 100m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38-contact edge type connector. The optical interface uses a 12-fiber MTP/MPO connector.


Features of QSFP28 100G SR4 100m

  • 4 channels full-duplex transceiver modules

  • Transmission data rate up to 25Gbps per channel

  • 4 channels 850nm VCSEL array

  • 4 channels PIN photo detector array

  • Hot-pluggable QSFP28 form factor

  • Maximum link length of 70m on OM3 Multimode Fiber(MMF) and 100m on OM4 MMF

  • Single 1X12 MPO connector receptacle Hot-pluggable electrical interface

  • 0–70°C operating temp

  • Low power consumption < 2.5W

  • RoHS6 compliant (lead-free)



Applications of QSFP28 100G SR4 100m

  • 100GBASE-SR4 100G Ethernet


Specifications of QSFP28 100G SR4 100m

Recommended Operating Environment
Optical Transmitter Performance
Optical Receiver Performance

Recommended Operating Environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.


Parameter

Symbol

Min

Typical

Max

Unit

Power Supply Voltage

VCC

3.135

3.300

3.465

V

Operating Case Temperature

TC

0

25

70

°C


Parameter

Symbol

Min

Typical

Max

Unit

Signaling Speed per Lane


25.78125 ± 100ppm


Center Wavelength

λC

840

850

860

nm

RMS spectral width

∆λ

-

-

0.6

nm

Average Launch Power per Lane

TXPx

-8.5

-

2.4

dBm

Transmit OMA per Lane

TxOMA

-6.4

-

3

dBm

Launch Power [OMA] minus TDEC per Lane

P-TDEC

-7.3

-

-

dBm

Extinction Ratio

ER

2

-

-

dB

Optical Return Loss Tolerance

ORL

-

-

12

dB

Encircled Flux

FLX

> 86% at 19 um

< 30% at 4.5 um

dBm

Average launch power of OFF transmitter, each lane

-

-

-

-30

dBm

Transmitter eye mask definition {X1, X2, X3, Y1, Y2, Y3}

{0.3, 0.38, 0.45, 0.35, 0.41, 0.5}


Parameter

Symbol

Min

Typical

Max

Unit

Signaling Speed per Lane


25.78125 ± 100ppm


Center Wavelength

λC

840

850

860

nm

Damage Threshold

DT

3.4

-

-

dBm

Average receive power, each lane

RXPx

-10.3

-

2.4

dbm

Unstressed Sensitivity (OMA) at 10 x 10-12BER

RxOMA

-

-

3

dBm

Stressed Receiver Sensitivity (OMA) per Lane

SRS

-

-

-5.2

dBm

Vertical eye closure penalty, each lane

VECP

-

-

1.9

dB

Stressed eye J2 jitter, per Lane

-

-

-

0.39

UI

Stressed eye J4 jitter, per Lane

-

-

-

0.53

UI

OMA of each aggressor lane

-

-

3


dBm

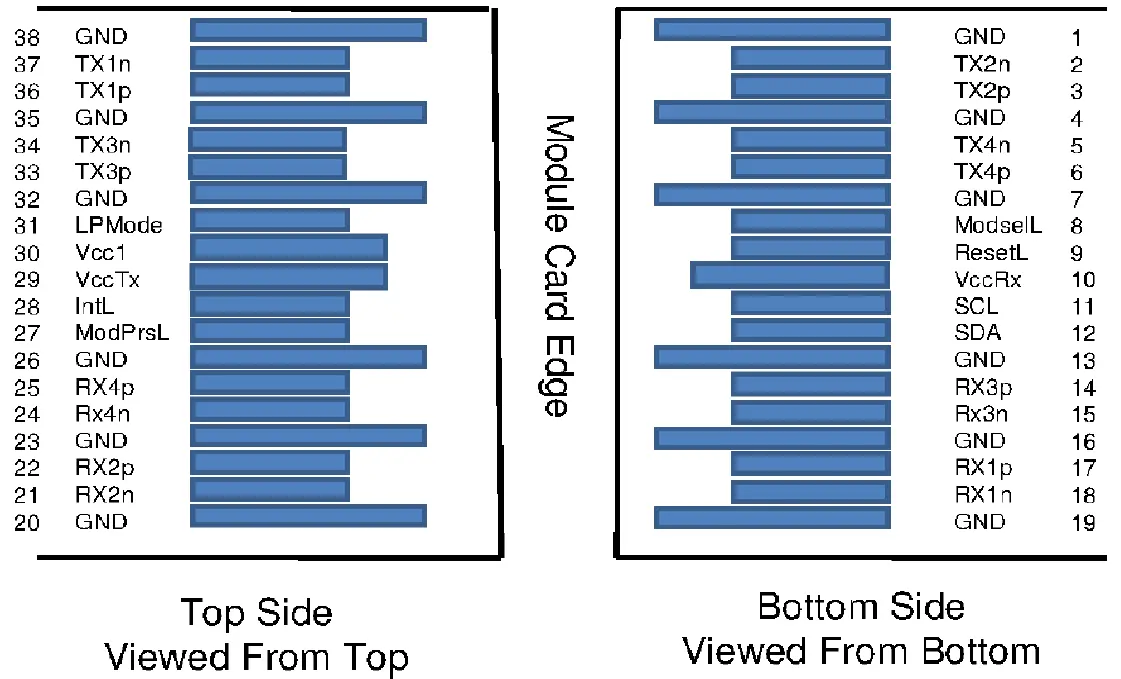

Pin Descriptions of QSFP28 100G SR4 100m

qsfp28 100gbase sr4



Pin Definition of QSFP28 100G SR4 100m

Pin

Symbol

Name/Description

1

GND

Ground

2

Tx2n

Transmitter Inverted Data Input

3

Tx2p

Transmitter Non-Inverted Data Input

4

GND

Ground

5

Tx4n

Transmitter Inverted Data Input

6

Tx4p

Transmitter Non-Inverted Data Input

7

GND

Ground

8

ModSelL

Module Select

9

ResetL

Module Reset

10

Vcc Rx

+3.3 V Power supply receiver

11

SCL

2-wire serial interface clock

12

SDA

2-wire serial interface data

13

GND

Ground

14

Rx3p

Receiver Non-Inverted Data Output

15

Rx3n

Receiver Inverted Data Output

16

GND

Ground

17

Rx1p

Receiver Non-Inverted Data Output

18

Rx1n

Receiver Inverted Data Output

19

GND

Ground

20

GND

Ground

21

Rx2n

Receiver Inverted Data Output

22

Rx2p

Receiver Non-Inverted Data Output

23

GND

Ground

24

Rx4n

Receiver Inverted Data Output

25

Rx4p

Receiver Non-Inverted Data Output

26

GND

Ground

27

ModPrsL

Module Present

28

IntL

Interrupt

29

Vcc Tx

+3.3 V Power supply transmitter

30

Vcc1

+3.3 V Power Supply

31

LPMode

Low Power Mode

32

GND

Ground

33

Tx3p

Transmitter Non-Inverted Data Input

34

Tx3n

Transmitter Inverted Data Input

35

GND

Ground

36

Tx1p

Transmitter Non-Inverted Data Input

37

Tx1n

Transmitter Inverted Data Input

38

GND

Ground



Important Notice of QSFP28 100G SR4 100m

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by T&S before they become applicable to any particular order or contract. In accordance with the T&S policy of continuous improvement specifications may change without notice.


The publication of information in this data sheet does not imply freedom from patent or other protective rights of T&S or others. Further details are available from any T&S sales representative.
