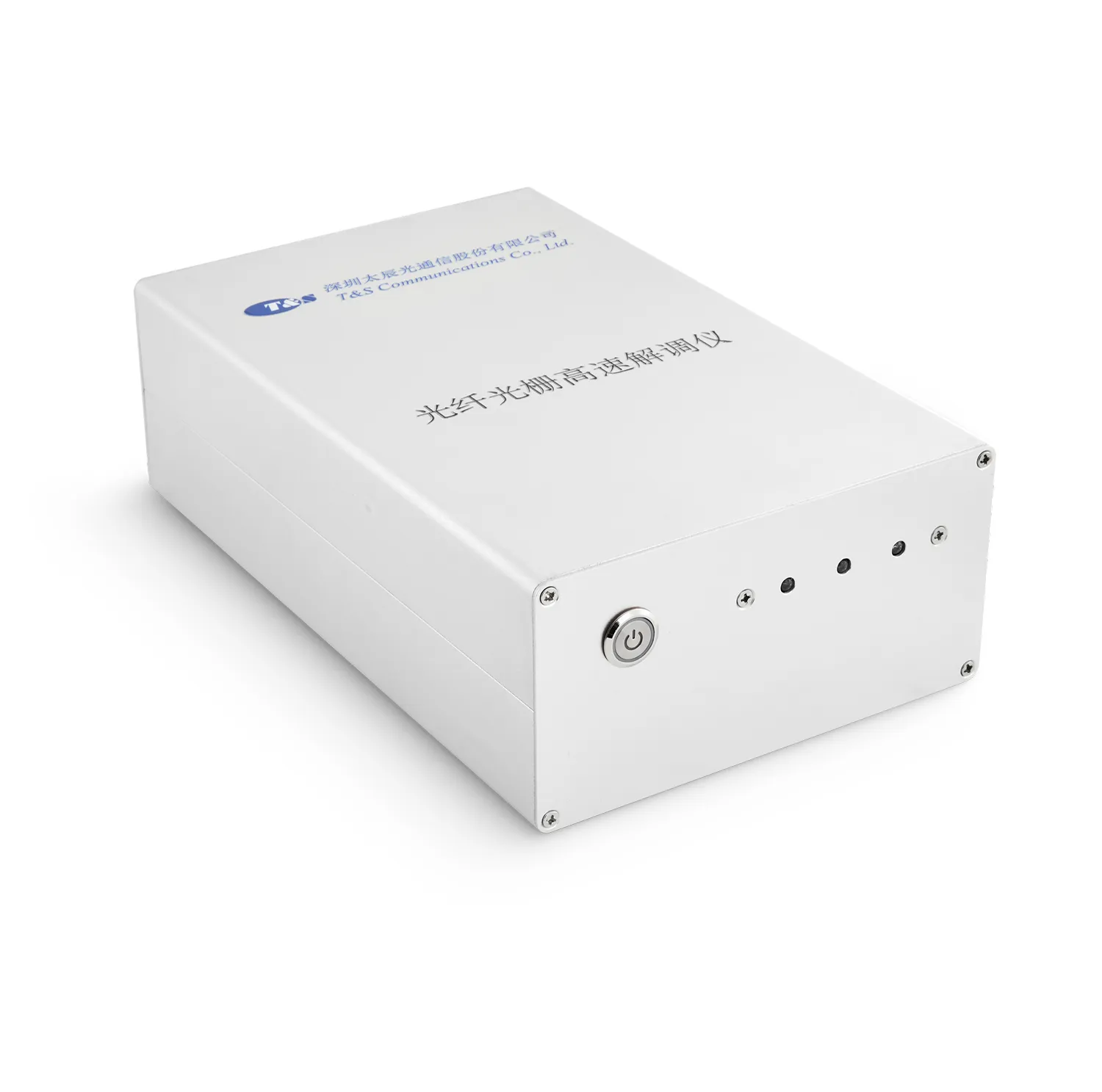

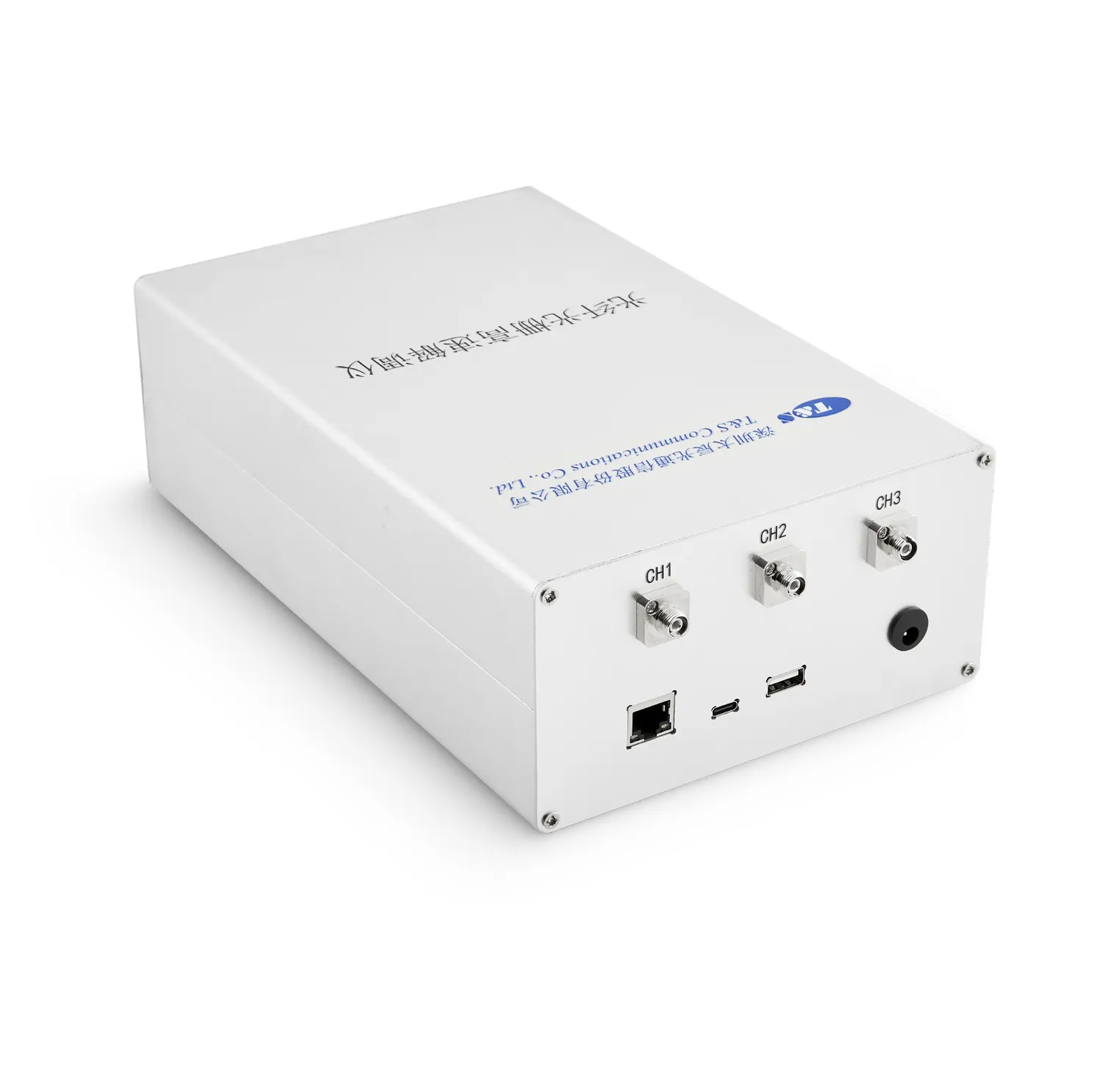

Fiber Bragg Grating (FBG) Interrogator, High-speed, 3 Channel, TS-WI-HS2

Name: Fiber Bragg Grating (FBG) Interrogator, High-speed, 3 Channel, TS-WI-HS2
Brand: T&S Communications Co., Ltd.

Identifier: 160019

Scanning Frequency 2000Hz | FC/APC | Resolution: 1pm | 1525nm～1570nm

Features

+ View More

Specification Drawings Request Quote

Product Description of Fiber Bragg Grating (FBG) Interrogator, High-speed, 3 Channel, TS-WI-HS2

TS-WI-HS2 High speed fiber grating interrogator is another new generation wavelength signal demodulator developed by T&S for measuring high frequency physical quantity change. It serves as a collector of high speed, synchronous and high accurate data like strain, vibration, pressure and displacement from various FBG sensors. It’s featured by excellent environmental adaptability, stability. The maximum sampling rate of a single channel is up to 2000Hz.

Specifications

General Performance
Wavelength	1525nm～1570nm
Optical Channel	1 or 3 channel available
Wavelength Resolution	1pm
Wavelength Repeatability	≤5pm
Scanning Frequency	2000Hz
Communication Interface	TCP/IP
Optical Interface	FC/APC
Operating Temperature	-25℃～+55℃

Safety Performance
Insulation resistance, electrical strength and impulse voltage	Compliant with GB 4943.1

Environmental Adaptability
Low Temperature	Compliant with GB/T 2423.1
High Temperature	Compliant with GB/T 2423.2
Steady damp-heat	Compliant with GB/T 2423.3
Impulse	Compliant with GB/T 2423.5
Collision	Compliant with GB/T 2423.6
Vibration (sine)	Compliant with GB/T 2423.10
Temperature Variation	Compliant with GB/T 2423.22

EMC Performance
Electrostatic Discharge Immunity	Compliant with GB/T 17626.2
Radiated, radio-frequency, electromagnetic Field Immunity	Compliant with GB/T 17626.3
Electrical Fast Transient/Burst Immunity	Compliant with GB/T 17626.4
Surge Immunity	Compliant with GB/T 17626.5
Conducted Disturbance Immunity Induced by RF Field	Compliant with GB/T 17626.6
Power Frequency Magnetic Field Immunity	Compliant with GB/T 17626.8
Pulsed Magnetic Field Immunity	Compliant with GB/T 17626.9
Damped Oscillatory Magnetic Field Immunity	Compliant with GB/T 17626.10
Voltage dips, short interruptions and voltage variations immunity	Compliant with GB/T 17626.11
Ring Wave Immunity	Compliant with GB/T 17626.12
Limits and methods of measurement	Compliant with GB 9254
