Fiber Bragg Grating (FBG) Temperature Sensor, T09/T10

Name: Fiber Bragg Grating (FBG) Temperature Sensor, T09/T10
Brand: T&S Communications Co., Ltd.

Identifier: 160009

-20°C~120°C | Accuracy:±1°C | Resolution: 0.1°C | 1510nm~1590nm

Features

High reliability
High safety

Specification Drawings Request Quote

Product Description of Fiber Bragg Grating (FBG) Temperature Sensor, T09/T10

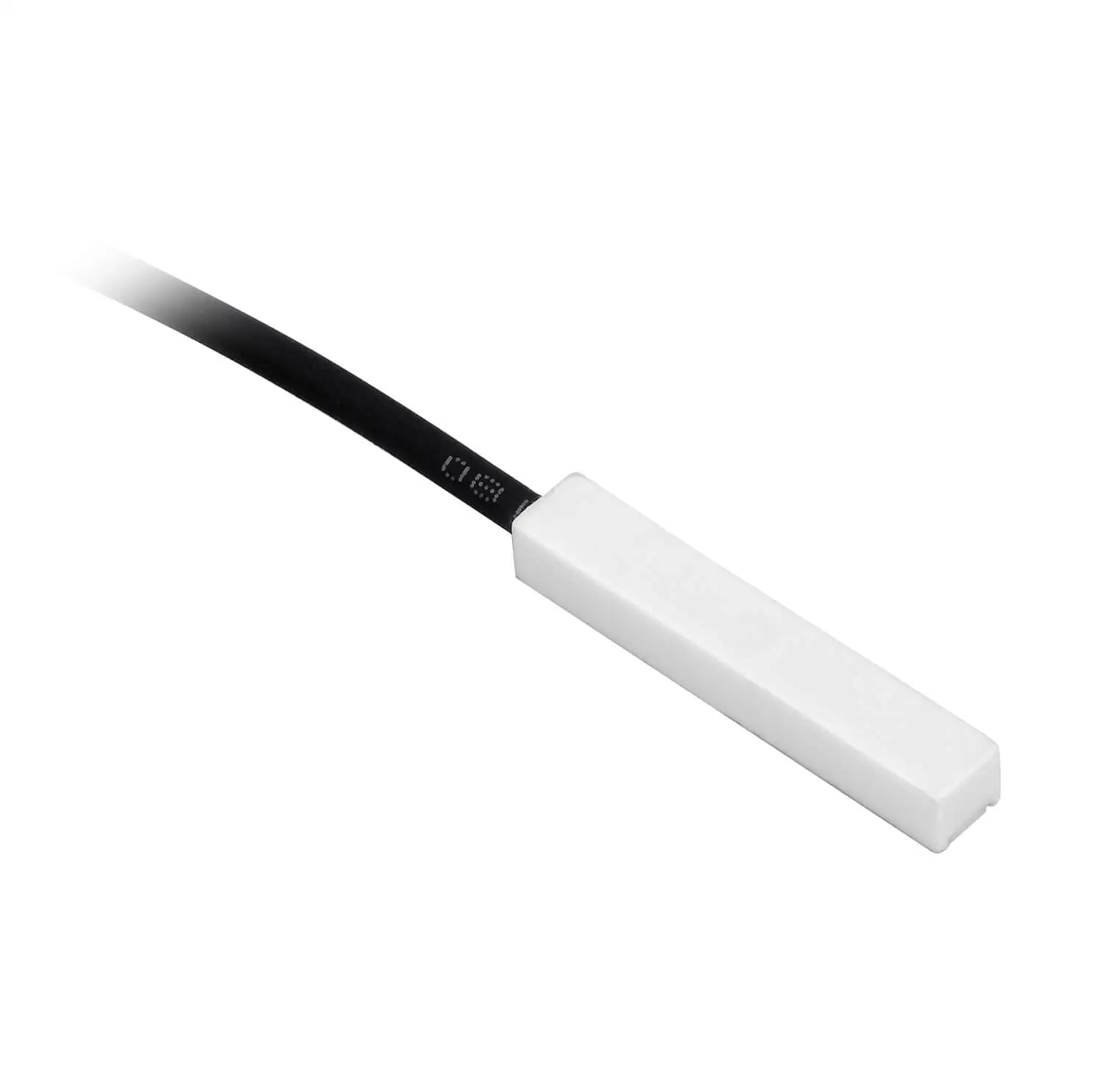

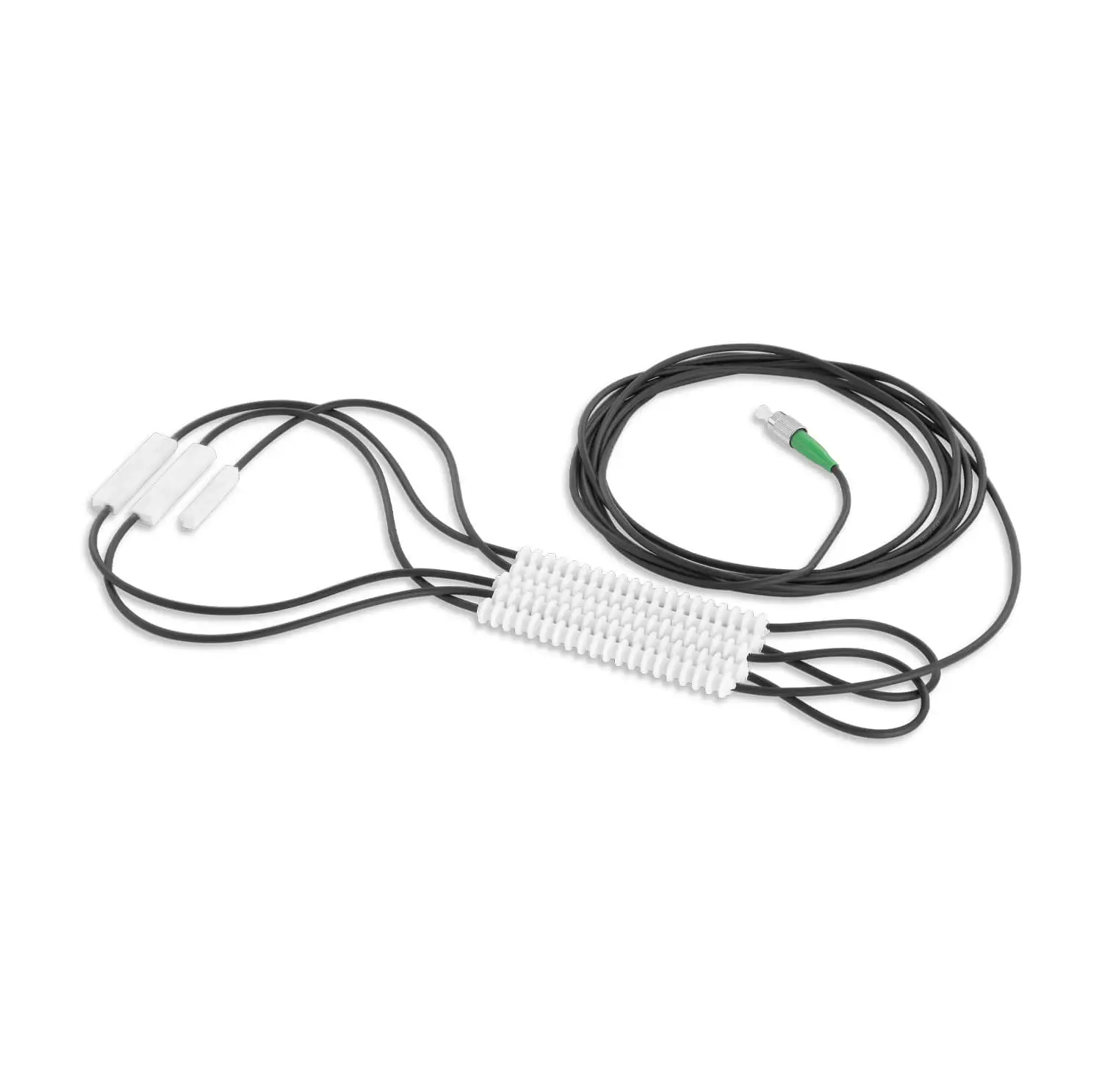

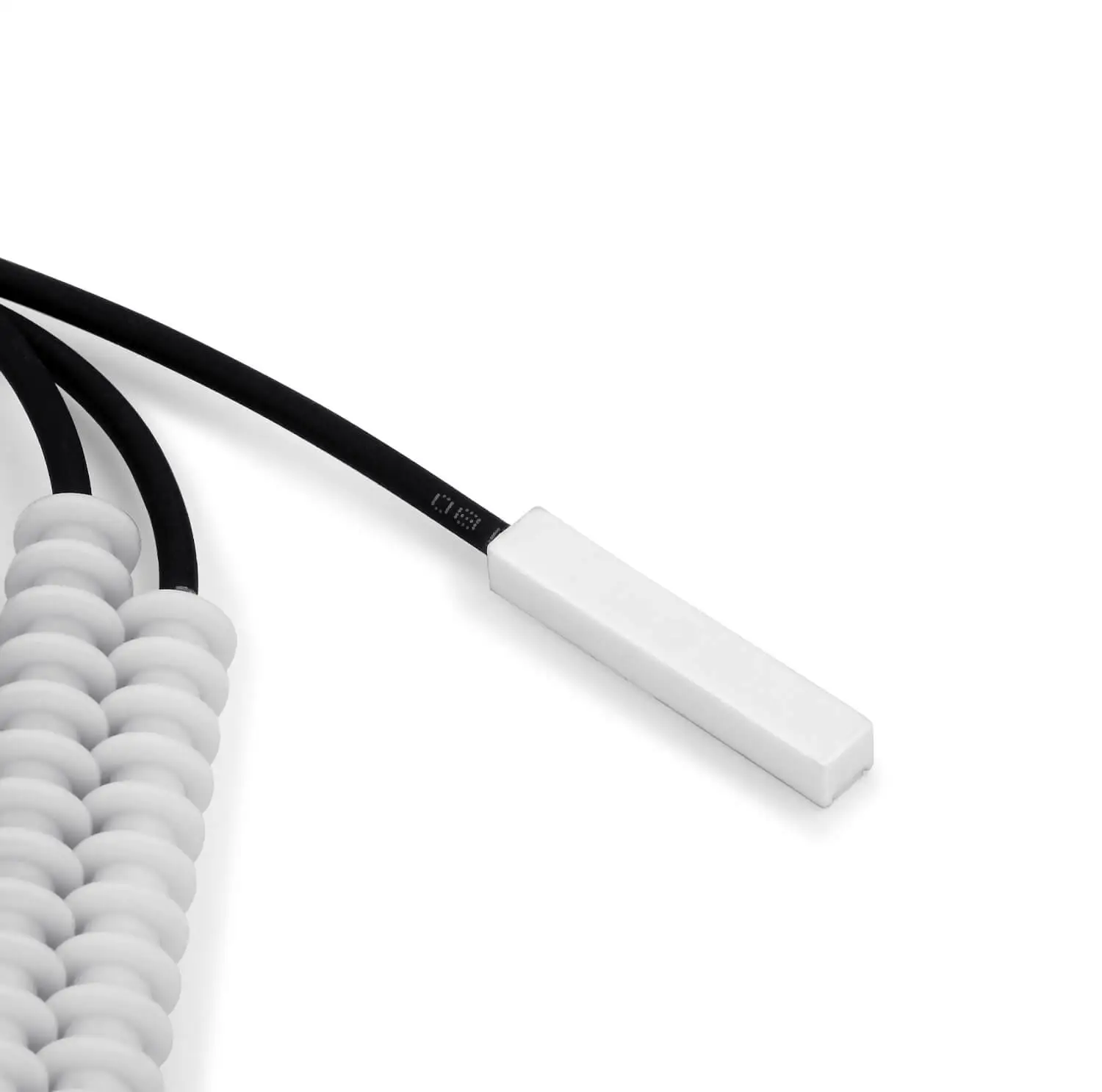

T09 (single ended) / T10 (double ended) sensor is capsulated by ceramic material with features like small volume, light weight, corrosion resistance and high temperature resistance. It is especially suitable for temperature monitoring of power equipment such as switchgear, dry-type transformer, electric reactor and bus connector in power industry.

Specifications

Item	Unit	Specification
Temperature Range	°C	-20~120
Temperature Accuracy	°C	±1
Resolution	°C	0.1
Central Wavelength	nm	1510-1590
Cable Jacket	-	Ø1.1mm tube and Ø3mm tube（optional）
Dimension	mm	40 x 10 x 5
Pigtail Type	-	SMF-28e or polyimide
Connector Type	-	FC/APC or customized

Applications

Temperature measurement of switch cabinet contact
Temperature measurement of dry type transformer
Temperature measurement of electric reactor
