10G SFP+ Direct Attach Cable

10G SFP+ Direct Attach Cable

SFP+ Direct Attach Cables are compliant with the SFF-8431, SFF-8432 and SFF-8472 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 7m).


Features of 10G SFP+ Direct Attach Cable

  • Compliant with SFF-8431, 8432 and 8472.

  • Up to 10.3125Gbps data rate per channel

  • Up to 7m transmission

  • Single 3.3V power supply

  • Temperature Range: 0~ 70 °C

  • RoHS compliant


Applications of 10G SFP+ Direct Attach Cable

  • Low EMI radiation Switches, servers and routers

  • Data Center networks

  • Storage area networks

  • High performance computing

  • Telecommunication and wireless infrastructure

  • Medical diagnostics and networking

  • Test and measurement equipment


Specifications of 10G SFP+ Direct Attach Cable

General Product Characteristics
High Speed Characteristics
Regulatory Compliance

QSFP+ DAC Specifications


Number of Lanes

Tx & Rx

Channel Data Rate

10.3125 Gbps

Operating Temperature

0 to + 70°C

Storage Temperature

-40 to + 85°C

Supply Voltage

3.3 V nominal

Electrical Interface

38 pins edge connector

Management Interface

Serial, I2C


Parameter

Symbol

Min

Typ

Max

Units

Notes

Differential Impedance

Zd

90

100

110

Ω

-

Differential Input Return Loss

SDDXX

<-12+2* SQRT (f) with f in GHz

dB

0.01~4.1GHz

<-6.3+13*Log10/(f/5.5) with f in GHz

dB

4.1~11.1GHz

Common Mode Output Return Loss

SCCXX

< -7+1.6*f with f in GHz

dB

0.01~2.5GHz

-

-

-3

dB

2.5~11.1GHz

Difference Waveform Distortion Penalty

dWDPc

-

-

6.75

dB

-

VMA Loss

L

-

-

4.4

dB

-

VMA Loss to Crosstalk Ratio

VCR

32.5

-

-

dB

-


Features

Test Method

Performance

Electrostatic Discharge (ESD) to the Electrical Pins

MIL-STD-883C Method 3015.7

Class 1(>2000 Volts)

Electromagnetic Interference(EMI)

FCC Class B

Compliant with Standards

CENELEC EN55022 Class B

CISPR22 ITE Class B

RF Immunity(RFI)

IEC61000-4-3

Typically Show no Measurable Effect from a 10V/m Field Swept from 80 to 1000MHz

RoHS Compliance

RoHS Directive 2011/65/EU and it's Amendment Directives 6/6

RoHS 6/6 compliant


Recommended Operation Condition of 10G SFP+ Direct Attach Cable

Parameter

Symbol

Min

Max

Unit

Operating Case Temperature

Topc

0

70

degC

Storage Temperature

Tst

-40

85

degC

Relative Humidity (non-condensation)

RS

35

60

%

Supply Voltage

VCC3

3.135

3.465

V

Voltage on LVTTL Input

Vilvttl

-0.3

VCC3  +0.2

V

Power Supply Current

ICC3

-

15

mA

Total Power Consumption

Pd

-

0.05

W

Notes:

Stress or conditions exceed the above range may cause permanent damage to the device.

This is a stress rating only and functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not applied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.


Pin definition of 10G SFP+ Direct Attach Cable

Pin

Symbol

Name/Description

1

VEET [1]

Transmitter Ground

2

Tx_FAULT [2]

Not used

3

Tx_DIS [3]

Not used

4

SDA [2]

2-wire Serial Interface Data Line

5

SCL [2]

2-wire Serial Interface Clock Line

6

MOD_ABS [4]

Module Absent. Grounded within the module

7

RS0 [5]

Not used

8

RX_LOS [2]

Loss of Signal indication. Logic 0 indicates normal operation

9

RS1 [5]

Not used

10

VEER [1]

Receiver Ground

11

VEER [1]

Receiver Ground

12

RD-

Receiver Inverted DATA out. AC Coupled

13

RD+

Receiver DATA out. AC Coupled

14

VEER [1]

Receiver Ground

15

VCCR

Receiver Power Supply

16

VCCT

Transmitter Power Supply

17

VEET [1]

Transmitter Ground

18

TD+

Transmitter DATA in. AC Coupled

19

TD-

Transmitter Inverted DATA in. AC Coupled

20

VEET [1]

Transmitter Ground

Notes:

1. Module circuit ground is isolated from module chassis ground within the module.

2..should be pulled up with 4.7k – 10k ohms on host board to a voltage between 3.15Vand 3.6V.

3.Tx_Disable is an input contact with a 4.7 kΩ to 10 kΩ pullup to VccT inside the module.

4.Mod_ABS is connected to VeeT or VeeR in the SFP+ module. The host may pull this contact up to Vcc_Host with a resistor in the range 4.7 kΩ to10 kΩ.Mod_ABS is asserted “High” when the SFP+ module is physically absent from a host slot.

5. RS0 and RS1 are module inputs and are pulled low to VeeT with > 30 kΩ resistors in the module.

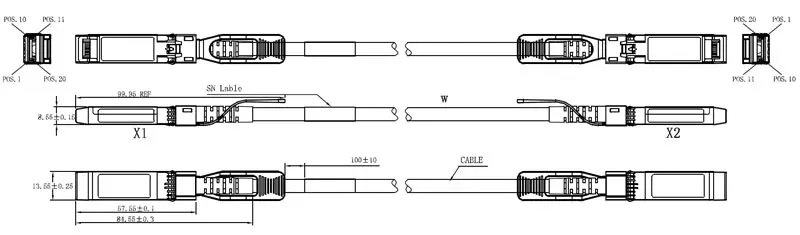

Mechanical Dimensions of 10G SFP+ Direct Attach Cable

The connector is compatible with the SFF-8432 specification.

Length (m)

Cable AWG

1

30

3

30

5

24

7

24
