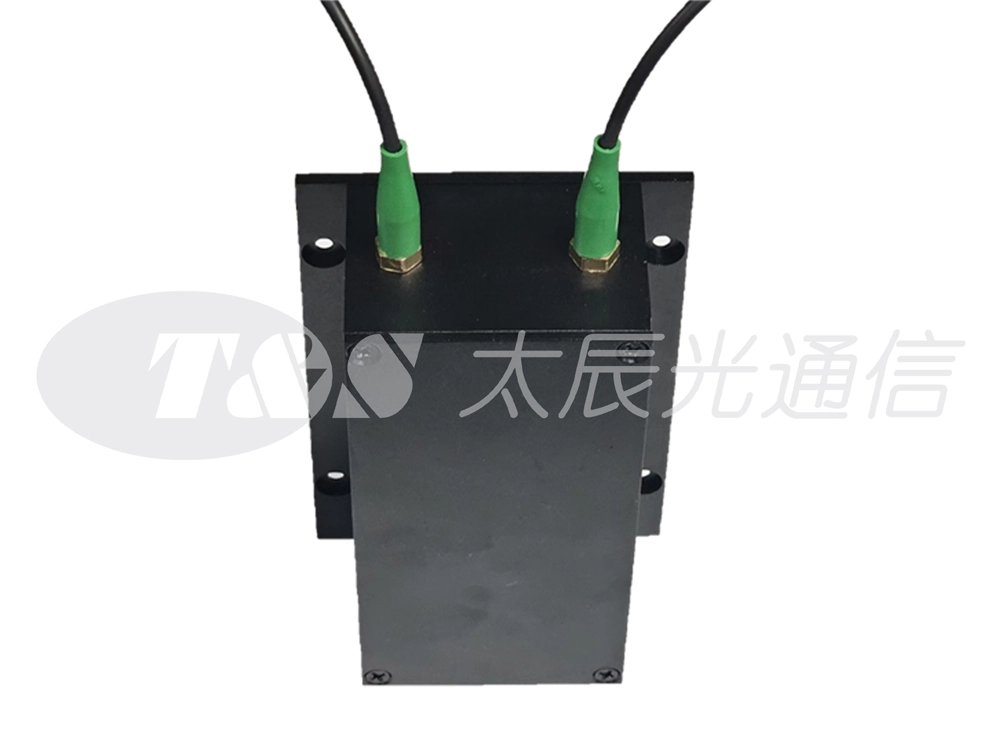

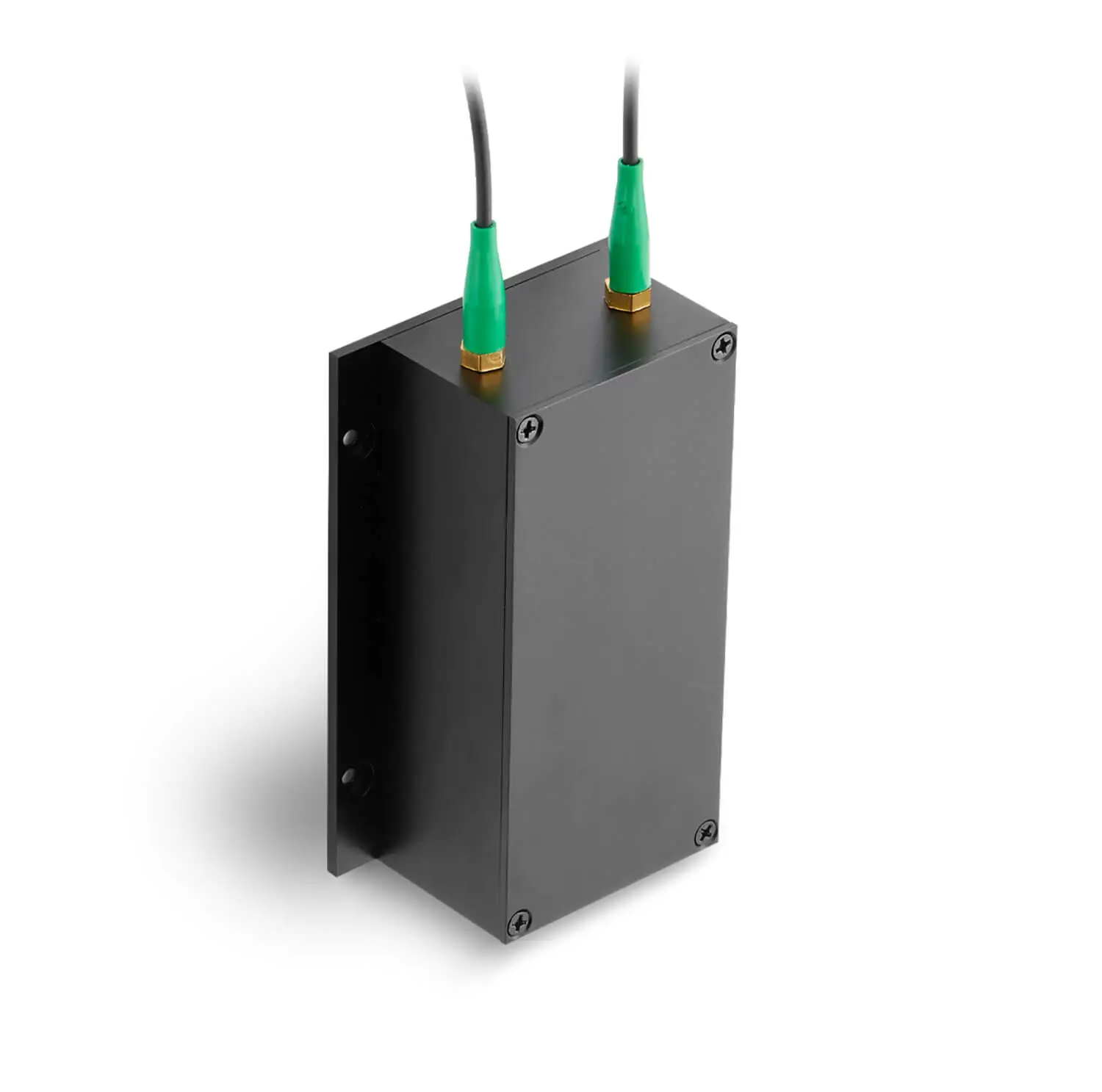

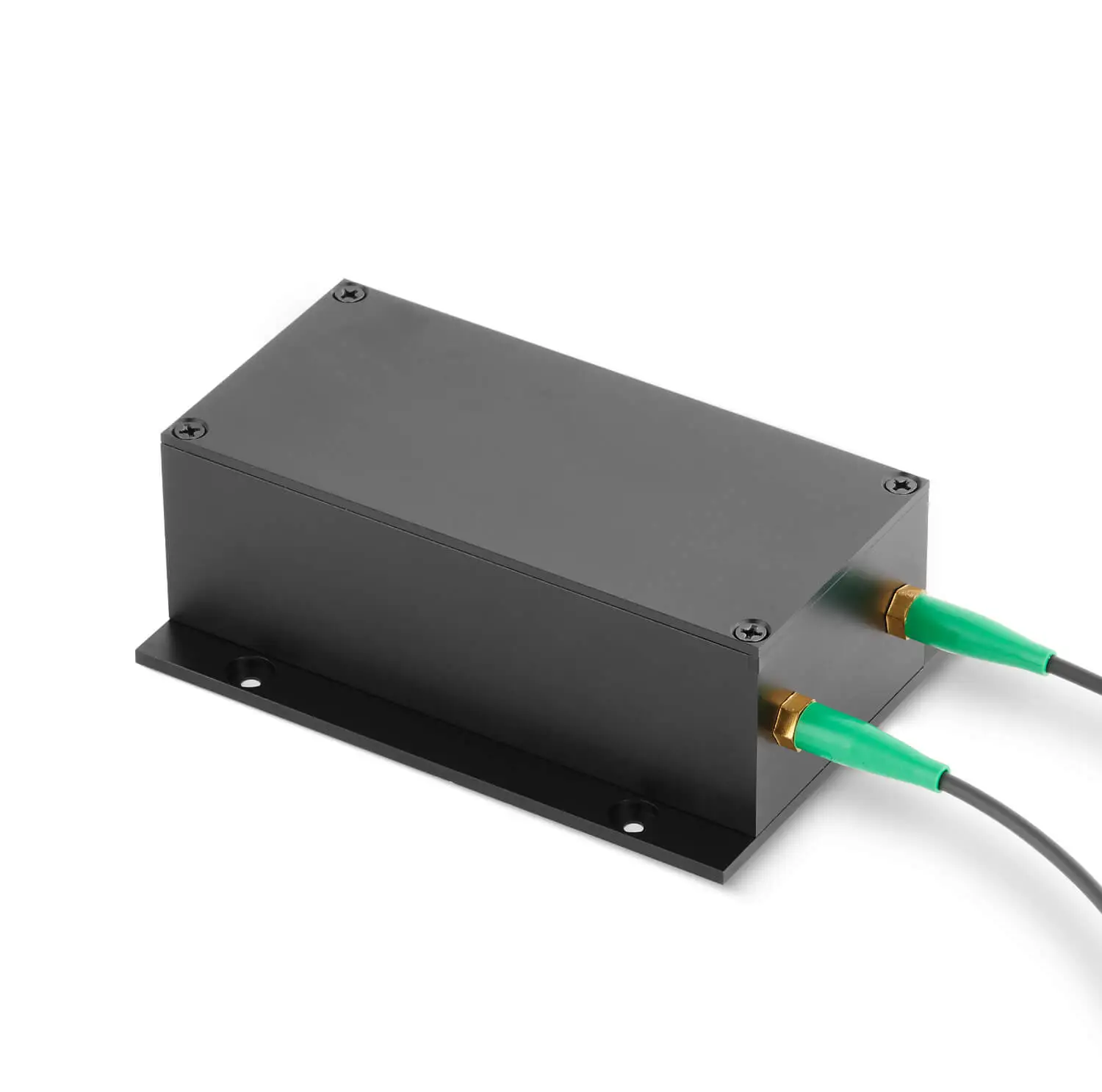

Fiber Bragg Grating (FBG) Tilt Sensor, TS01

Name: Fiber Bragg Grating (FBG) Tilt Sensor, TS01
Brand: T&S Communications Co., Ltd.

Identifier: 160018

Dual FBG | -10~+10 degree | Resolution 0.02degree | Sensitivity ~45pm/degree

Features

Dual FBG
Including temperature compensation
Large measurement range
Passive, anti-electromagnetic interference

Specification Drawings Request Quote

Product Description of Fiber Bragg Grating (FBG) Tilt Sensor, TS01

TS01 FBG Tilt Sensor is an advanced fiber optic device using Fiber Bragg Grating (FBG) for accurate tilt measurement of structures.

Specifications

Item	Unit	Specification
Measurement range	deg	-10~+10
Sensitivity	pm/deg	~45
Resolution	deg	0.02
Linearity	%	99.9
Temperature compensation	-	Yes
Central wavelength	nm	1510~1590
Reflectivity	%	≥50
SMSR	dB	≥15
Dimension	mm×mm×mm	75×40×115
Operating temperature range	℃	-40~+80
Fiber connector type	-	FC/APC (or customize)
Pigtail length	m	1.0 (or customize)

Applications

Communication/electricity tower tilt monitoring
The tilt monitoring of high-rise buildings
Bridge tilt monitoring
