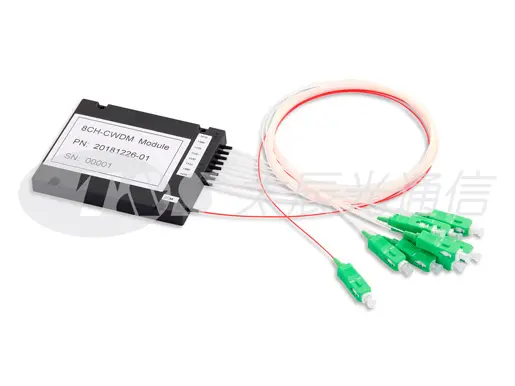

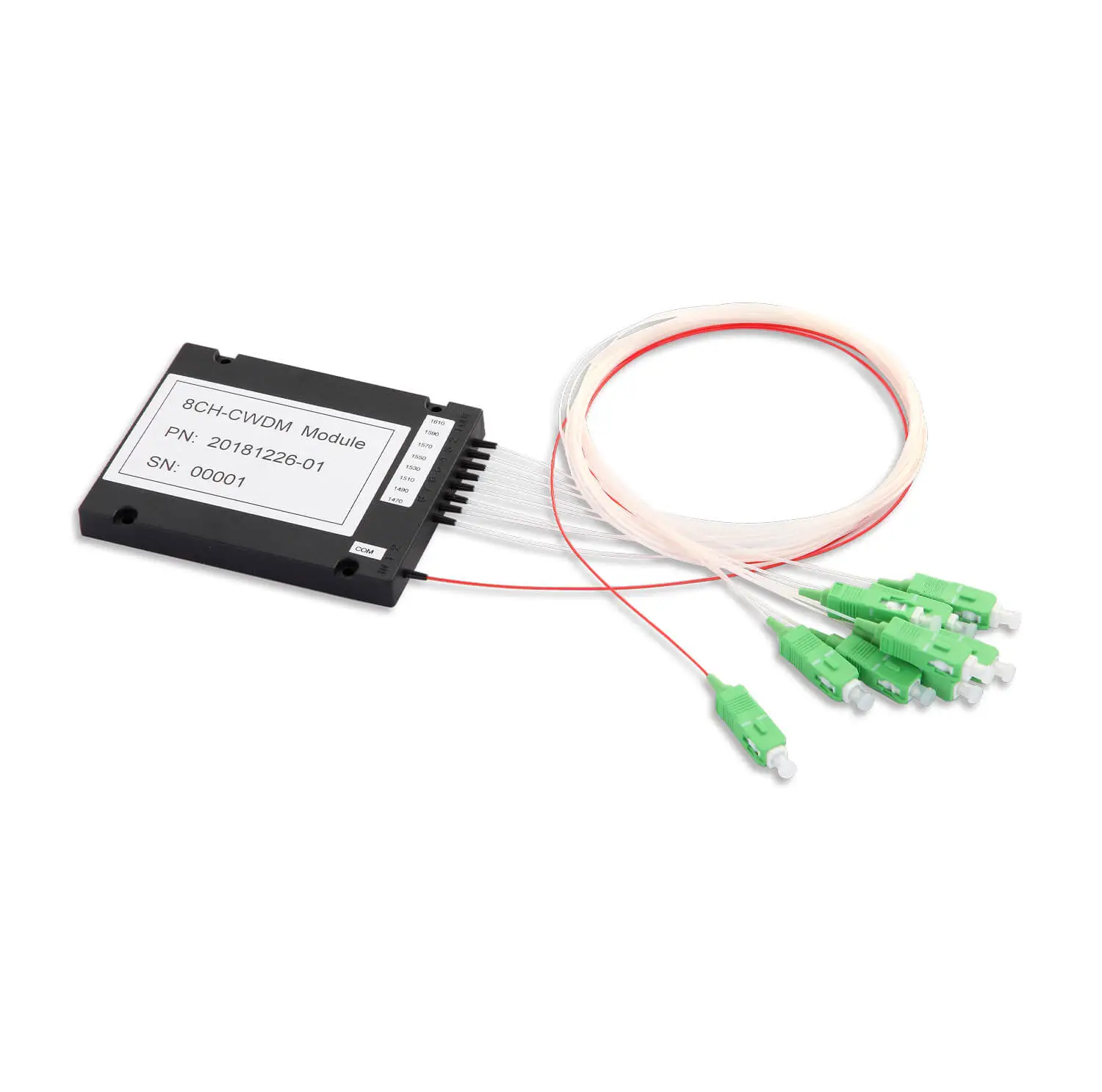

Built on our TFF CWDM 3 Ports technology, the TFF CWDM Module delivers a fully packaged solution for metro access and enterprise networks. This module integrates TFF filters CWDM devices with a ABS box. This module simplifies FTTH node splits and mobile fronthaul wavelength reuse, and it can be widely used in metro optical networks. The CWDM module T&S provides range from two channels to 16 channels with channel central wavelength from 1270nm to 1611nm. Automatic optic alignment technology is adopted, and optical path is epoxy free to ensure excellent performance.
| Parameters | Unit | Specification |
| Channel Count | Channel | 2 | 4 | 6 | 8 | 12 | 16 |
| Channel Center Wavelength | nm | 1270, 1290…1610 or 1271, 1291...1611 |
| Channel Spacing | nm | 20 |
| Bandwidth@-0.5dB | nm | ≥13 (λc±6.5nm) |
| Insertion Loss | dB | ≤1.0 | ≤1.5 | ≤2.0 | ≤3.0 | ≤3.8 (Standard Loss) | ≤5.0 (Standard Loss) |
| ≤3.0 (Low loss) | ≤3.5 (Low loss) |
| Isolation | Adjacent Channel | dB | ≥30 |
| Non-Adjacent Channel | dB | ≥45 |
| Return Loss | dB | ≥45 |
| Polarization Dependent Loss | dB | ≤0.20 | ≤0.30 |
| Polarization Mode Dispersion | Ps | ≤0.10 |
| Directivity | dB | ≥45 |
| Power Handling | mW | 300 |
| Operating Temperature | ℃ | -40 ~ +85 |
| Storage Temperature | ℃ | -40 ~ +85 |
| Fiber Type | -- | Corning SMF-28 Ultra, G657A1/A2 or customer specified |
| Pigtail type | -- | Ø0.9mm loose tube or Ø1.6mm/Ø2.0mm/Ø3.0mm optical cable; |
| Fiber length | m | 1.0, or customer specified |
| Connector Type | -- | LC, SC, or customer specified |
| Package Dimension | mm | ABS Box: |
| L100 x W80 x H10(2/4/6/8CH) |
| L120 x W80 x H18(12/16CH) |
| Cartridge: |
| 130X100X25 |
Note:
Insertion loss excluding connector loss. With connectors add 0.3dB;
Customized dimension is available.
Tap monitoring port and expansion port are optional.
