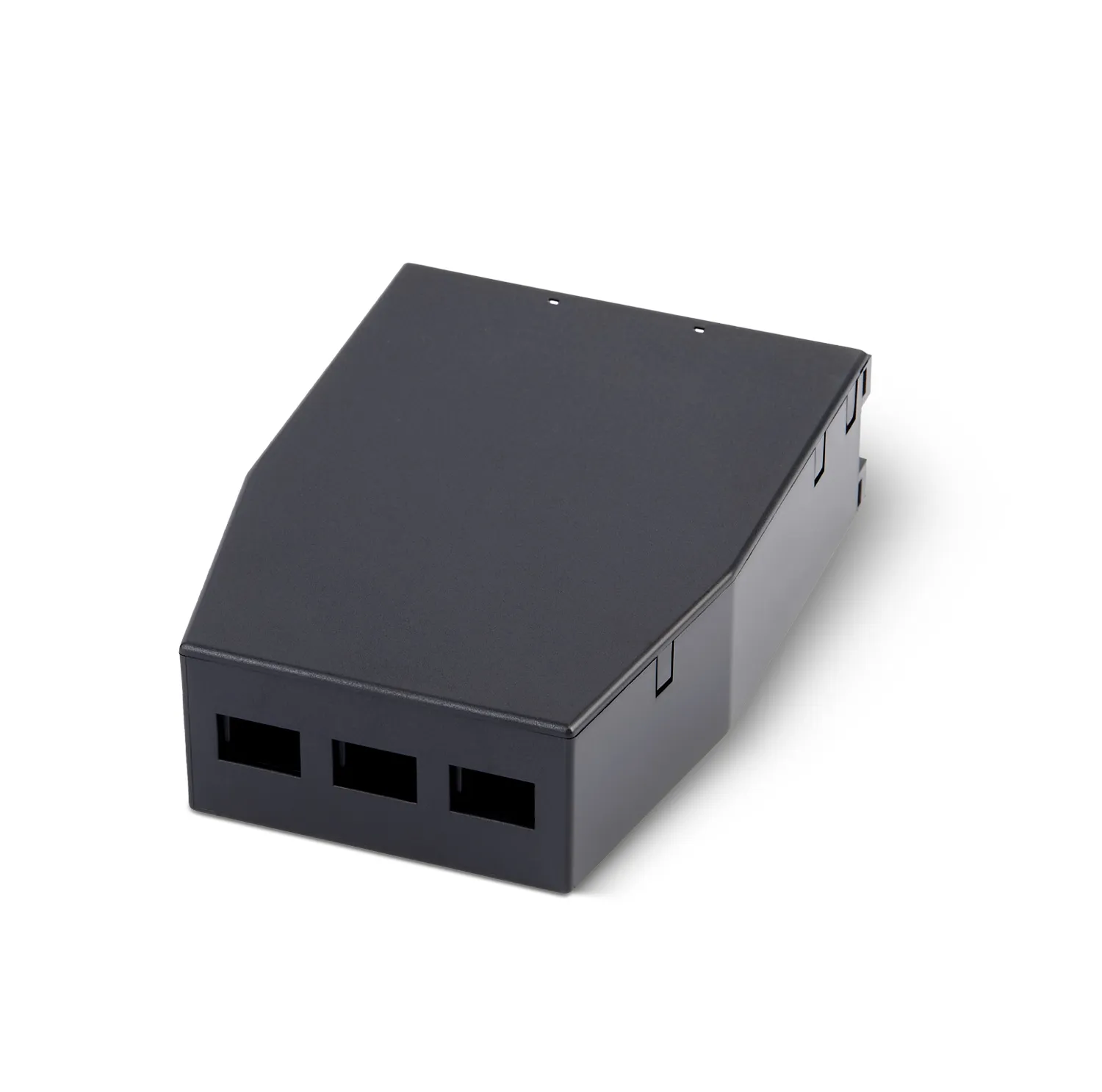

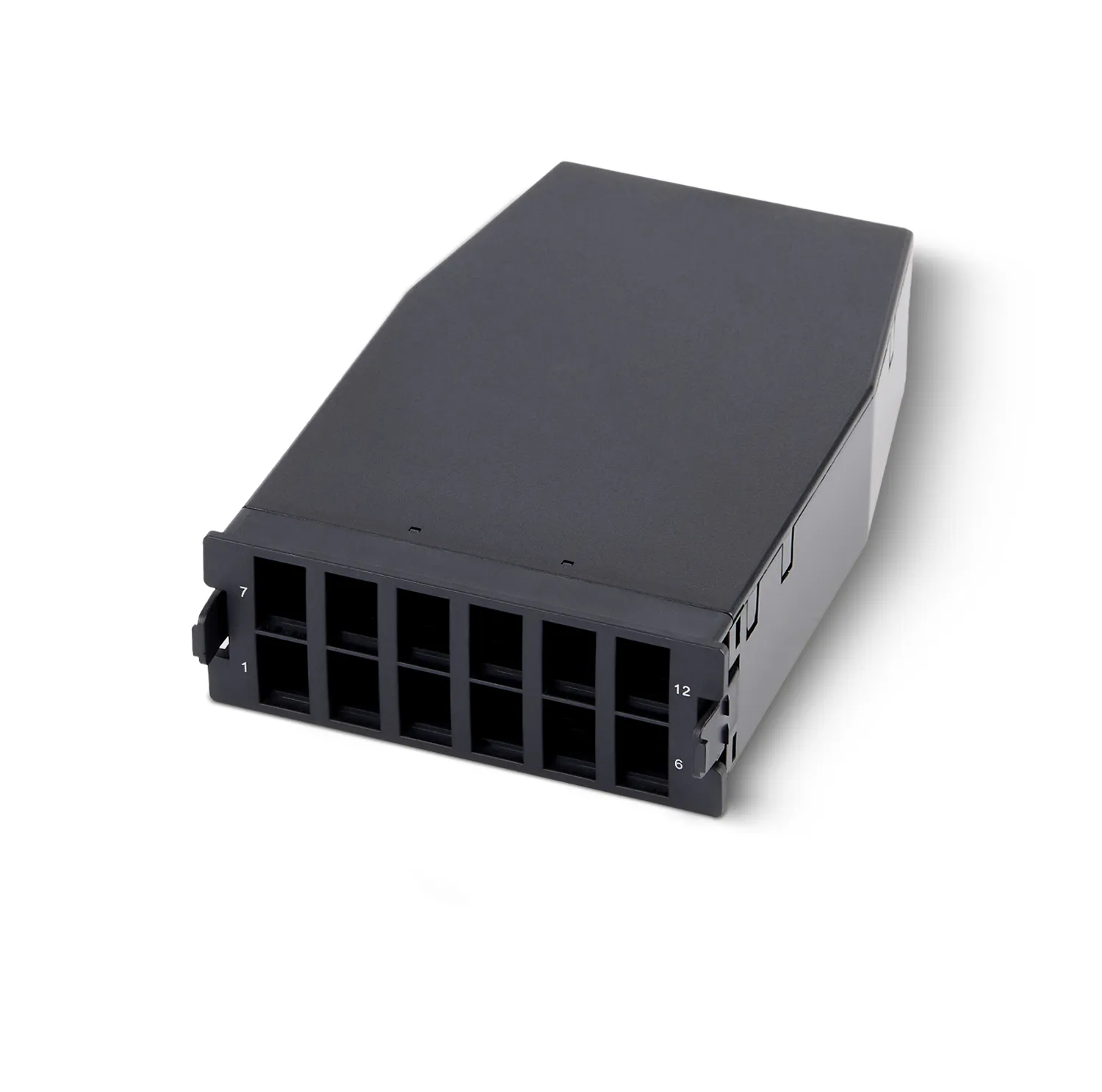

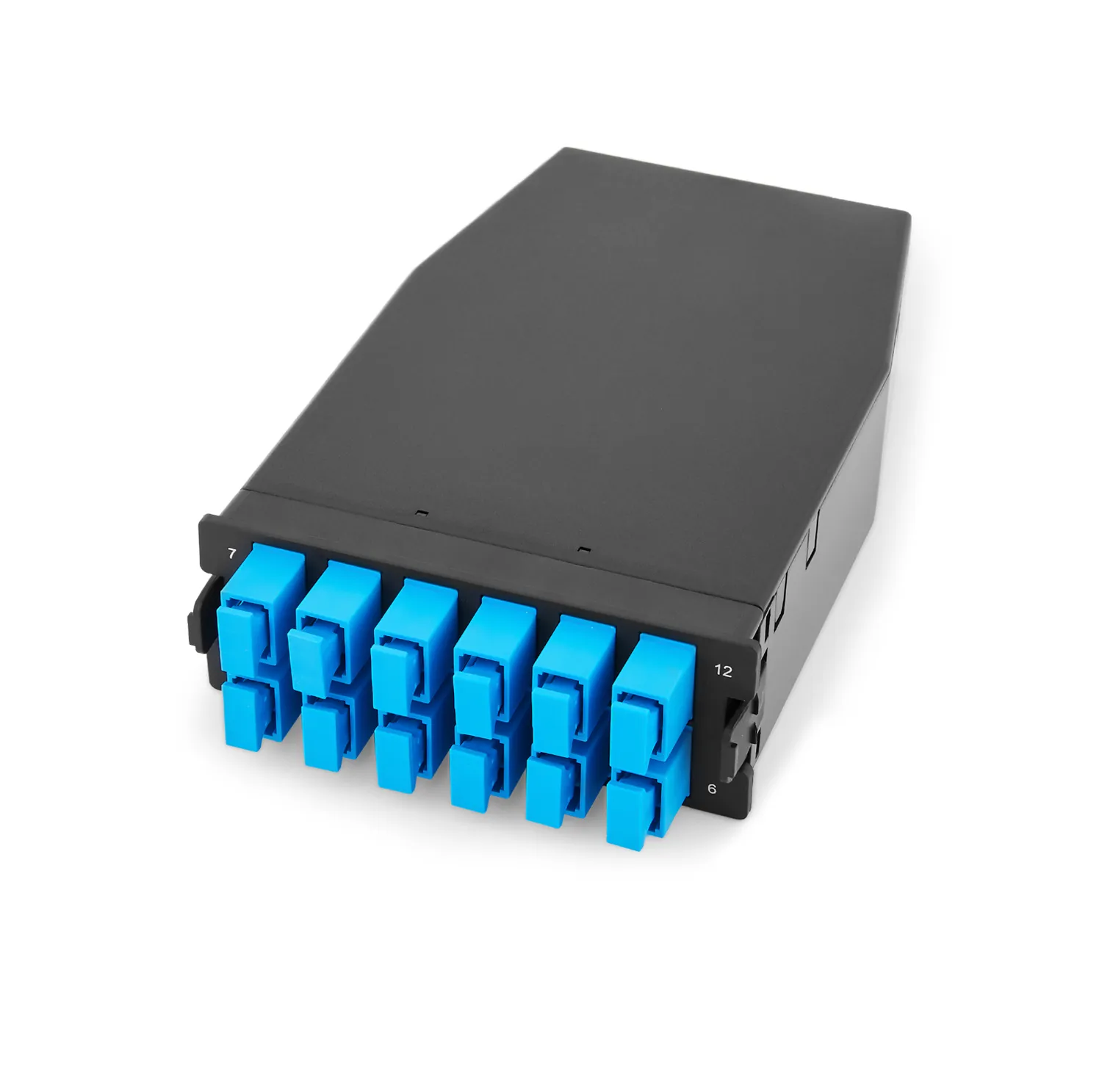

T&S optical module cassettes from the Ultra family are designed to efficiently break out MPO/MTP® connectors into SC connectors. Four cassettes accommodate 48 channels within a 1U space, streamlining the deployment of optical networks in a modular fashion.
| Cassette Material | Front Adapter | Rear Adapter | Adapter Color (Front) | Adapter Color (Rear) |
| PC+ABS | SC(Simplex) | MPO/MTP® | Blue/Green/Aqua/Magenta | Black/Gray/Yellow① |
| Capacity | Standard | Dimension(mm) | Weight(g) | Applications |
| 12F | RoHS/REACH | 95x35x145.5 | 78② | Match for UltraX/Y/N/S Enclosure |
note
① More housing colors are available upon request；
② The weight includes the weight of the front and rear adapters, but excludes the weight of the cables.
