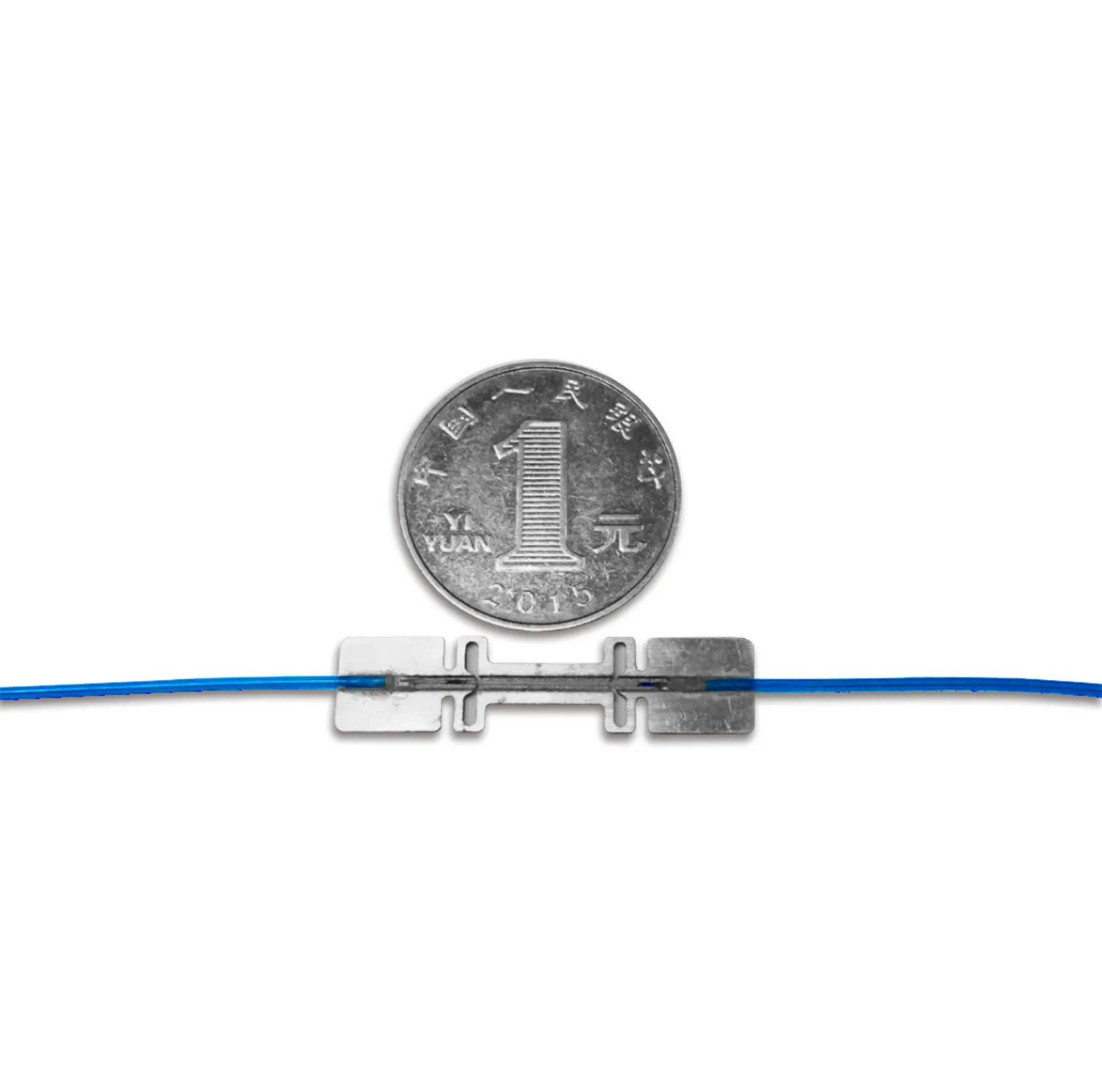

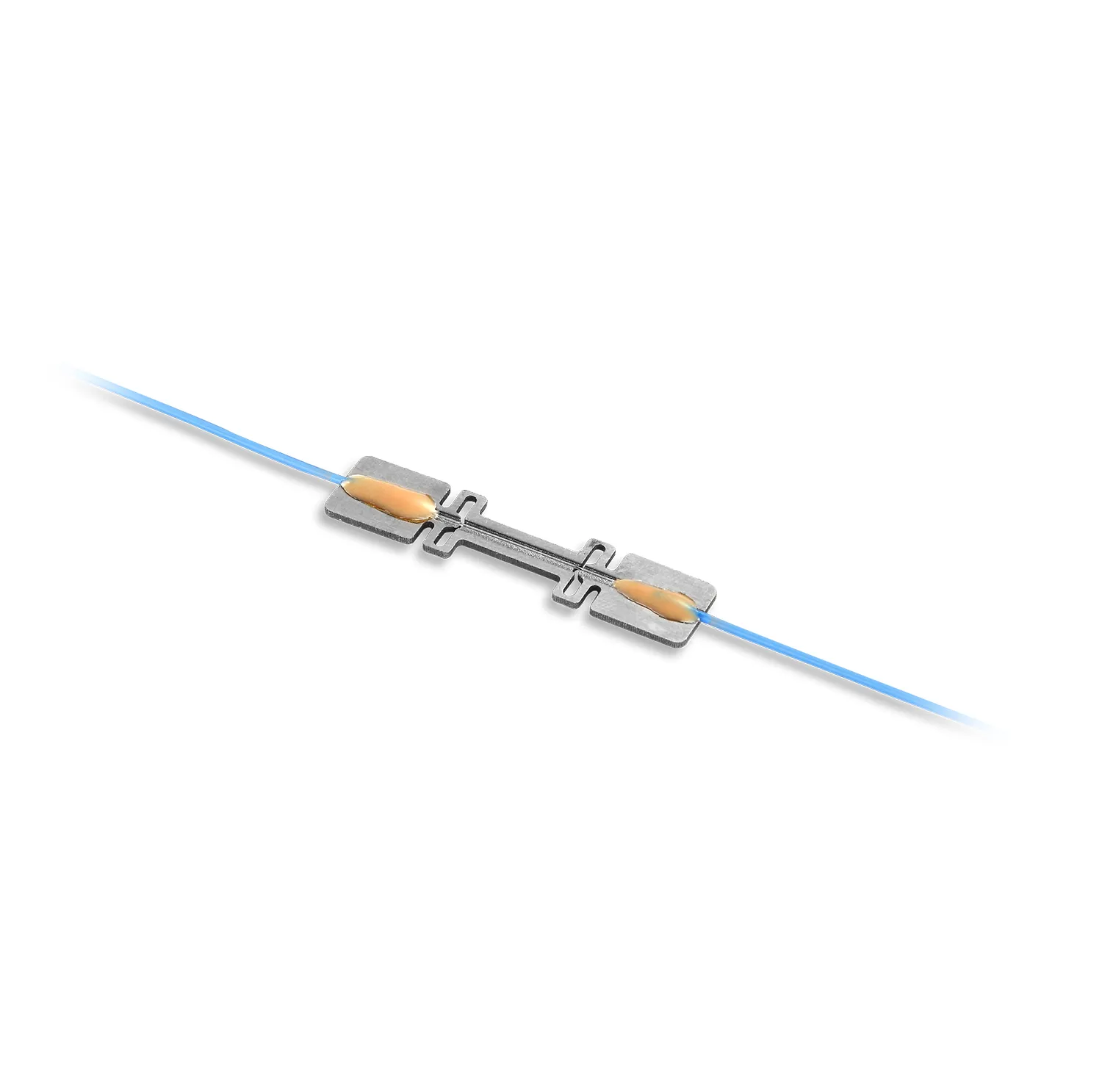

Fiber Bragg Grating (FBG) Patch Strain Sensor, S04

Identifier: 160019

Stain Coefficient~1.2pm/με  |  ±2500με  |  -40℃~+80℃  |  Strain Error＜1%

Features

  • Immune to electromagnetic interference

  • Compact size and lightweight design

  • Long operational lifespan

  • Easy to install

+ View More
Specification Drawings Request Quote Share

Product Description of Fiber Bragg Grating (FBG) Patch Strain Sensor, S04

Utilizing Fiber Bragg Grating (FBG) measurement technology combined with T&S's patented sensor packaging technology, the FBG patch strain sensor enables precise micro-strain measurements without the need for calibration.

Specifications

Performance ParametersUnitSpecification
Strain Coefficientpm/με~1.2
Strain Error%<1
Operating Temperature°C-120
Strain Rangeμε-5000
Gauge Lengthmm22±1



Mechanical ParametersUnitSpecification
Dimensionsmm34.5×8×0.8
Weightg~2
Material-Stainless steel
Installation-Spot welding or adhesive bonding
Fiber Type-SMF-28e
Protective Sleeve Type-Φ0.9mm tubing
Pigtail Lengthm2 on each side



Optical ParametersUnitSpecification
Center Wavelengthnm1525 ~ 1565
Reflectivity%>75
Half-Power Bandwidthnm<0.3
Side Mode Suppression Ratio (SMSR)dB>15
Connector-FC/APC
