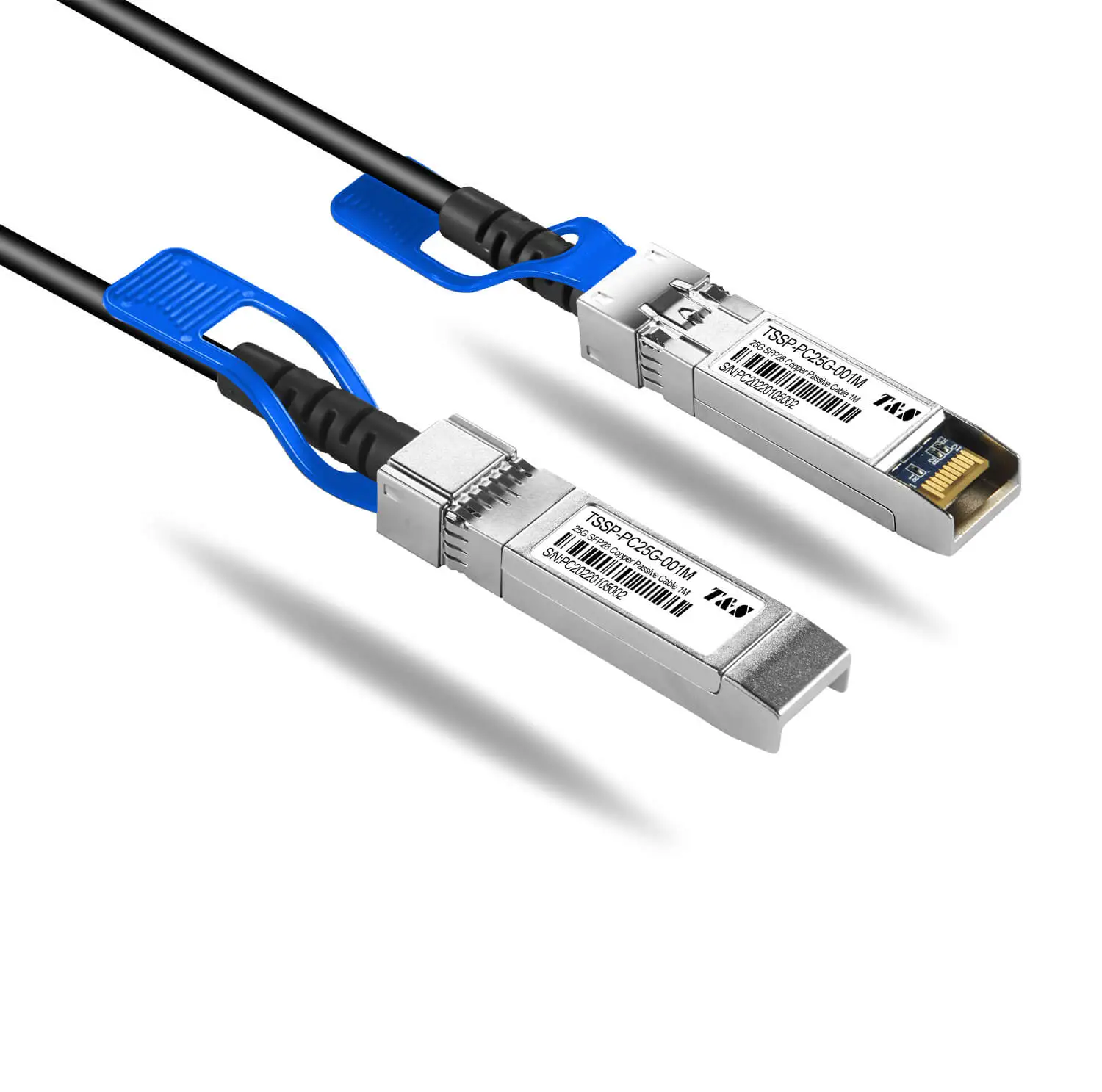

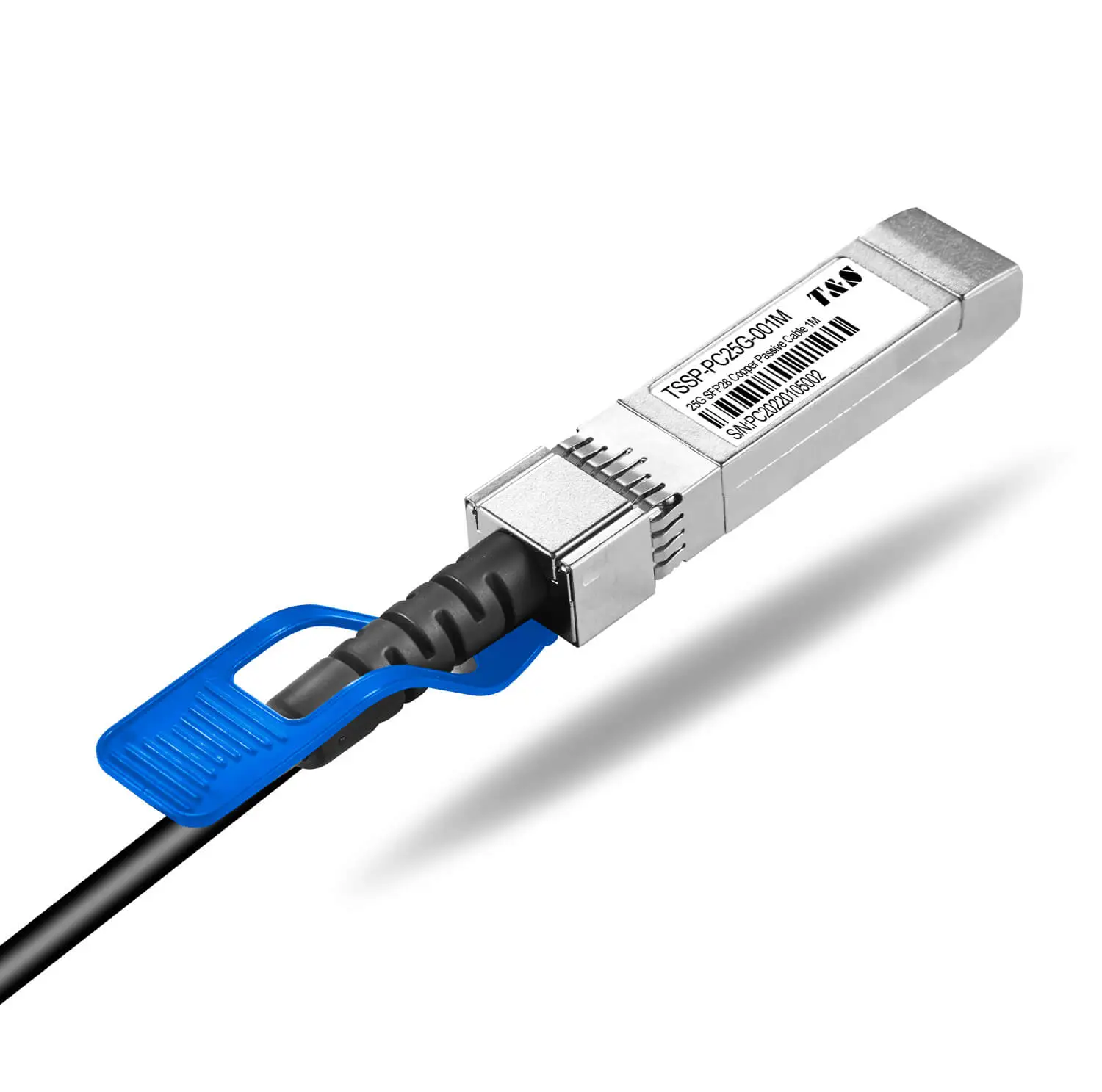

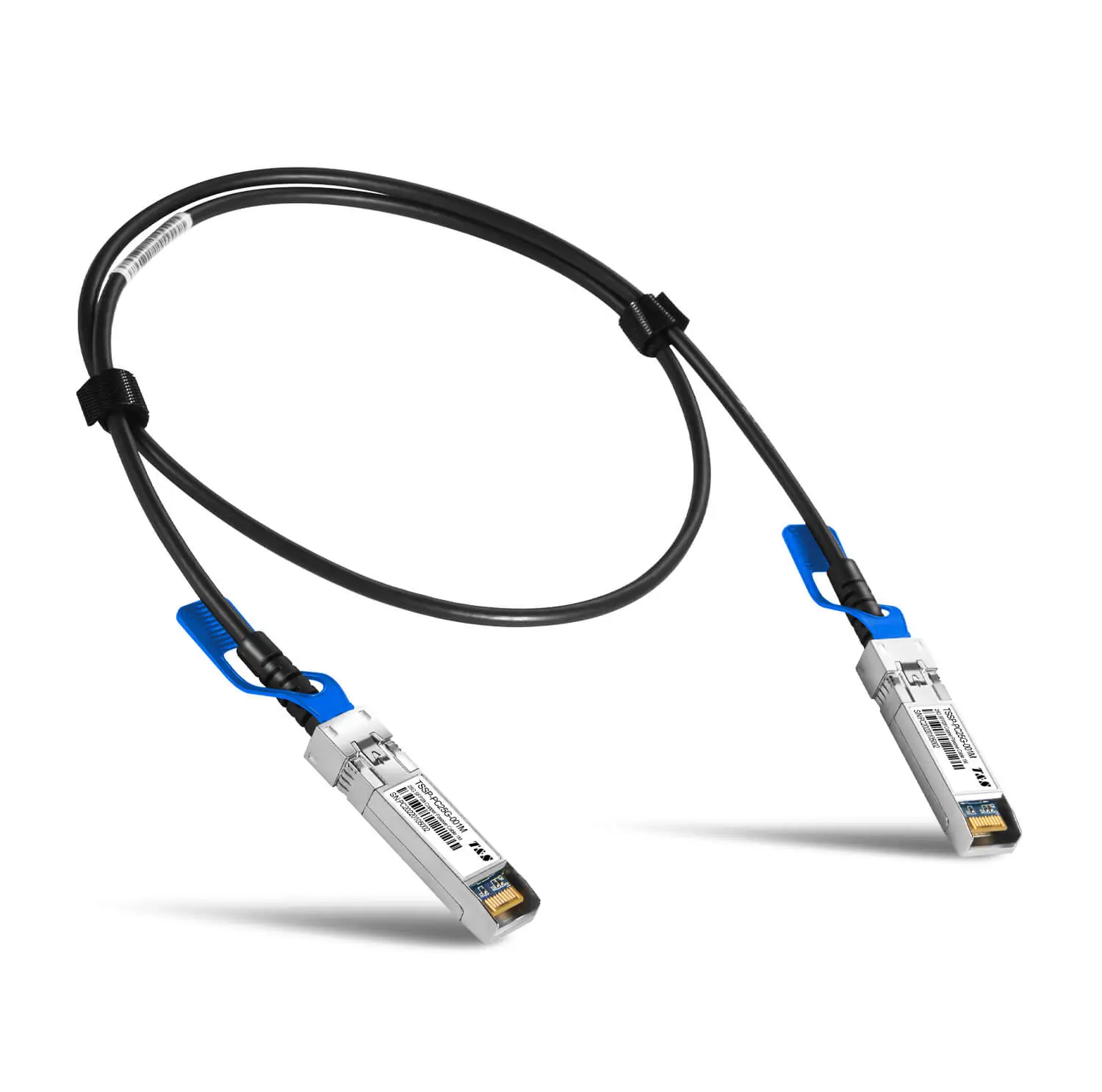

25G SFP28 Direct Attach Cable, Passive, Twinax Copper

Name: 25G SFP28 Direct Attach Cable, Passive, Twinax Copper
Brand: T&S Communications Co., Ltd.

Identifier: 130002

25GBASE-CR | ≤0.1W | 26/30AWG | 28mm/23mm

Features

Up to 25.78125Gbps data rate
Up to 5m transmission
Hot-pluggable SFP 20PIN footprint
Compatible to SFP28 MSA
Compatible to SFF-8402 and SFF-8432
Single 3.3V power supply
Temperature Range: 0 °C to 70 °C
RoHS Compliant

+ View More

Specification Drawings Request Quote

Product Description of 25G SFP28 Direct Attach Cable, Passive, Twinax Copper

SFP28 Direct Attach Cables are compliant with SFF-8432 and SFF-8402 specifications. Various choices of wire gauge are available from 30 to 26 AWG with various choices of cable length (up to 5m).

Specifications

Part Number	TSSP-PC25G-xxM	Application	25G Ethernet
Form Factor	SFP28 to SFP28	Max Data Rate	25.78125 Gbps
Cable	Copper	Cable Jacket	PVC(OFNR)
Wire AWG	26/30AWG	Length	up to 5m
Min. Bending Radius	28mm/23mm	Cable Type	Passive Twinax
Power Comsumption	≤0.1W	Compatibility	Generic
Storage Temperature	-40℃ ~ + 75℃	Operating Temperature	0 ~ 70°C
Protocols	SFF-8432，SFF-8472	Warranty	5 Years

Applications

Low EMI radiation Switches, servers and routers
Data Center networks
Storage area networks
High performance computing
Telecommunication and wireless infrastructure
Medical diagnostics and networking
Test and measurement equipment

Compliance

RoHS/ REACH/ UL/ FCC/ CE
