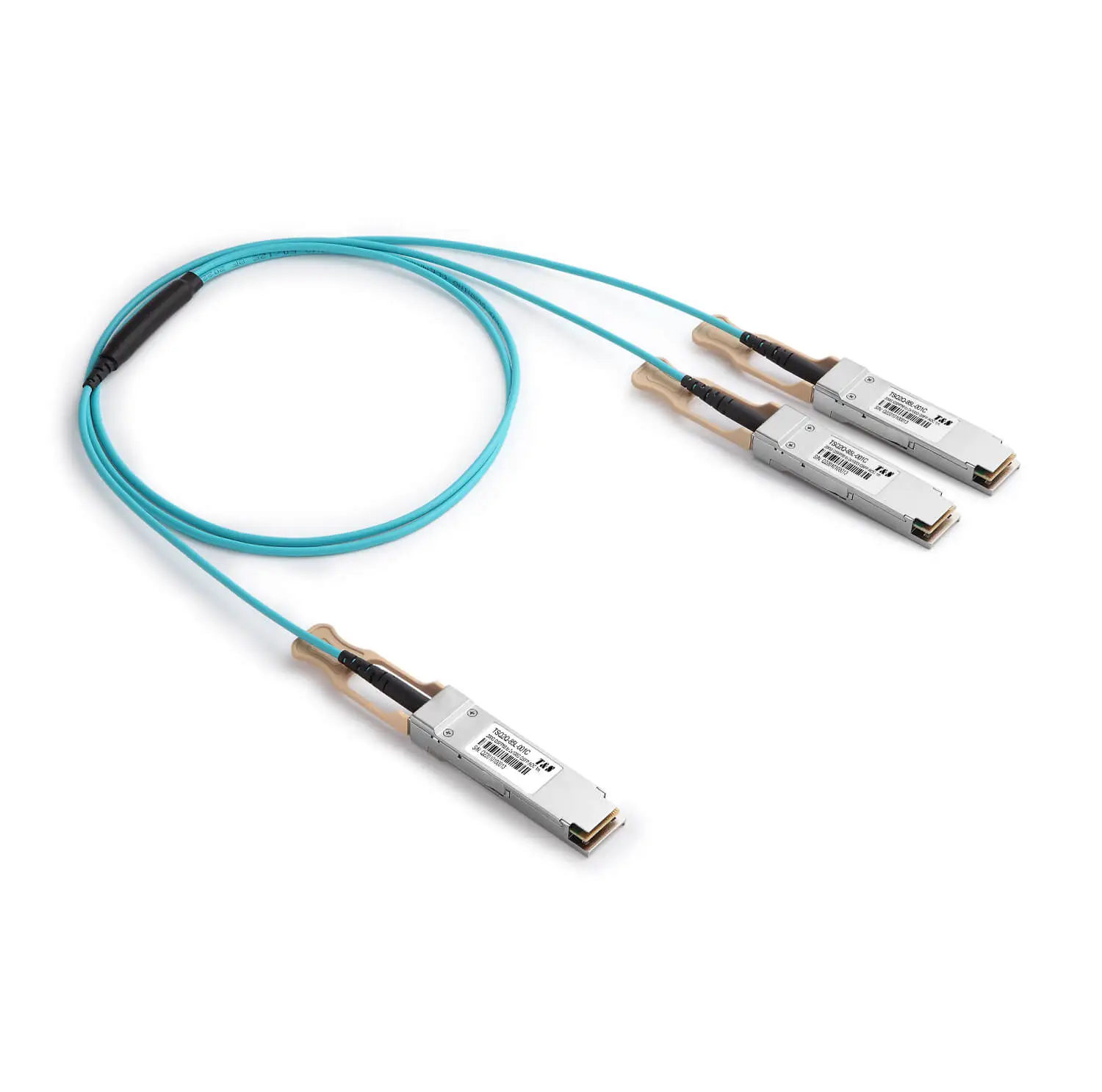

200G QSFP56 to 2x 100GBASE QSFP28 Active Optical Cable

Name: 200G QSFP56 to 2x 100GBASE QSFP28 Active Optical Cable
Brand: T&S Communications Co., Ltd.

Identifier: 120028

60mm | ≤5.5W

Features

QSFP56 data rate 53.125 Gbps PAM4 modulation per lane
QSFP28 data rate 25.78 Gbps NRZ modulation per lane
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
850nm VCSEL array
PIN photo detector array
Single 3.3V power supply
Low power dissipation: QSFP56/QSFP28< 5.5W (Each End)
Built-in digital diagnostic functions
Operating case temperature: 0℃~+70℃
RoHS6 compliant (lead free)

Specification Drawings Request Quote

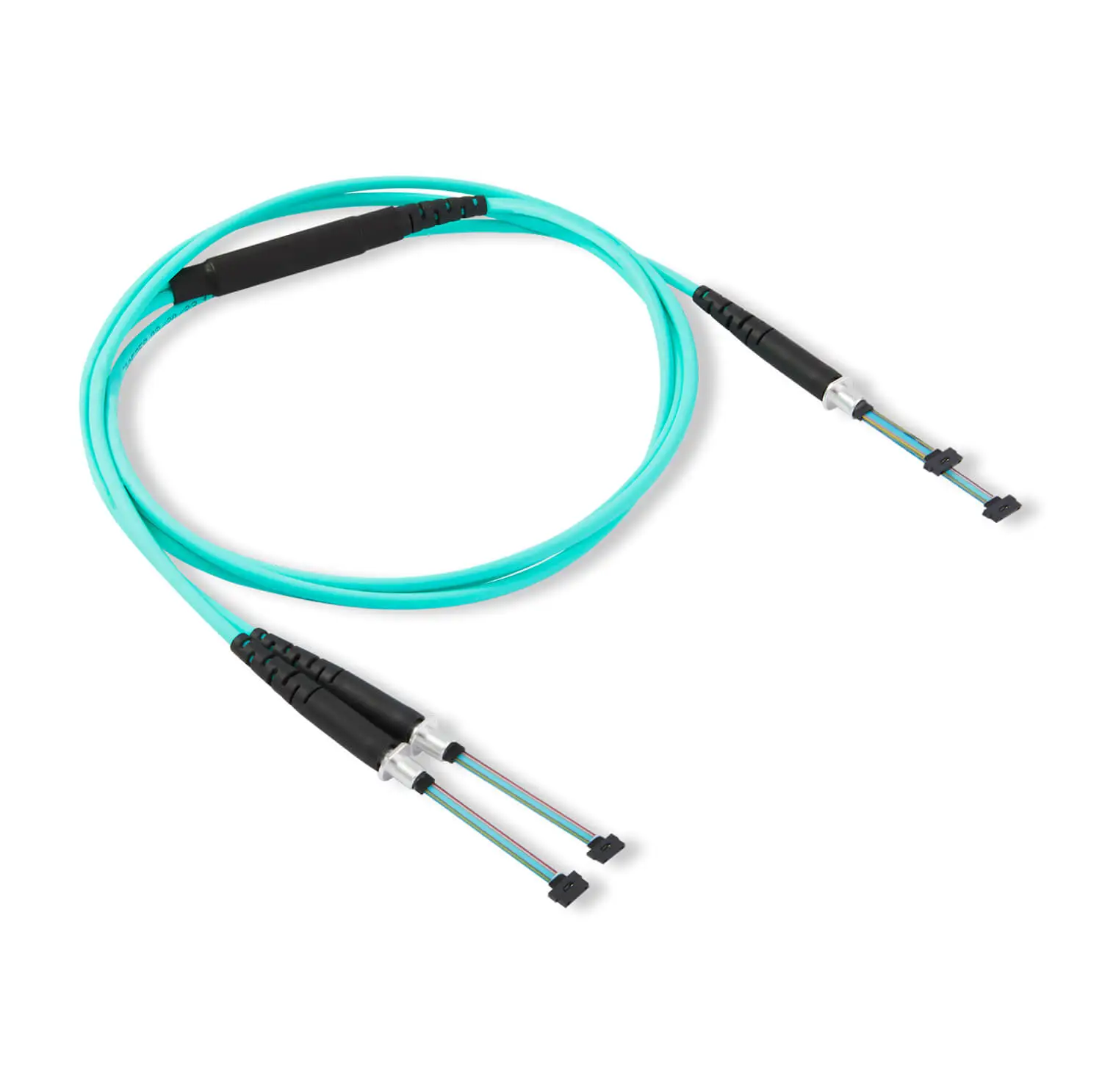

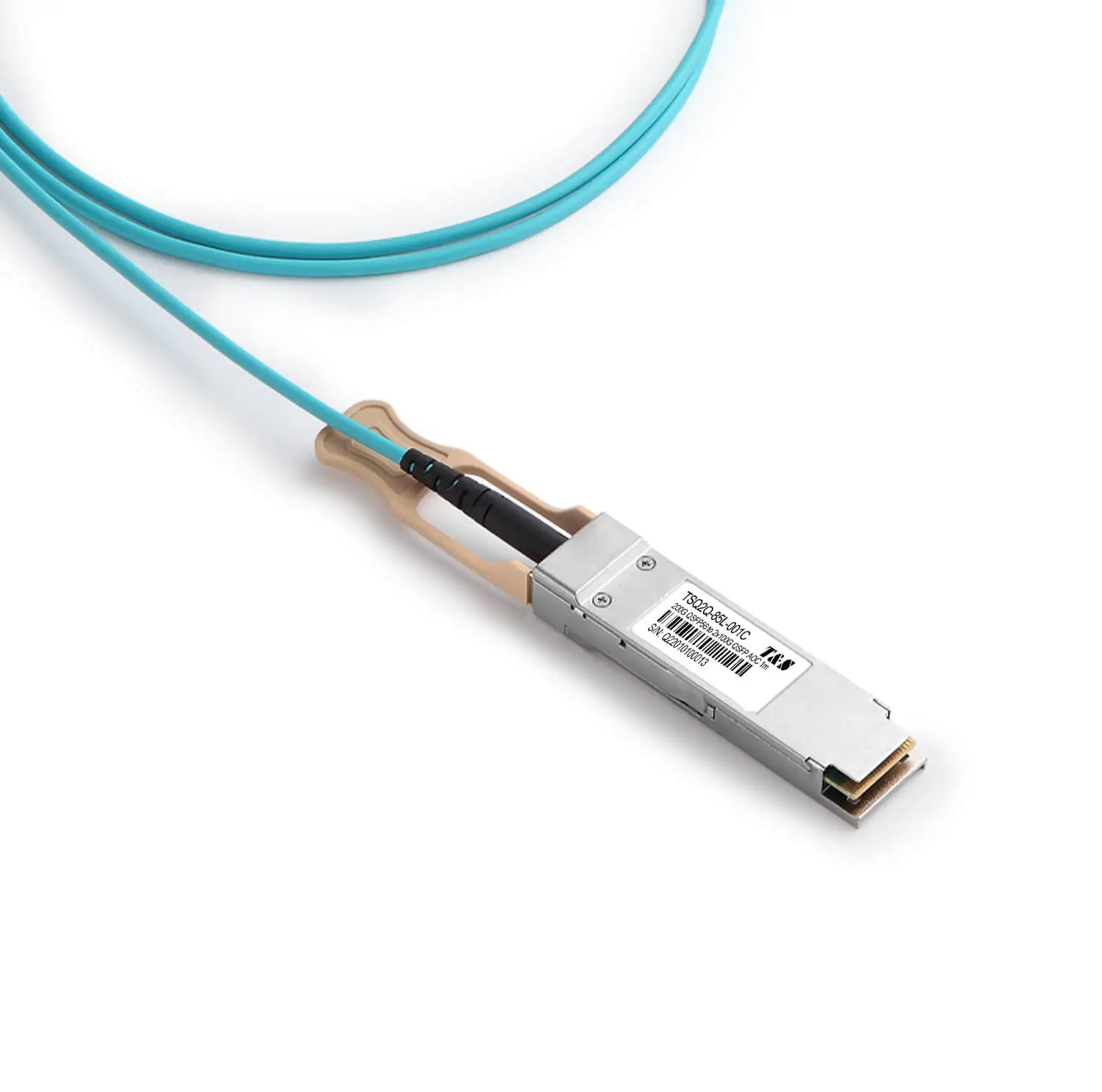

Product Description of 200G QSFP56 to 2x 100GBASE QSFP28 Active Optical Cable

The TSQ2Q-85L-XXXCA is a 4-Channel, Pluggable, Parallel, Fiber-Optic 200G QSFP56 to 2X100G QSFP28 AOC. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates 4 data lanes in each direction with 200Gbps bandwidth.

These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38@QSFP56/ QSFP28 contact edge type connector

Specifications

Part Number	TSQ2Q-85L-XXXCA	Application	200G Ethernet，100G Ethernet
Form Factor	QSFP56 to QSFP28	Data Rate	212.5Gbps
Wavelength	850nm	Max Length	70m
Cable Jacket	LSZH	Fiber	OM3
Min. Bending Radius	60mm	Receiver	PIN
Transmitter	VCSEL	Power Comsumption	≤5.5W
Power Supply	3.3V	DDM/DOM	Supported
Packaging	COB	Modulation	NRZ
DSP or CDR	DSP	Inbuilt FEC	No
Storage Temperature	-40℃ ~ + 85℃	Operating Temperature	0℃ ~ + 70℃
Compatibility	Generic	Class	Commercial
Protocols	IEEE 802.3cd, IEEE 802.3bm	Warranty

Applications

200GBASE-SR4 Ethernet
100GBASE-SR4 Ethernet

Compliance

RoHS/ UL/ CE/ TUV/ ISO14001/ ISO45001/ ISO9001
