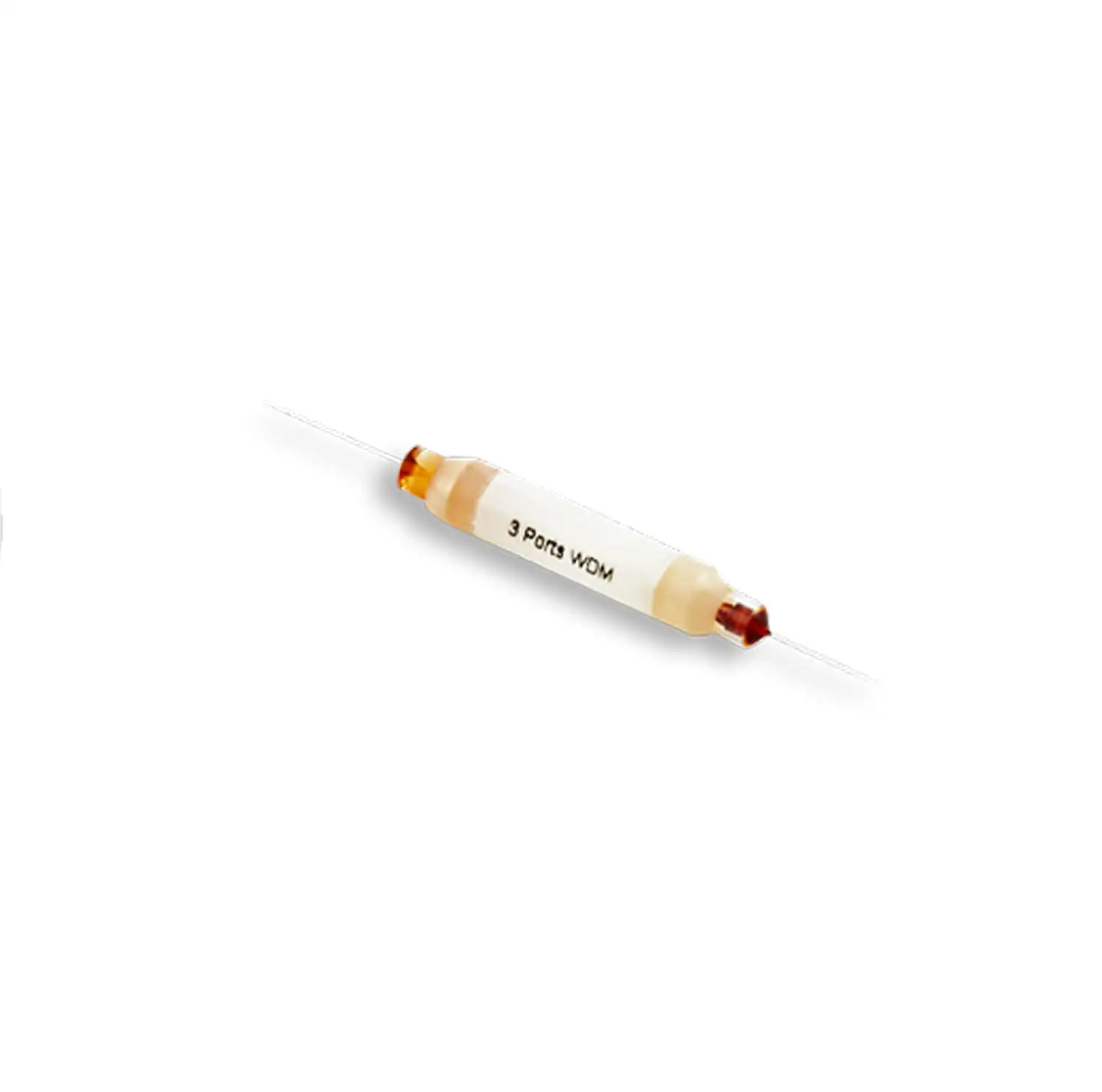

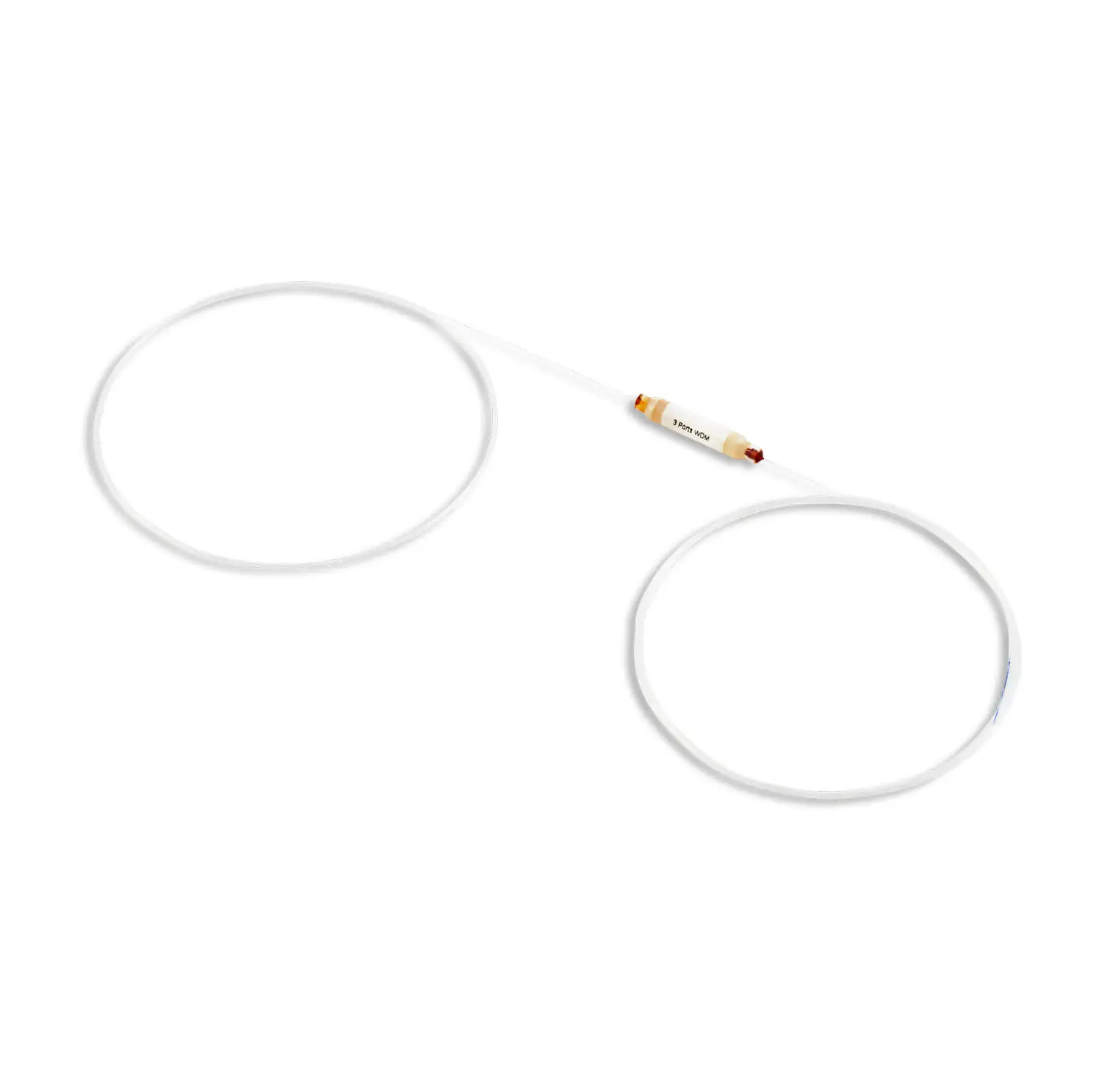

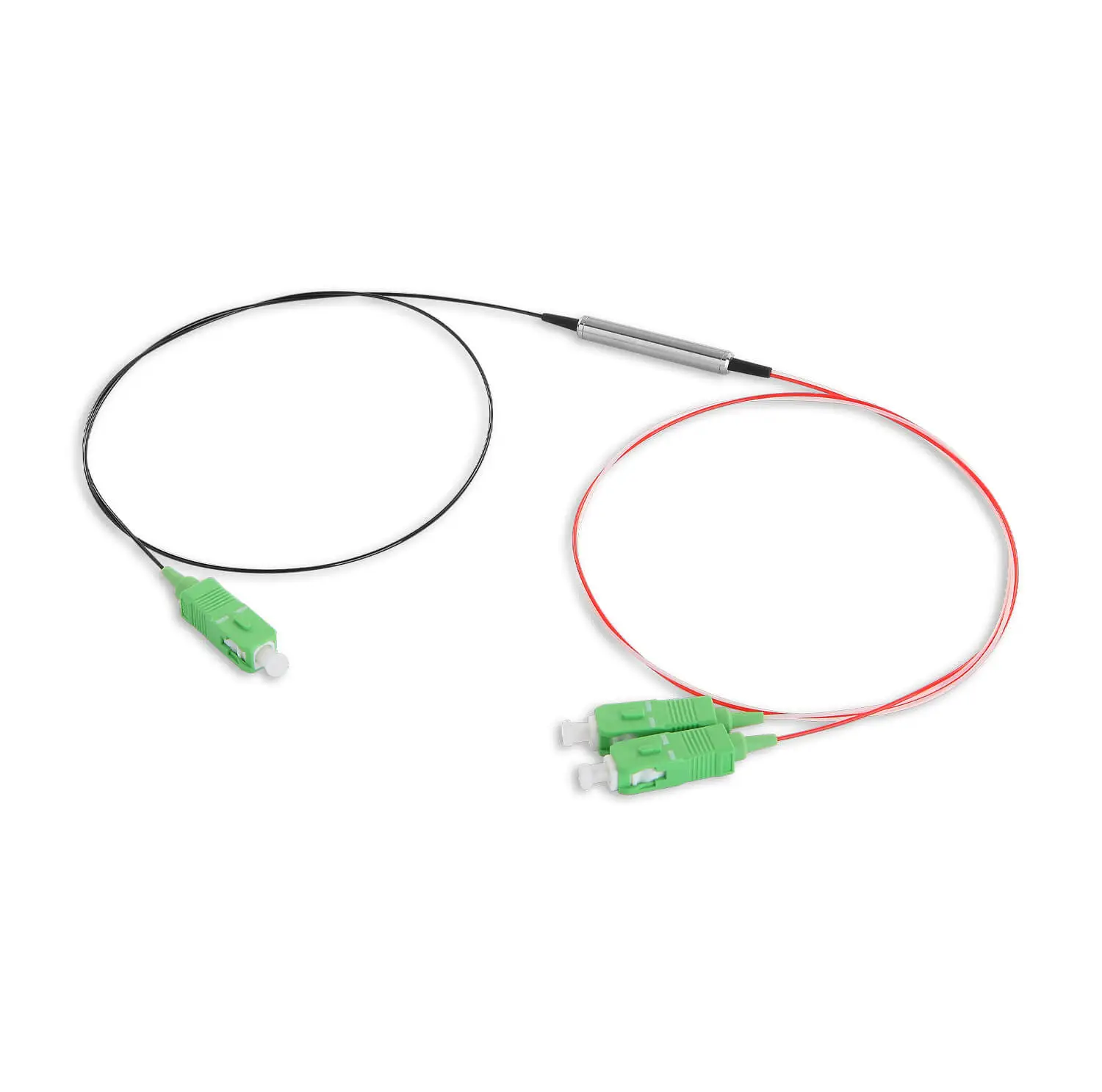

The TFF 1310-1490-1550-1625nm FWDM (Filter Wavelength Division Multiplexer) is a versatile optical device designed to combine or separate multiple wavelengths in a single fiber. This FWDM supports the 1310nm, 1490nm, 1550nm, and 1625nm wavelengths, making it ideal for applications in FTTH (Fiber to the Home), CATV, and broadband networks. It offers excellent isolation, low insertion loss, and high stability, ensuring reliable and efficient transmission of optical signals across various network configurations. The TFF FWDM's robust performance and broad wavelength range make it a crucial component for advanced fiber-optic communication systems.
| Parameter |
| Unit | Specification |
|
|
|
|
|
| FWDM35/6 | FWDM35/6 | FWDM345/6 | FWDM345/6 |
|
|
| 3 ports | 2 ports | 3 ports | 2 ports |
| Operating Wavelength | Transmission | nm | 1610-1650 |
|
|
|
| Reflection | nm | 1280-1340 |
| 1260-1580 |
|
|
| nm | 1530-1570 |
|
|
|
| Port of Transmission | Insertion Loss | dB | ≤0.60 (Typical 0.4) |
| ≤0.60 (Typical 0.4) |
|
| (Port1=＞Port2) | Isolation | dB | ≥40 |
| ≥40 |
|
| Port of Reflection | Insertion Loss | dB | ≤0.50(Typical 0.3) | --- | ≤0.50(Typical 0.3) | --- |
| (Port1=＞Port3) | Isolation | dB | ≥15 | --- | ≥15 | --- |
| Return Loss |
| dB | ≥45 |
|
|
|
| Insertion Loss Thermal Stability |
| dB/℃ | ≤0.005 |
|
|
|
| Polarization Dependent Loss |
| dB | ≤0.15 |
|
|
|
| Polarization Mode Dispersion |
| Ps | ≤0.10 |
|
|
|
| Directivity |
| dB | ≥45 | --- | ≥45 | --- |
| Power Handling |
| mW | 300 |
|
|
|
| Operating Temperature |
| ℃ | -40 ~ +85 |
|
|
|
| Storage Temperature |
| ℃ | -40 ~ +85 |
|
|
|
| Fiber Type |
| -- | Corning SMF-28 Ultra, G657A1/A2 or customer specified |
|
|
|
| Pigtail type |
| -- | Ø250μm Bare Fiber or Ø0.9mm loose tube |
|
|
|
| Fiber length |
| m | 1.0, or customer specified |
|
|
|
| Package Dimension |
| mm | Steel Tube: |
|
|
|
|
|
| Ø5.5x34 for 250μm bare fiber, |
|
|
|
|
|
| Ø5.5x38 for Ø0.9mm loose tube; |
|
|
|
|
|
| Glass Tube: |
|
|
|
|
|
| Ø4.0x26 for Ø250μm bare fiber, |
|
|
|
|
|
| Ø3.2x26 for Ø250μm bare fiber; |
|
|
|
Note:
Insertion Loss excluding connector loss. With connectors add 0.3dB;
Connectors can be supplied on request.
The FWDM device with other Operating Wavelength can be customized.
