100G QSFP28 to 4x 25GBASE SFP28 Active Optical Cabl , Armored, Industrial-grade

Identifier: 120076

60mm  |  ≤2.2W@QSFP28, ≤0.8W@SFP28

Features

  • 4-channel full-duplex active optical cable

  • Data rate up to 25.78125 Gbps per lane

  • Compliant to the QSFP28 MSA /SFP28 MSA

  • VCSEL Array Transmitter and PIN Array Receiver

  • Low Power Dissipation: QSFP28 <2.2W; SFP28 <0.8W

+ View More

Product Description of 100G QSFP28 to 4x 25GBASE SFP28 Active Optical Cabl , Armored, Industrial-grade

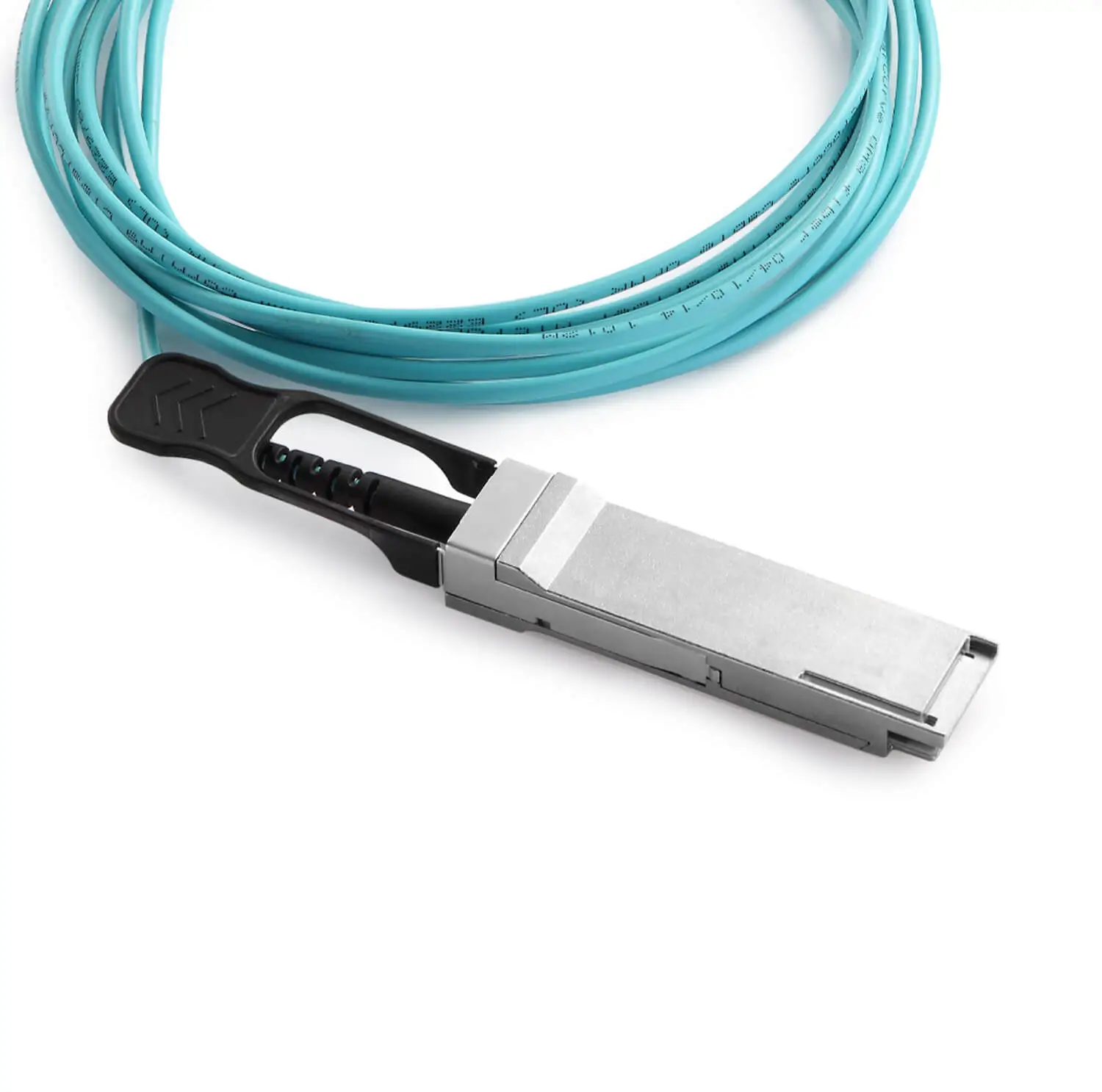

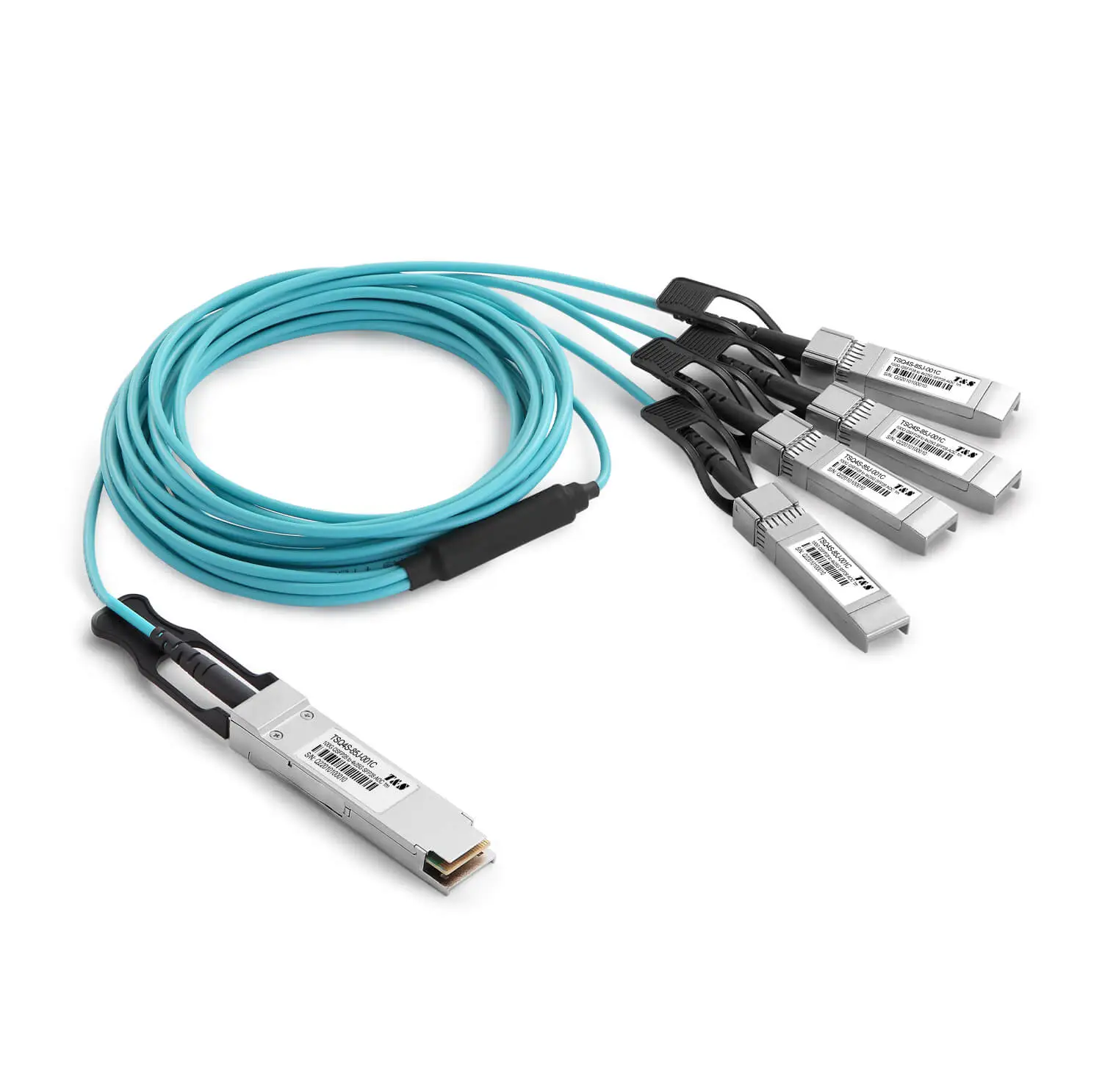

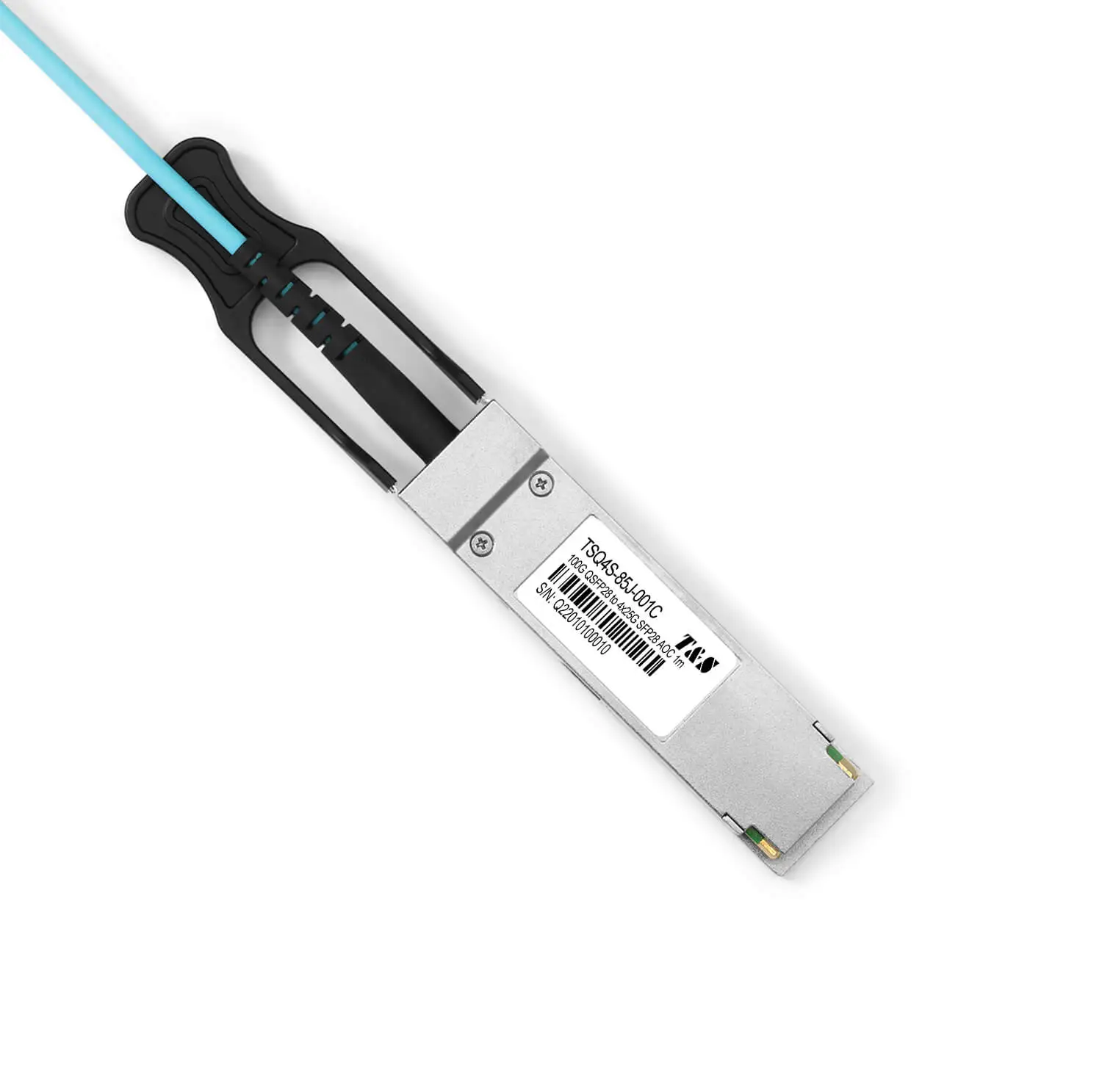

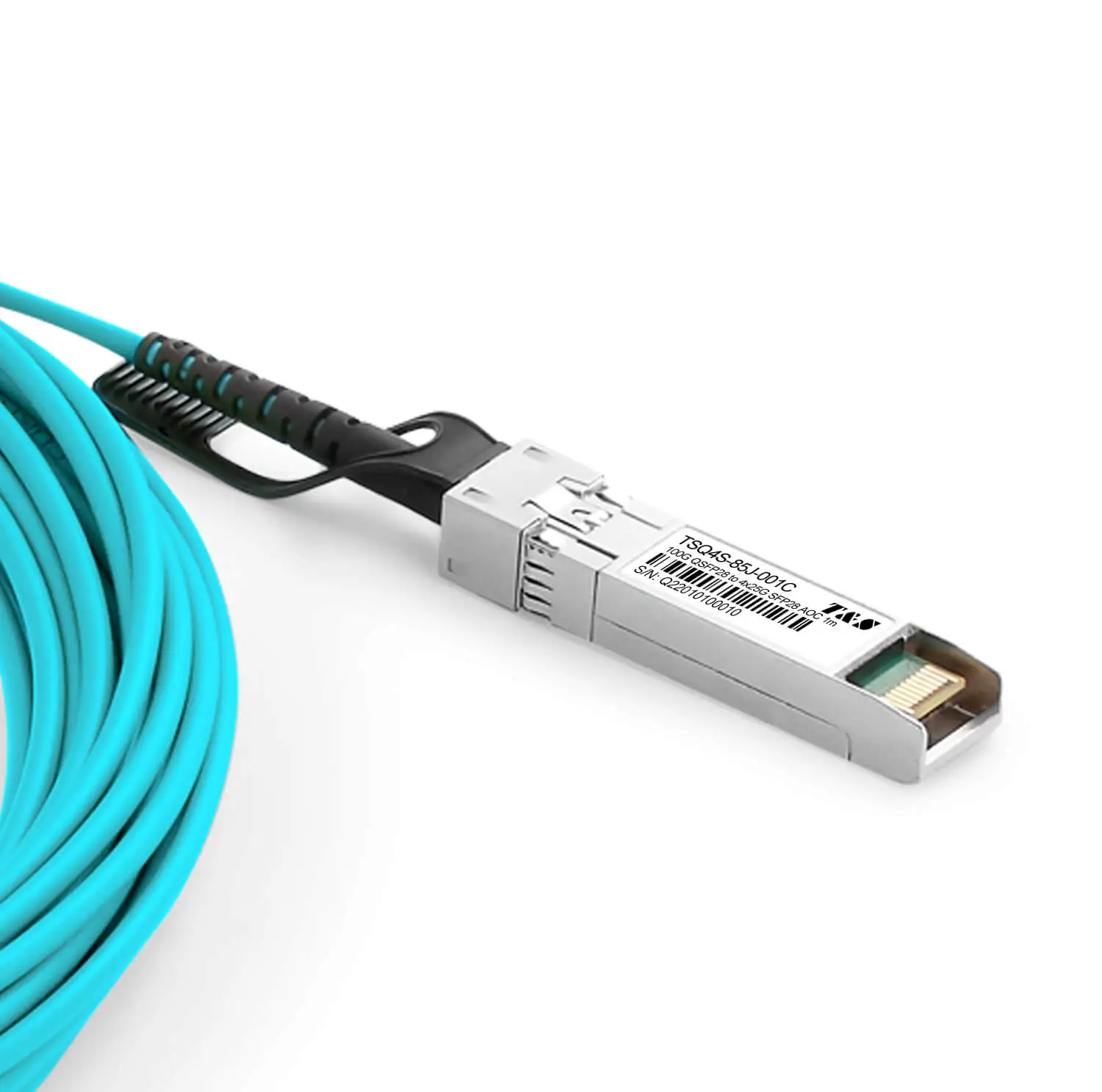

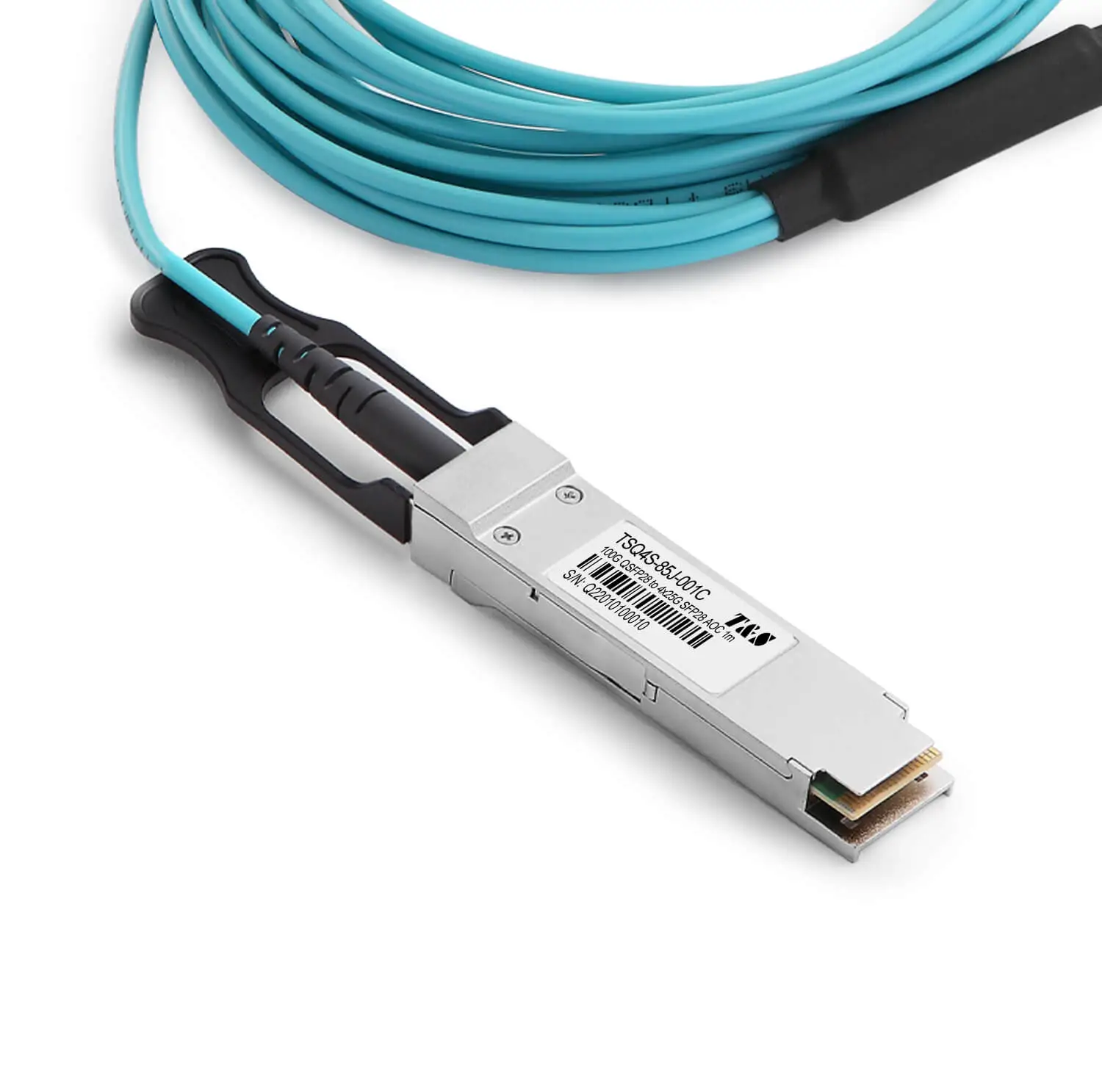

The TSQ4S-85J-XXXD/TSQ4S-85J-XXXU is a 4-Channel, Pluggable, Parallel, Fiber-Optic 100G QSFP28 to 4X25G SFP28 AOC. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates 4 data lanes in each direction with 100Gbps bandwidth.

These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38@QSFP28 and 20@SFP 28 contact edge type connector.

Specifications

Part NumberTSQ4S-85J-XXXUApplication100G Ethernet,25G Ethernet
Form FactorQSFP28 to SFP28Data Rate103.125Gbps
Wavelength850nmMax Length70m
Cable JacketLSZHFiberOM3
Min. Bending Radius60mmReceiverPIN
TransmitterVCSELPower Comsumption≤2.2W@QSFP28,≤0.8W@SFP28
Power Supply3.3VDDM/DOMSupported
PackagingCOBModulationNRZ
CDRYesInbuilt FECNo
Storage Temperature-40℃ ~ + 85℃Operating Temperature-40℃ ~ + 85℃
CompatibilityGenericClassIndustrial
ProtocolsIEEE 802.3bm, IEEE 802.3by, SFF-8431Warranty


Applications

  • 100GBASE SR4 Ethernet

  • 25GBASE SR Ethernet


Compliance

RoHS/ UL/ CE/ TUV/ ISO14001/ ISO45001/ ISO9001
