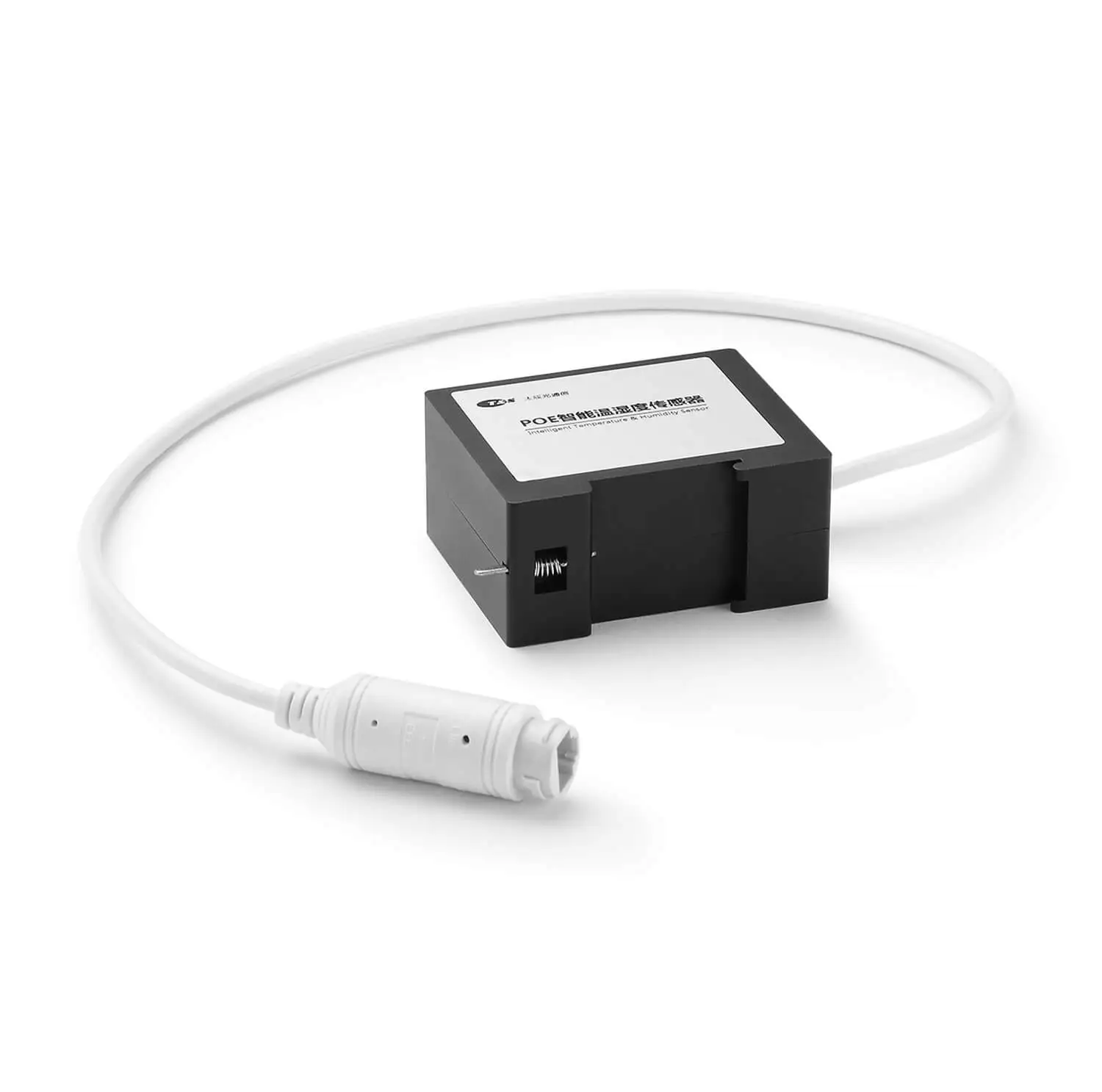

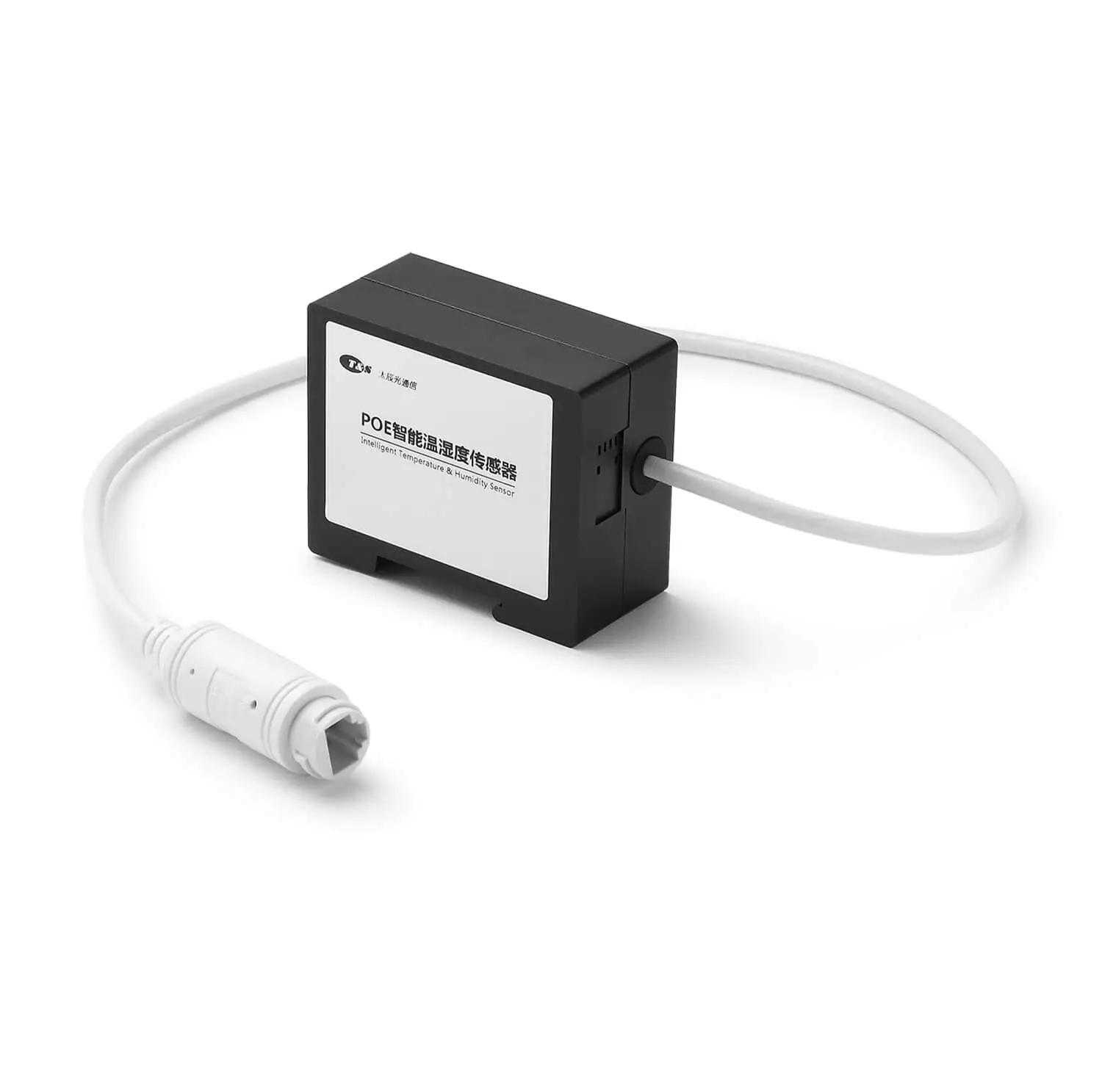

POE Smart Temperature and Humidity Sensor

Name: POE Smart Temperature and Humidity Sensor
Brand: T&S Communications Co., Ltd.

Identifier: 160020

IP55 | RJ45 Ethernet | Temp. -40℃ to 80℃ | Humidity 0-100%RH

Features

Parameters can be modified and temperature/humidity data can be monitored via PC software.
Built-in web server supports multi-user access, enabling convenient remote monitoring and historical data export.
Wide range of application scenarios and flexible usage.
Supports POE power supply, high measurement accuracy, wide measurement range, and excellent data consistency.
Strong product protection with first-level lightning protection.
Other language versions can be provided upon request.

Specification Drawings Request Quote

Product Description of POE Samrt Temperature and Humidity Sensor

The POE Smart Temperature and Humidity Sensor features an RJ45 network interface and supports power supply via a POE switch (or through an external terminal). It integrates a TCP/IP protocol stack with 10M/100M adaptive capability and supports multiple working modes, including UDP, TCP Server, and TCP Client. Additionally, it has a built-in web server function, allowing direct access to real-time temperature and humidity data via a browser. The web interface can display historical data curves and export historical data in CSV format.

Specifications

Item	Specification
Power Supply	5V-48V or POE switch
Output Interface	RJ45 Ethernet
Power Consumption	≤1W
Temperature Range	-40℃ to 80℃
Temperature Accuracy	±0.5℃
Temperature Resolution	0.1℃
Humidity Range	0-100%RH
Humidity Accuracy	3%RH
Humidity Resolution	0.1%RH
Waterproof Rating	IP55
Dimensions	36mm x 64mm x 75mm

Applications

With an IP55 waterproof and dustproof industrial design, it is suitable for various scenarios such as power systems, offices, laboratories, warehouses, agricultural greenhouses, cold chain transportation, and food preservation.
