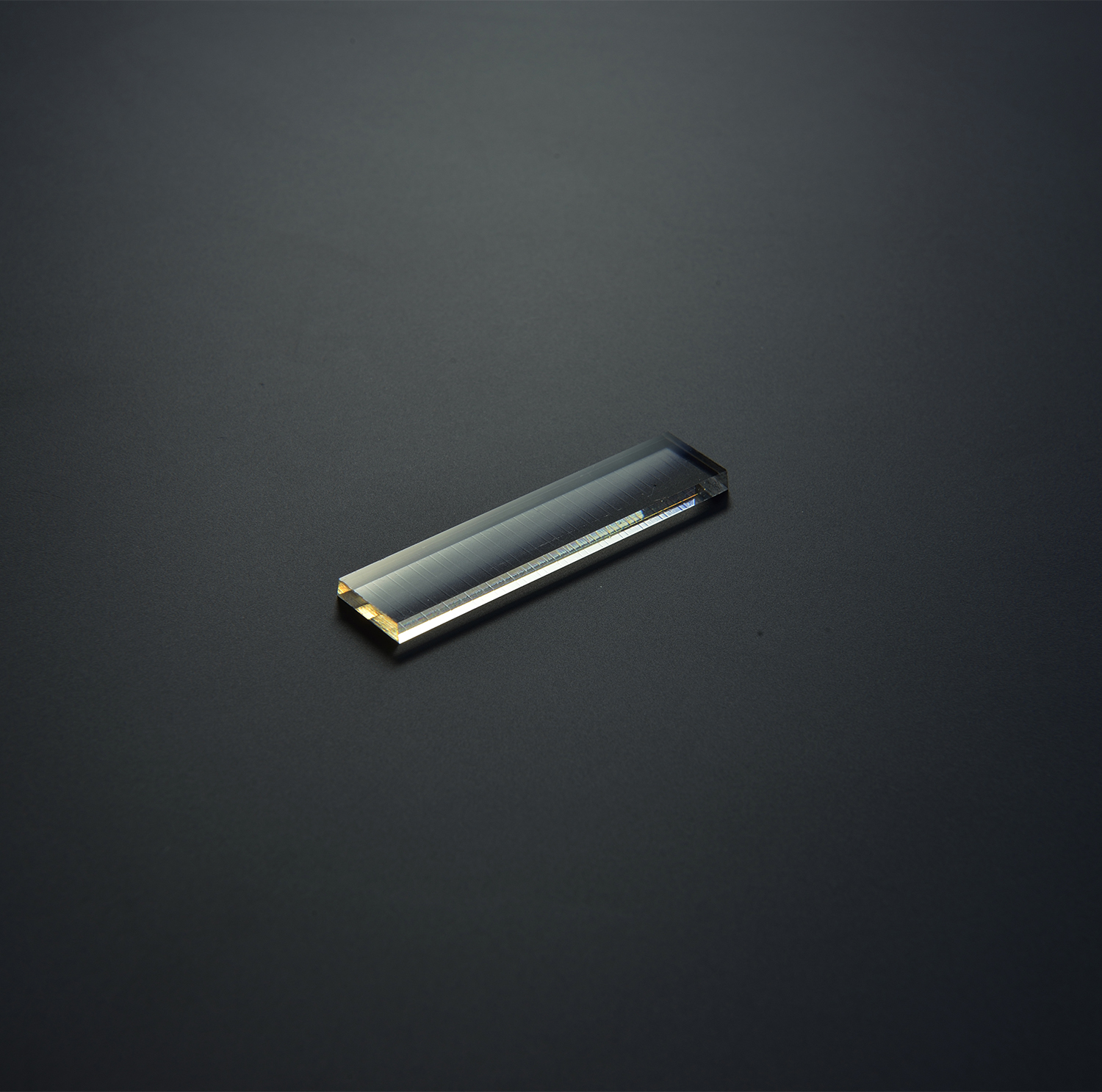

PLC Chip

Name: PLC Chip
Brand: T&S Communications Co., Ltd.

Identifier:

1260nm-1650nm

Features

Low PDL
Low IL
Wide operating wavelength: 1260-1650nm
Compact size
RoHS compliance

Specification Drawings Request Quote

Product Description of PLC Chip

Based on Planar Lightwave Circuit technologies, PLC splitter chips can uniformly divide and guide light in the wavelength ranges from 1260nm to 1650nm. With low insertion loss (IL), low Polarization Dependent Loss (PDL) and high reliability, PLC splitter chips have been widely used in FTTx and other optical communication systems.

Specifications

Parameter	Class	Unit	1x2	1x4	1x8	1x16	1x32	1x64
Operating Wavelength	-	nm	1260 -1650
Insertion Loss	P	dB	3.6	6.7	9.8	13.0	16.2	19.8
PDL	P	dB	0.15	0.15	0.2	0.25	0.25	0.3
Uniformity	P	dB	0.5	0.5	0.6	0.8	1.0	1.2
Return Loss	-	dB	-	≥55
Directivity	-	dB	-	≥55
Operating Temperature	-	℃	-	-40~+85
Storage Temperature	-	℃	-	-40~+85

Applications

Optical communication networks, Telecom equipment, Three-Network-Integration systems, including Signal/power distribution, Fiber-To-The-Home (FTTH), Passive Optical Network (PON).

applications of plc chip
