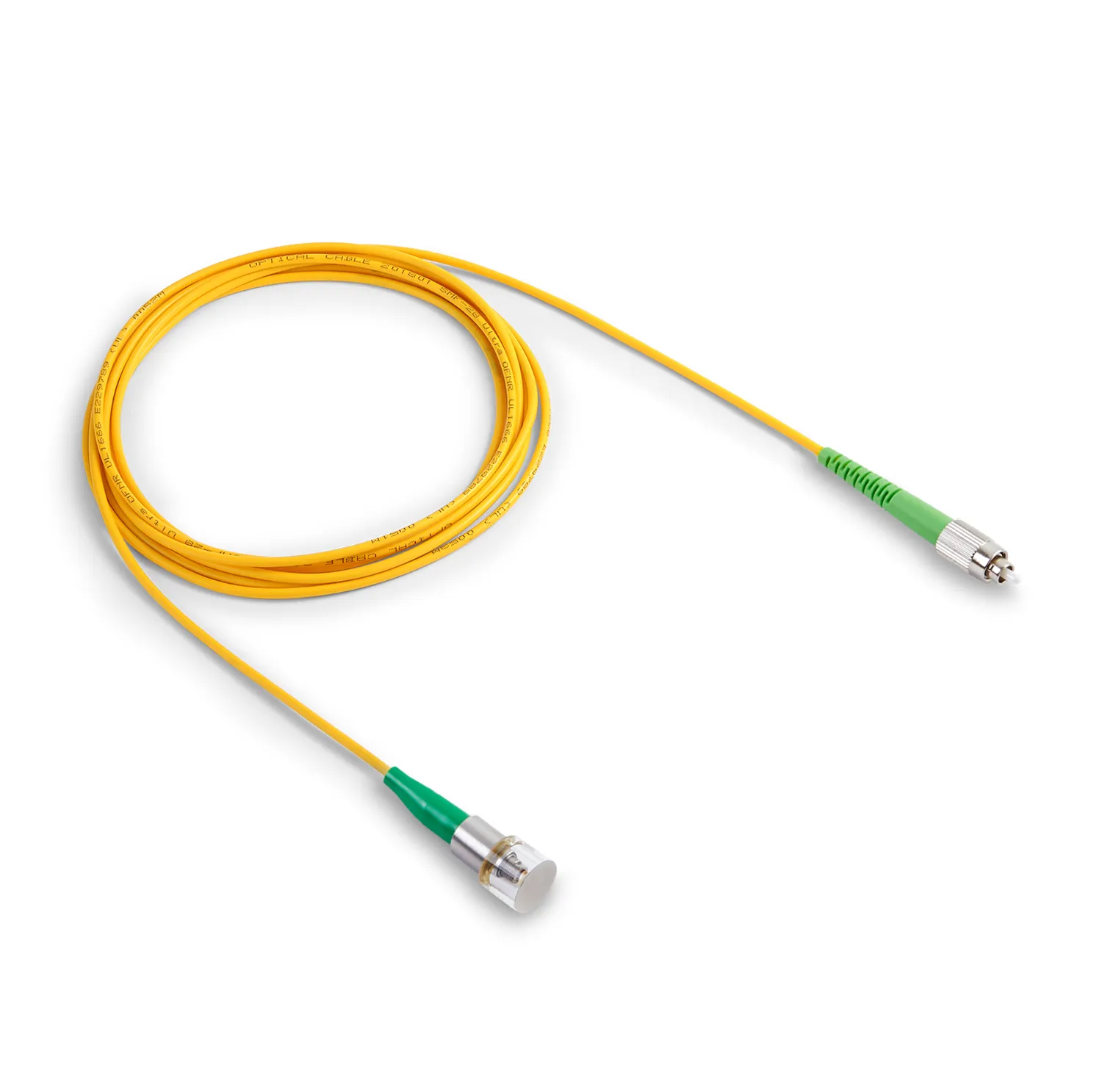

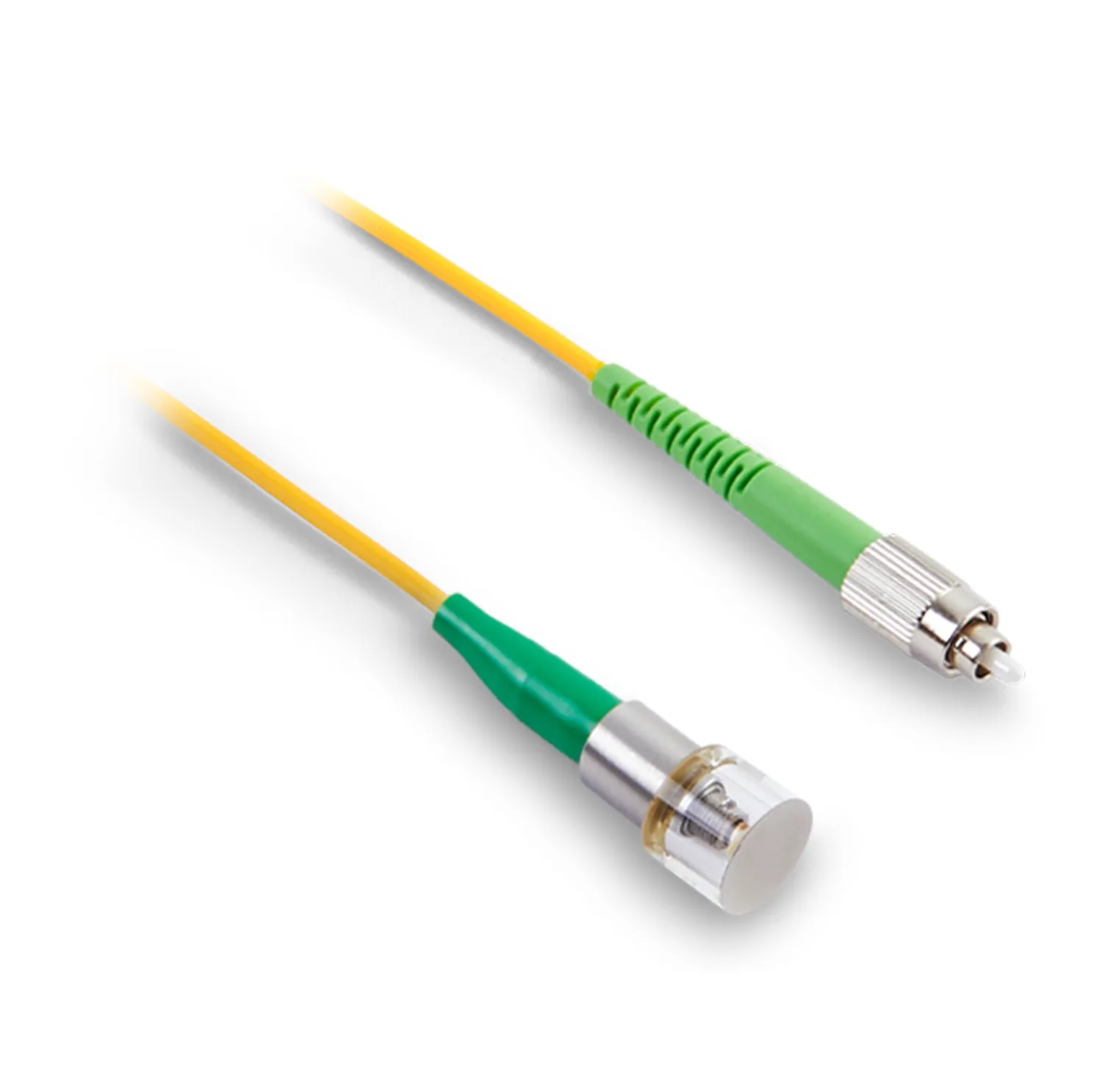

Optical Fiber Ultrasonic Sensor, US01

Name: Optical Fiber Ultrasonic Sensor, US01
Brand: T&S Communications Co., Ltd.

Identifier: 160022

20KHz-50KHz | FC/APC | Detection ≤1m

Features

Passive, anti-electromagnetic interference
Small size
Wide frequency response range
Long measuring distance

Specification Drawings Request Quote

Product Description of Optical Fiber Ultrasonic Sensor, US01

The optical fiber ultrasonic sensor is a new type of optical fiber device using Fabry-Perot (F-P) resonator and vibration diaphragm as sensitive units, which can be used to capture ultrasonic signal generated in partial discharge events.

Specifications

Parameters	Unit	Specification
Range of ultrasonic frequency to be measured	kHz	20-50
Detection range	m	≤1.0
Signal to noise ratio	dB	>25 (@40 kHz, 1.0 m)
Probe size	mm×mm	Ф13×35
Operating temperature range	℃	-40~+80
Fiber connector type	-	FC/APC (or customize)
Pigtail Length	m	1.0 (or customize)

Applications

Metal tip discharge monitoring
Floating potential body discharge monitoring
Surface discharge monitoring
Free metal particle discharge monitoring
Insulator internal gas discharge monitoring
