MTP®/MPO Shuffle cable is designed to provide a more flexible multi-fiber cabling system based on MTP® products. Unlike MTP®/MPO harness cable, MTP®/MPO shuffle cables are terminated with MTP®/MPO connectors on both ends and can provide more possibilities for the existing 8-fiber cabling system.

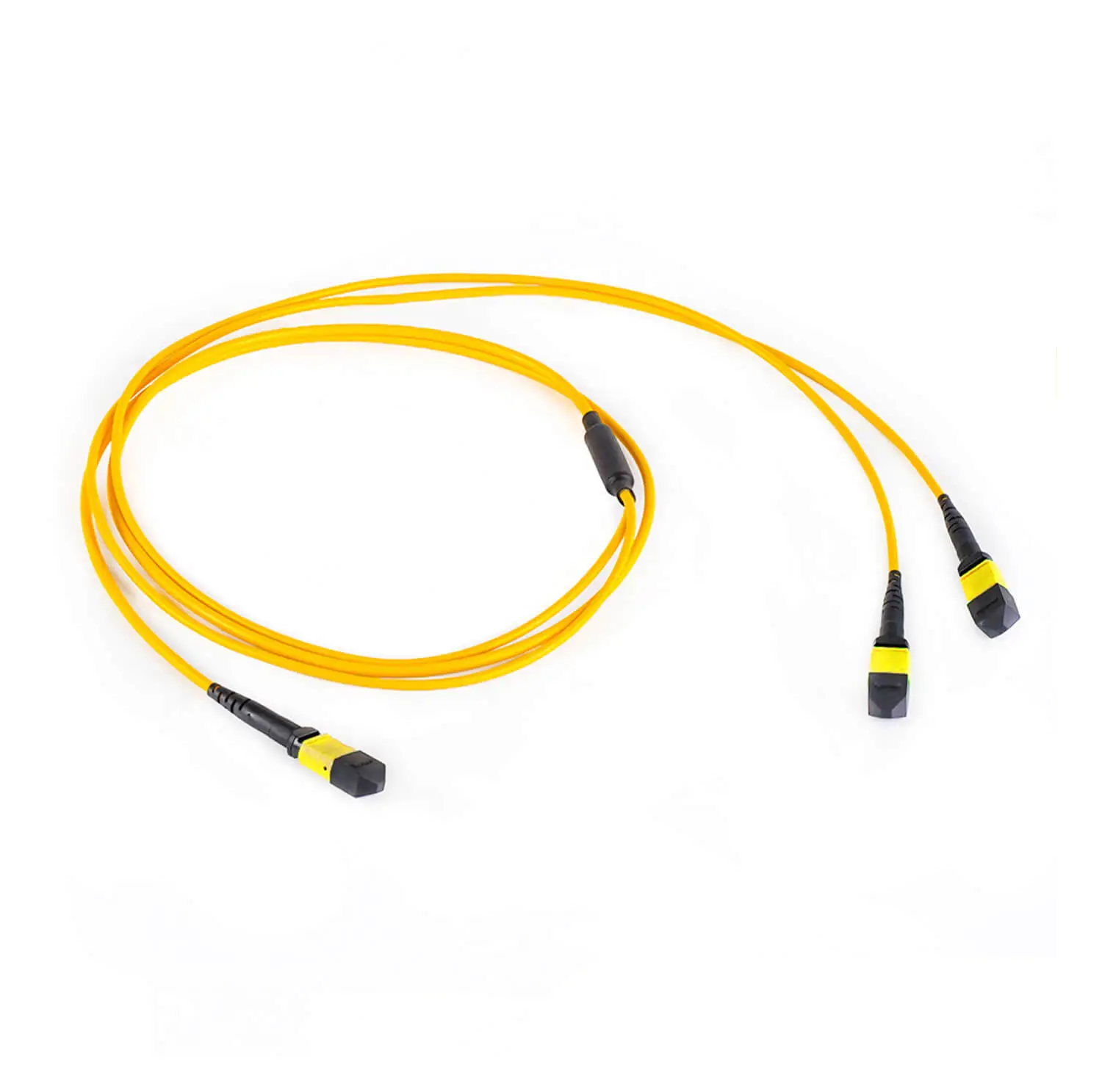

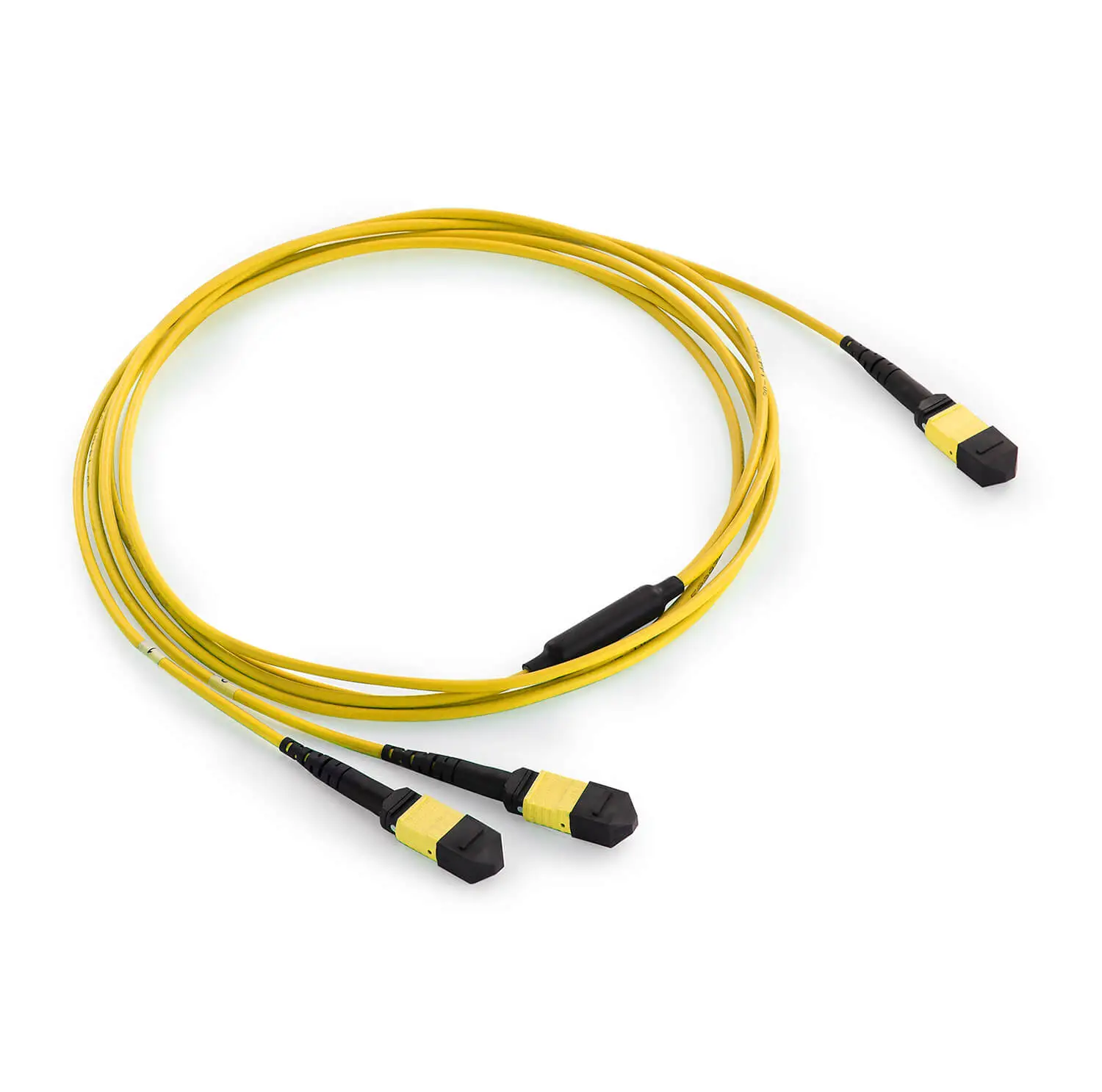

MTP®/MPO -8F APC to 2 x MTP®/MPO-4F APC Shuffle cable, whose MTP®/MPO -12F connectors only use 8 active fibers to transmit light and 4 inactive fibers not connected and MTP®/MPO -4F connectors use MTP®/MPO -12F only 4 active fibers to transmit light and 8 inactive fibers not connected. Using two MTP®/MPO -12F APC to 2 x MTP®/MPO -4F APC shuffle cables can link an 800G InfiniBand twin-port OSFP transceiver to four 400G infiniBand OSFP/QSFP112 transceivers. And, only two channels are activated when 400Gb/s transceivers are used with the 1 to 2 shuffle cables, creating a 200Gb/s transceiver. Compared to purchasing and installing separate Breakout cassettes, using MTP® shuffle cables is more cost-effective and lower-loss.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, which offer novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to generic MPO connectors.
