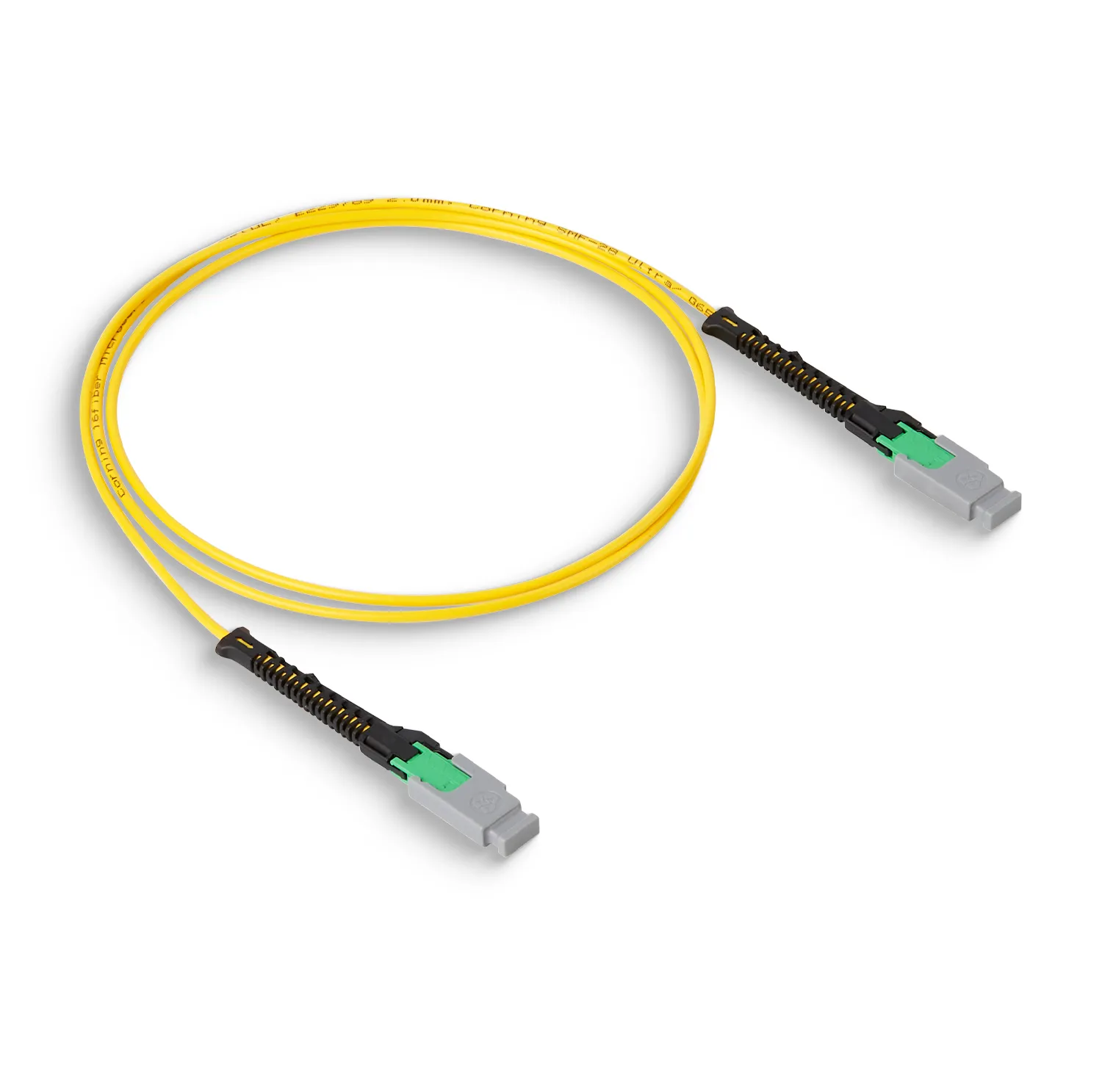

MMC16 Female to MMC16 Female patchcord, 16 fibers, Single-mode OS2 10.0mm bend, Yellow Jacket, OFNP (Plenum)

Name: MMC16 Female to MMC16 Female patchcord, 16 fibers, Single-mode OS2 10.0mm bend, Yellow Jacket, OFNP (Plenum)
Brand: T&S Communications Co., Ltd.

Identifier: 488009

Low Loss ≤0.35

Features

Low loss performance
3x cabling port density over the MPO format
Compatible with 250, 200, and 165 micron fibers
Push-pull boot for effortless connector insertion and extraction
APC for both SM and MM applications
100% factory terminated and tested
Supports cable ODs up to 2.5mm OD
APC for both SM and MM applications

Specification Drawings Request Quote

Product Description of MMC16 Female to MMC16 Female patchcord, 16 fibers, Single-mode OS2 10.0mm bend, Yellow Jacket, OFNP (Plenum)

MMC connectors are designed to support higher fiber counts, the MMC system simplifies capacity upgrades for high-performance applications like hyperscale data centers. The compact form factor delivers up to three times the fiber density per rack unit when compared to MPO/MTP connectors. Providing higher cabling port density and low-loss performance in a compact design to support high-bandwidth applications.

Specifications

Connector A	MMC16(APC)	Connector B	MMC16(APC)
Fiber Mode	SM OS2	Wavelength	1310/1550nm
Housing Color	Green	Durability	≤0.20 dB Typical Change, ≥50 times (mating)
Fiber Count	16F	Cable Jacket	OFNP
Cable OD	3.0mm	Cable Structure	Round Cable
Return Loss	≥20dB	Insertion Loss	IL≤0.35dB
Storage Temperature	-40℃ ~ + 85℃	Operating Temperature	-20℃ ~ +70℃

Compliance

GR-1435-CORE/ InfiniBand Compliant
