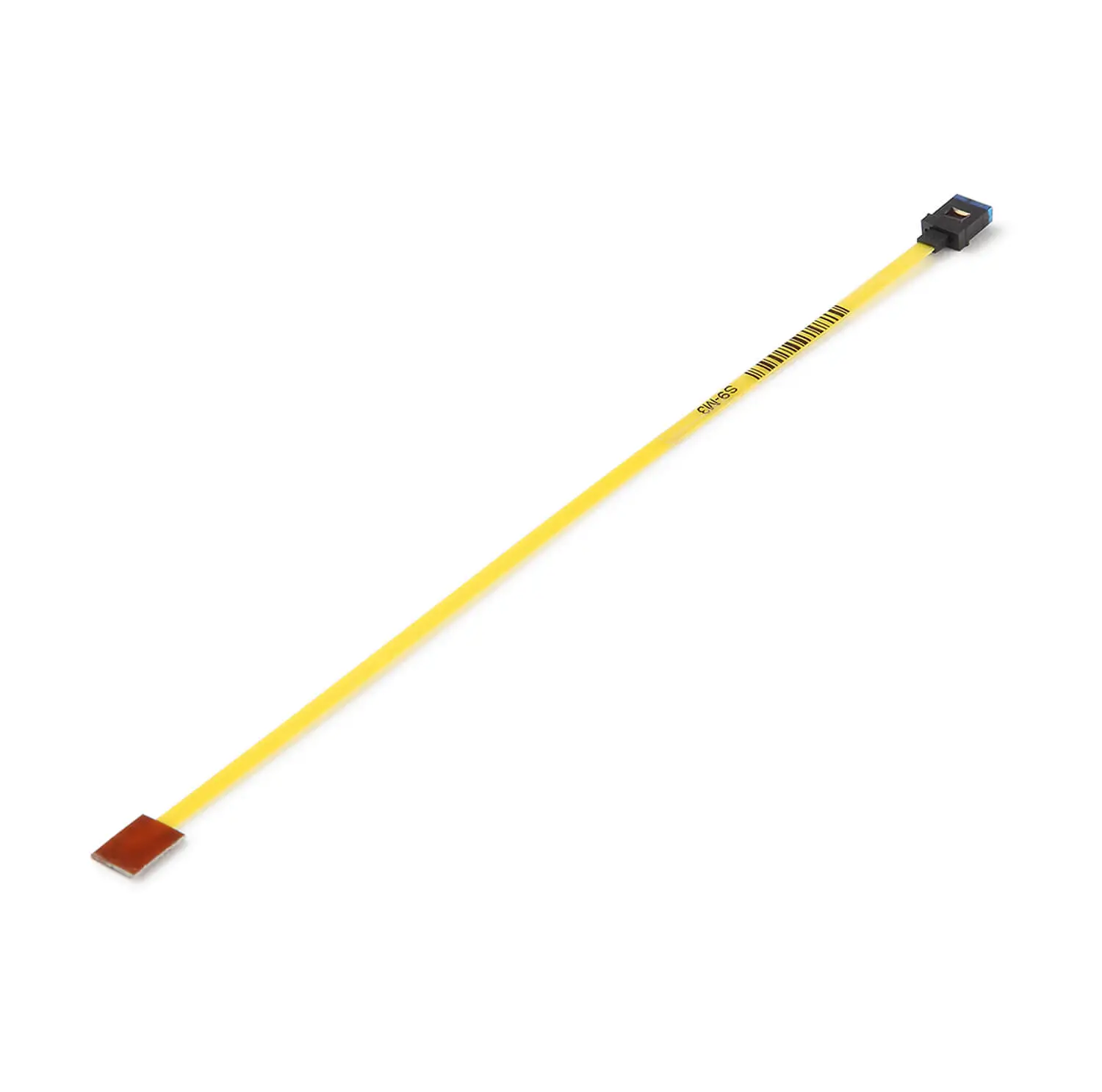

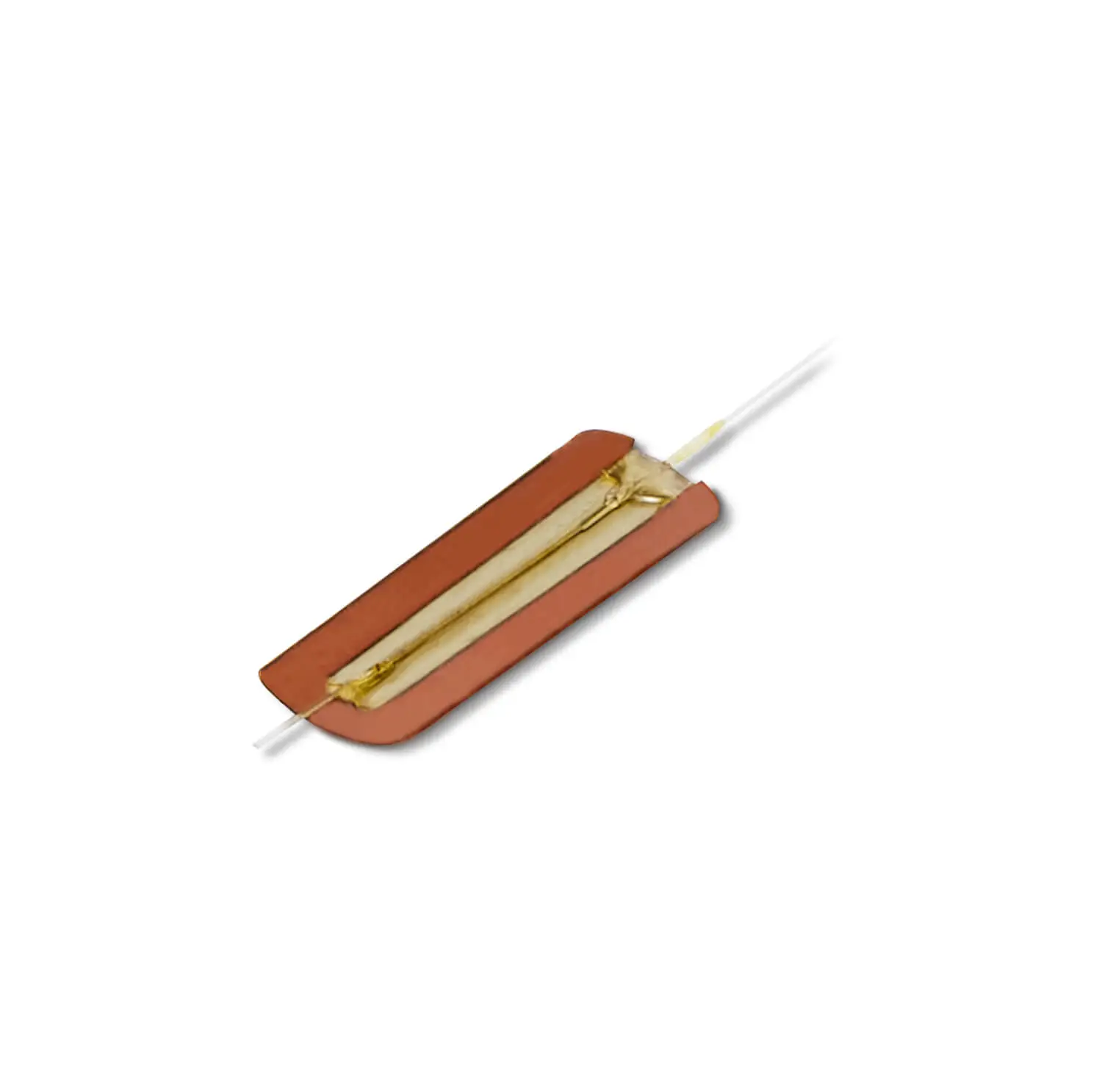

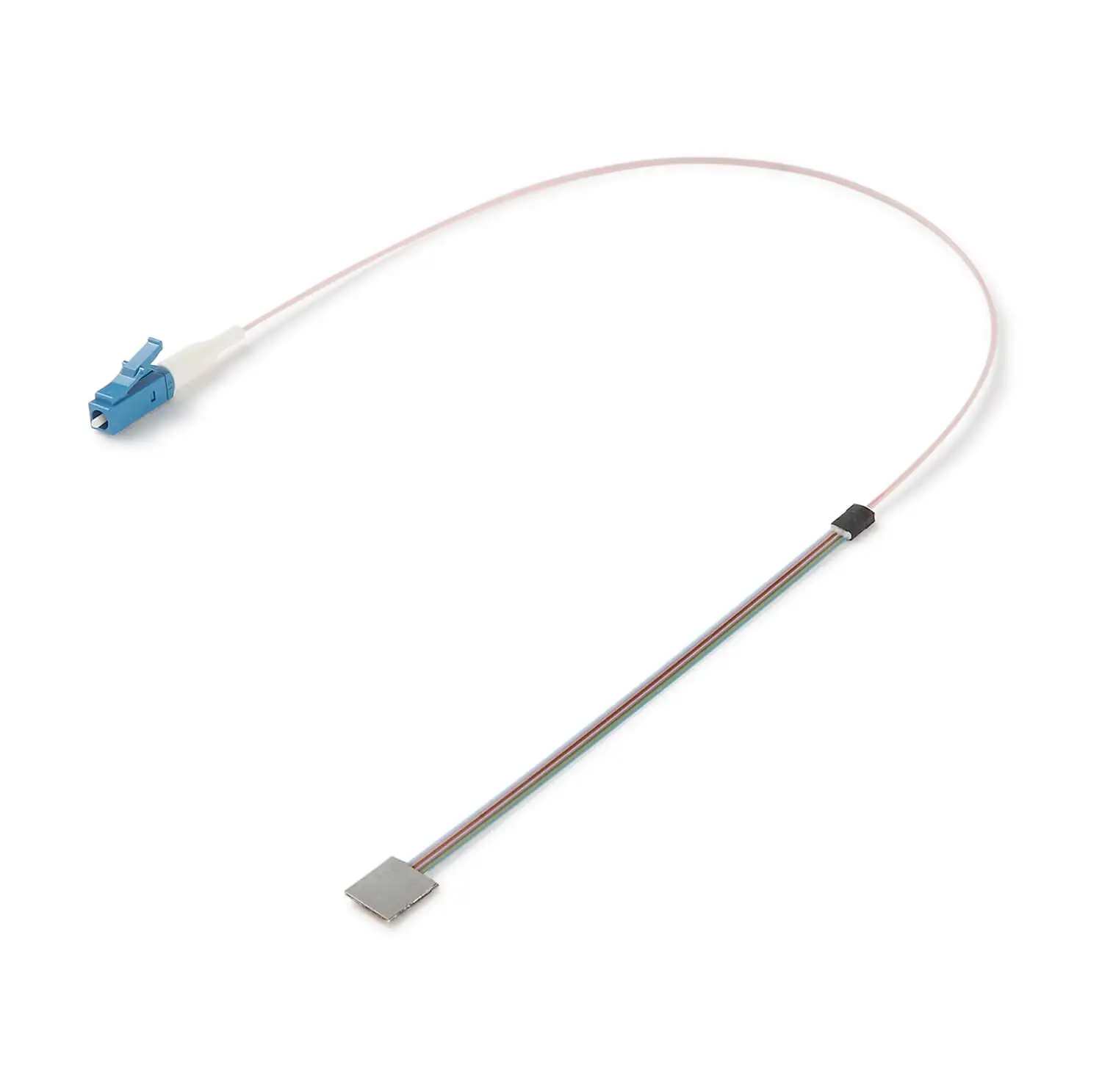

Fiber Bragg Grating Strain Sensing Patch

Name: Fiber Bragg Grating Strain Sensing Patch
Brand: T&S Communications Co., Ltd.

Identifier: 160016

Sensitivity ~1.3pm/uε | ±3000uε | Linearity 99.9%

Features

Gauge length the same as standard resistance strain gauges
Passive and free from electromagnetic interference
High networking with series or parallel connected
Lifespan >10⁷ cycles (±1500μɛ)
High stability, no zero-point drift

Specification Drawings Request Quote

Product Description of Fiber Bragg Grating Strain Sensing Patch

FBG strain sensor is a strain measurement sensor based on fiber Bragg grating. It can monitor the strain value of the measured object by measuring the spectral shifts of FBG.

Specifications

Strain	Unit	Specification
Gauge Length	mm	3
Strain Sensitivity	pm/uε	~1.3
Strain Range	uε	±3000
Linearity	%	99.9
Temperature Range	℃	-40~+85
Temperature	Unit	Specification
Temperature Sensitivity	pm/℃	~28
Temperature Range	℃	-40~+85
Optics	Unit	Specification
Central Wavelength	nm	1510-1590
Reflectivity	%	≥10
SMSR	dB	≥15
Machinery	Unit	Specification
Dimension	L(mm)×W(mm)×T(mm)	~19×7×0.7
Connector Type	-	FC/SC/LC/MT
Pigtail Length	m	1.0
Fiber Bending Radius	mm	10
Pigtail Protection Type	-	Optical fiber ribbon +0.9mm tube
Reliability	-	Conform to GR-1221-Core

Applications

Suitable for application scenarios where traditional resistance strain gauges used
Suitable for application scenarios where traditional surface-mounted resistance strain gauges used
Suitable for harsh environments with the requirements of high anti-electromagnetic interference and explosion-proof
