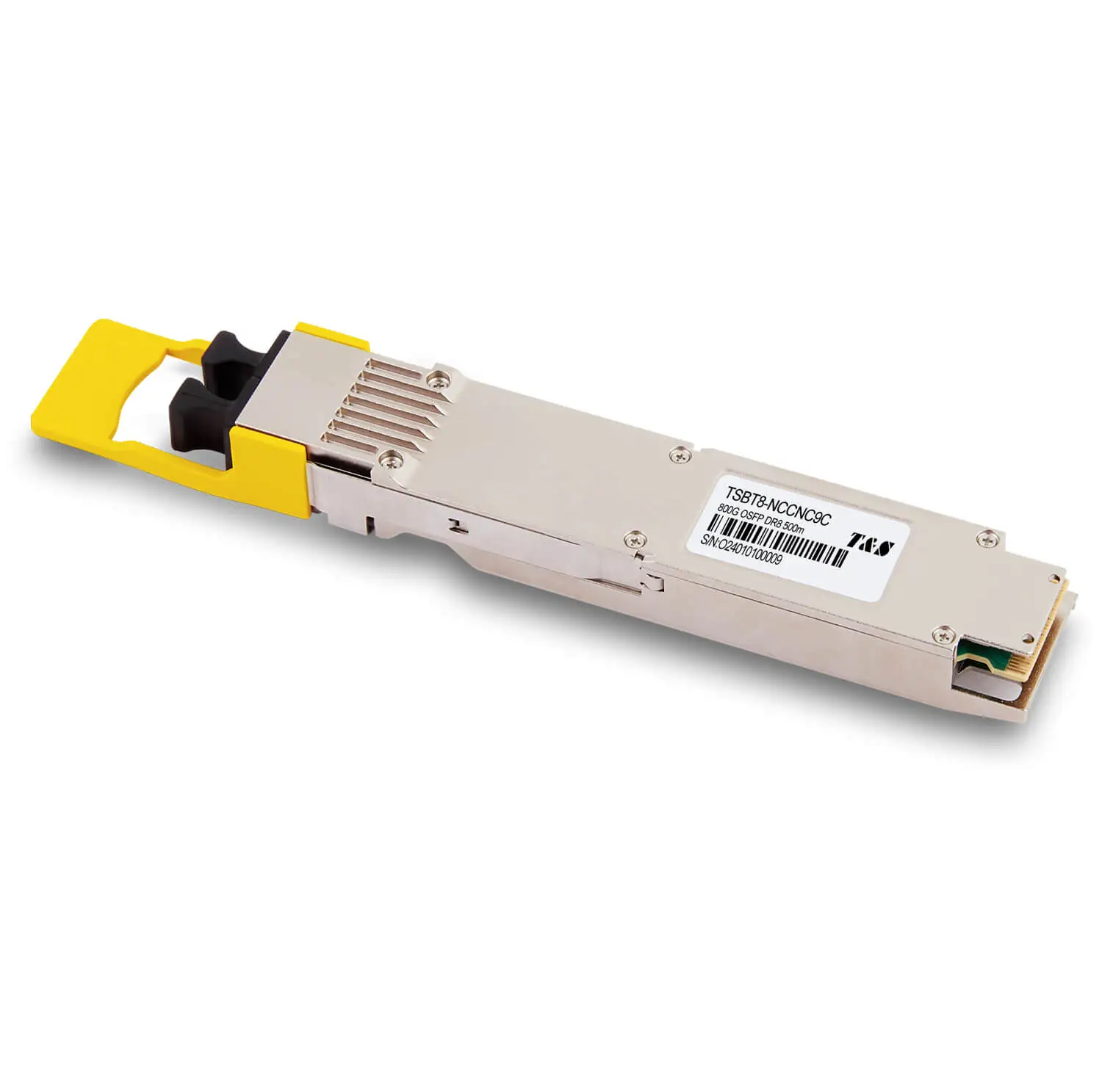

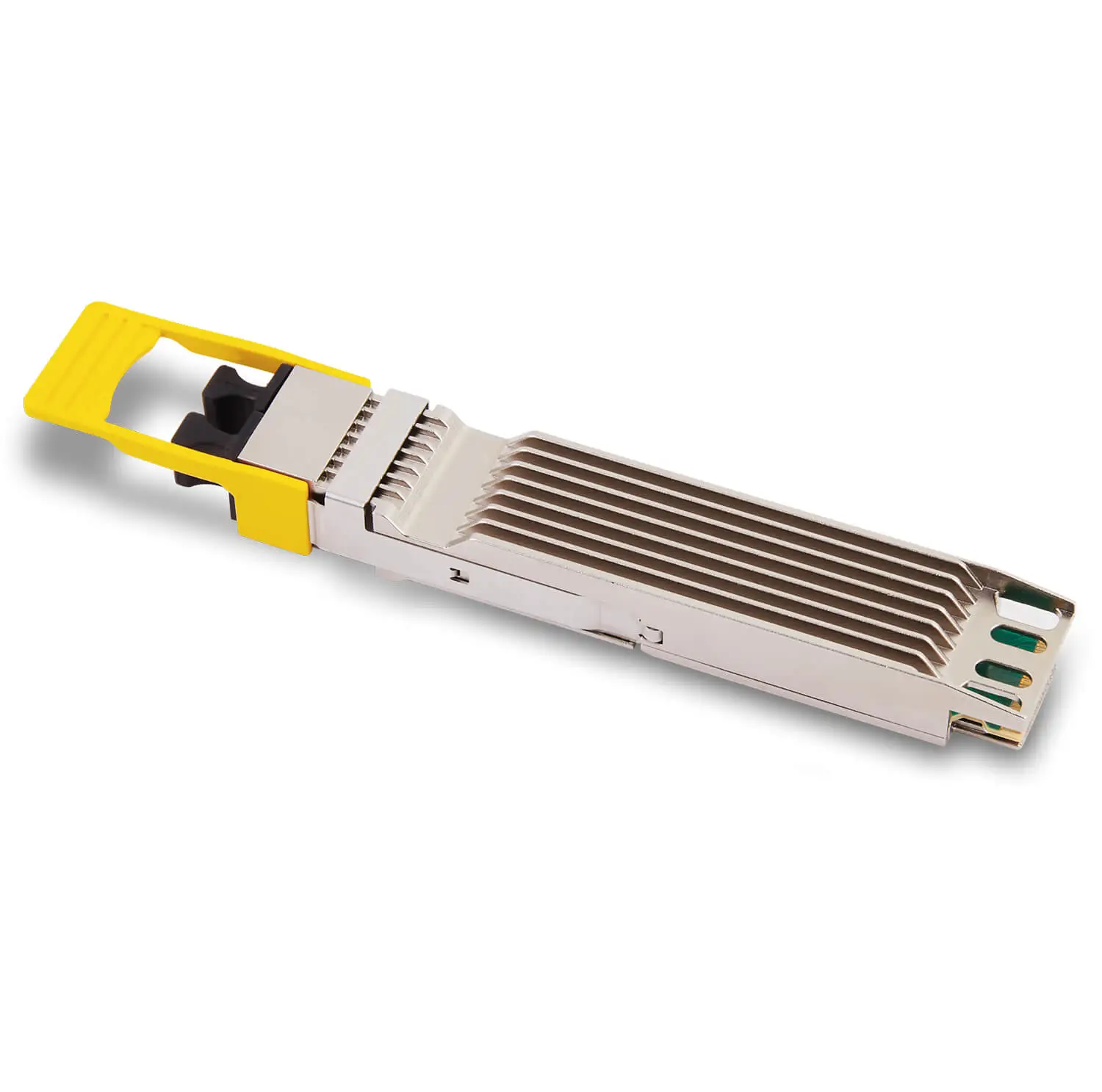

800G OSFP DR8 Fiber Optic Transceiver

Name: 800G OSFP DR8 Fiber Optic Transceiver
Brand: T&S Communications Co., Ltd.

Identifier: 110056

2xMPO12 | ≤16.5W

Features

Hot-pluggable OSFP form factor
Silicon photonics integrated solution
Data Rate 106.25Gb/s PAM4 per lane
8x106Gbps PAM4 transmitter and PAM4 receiver
Maximum link length of 500m on single mode fiber
Digital diagnostics functions are available via the I2C interface
Single 3.3V Power Supply and Power Dissipation < 16.5W
Dual MTP-12 APC connector
Operating Case Temperature: 0℃~+70℃
RoHS compliant

Specification Drawings Request Quote

Product Description of 800G OSFP DR8 Fiber Optic Transceiver

The TSBX8-NCCNC9C is an 8-Channel, Pluggable, Fiber-Optic OSFP for 800Gbps Ethernet Applications. It is a high performance module for data communication and interconnect applications which operate at 106.25Gbps per lane up to 500m on single mode fiber. The optical interface uses Dual MPO-12 APC receptacles.

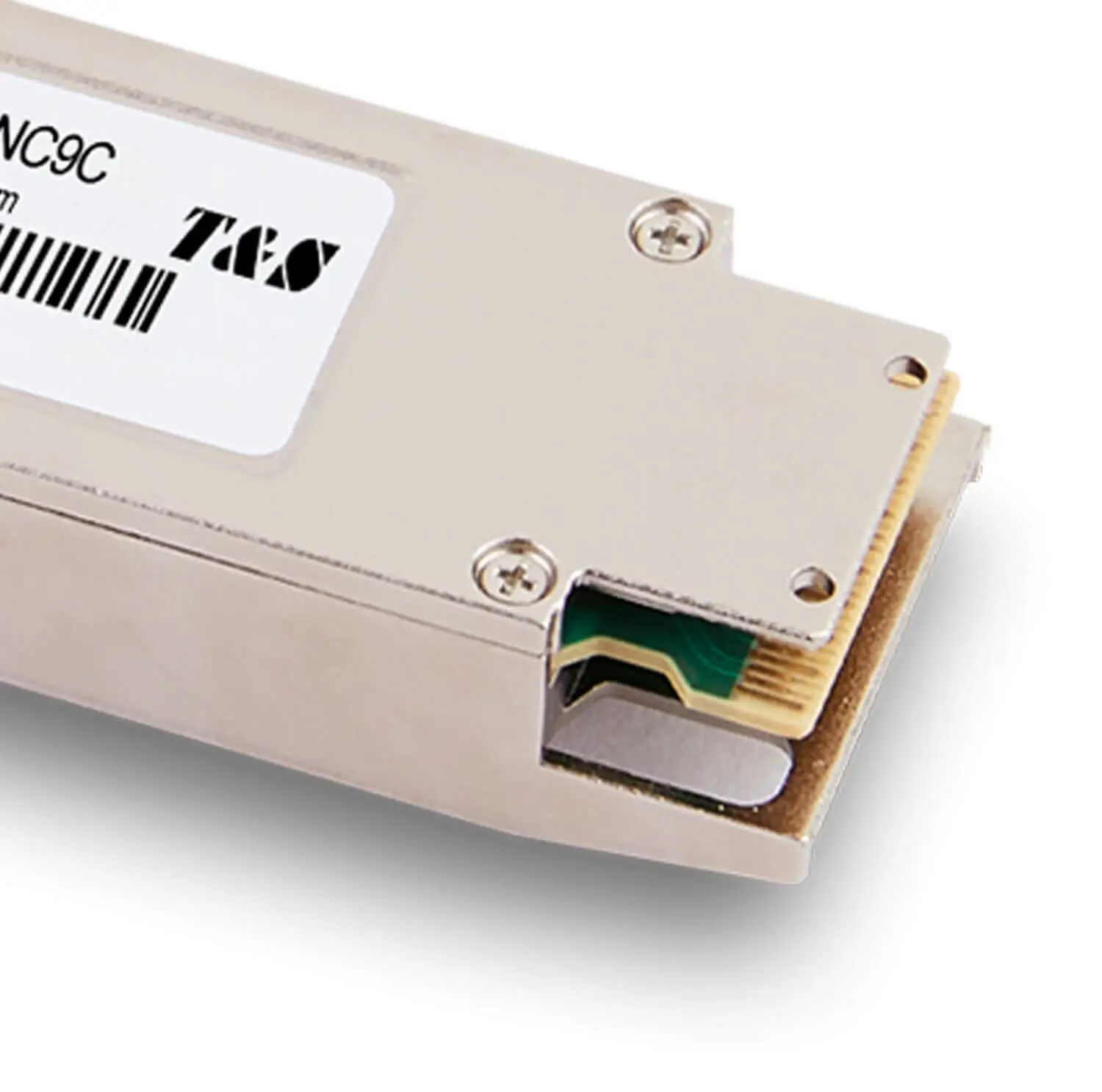

This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 60 contact edge type connector.

Specifications

Part Number	TSBX8-NCCNC9C	Application	800G Ethernet
Form Factor	OSFP	Max Data Rate	850Gbps
Wavelength	1310nm	Distance	500m
Connector	2xMPO12 APC	Fiber	SMF
Transmitter	Silicon Photonic	Receiver	PIN
TX Power	-2.9~4dBm	Minimum Receiver Power	-5.9dBm
Power Budget	3dB	Receiver Overload	4dBm
Power Comsumption	≤16.5W	Extinction Ratio	＞3.5dB
Packaging	COB	Modulation	PAM4
DSP	Yes	Inbuilt FEC	No
Storage Temperature	-40℃ ~ + 85℃	Operating Temperature	0℃ ~ + 70℃
Compatibility	Generic	Class	Commercial
Protocols	IEEE 802.3ck	Warranty

Applications

800G Ethernet
2x400G Ethernet
IB NDR

Compliance

RoHS/ ISO14001/ ISO45001/ ISO9001
