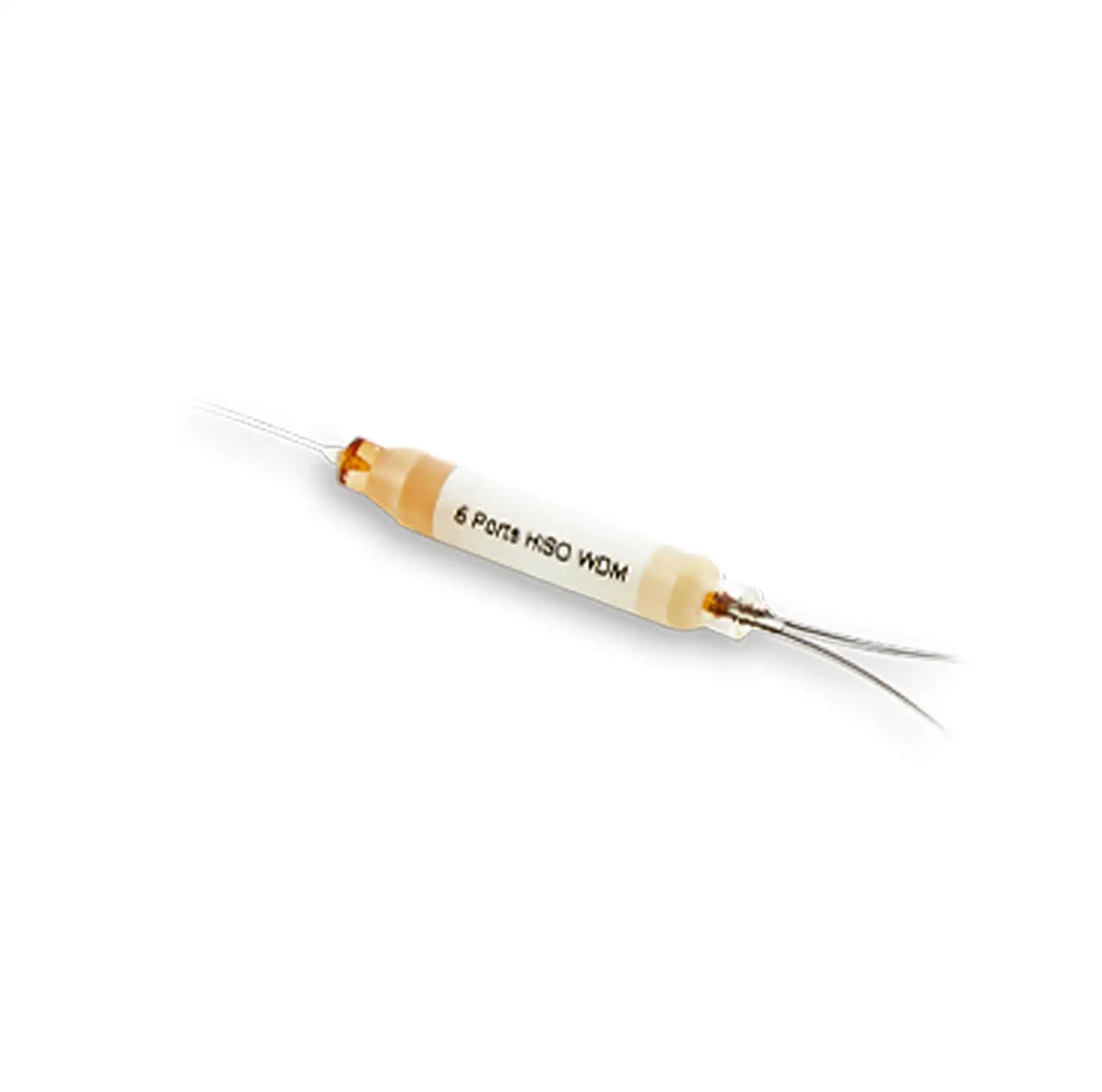

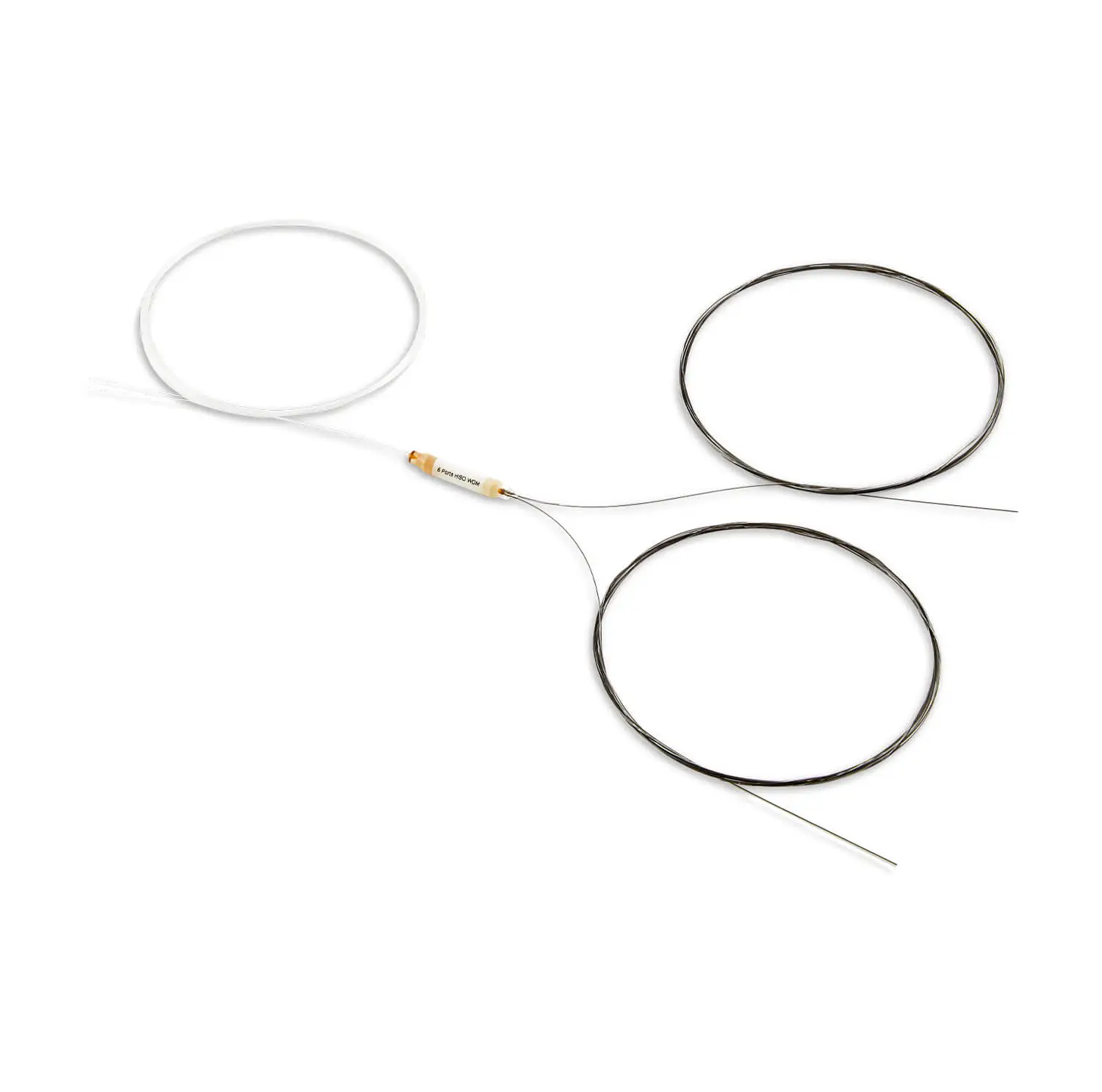

T&S's 6 Ports High Isolation FWDM Device is a high-performance optical component designed for advanced wavelength division multiplexing (WDM) applications. With superior isolation between ports, this device ensures minimal crosstalk and optimal signal integrity, making it ideal for high-speed communication systems and optical network applications.
| Parameter | Unit | Specification |
| 1310/1490&1550H |
| Operating Wavelength | Transmission | nm | 1460-1650 |
| Reflection | nm | 1260-1400 |
| Port of Transmission | Insertion Loss | dB | ≤1.5(Typical 1.0) |
| (Port1=＞Port2) | Isolation | dB | ≥45 |
| Port of Reflection | Insertion Loss | dB | ≤1.5(Typical 1.0) |
| (Port1=＞Port3) | Isolation | dB | ≥45 |
| Return Loss | dB | ≥45 |
| Insertion Loss Temperature Stability | dB/℃ | ≤0.005 |
| Polarization Dependent Loss | dB | ≤0.20 |
| Polarization Mode Dispersion | Ps | ≤0.10 |
| Directivity | dB | ≥45 |
| Power Handling | mW | 300 |
| Operating Temperature | ℃ | -20 ~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |
| Fiber Type | -- | Corning SMF-28 Ultra, G657A1/A2 or customer specified |
| Pigtail type | -- | Ø250μm Bare Fiber or Ø0.9mm loose tube |
| Fiber length | m | 1.0 ,or customer specified |
| Package Dimension | mm | Steel Tube: Ø5.5x34 for 250μm bare fiber, Ø5.5x38 for Ø0.9mm loose tube; |
| Glass Tube: Ø4.0x26 for Ø250μm bare fiber； |
Note:
Insertion loss excluding connector loss. With connectors add 0.3dB;
Connectors can be customized on request.
