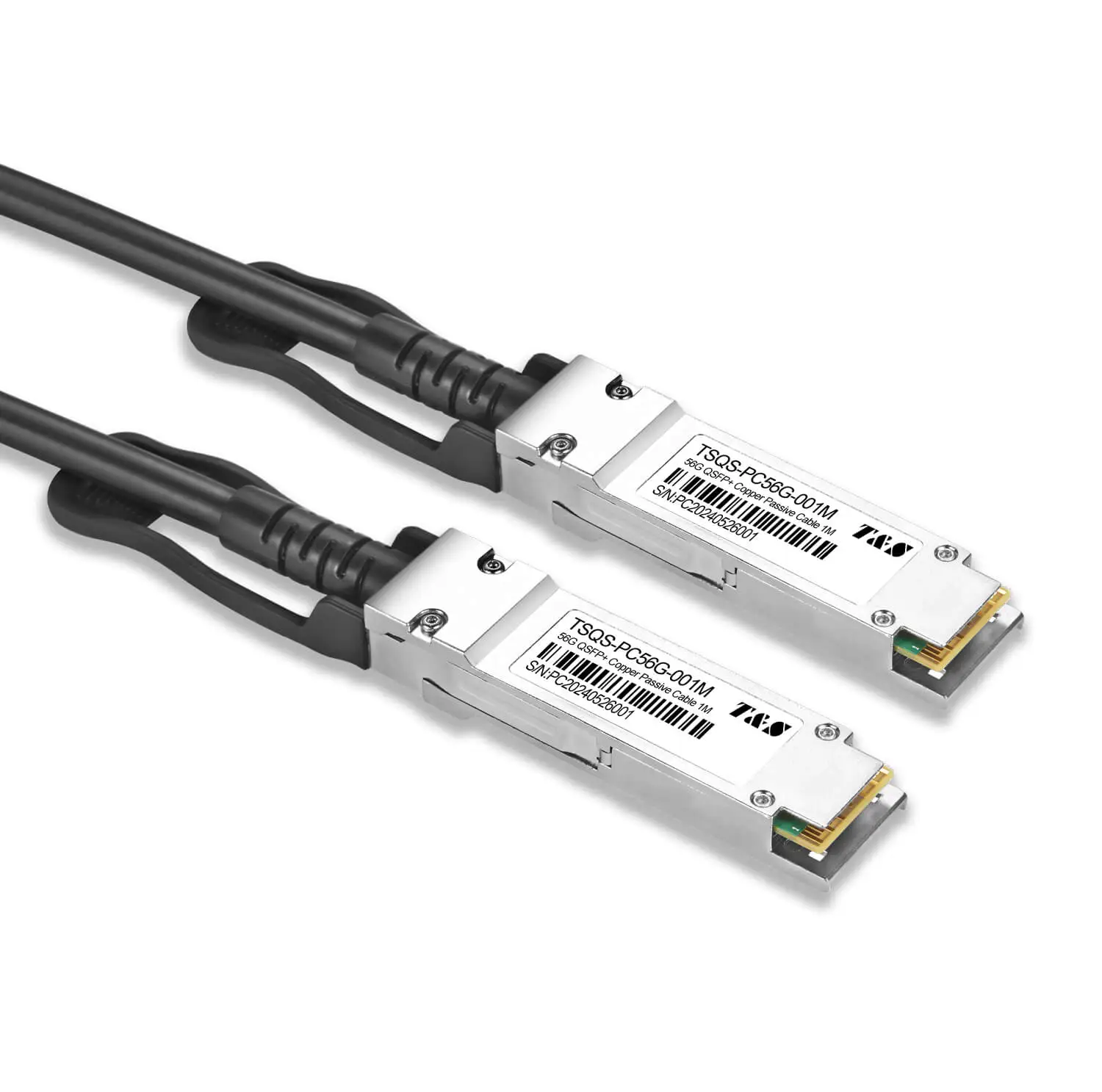

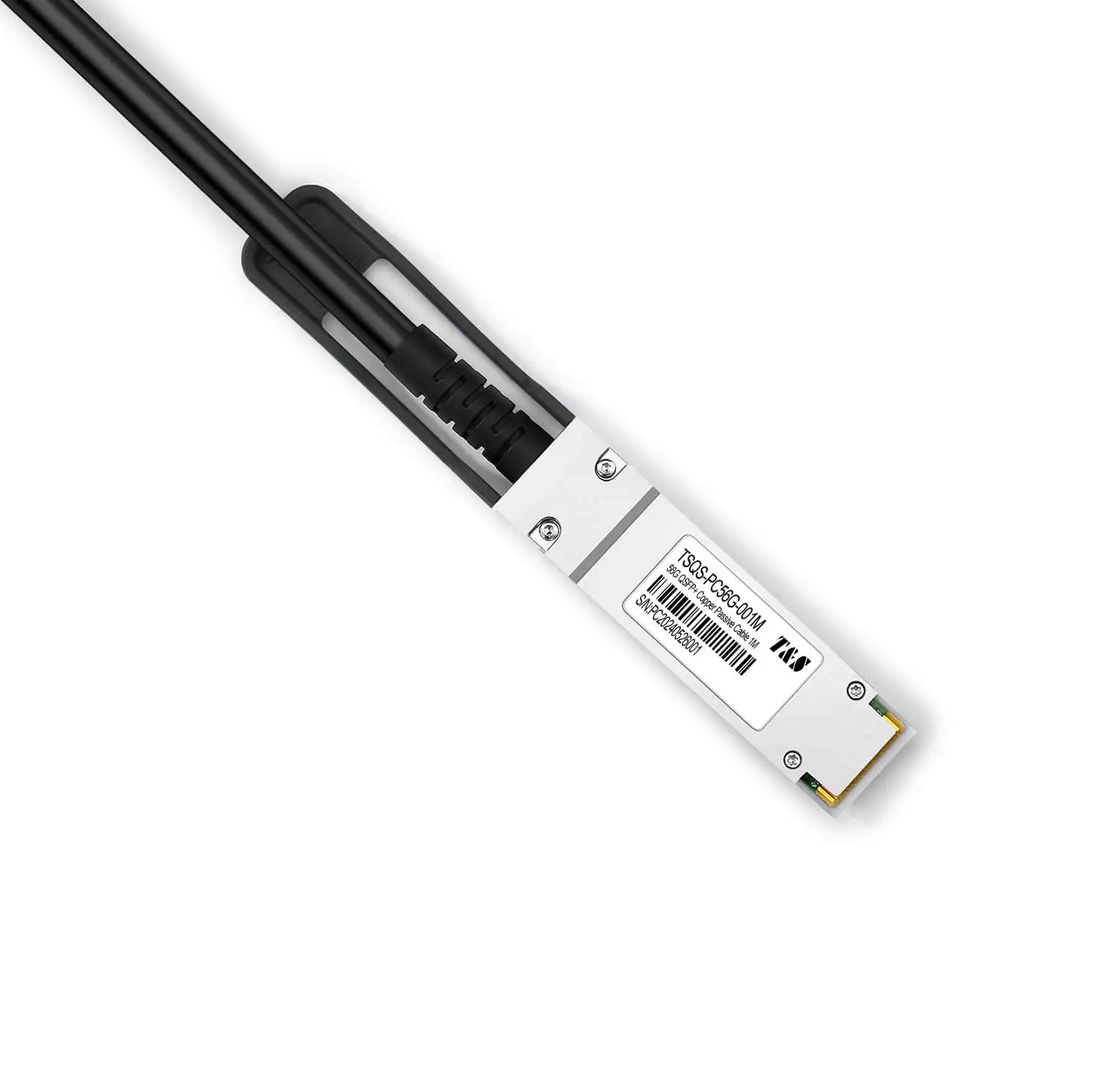

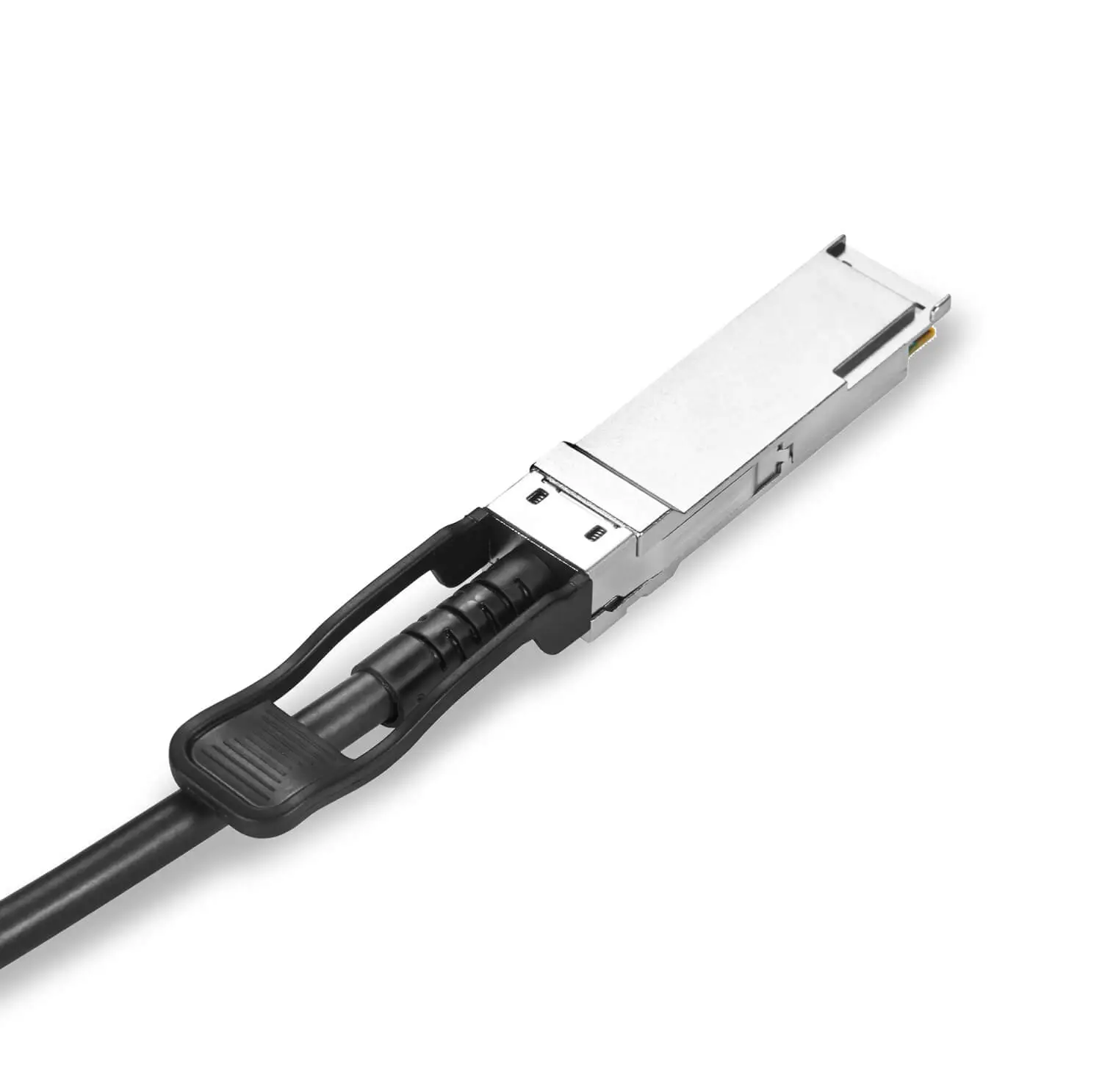

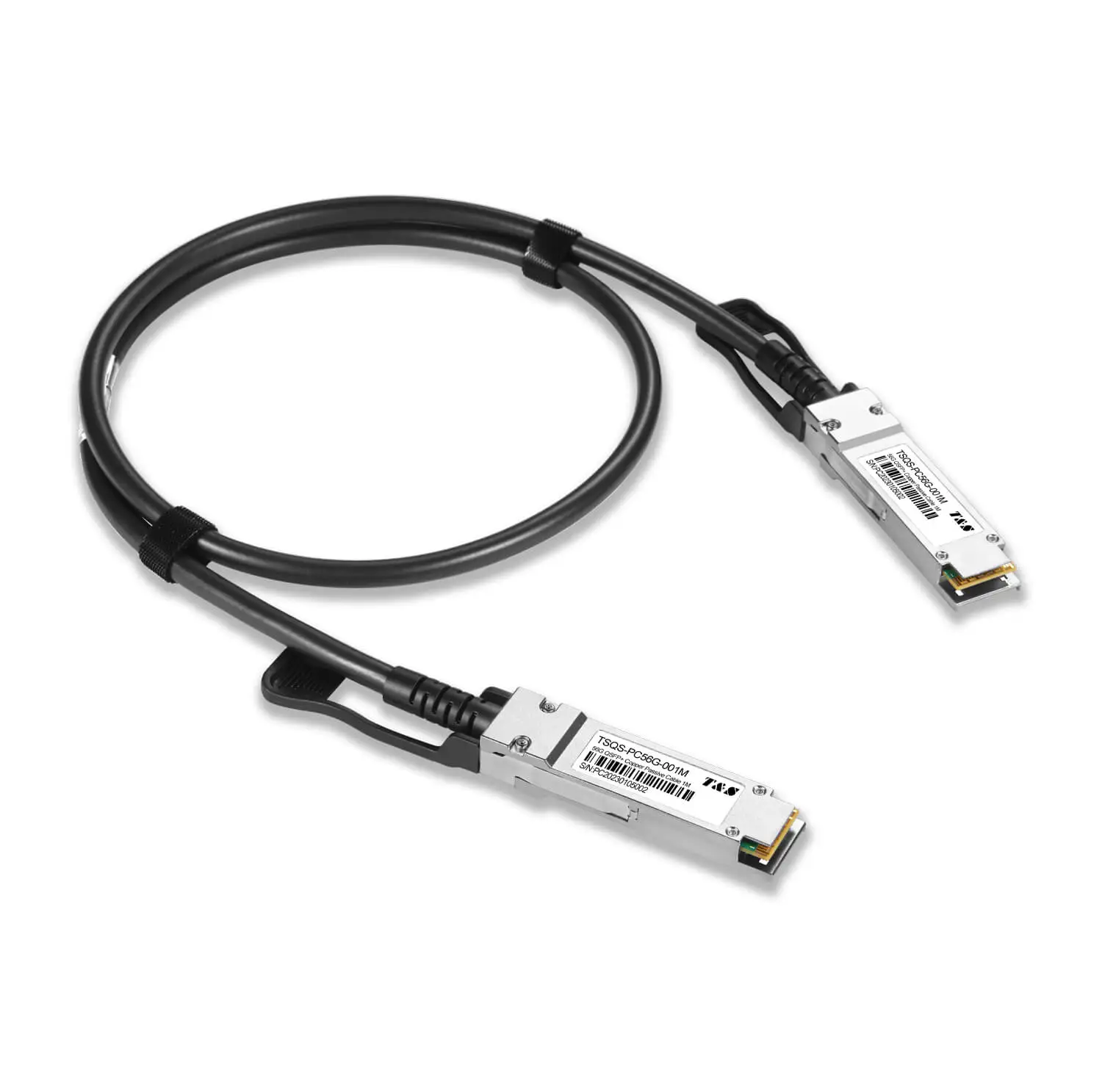

56G QSFP+ Direct Attach Cable, Passive, Twinax Copper

Name: 56G QSFP+ Direct Attach Cable, Passive, Twinax Copper
Brand: T&S Communications Co., Ltd.

Identifier: 130007

40GBASE-CR4/10GBASE-CR | ≤0.1W | 26/30AWG | 47mm/35mm

Features

Up to 56Gbps data rate per channel
Up to 5m transmission
Hot-pluggable QSFP+ 38 PIN footprint
Compatible to SFF-8436
Single 3.3V power supply
Temperature Range: 0 °C to 70 °C
RoHS compliant

Specification Drawings Request Quote

Product Description of 56G QSFP+ Direct Attach Cable, Passive, Twinax Copper

QSFP+ Direct Attach Cables are compliant with the SFF-8436 specifications. Various choices of wire gauge are available from 30 to 26 AWG with various choices of cable length (up to 5m).

Specifications

Part Number	TSQS-PC56G-xxM	Application	56G InfiniBand 4x FDR
Form Factor	QSFP+ to QSFP+	Max Data Rate	56.08Gbps
Cable	Copper	Cable Jacket	PVC(OFNR)
Wire AWG	26/30AWG	Length	up to 7m
Min. Bending Radius	47mm/35mm	Cable Type	Passive Twinax
Power Comsumption	≤0.1W	Compatibility	Generic
Storage Temperature	-40℃ ~ + 75℃	Operating Temperature	0 ~ 70°C
Protocols	SFF-8661,SFF-8636	Warranty	5 Years

Applications

InfiniBand FDR
Low EMI radiation switches, servers and routers
Data center networks
Storage area networks
High performance computing
Telecommunication and wireless infrastructure
Medical diagnostics and networking
Test and measurement equipment

Compliance

RoHS/ REACH/ UL/ FCC/ CE
