40G QSFP+ to 4x10GBASE SFP+ Active Optical Cable, Armored, Industrial-grade

Name: 40G QSFP+ to 4x10GBASE SFP+ Active Optical Cable, Armored, Industrial-grade
Brand: T&S Communications Co., Ltd.

Identifier: 120064

60mm | ≤1.4W@QSFP+, ≤0.8W@SFP+

Features

4-channel full-duplex active optical cable
Data rate up to 10.3125 Gbps per lane
Compliant to the QSFP+ MSA /SFP+ MSA
VCSEL Array Transmitter and PIN Array Receiver
Low Power Dissipation: QSFP+ <1.4W; SFP+ <0.8W

Specification Drawings Request Quote

Product Description of 40G QSFP+ to 4x10GBASE SFP+ Active Optical Cable, Armored, Industrial-grade

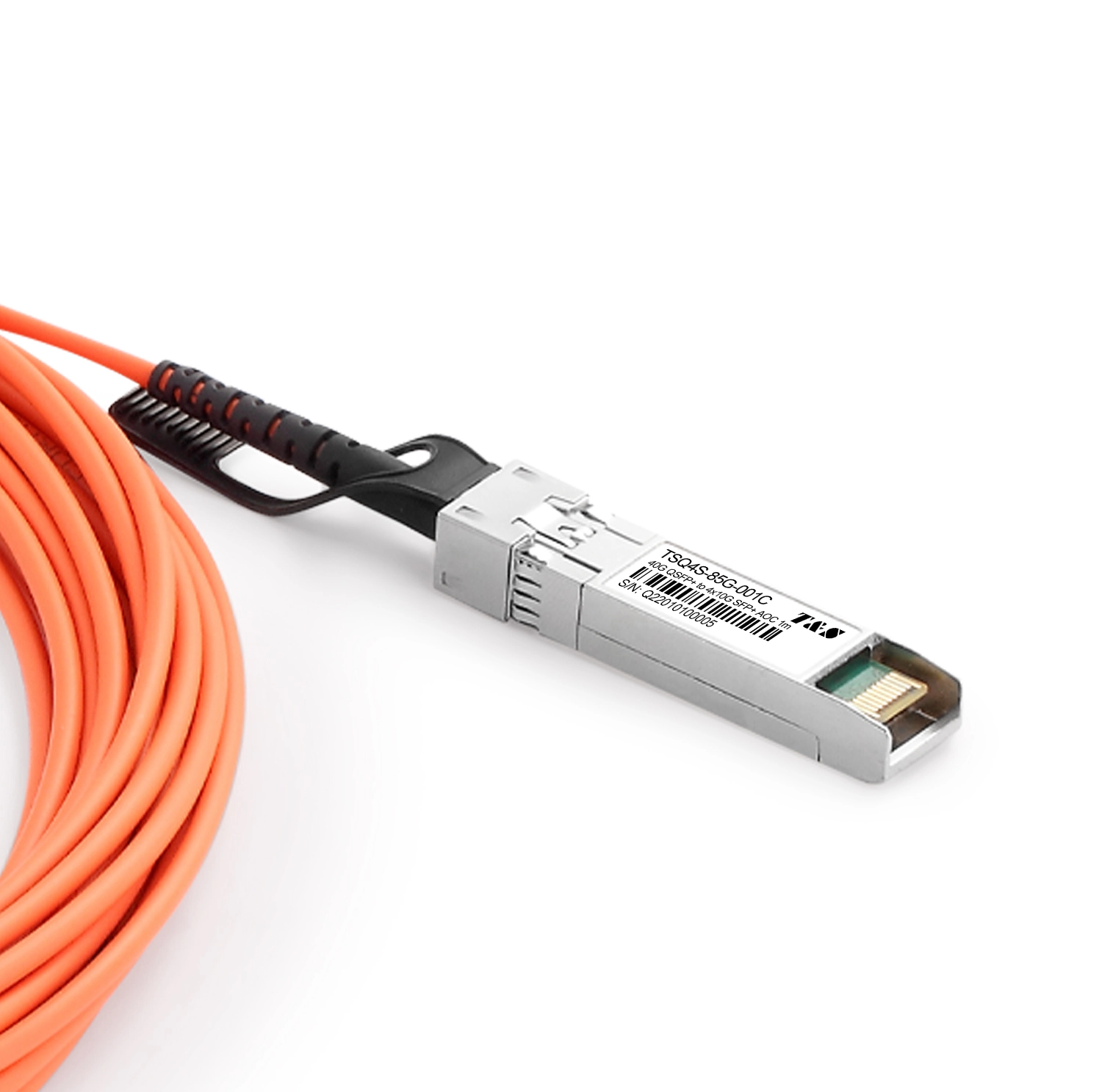

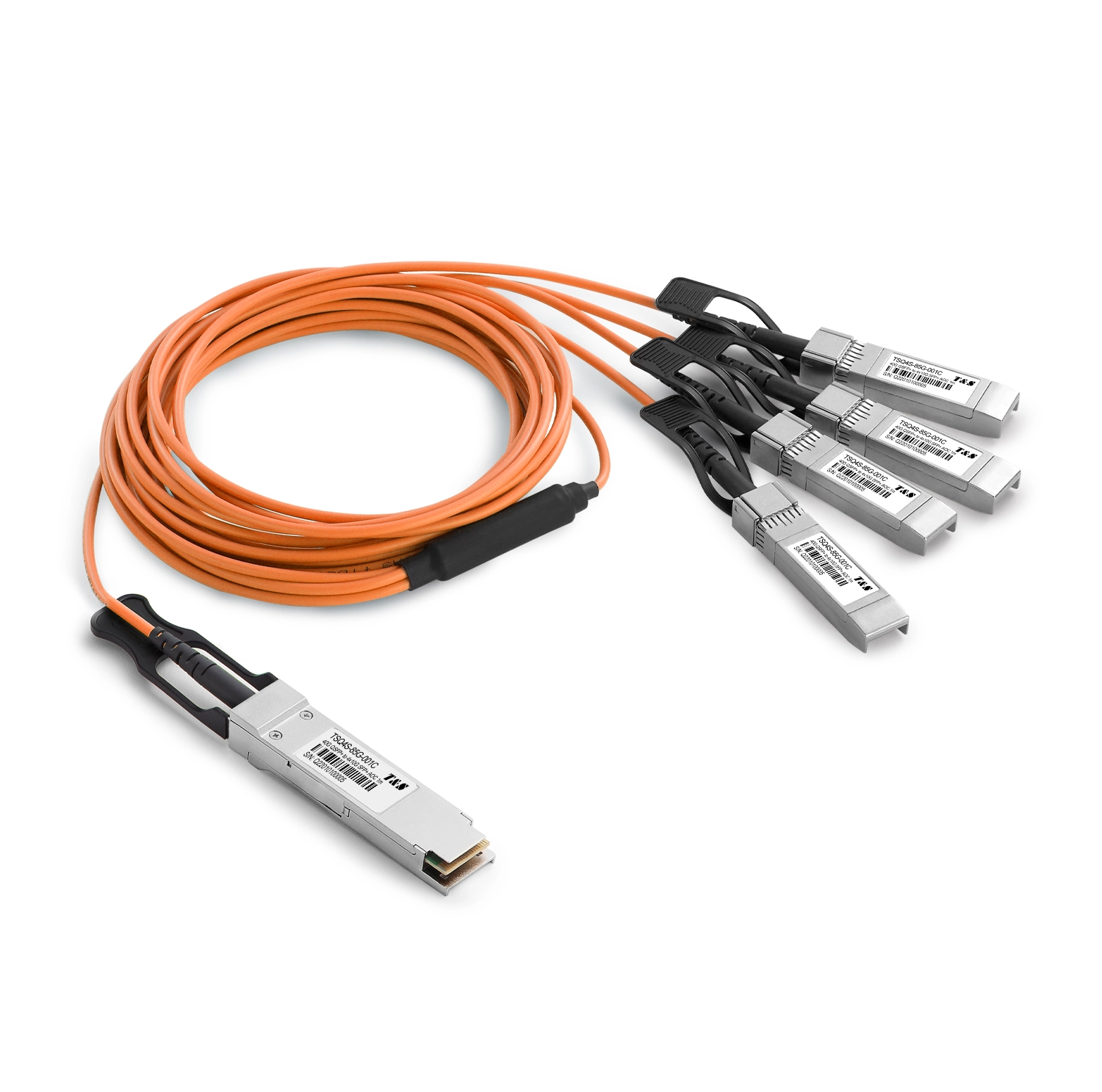

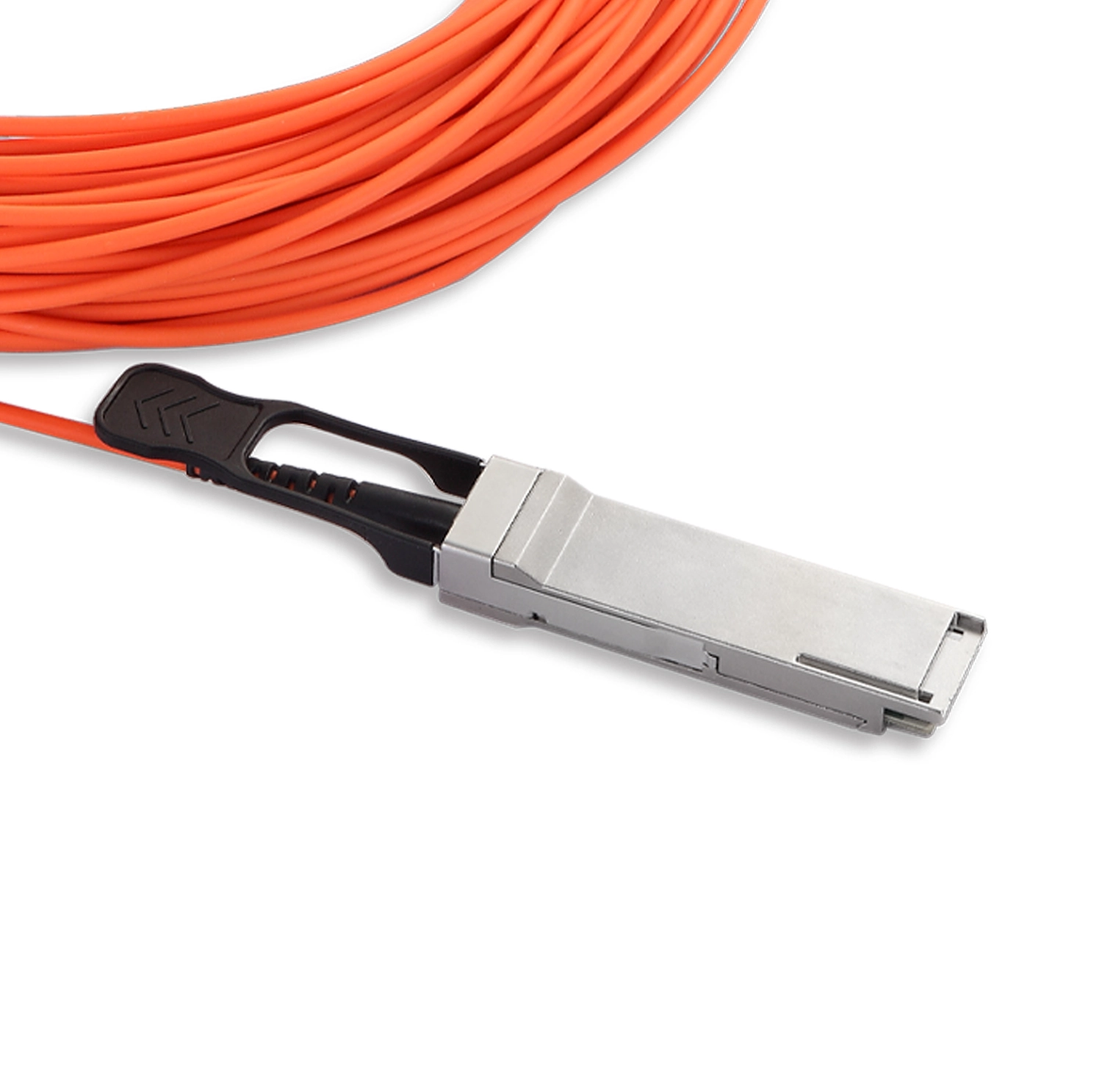

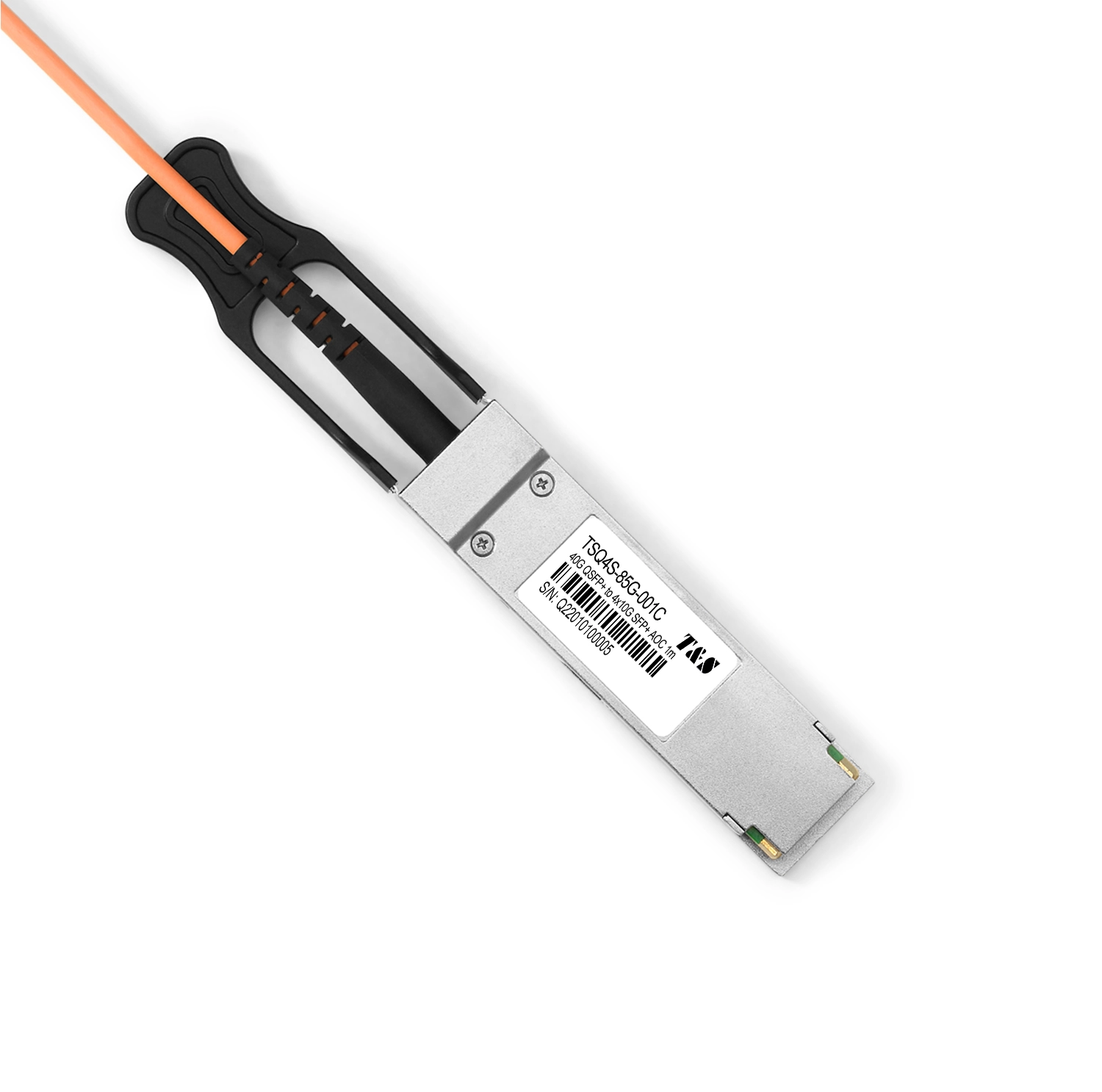

The TSQ4S-85G-XXXC/ TSQ4S-85G-XXXT is a 4-Channel, Pluggable, Parallel, Fiber-Optic 40G QSFP+ to 4X10G SFP+ AOC. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates 4 data lanes in each direction with 40Gbps bandwidth.

These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38@QSFP+ and 20@SFP+ contact edge type connector.

Specifications

Part Number	TSQ4S-85G-XXXU	Application	40G Ethernet，10G Ethernet
Form Factor	QSFP+ to SFP+	Data Rate	41.2Gbps
Wavelength	850nm	Max Length	82m
Cable Jacket	LSZH	Fiber	OM2
Min. Bending Radius	60mm	Receiver	PIN
Transmitter	VCSEL	Power Comsumption	≤1.4W@QSFP+,≤0.8W@SFP+
Power Supply	3.3V	DDM/DOM	Supported
Packaging	COB	Modulation	NRZ
CDR	No	Inbuilt FEC	No
Storage Temperature	-40℃ ~ + 85℃	Operating Temperature	-40℃ ~ + 85℃
Compatibility	Generic	Class	Industrial
Protocols	IEEE 802.3ba, SFF-8436，IEEE 802.3ae, SFF-8431	Warranty

Compliance

RoHS/ UL/ CE/ TUV/ ISO14001/ ISO45001/ ISO9001

Applications

40GBASE SR4 Ethernet
10GBASE SR Ethernet
