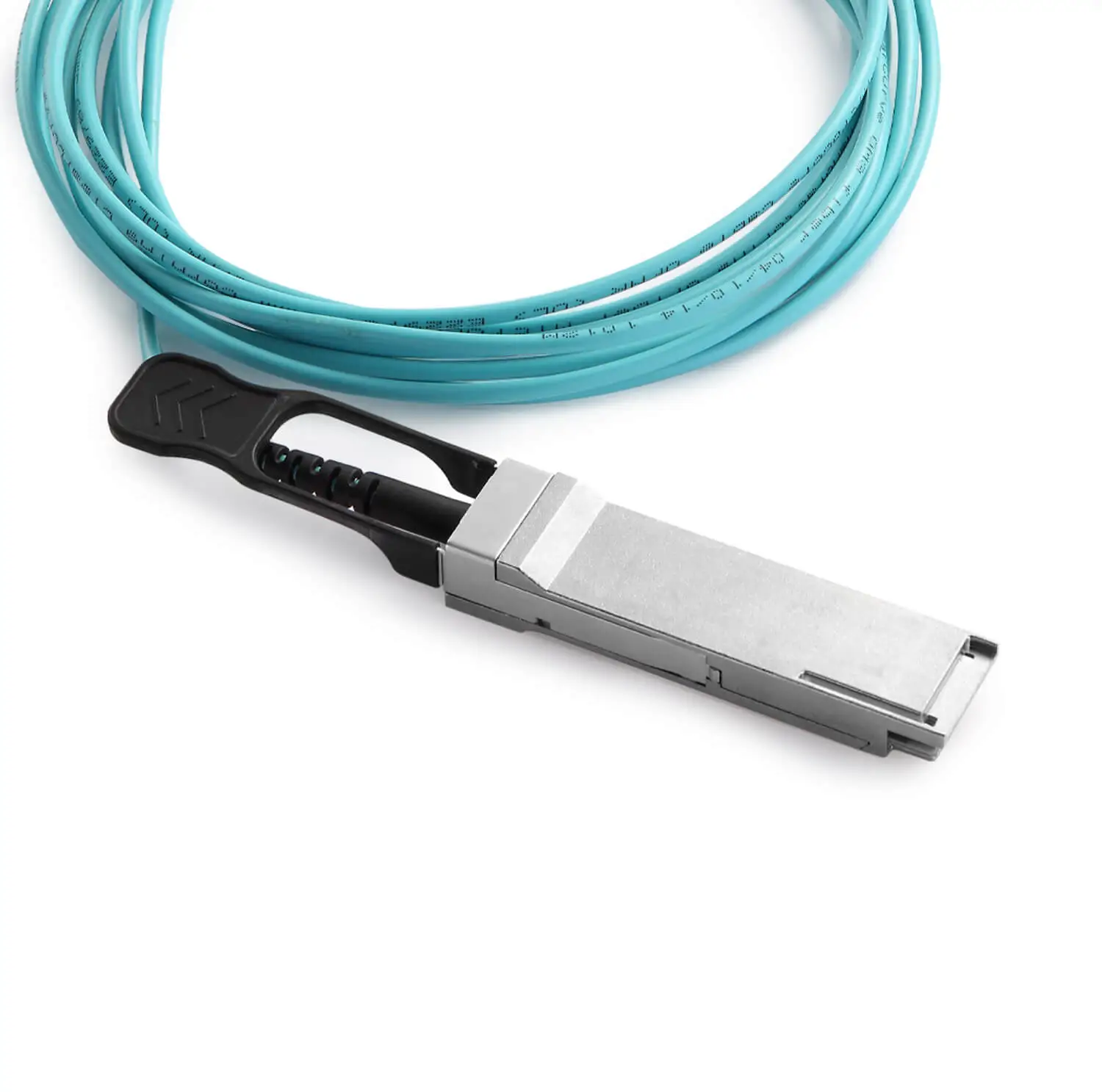

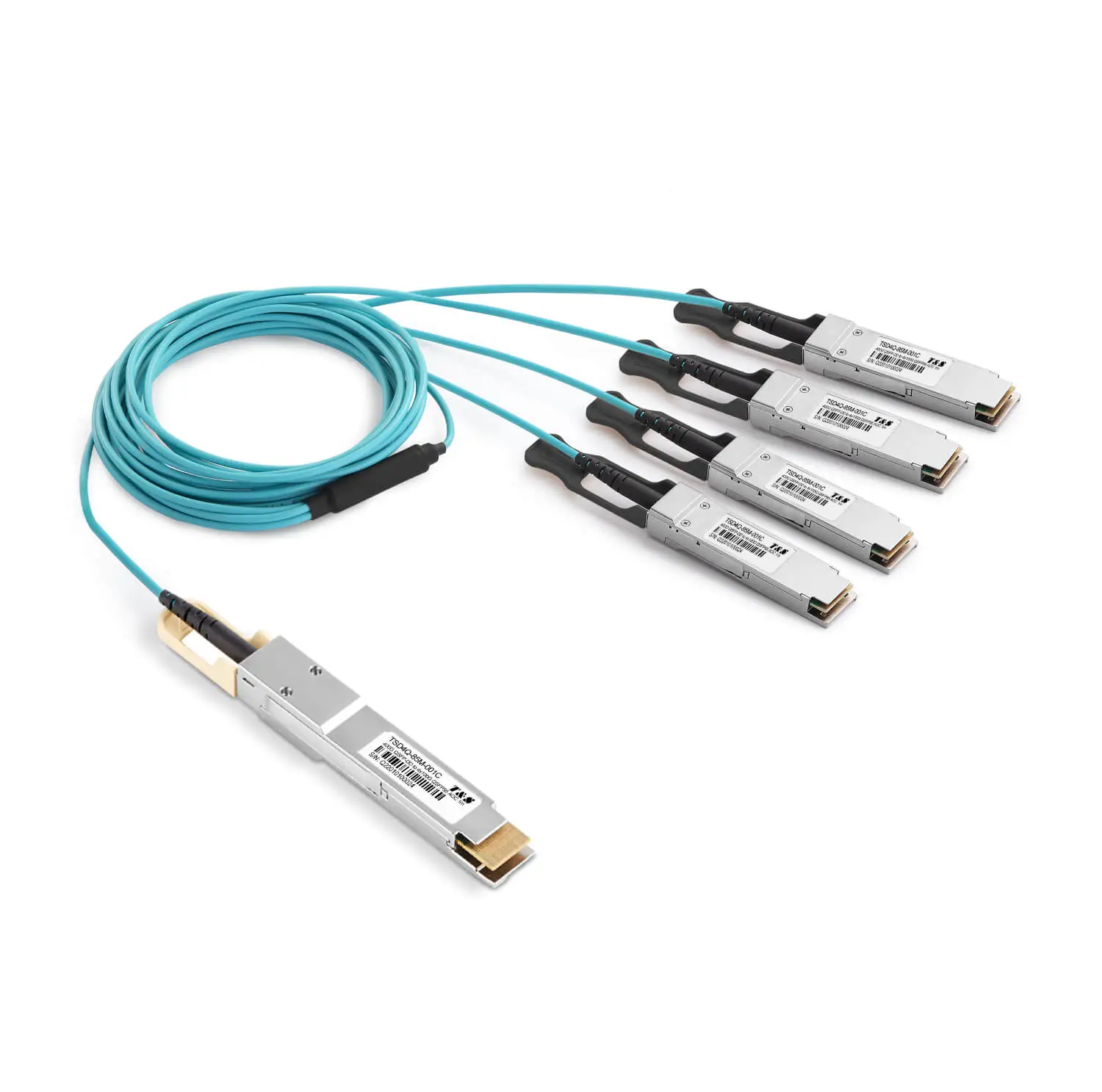

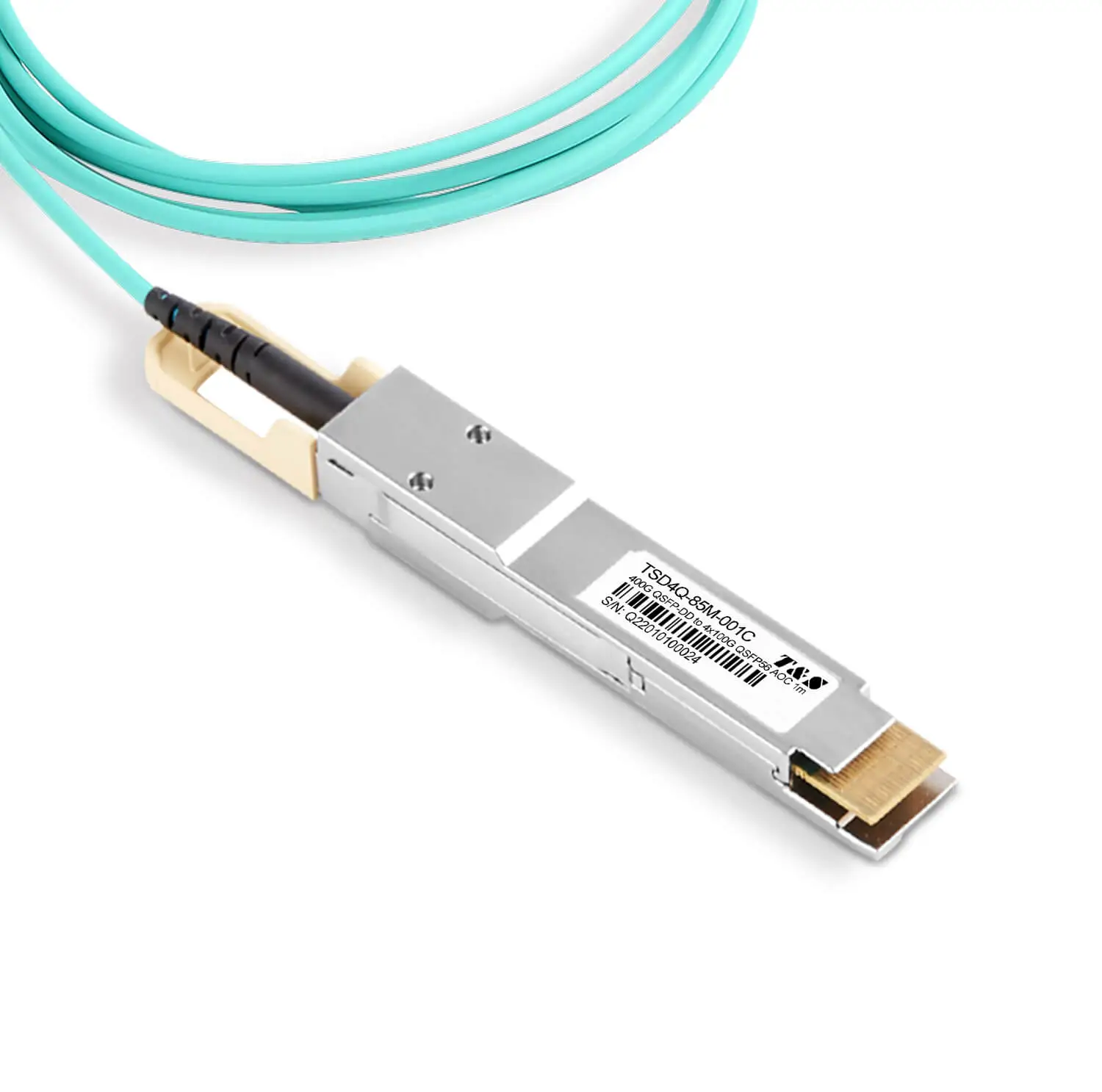

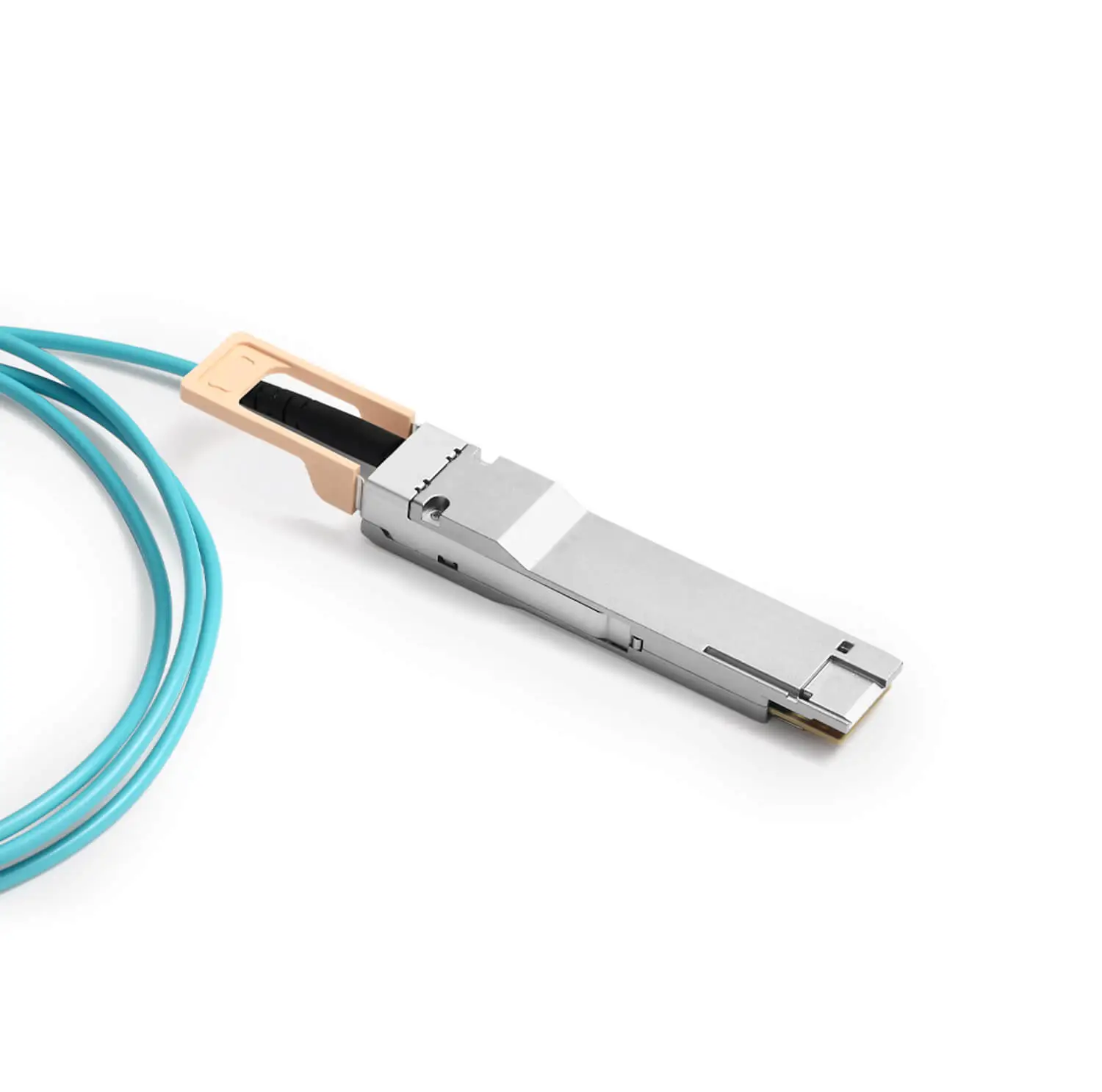

400G QSFP56-DD to 4 x 100GBASE QSFP56 Active Optical Cable

Name: 400G QSFP56-DD to 4 x 100GBASE QSFP56 Active Optical Cable
Brand: T&S Communications Co., Ltd.

Identifier: 120045

60mm | ≤10W@QSFP56-DD, ≤4.5W@QSFP56

Features

Hot-pluggable QSFP-DD form factor / QSFP form factor
Transmission data rate up to 53Gbps per channel
8x53Gbps PAM4 transmitter and PAM4 receiver at QSFP-DD end
2x53Gbps PAM4 transmitter and PAM4 receiver at QSFP end
8 channels 850nm VCSEL array at QSFP-DD end
2 channels 850nm VCSEL array at QSFP end
8 channels PIN array at QSFP-DD end
2 channels PIN array at QSFP end
Internal CDR circuits on both receiver and transmitter channels
Power consumption < 10W at QSFP-DD end
Power consumption < 4.5W at QSFP end
CMIS V5.1 compliant for QSFP-DD
SFF8636 compliant for QSFP
Operating case temperature: 0℃~+70℃
RoHS6 compliant (lead free)

Specification Drawings Request Quote

Product Description of 400G QSFP56-DD to 4 x 100GBASE QSFP56 Active Optical Cable

The TSD4Q-85M-XXXC is an 8-Channel, Pluggable, Parallel, Fiber-Optic 400G QSFP56-DD to 4 x 100G QSFP56 AOC. It integrates 8 data lanes in each direction at QSFP-DD end and 2 data lanes in each direction at QSFP end. Each lane can operate at 53.125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber with FEC.

These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 76 contacts edge type connector at QSFP-DD end and 38 contacts edge type connectors at QSFP end.

Specifications

Part Number	TSD4Q-85M-XXXC	Application	400G Ethernet，100G Ethernet
Form Factor	QSFP56-DD to QSFP56	Data Rate	425Gbps
Wavelength	850nm	Max Length	70m
Cable Jacket	LSZH	Fiber	OM3
Min. Bending Radius	60mm	Receiver	PIN
Transmitter	VCSEL	Power Comsumption	≤10W@QSFP56-DD,≤4.5W@QSFP56
Power Supply	3.3V	DDM/DOM	Supported
Packaging	COB	Modulation	PAM4
DSP or CDR	DSP or CDR	Inbuilt FEC	No
Storage Temperature	-40℃ ~ + 85℃	Operating Temperature	0℃ ~ + 70℃
Compatibility	Generic	Class	Commercial
Protocols	IEEE 802.3cm，IEEE 802.3cd	Warranty

Applications

400GBASE SR8 Ethernet
100GBASE SR2 Ethernet

Compliance

RoHS/ UL/ CE/ TUV/ ISO14001/ ISO45001/ ISO9001
