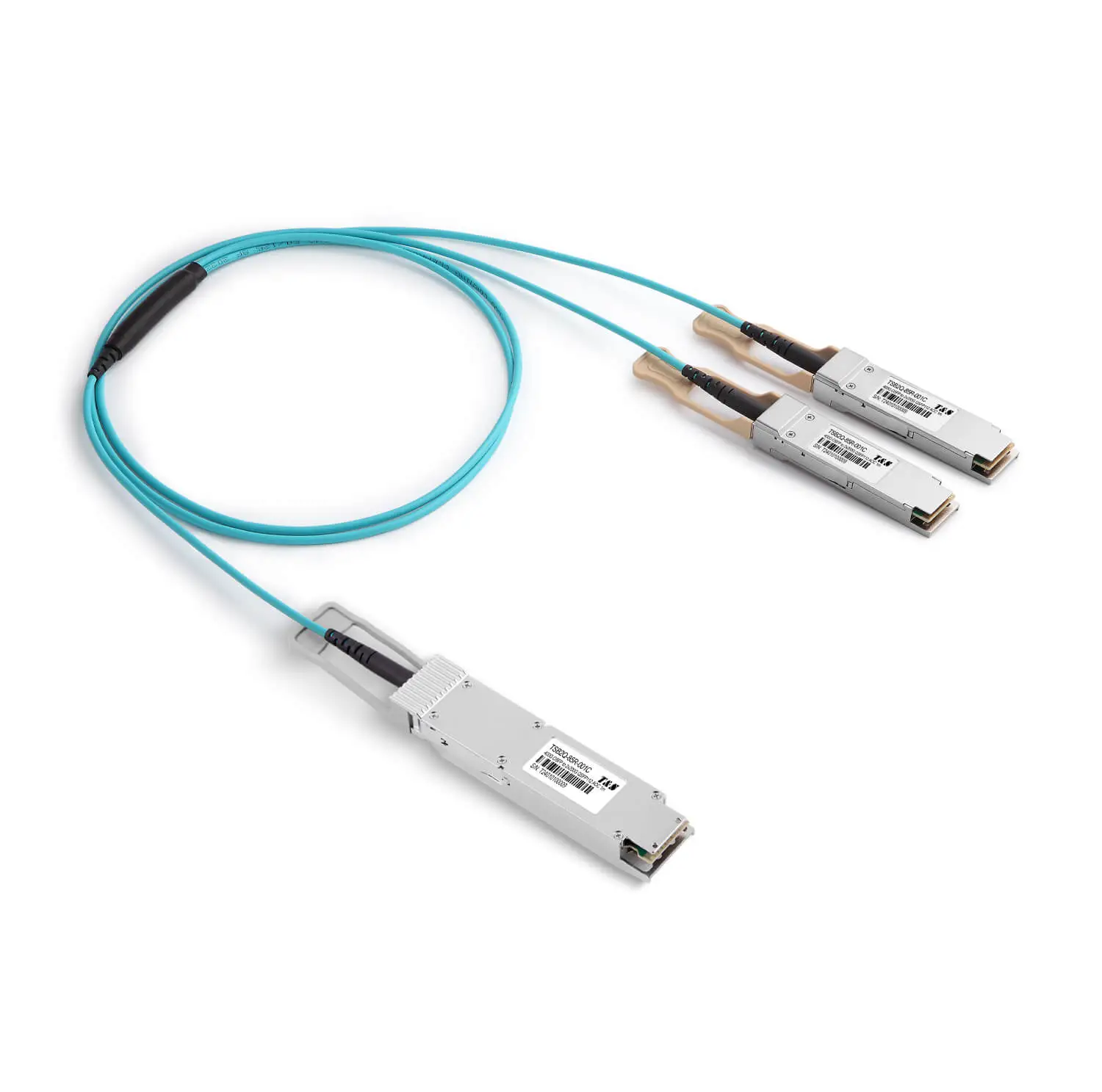

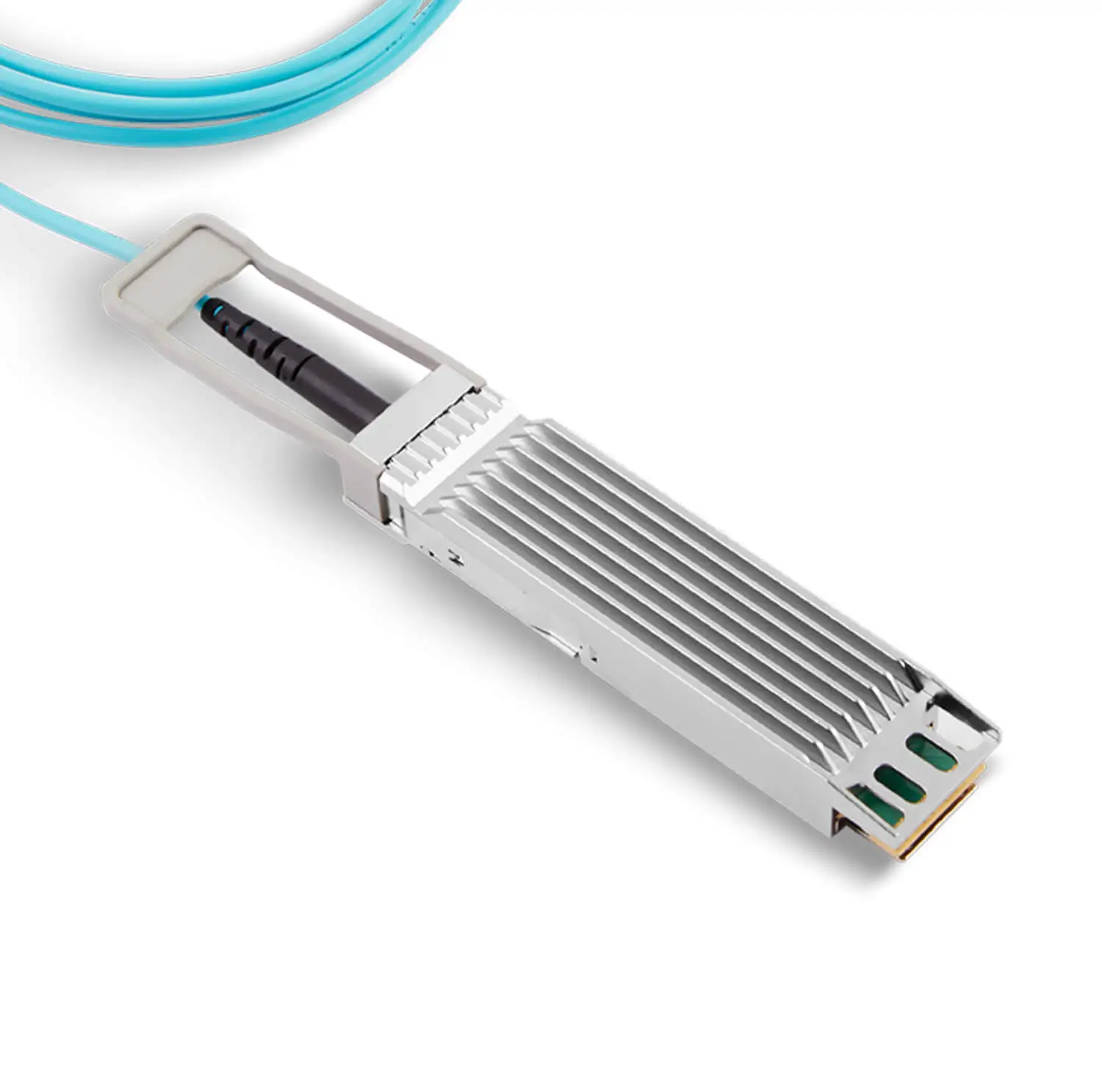

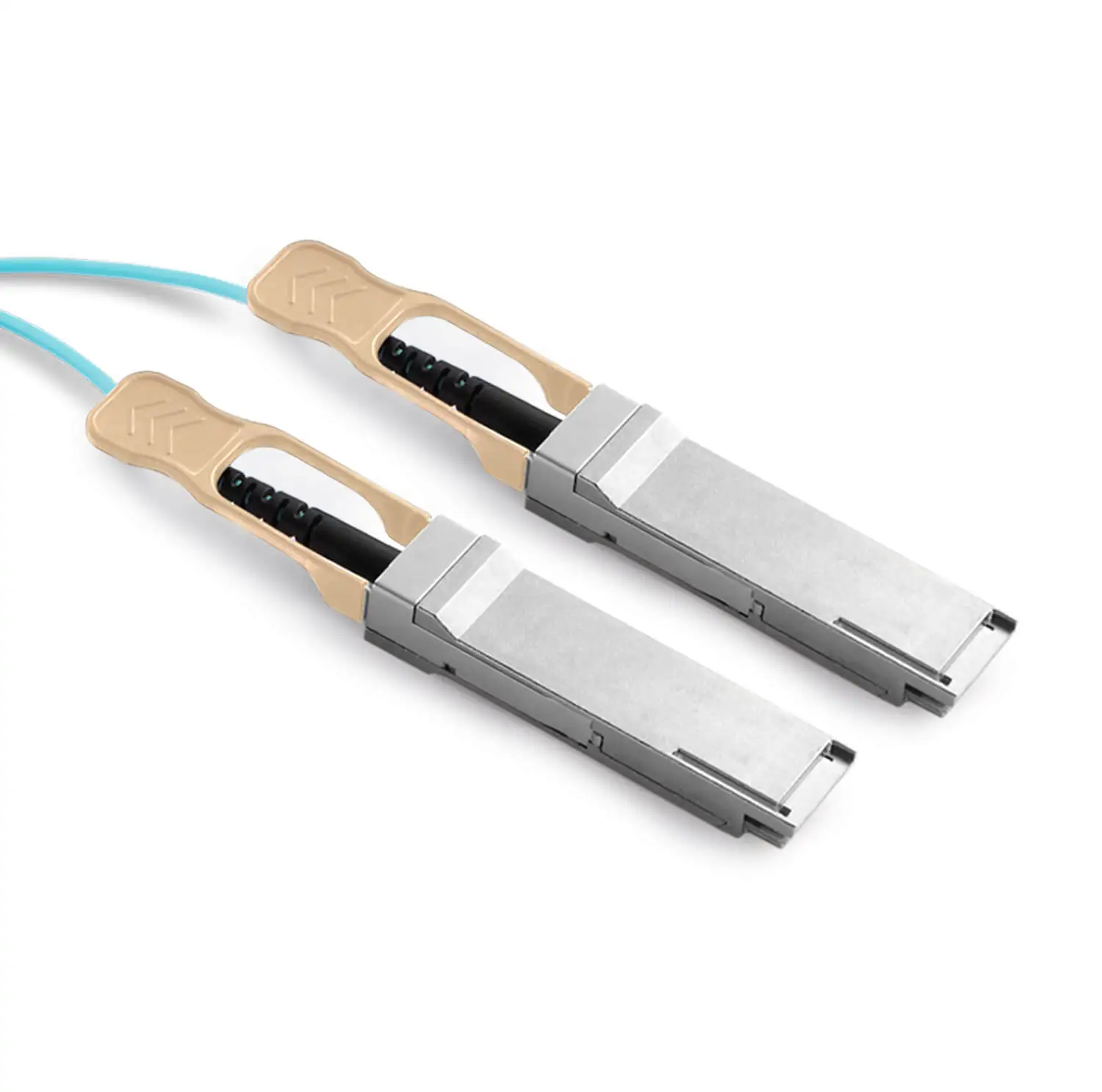

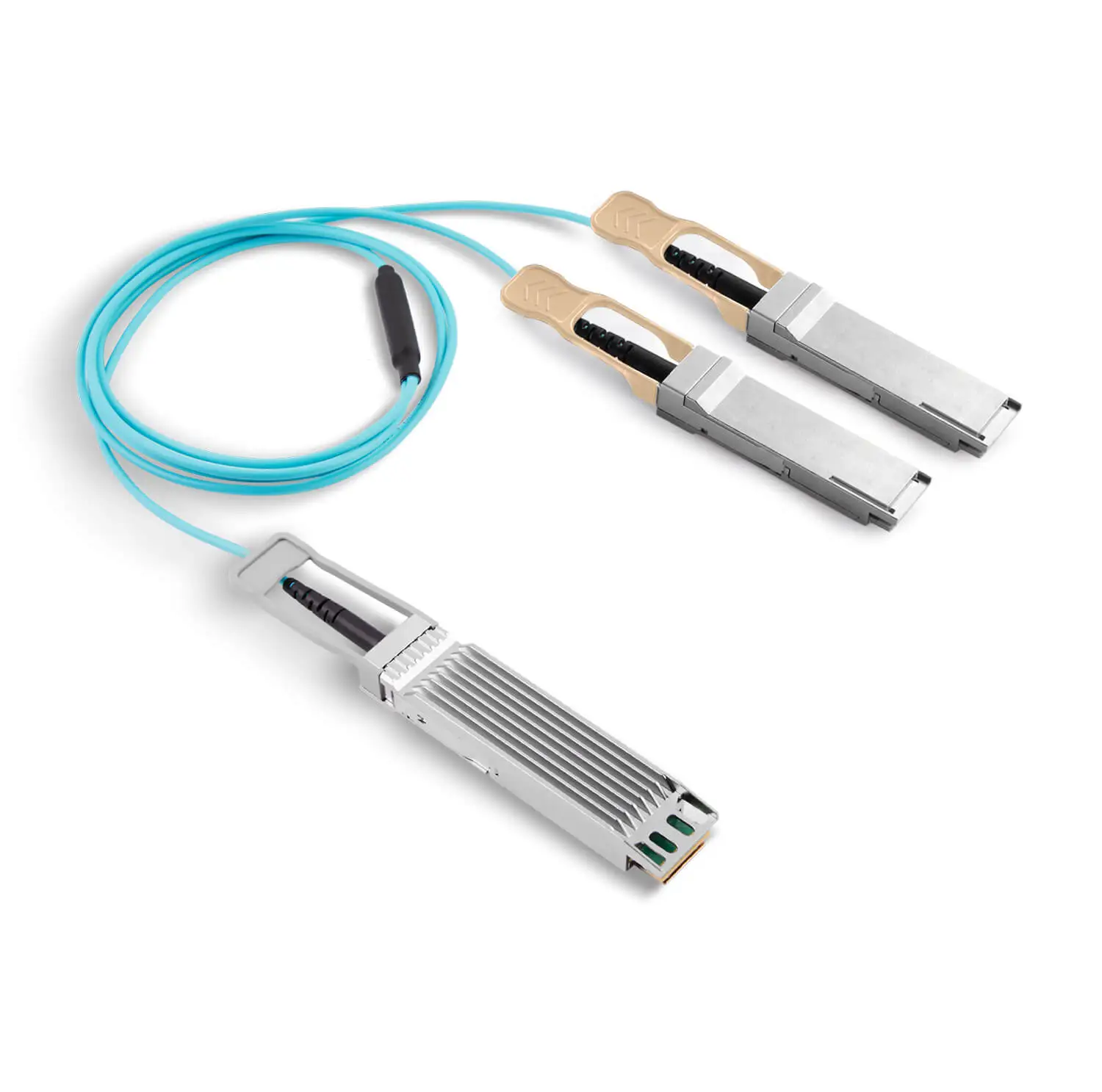

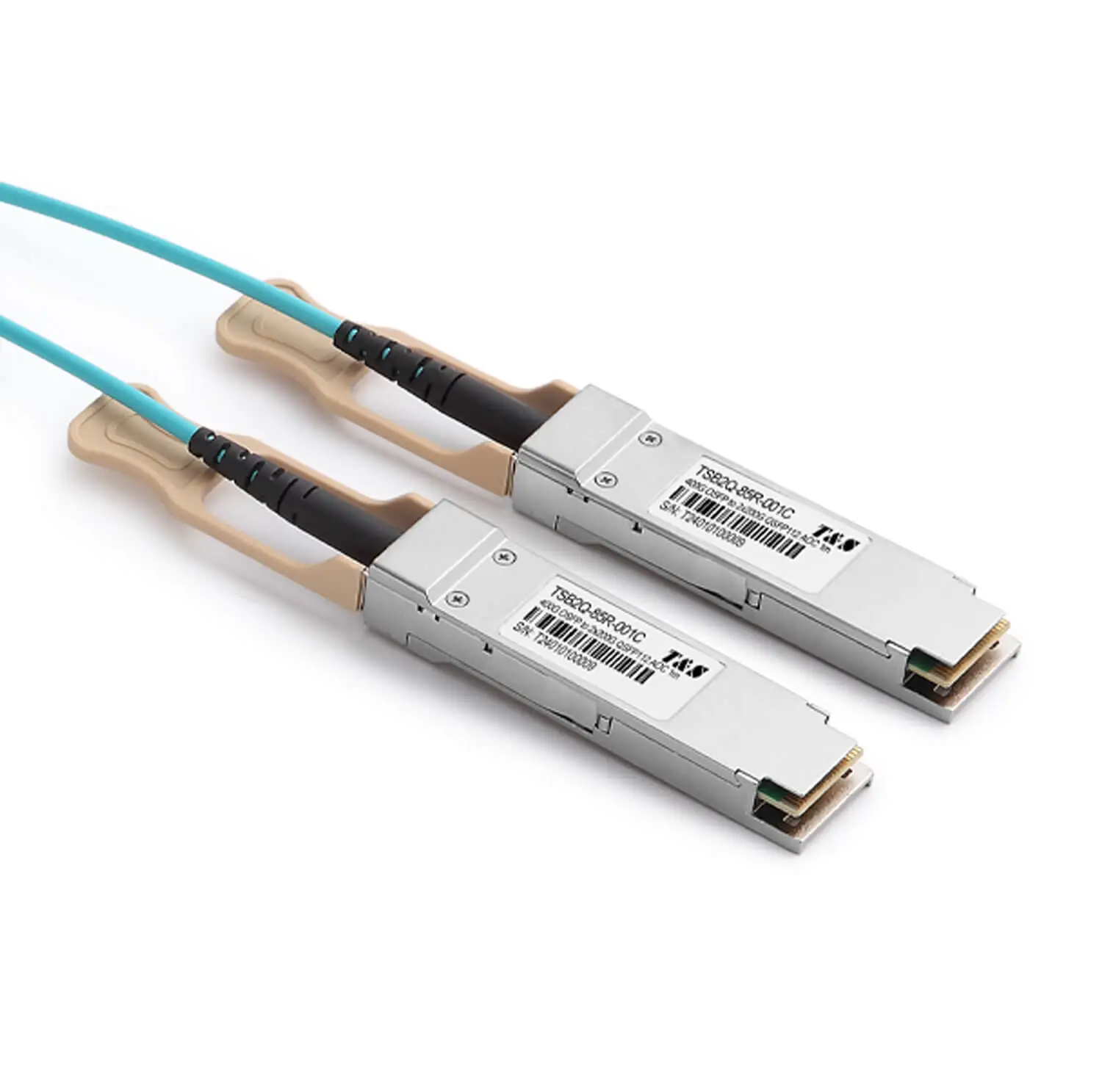

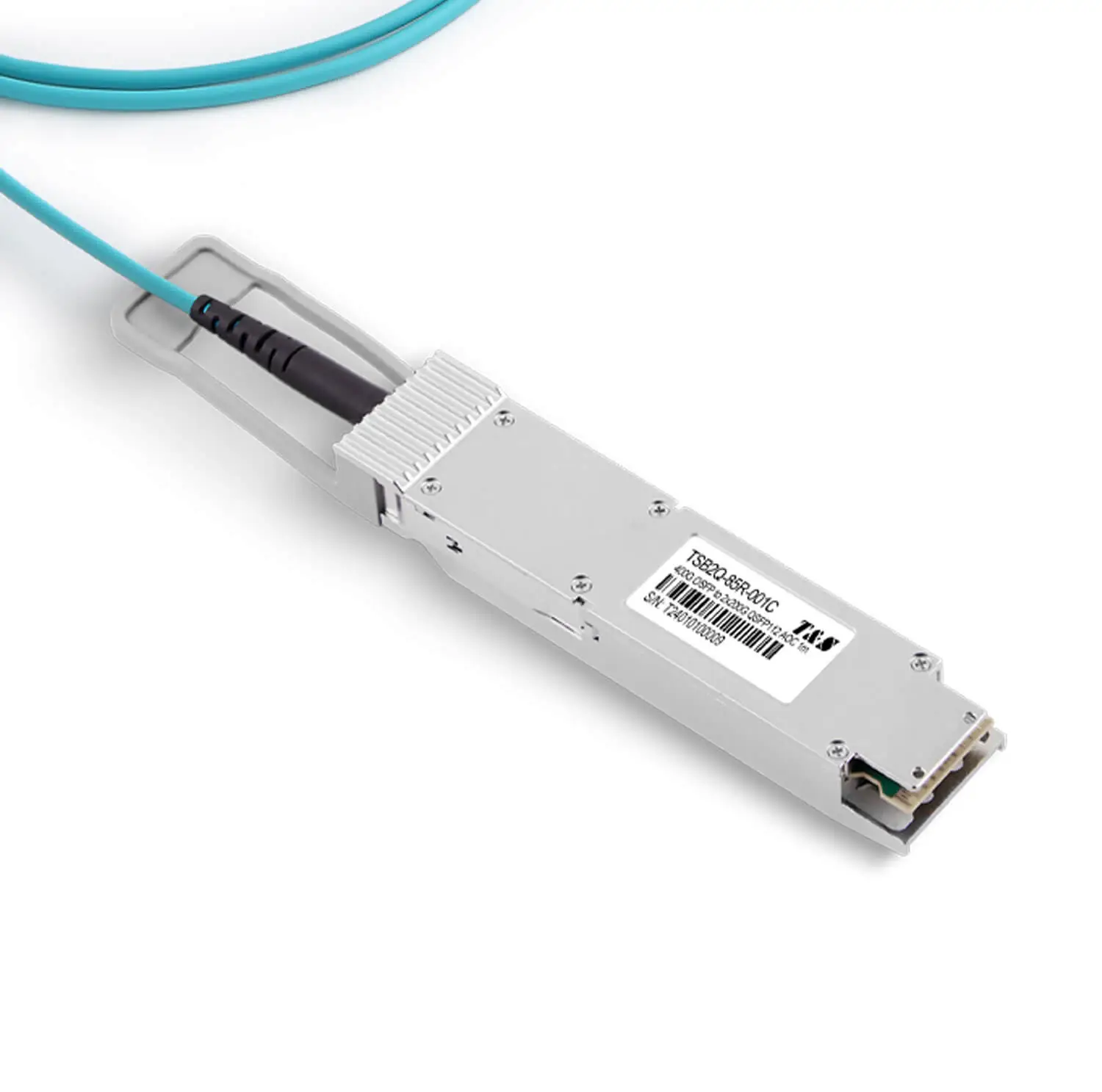

400G OSFP to 2 x 200GBASE QSFP112 Active Optical Cable, Armored

Name: 400G OSFP to 2 x 200GBASE QSFP112 Active Optical Cable, Armored
Brand: T&S Communications Co., Ltd.

Identifier: 120090

60mm | ≤10W

Features

Hot-pluggable OSFP/QSFP112 form factor
Data Rate 106.25 Gb/s PAM4 per lane
4x106Gbps PAM4 transmitter and PAM4 receiver at OSFP end
2x106Gbps PAM4 transmitter and PAM4 receiver at QSFP112 end
4 channels 850nm VCSEL array and PIN photo detector array at OSFP end
2 channels 850nm VCSEL array and PIN photo detector array at QSFP112 end
Power consumption < 10W per end
CMIS V5.1 compliant
Operating case temperature: 0℃~+70℃
RoHS6 compliant (lead free)

Specification Drawings Request Quote

Product Description of 400G OSFP to 2 x 200GBASE QSFP112 Active Optical Cable, Armored

The TSB2Q-85R-XXXD is a 4-Channel, Pluggable, Parallel, Fiber-Optic 400G OSFP to 2 x 200G QSFP112 AOC. This AOC is a high performances module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 4x53.125GBd. Each lane can operate at 106.25Gbps up to 30m using OM3 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 60@OSFP and 38@QSFP112 contacts edge type connector.

Specifications

Part Number	TSB2Q-85R-XXXD	Application	400G Ethernet，200G Ethernet
Form Factor	OSFP to QSFP112	Data Rate	425Gbps
Wavelength	850nm	Max Length	30m
Cable Jacket	LSZH	Fiber	OM3
Min. Bending Radius	60mm	Receiver	PIN
Transmitter	VCSEL	Power Comsumption	≤10W
Power Supply	3.3V	DDM/DOM	Supported
Packaging	COB	Modulation	PAM4
DSP or CDR	DSP	Inbuilt FEC	No
Storage Temperature	-40℃ ~ + 85℃	Operating Temperature	0℃ ~ + 70℃
Compatibility	Generic	Class	Commercial
Protocols	IEEE 802.3ck	Warranty

Applications

400G Ethernet
Switch & Router Connections

Compliance

ISO14001/ ISO45001/ ISO9001
