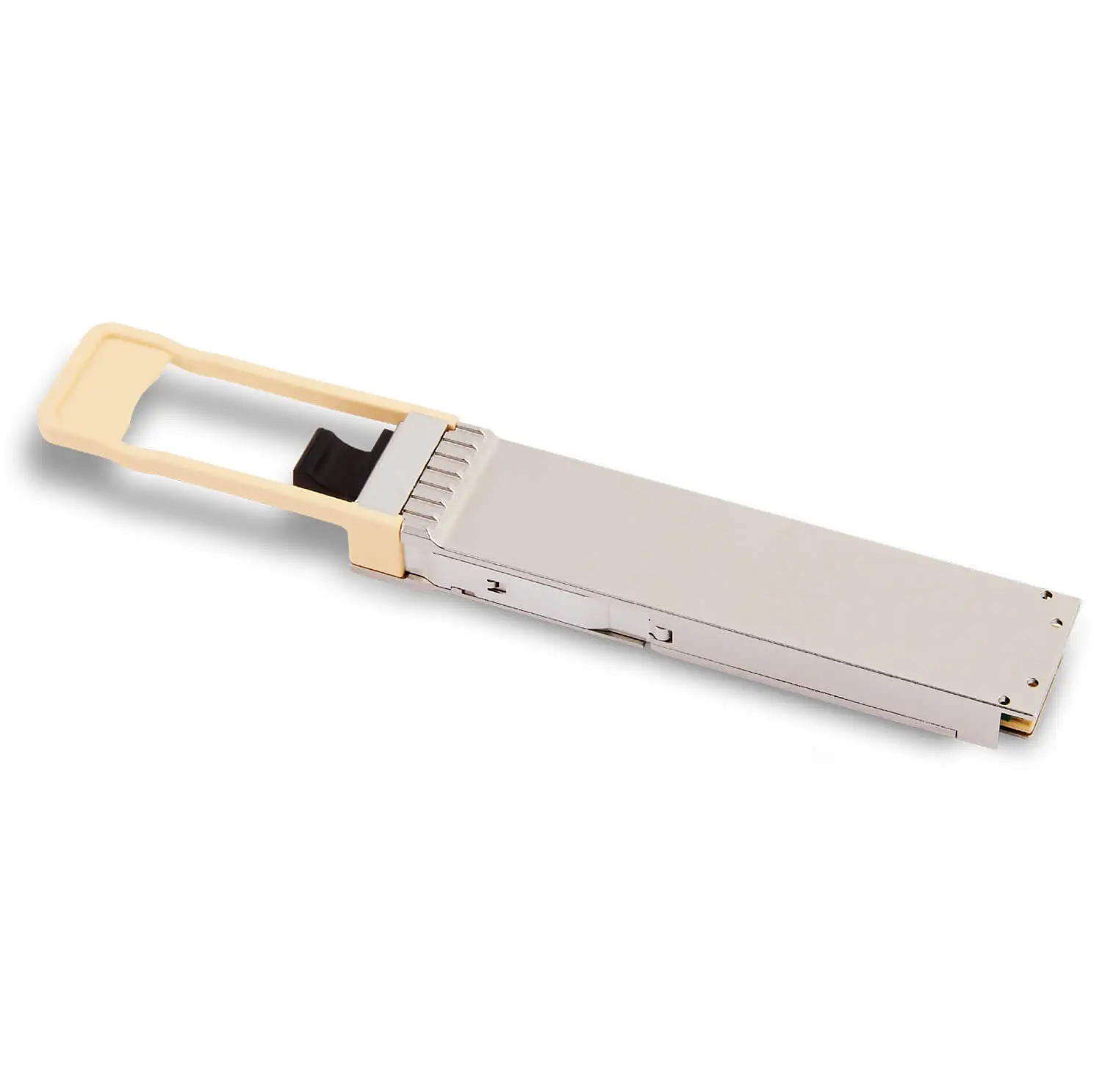

400G OSFP-RHS SR4 Fiber Optic Transceiver

Name: 400G OSFP-RHS SR4 Fiber Optic Transceiver
Brand: T&S Communications Co., Ltd.

Identifier: 110049

MPO12 | ≤14W

Features

Hot-pluggable OSFP form factor
Data Rate 106.25 Gb/s PAM4 per lane
4x106Gbps PAM4 transmitter and PAM4 receiver
4 channels 850nm VCSEL laser array and 4 channels PIN photo-detector array
Maximum link length of 30m on OM3 MMF and 50m on OM4 MMF
Digital diagnostics functions are available via the I2C interface
Single 3.3V Power Supply and Power Dissipation < 14W
MPO-12 APC connector
Operating Case Temperature: 0℃~+70℃
RoHS compliant

Specification Drawings Request Quote

Product Description of 400G OSFP-RHS SR4 Fiber Optic Transceiver

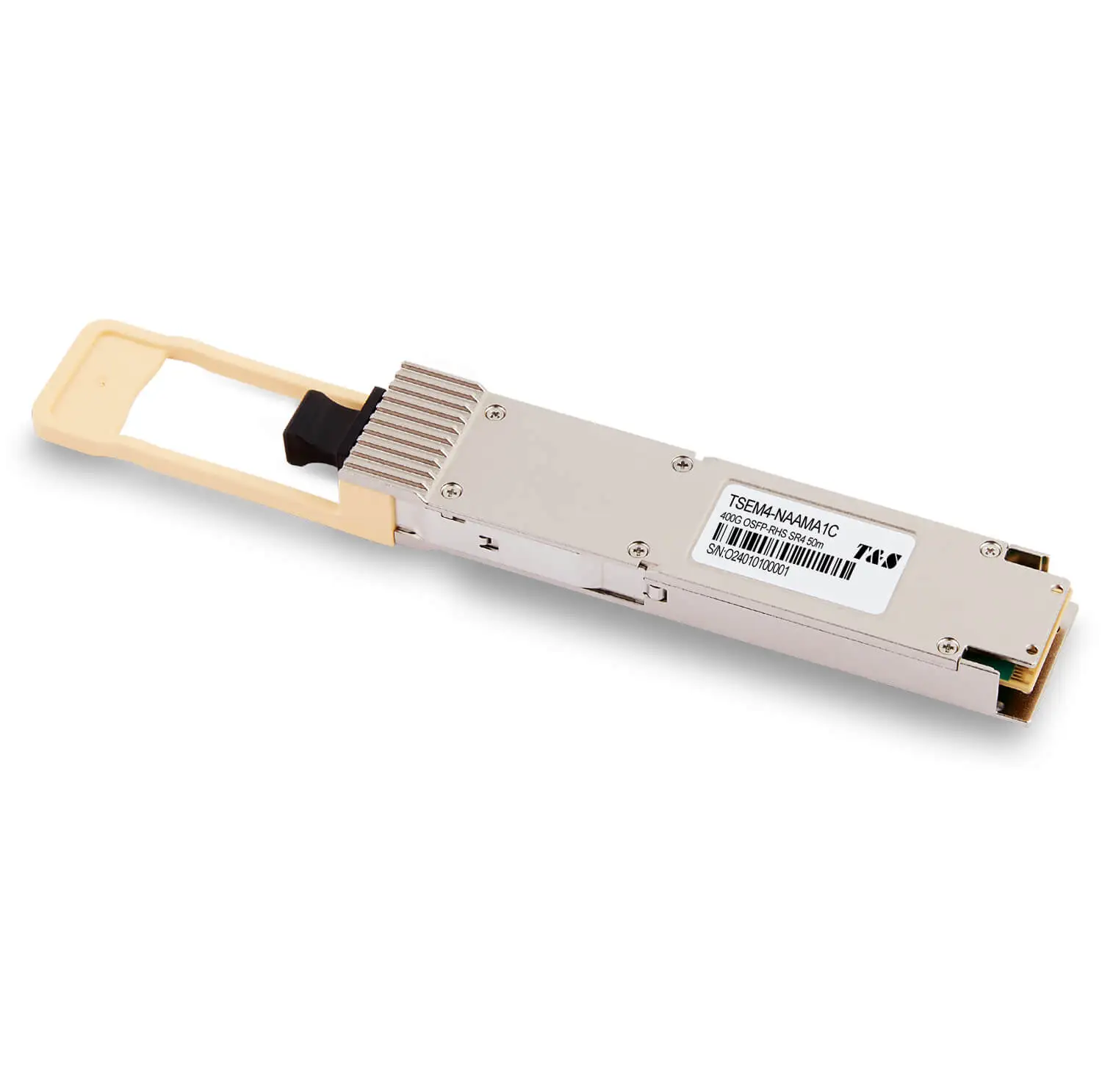

The TSEM4-NAAMA1C is a 4-Channel, Pluggable, Fiber-Optic OSFP for 400Gbps SR4 Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 106.25Gbps per lane up to 30m using OM3 fiber and 50m using OM4 fiber. The optical interface uses MPO receptacles.

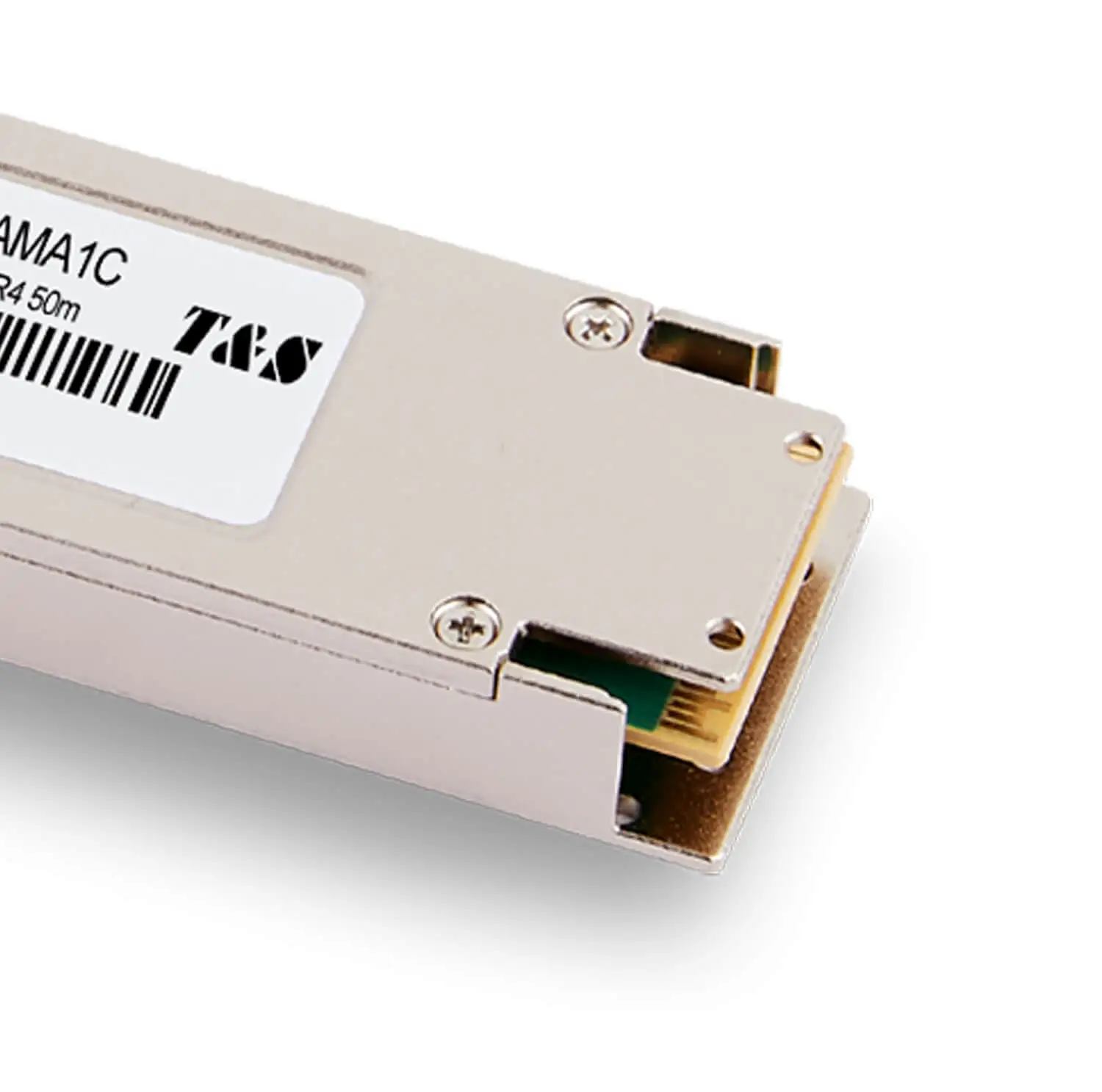

This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 60 contact edge type connector.

Specifications

Part Number	TSEM4-NAAMA1C	Application	400G Ethernet
Form Factor	OSFP-RHS	Max Data Rate	424Gbps
Wavelength	850nm	Distance	50m
Connector	MPO12 APC	Fiber	MMF
Transmitter	VCSEL	Receiver	PIN
TX Power	-4.6~4dBm	Minimum Receiver Power	-6.4dBm
Power Budget	1.8dB	Receiver Overload	4dBm
Power Comsumption	≤14W	Extinction Ratio	＞2.5dB
Packaging	COB	Modulation	PAM4
DSP	Yes	Inbuilt FEC	No
Storage Temperature	-40℃ ~ + 85℃	Operating Temperature	0℃ ~ + 70℃
Compatibility	Generic	Class	Commercial
Protocols	IEEE 802.3cd	Warranty

Applications

400G SR4 Ethernet

Compliance

RoHS/ ISO14001/ ISO45001/ ISO9001
