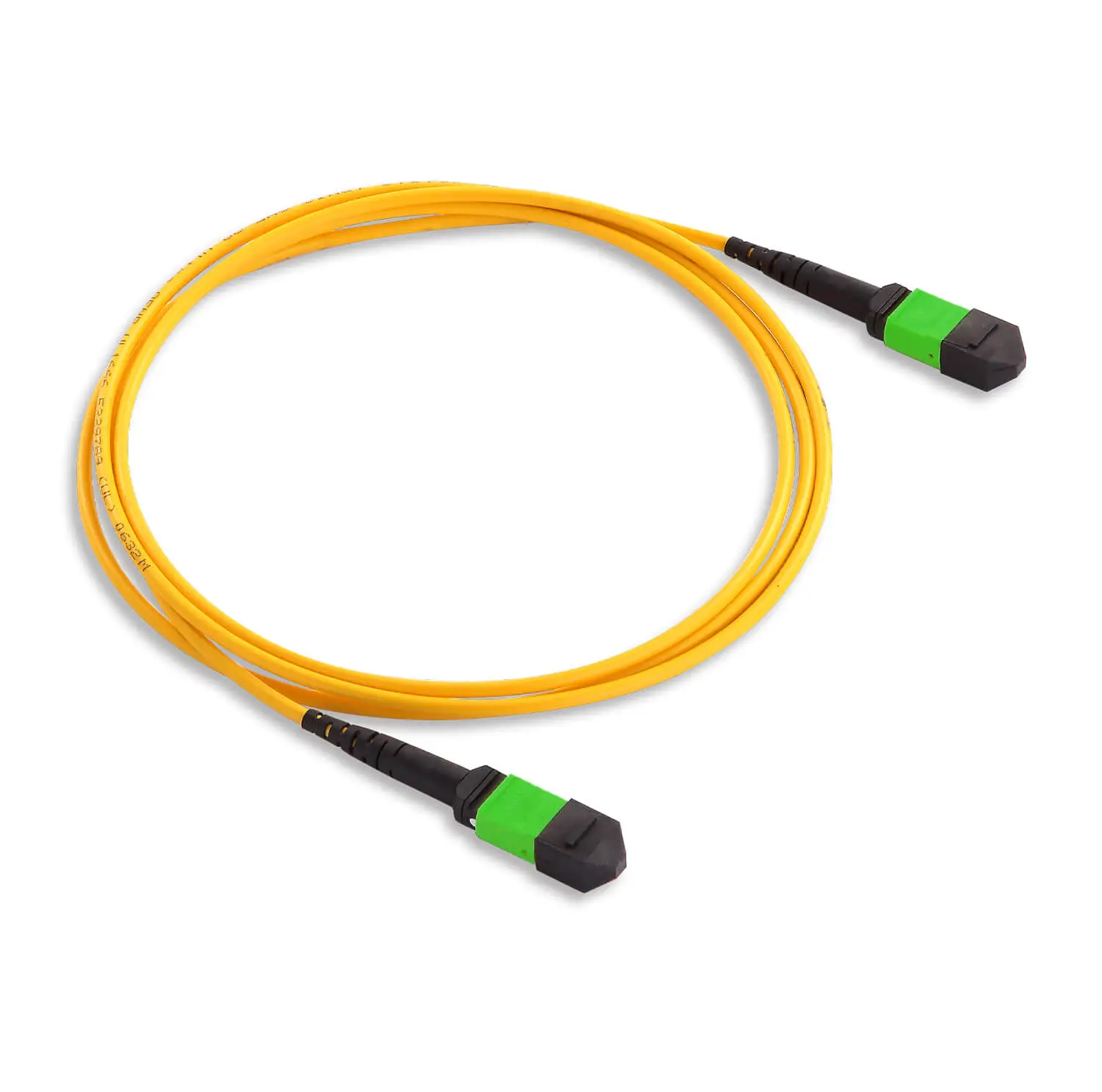

36F, MPO/APC/F-MPO/APC/M, SM, Polarization Maintaining Patchcord

Name: 36F, MPO/APC/F-MPO/APC/M, SM, Polarization Maintaining Patchcord
Brand: T&S Communications Co., Ltd.

Identifier: 503002

≤0.35dB IL Low Loss

Features

Single fiber connector or multi fiber connector optional
High precision connector
Low insertion loss
High Extinction Ratio
Multiple PM optical fibers optional
Axis aligned optional or customization
Compatible with ordinary connector
100% factory terminated and tested
ROHS Compliant

Specification Drawings Request Quote

Product Description of 36F, MPO/APC/F-MPO/APC/M, SM, Polarization Maintaining Patchcord

T&S Panda PM fiber patch cord has excellent performance in the field after installation. It features low insertion loss, high extinction ratio, and remarkable stability.

Specifications

Connector A	MPO/APC/F	Connector B	MPO/APC/M
Fiber Mode	Panda fiber/PM1310	Cable Jacket	PVC (OFNP)
Fiber Count	36F	Cable Structure	Tight Buffered
Cable OD	3.5mm	Insertion Loss	≤0.35dB
Storage Temperature	-40℃ ~ + 85℃	Operating Temperature	-20℃ ~ +70℃

Compliance

TIA/EIA-568.3-D/ EIA/TIA-604 Series/ IEC-61754 Series/ IEC-61753-1
