3 Ports High Isolation FWDM Device

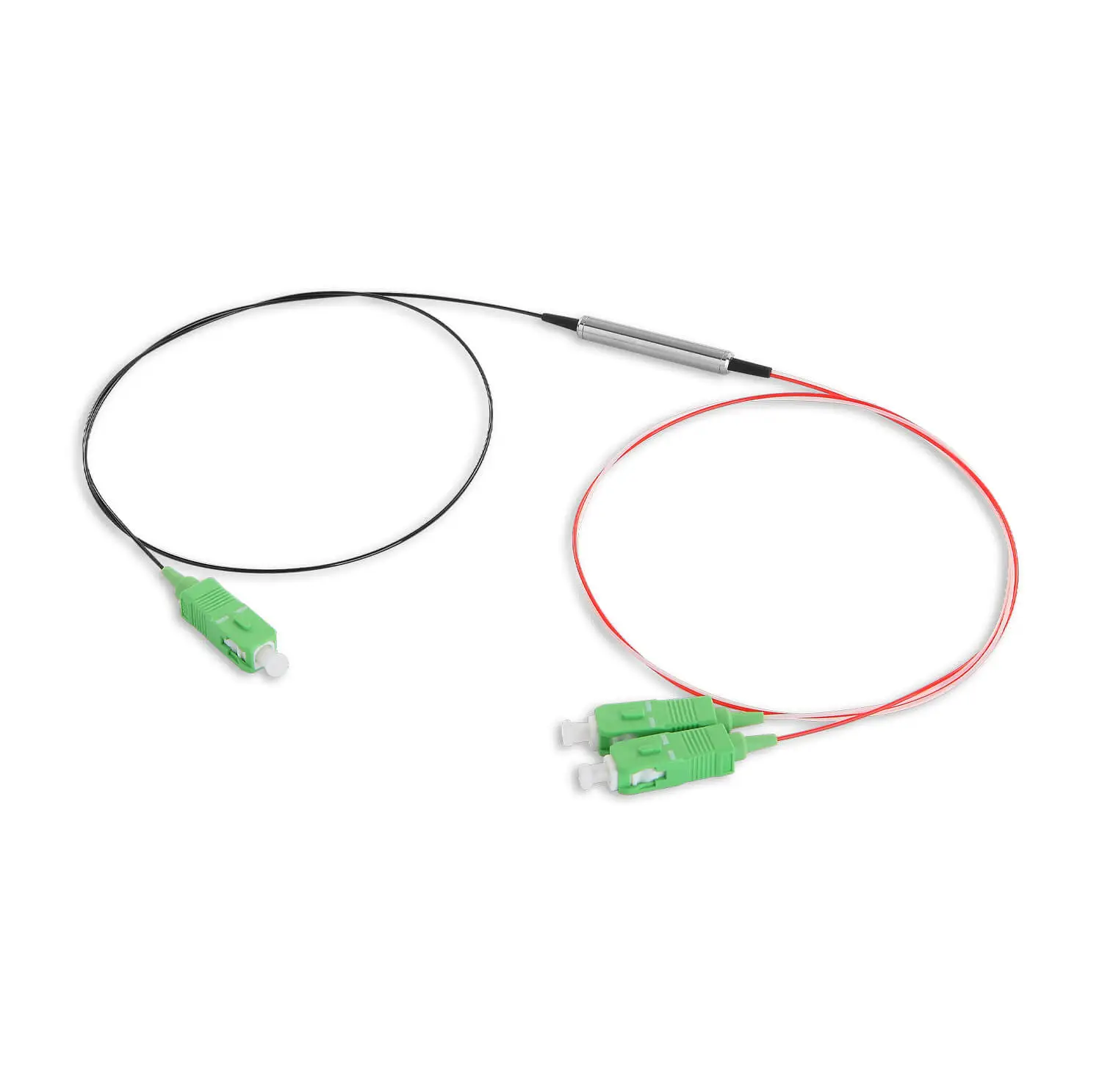

Name: 3 Ports High Isolation FWDM Device
Brand: T&S Communications Co., Ltd.

Identifier: 150001

Transmission 1460nm-1650nm | Reflection 1260nm-1400nm | Isolation≥50dB

Features

Automatic Optical alignment
Optical path epoxy free
Low insert loss & high isolation
Telcordia-GR-1221-Core qualified
RoHS compliant

+ View More

Specification Drawings Request Quote

Product Description of 3 Ports High Isolation FWDM Device

T&S's 3 Ports High Isolation FWDM Device is a high-performance optical component designed for advanced wavelength division multiplexing (WDM) applications. With superior isolation between ports, this device ensures minimal crosstalk and optimal signal integrity, making it ideal for high-speed communication systems and optical network applications.

Specifications

Parameter		Unit	Specification
Parameter		Unit	1310/1490&1550H
Operating Wavelength	Transmission	nm	1460-1650
Operating Wavelength	Reflection	nm	1260-1400
Port of Transmission	Insertion Loss	dB	≤1.0(Typical 0.8)
(Port1=＞Port2)	Isolation	dB	≥50
Port of Reflection	Insertion Loss	dB	≤1.0(Typical 0.7)
(Port1=＞Port3)	Isolation	dB	≥50
Return Loss		dB	≥45
Insertion Loss Temperature Stability		dB/℃	≤0.005
Polarization Dependent Loss		dB	≤0.20
Polarization Mode Dispersion		Ps	≤0.10
Directivity		dB	≥45
Power Handling		mW	300
Operating Temperature		℃	-20 ~ +70
Storage Temperature		℃	-40 ~ +85
Fiber Type		--	Corning SMF-28 Ultra, G657A1/A2 or customer specified
Pigtail type		--	Ø250μm Bare Fiber or Ø0.9mm loose tube
Fiber length		m	1.0 ,or customer specified

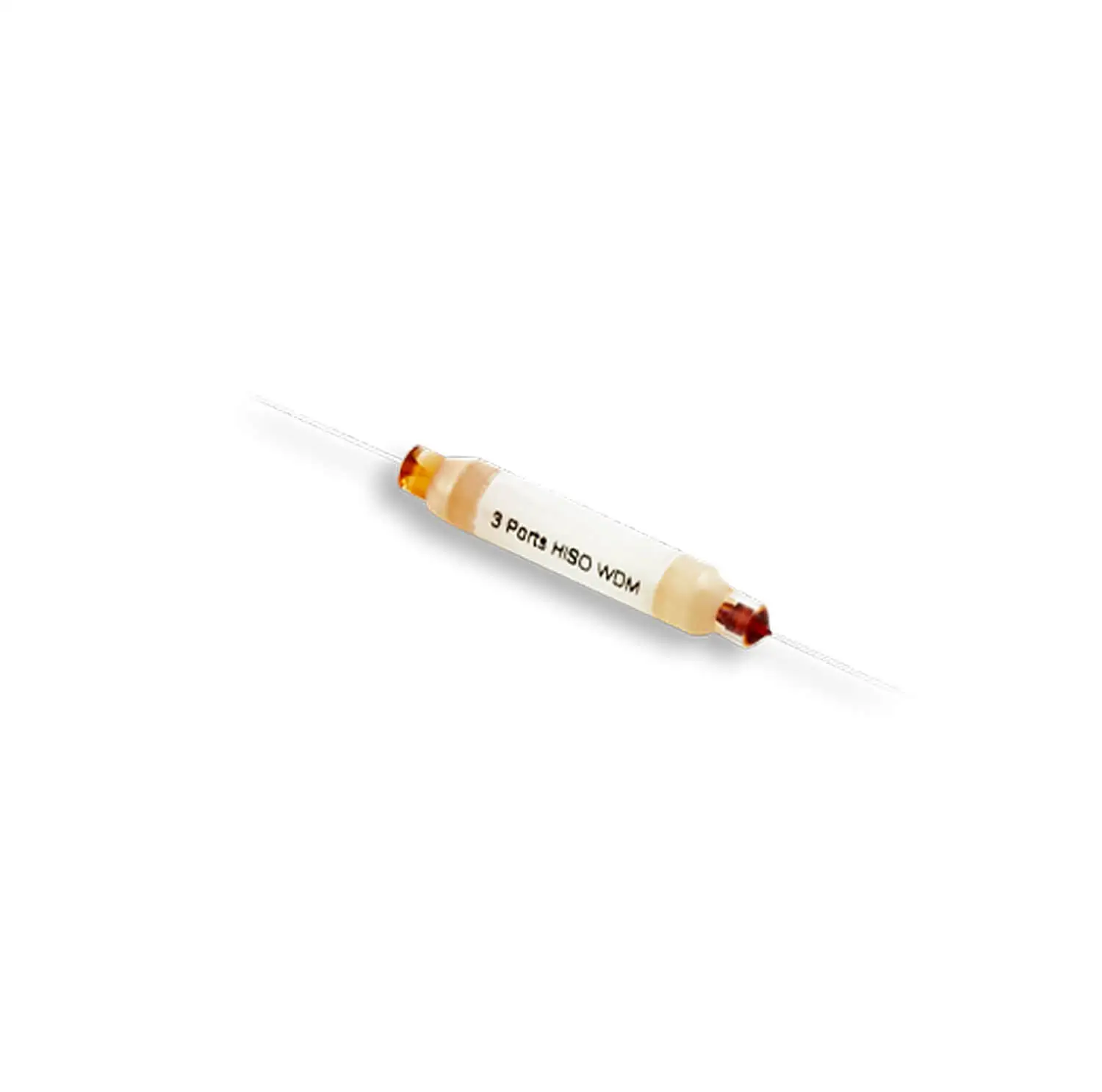

Package Dimension		mm	Steel Tube: Ø5.5x34 for 250μm bare fiber, Ø5.5x38 for Ø0.9mm loose tube;

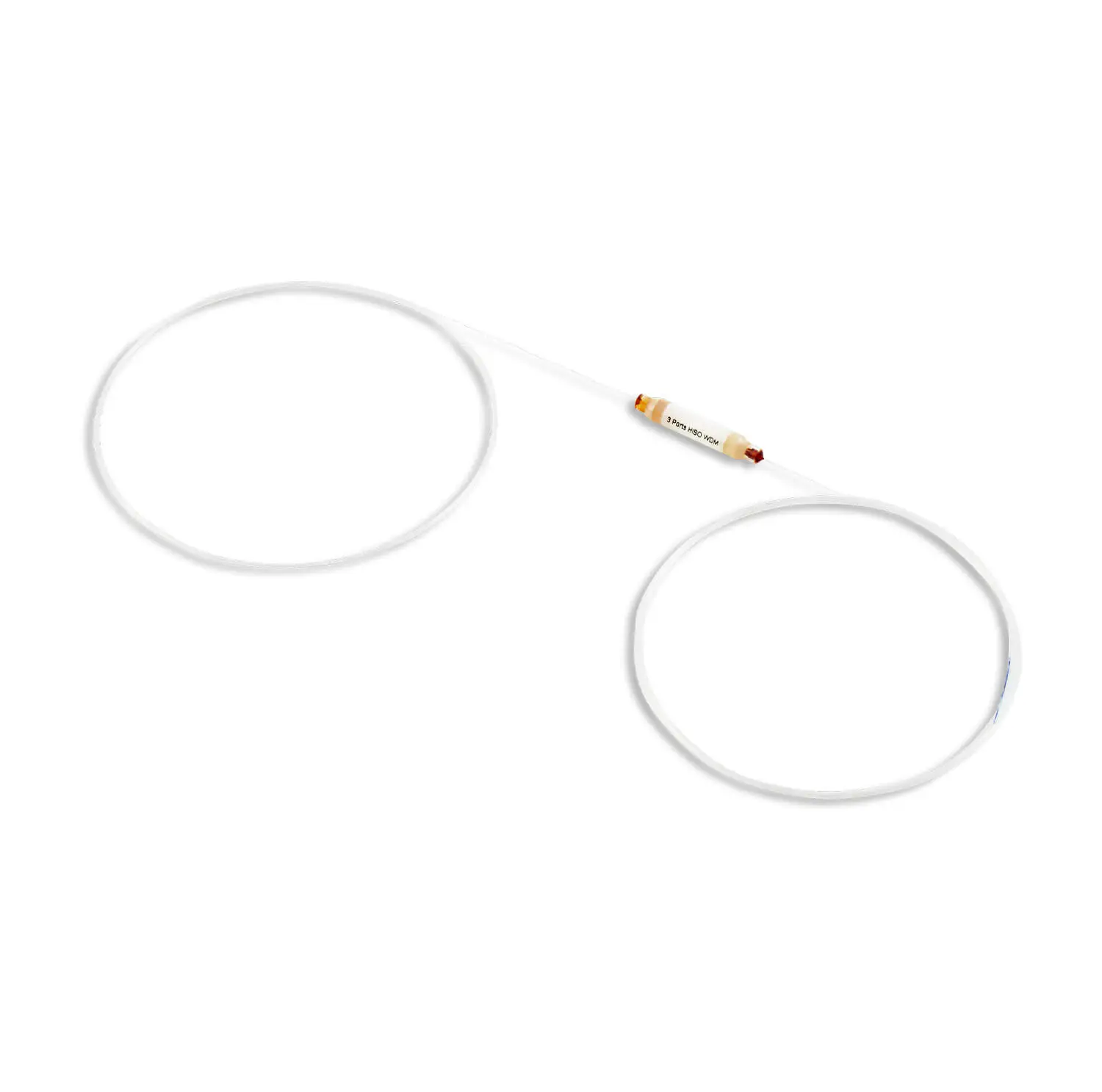

Package Dimension		mm	Glass Tube: Ø4.0x26 for Ø250μm bare fiber；

Note:

Insertion loss excluding connector loss. With connectors add 0.3dB;

Connectors can be customized on request.
