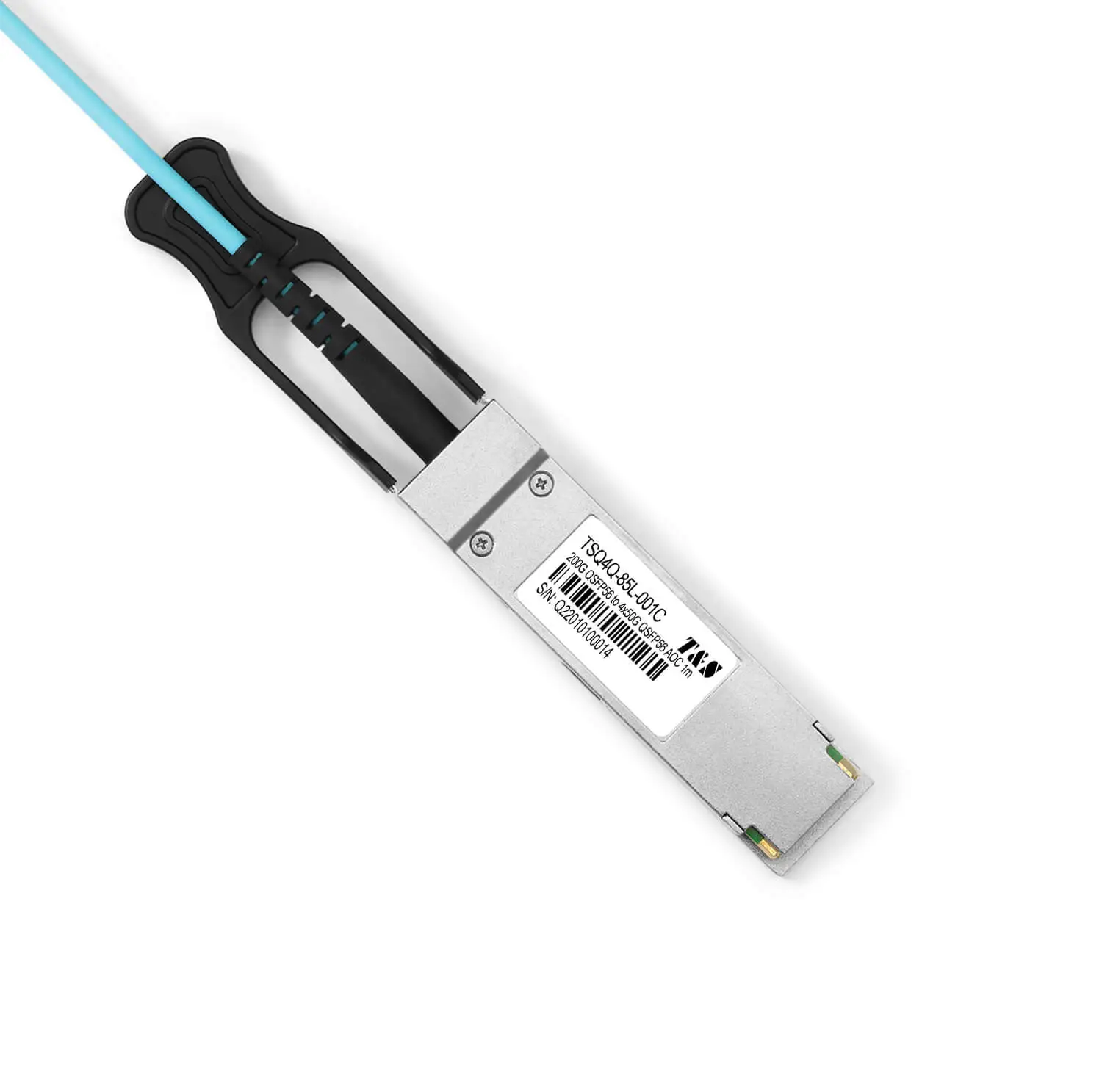

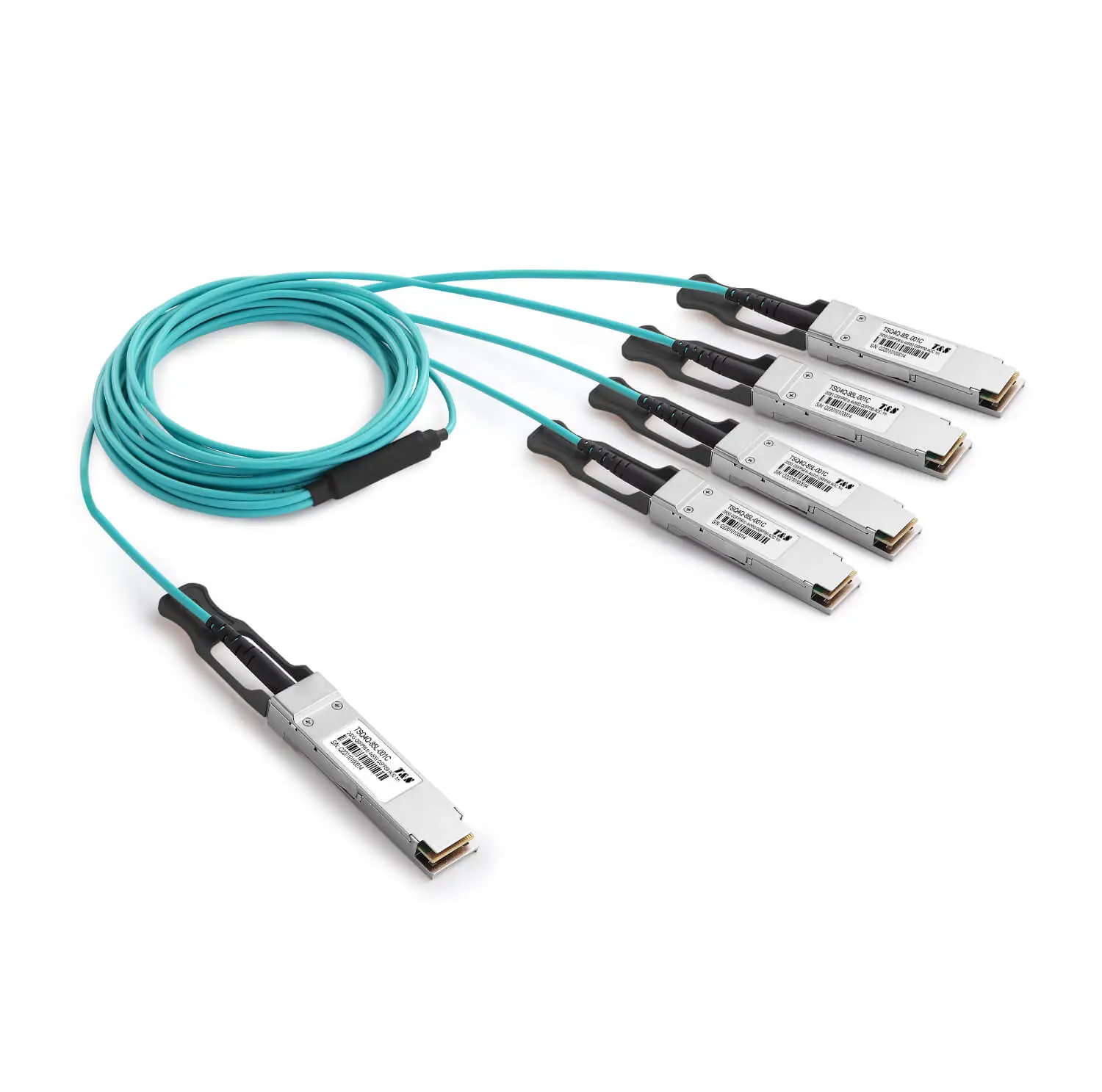

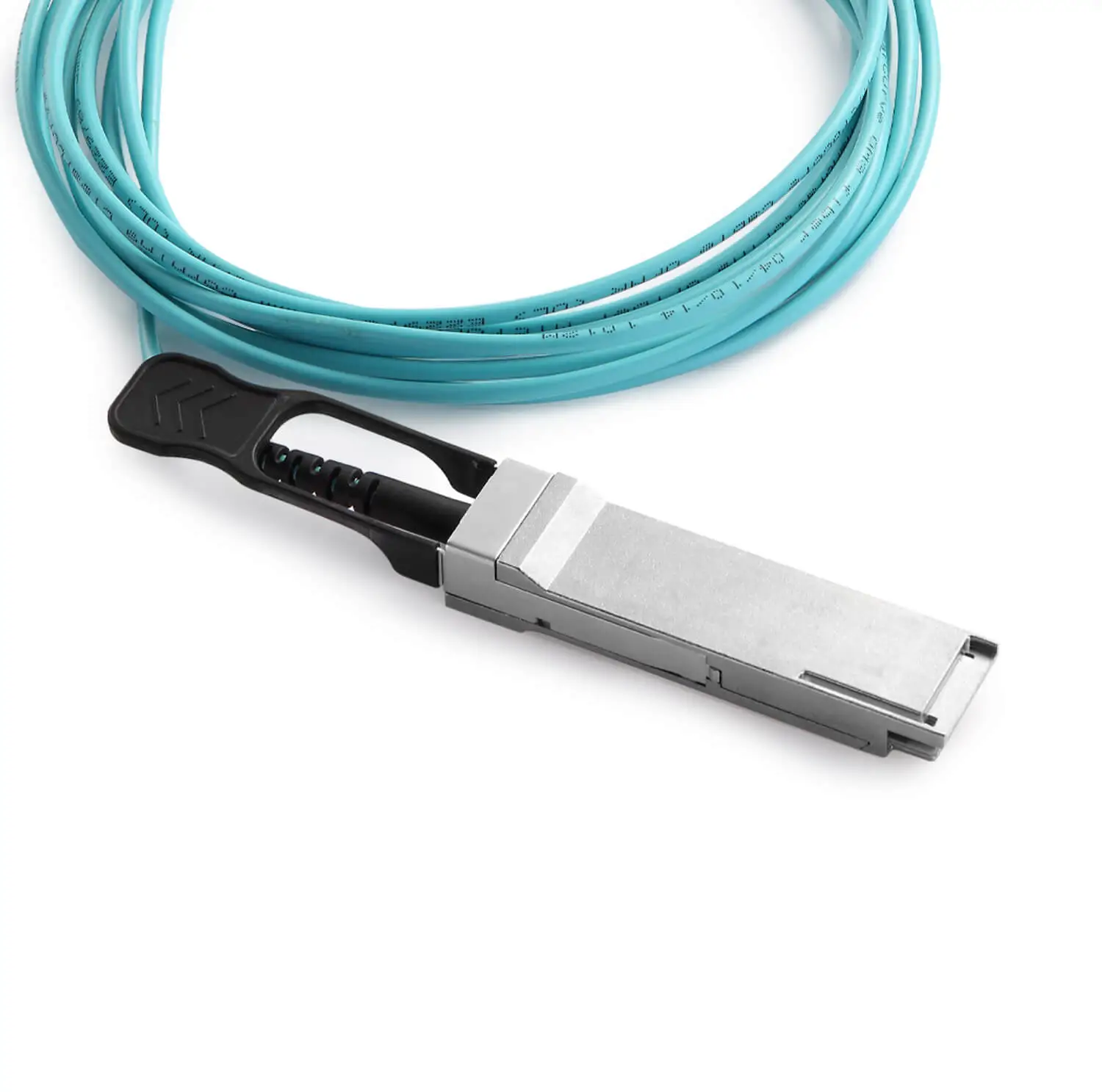

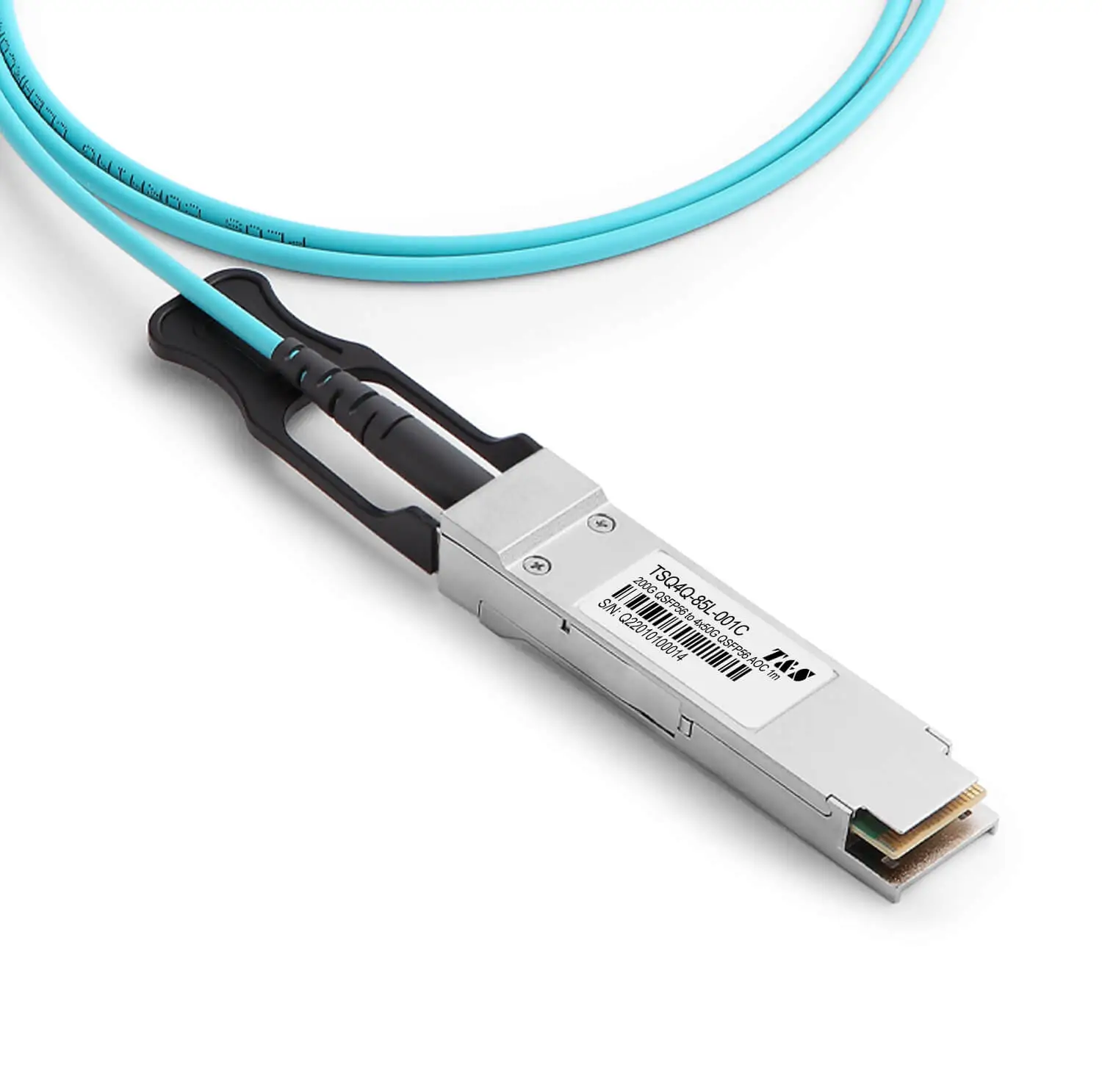

200G QSFP56 to 4x50GBASE QSFP56 Active Optical Cable

Name: 200G QSFP56 to 4x50GBASE QSFP56 Active Optical Cable
Brand: T&S Communications Co., Ltd.

Identifier: 120030

60mm | ≤5.5W

Features

SFF-8665 compliant QSFP56 form factor
Data rate up to 53.125 Gbps per lane
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
4 channels 850nm VCSEL array (200G End)
4 channels PIN photo detector array (200G End)
Single 3.3V power supply
Low power dissipation < 5.5W (Each End)
Built-in digital diagnostic functions
Operating case temperature: 0℃~+70℃
RoHS6 compliant (lead free)

Specification Drawings Request Quote

Product Description of 200G QSFP56 to 4x50GBASE QSFP56 Active Optical Cable

The TSQ4Q-85L-XXXC is a 4-Channel, Pluggable, Parallel, Fiber-Optic 200G QSFP56 to 4X50G QSFP56 AOC. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates 4 data lanes in each direction with 200Gbps bandwidth.

These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38@QSFP56 contact edge type connector

Specifications

Part Number	TSQ4Q-85L-XXXC	Application	200G Ethernet
Form Factor	QSFP56	Data Rate	212.5Gbps
Wavelength	850nm	Max Length	70m
Cable Jacket	LSZH	Fiber	OM3
Min. Bending Radius	60mm	Receiver	PIN
Transmitter	VCSEL	Power Comsumption	≤5.5W
Power Supply	3.3V	DDM/DOM	Supported
Packaging	COB	Modulation	NRZ
DSP or CDR	DSP or CDR	Inbuilt FEC	No
Storage Temperature	-40℃ ~ + 85℃	Operating Temperature	0℃ ~ + 70℃
Compatibility	Generic	Class	Commercial
Protocols	IEEE 802.3cd	Warranty

Applications

200GBASE-SR4 Ethernet

Compliance

RoHS/ UL/ CE/ TUV/ ISO14001/ ISO45001/ ISO9001
