60mm | ≤5.5W
QSFP56 data rate 53.125 Gbps PAM4 modulation per lane
QSFP28 data rate 25.78 Gbps NRZ modulation per lane
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
850nm VCSEL array
PIN photo detector array
Single 3.3V power supply
Low power dissipation: QSFP56/QSFP28< 5.5W (Each End)
Built-in digital diagnostic functions
Operating case temperature: 0℃~+70℃
RoHS6 compliant (lead free)

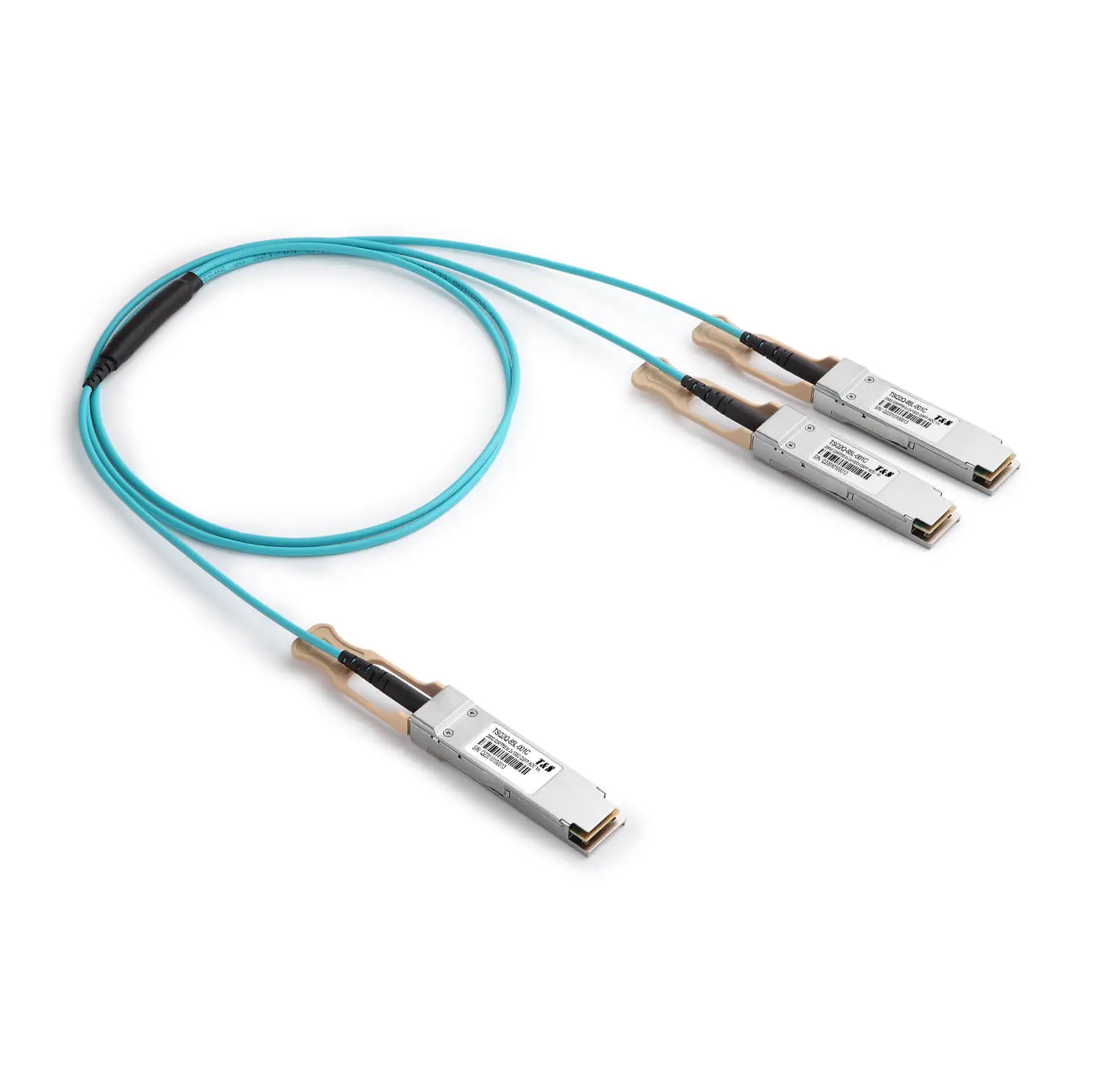

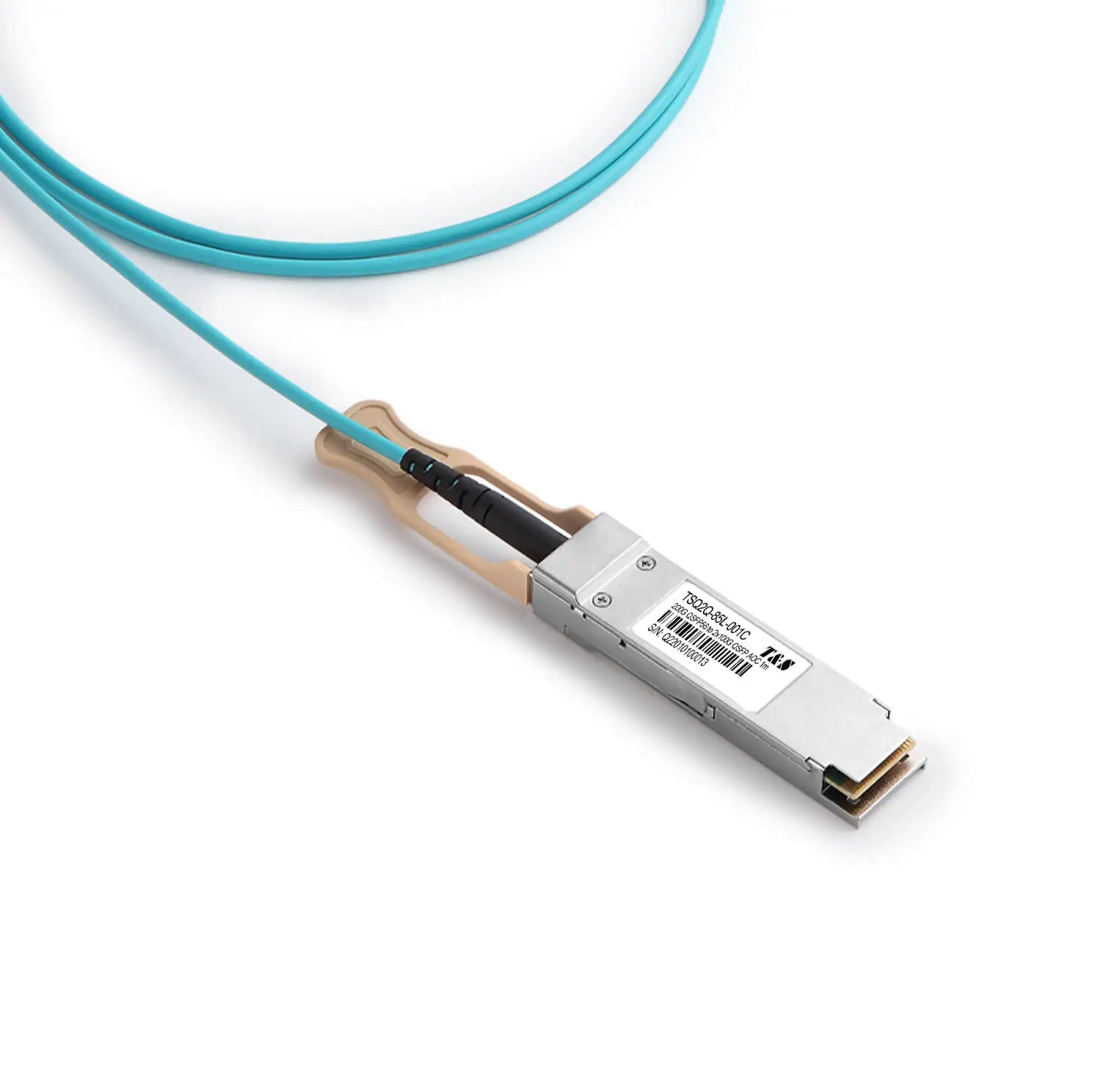

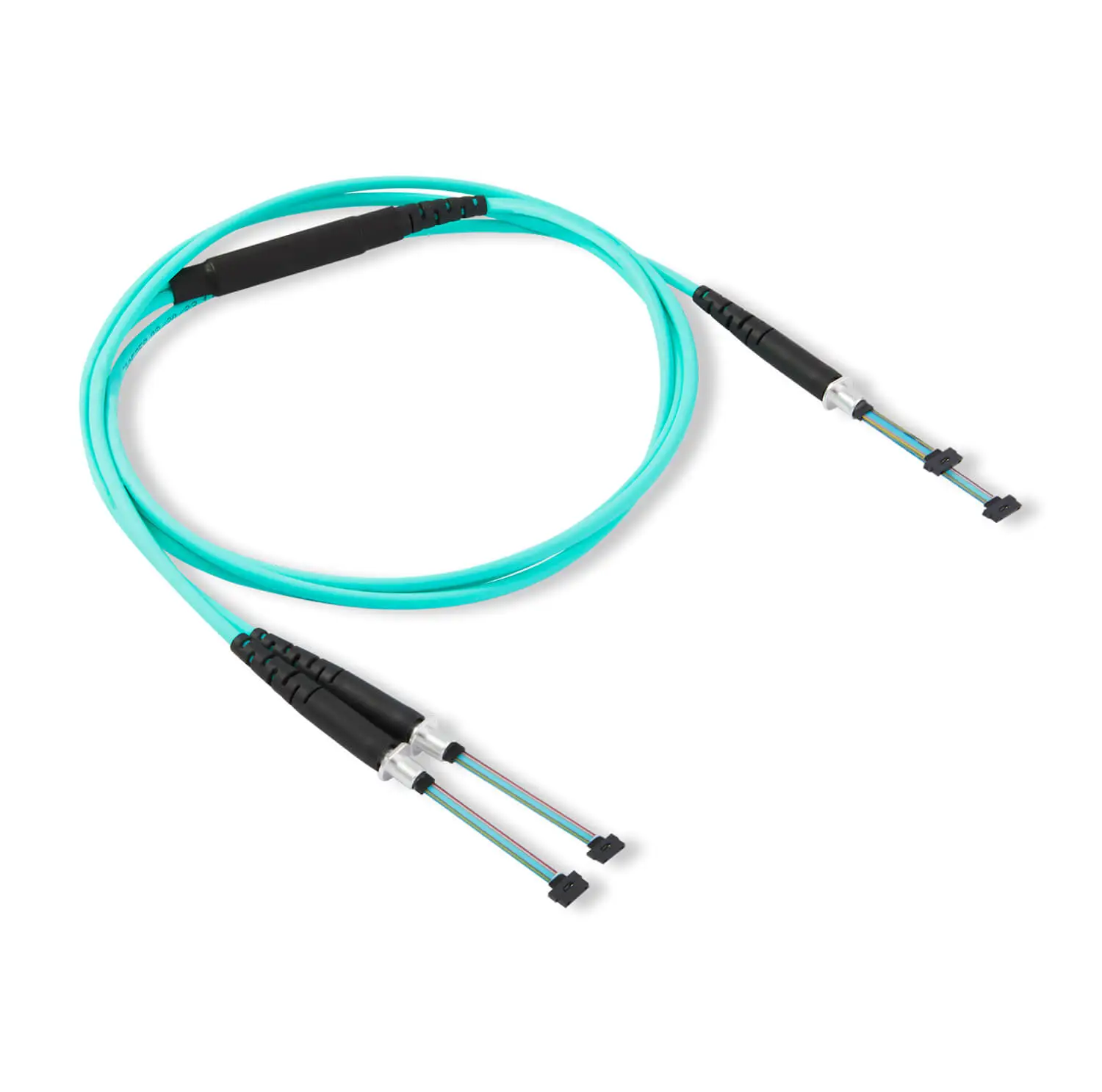

The TSQ2Q-85L-XXXDA is a 4-Channel, Pluggable, Parallel, Fiber-Optic 200G QSFP56 to 2X100G QSFP28 AOC. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates 4 data lanes in each direction with 200Gbps bandwidth.
These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38@QSFP56/ QSFP28 contact edge type connector
Part Number | TSQ2Q-85L-XXXDA | Application | 200G Ethernet,100G Ethernet |
Form Factor | QSFP56 to QSFP28 | Data Rate | 212.5Gbps |
Wavelength | 850nm | Max Length | 70m |
Cable Jacket | LSZH | Fiber | OM3 |
Min. Bending Radius | 60mm | Receiver | PIN |
Transmitter | VCSEL | Power Comsumption | ≤5.5W |
Power Supply | 3.3V | DDM/DOM | Supported |
Packaging | COB | Modulation | NRZ |
DSP or CDR | DSP | Inbuilt FEC | No |
Storage Temperature | -40℃ ~ + 85℃ | Operating Temperature | 0℃ ~ + 70℃ |
Compatibility | Generic | Class | Commercial |
Protocols | IEEE 802.3cd, IEEE 802.3bm | Warranty |
200GBASE-SR4 Ethernet
100GBASE-SR4 Ethernet
RoHS/ UL/ CE/ TUV/ ISO14001/ ISO45001/ ISO9001
