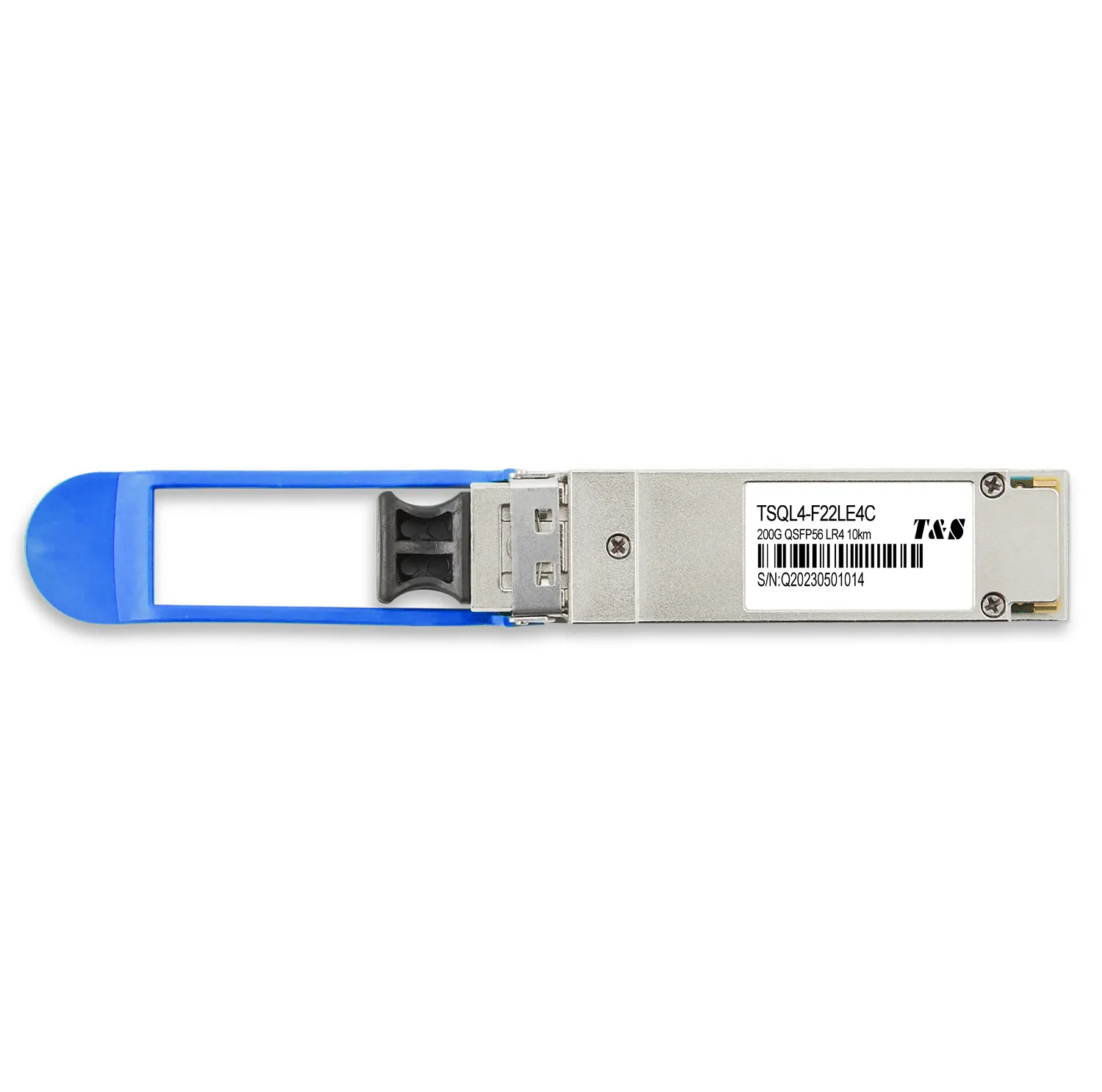

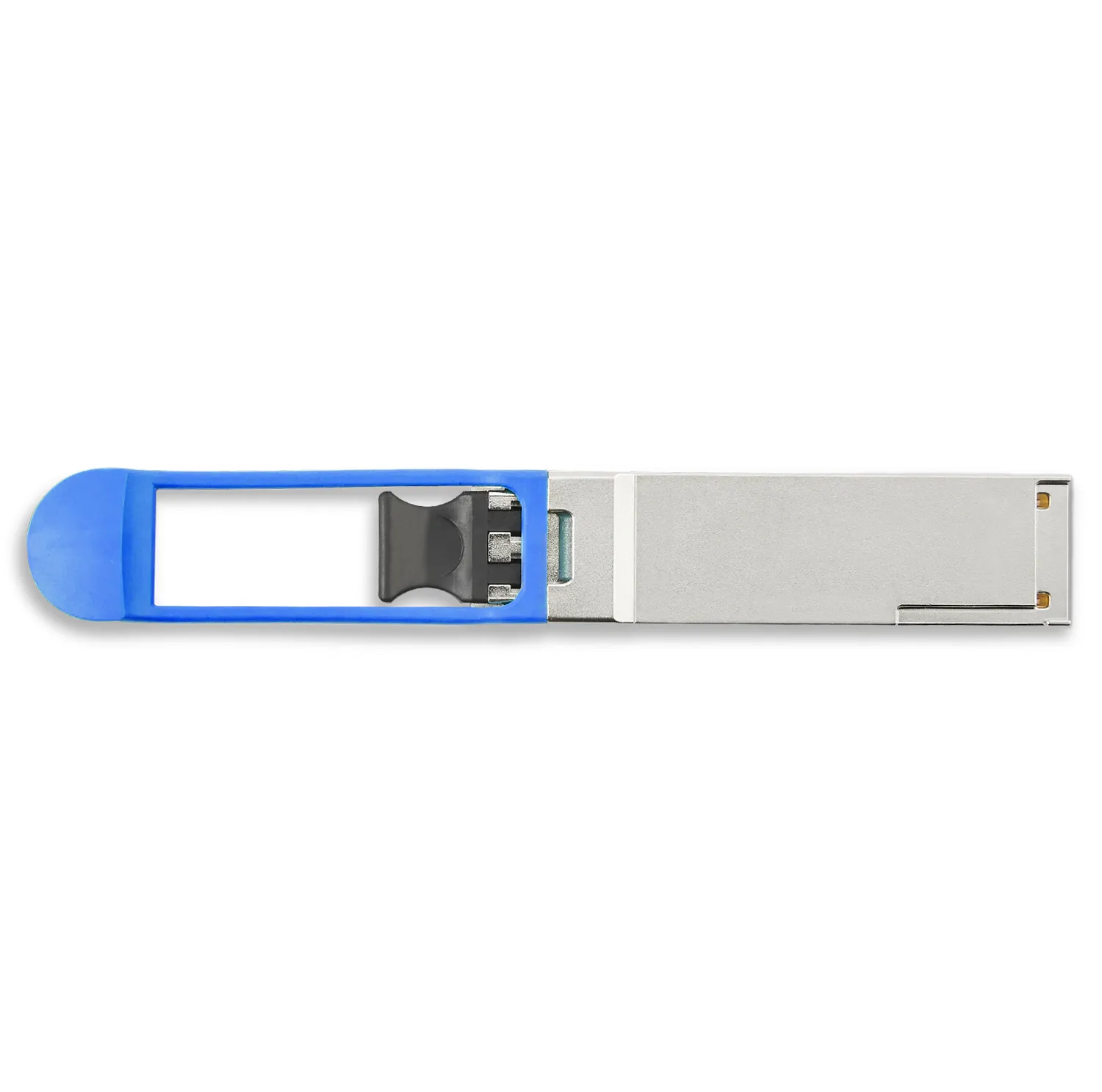

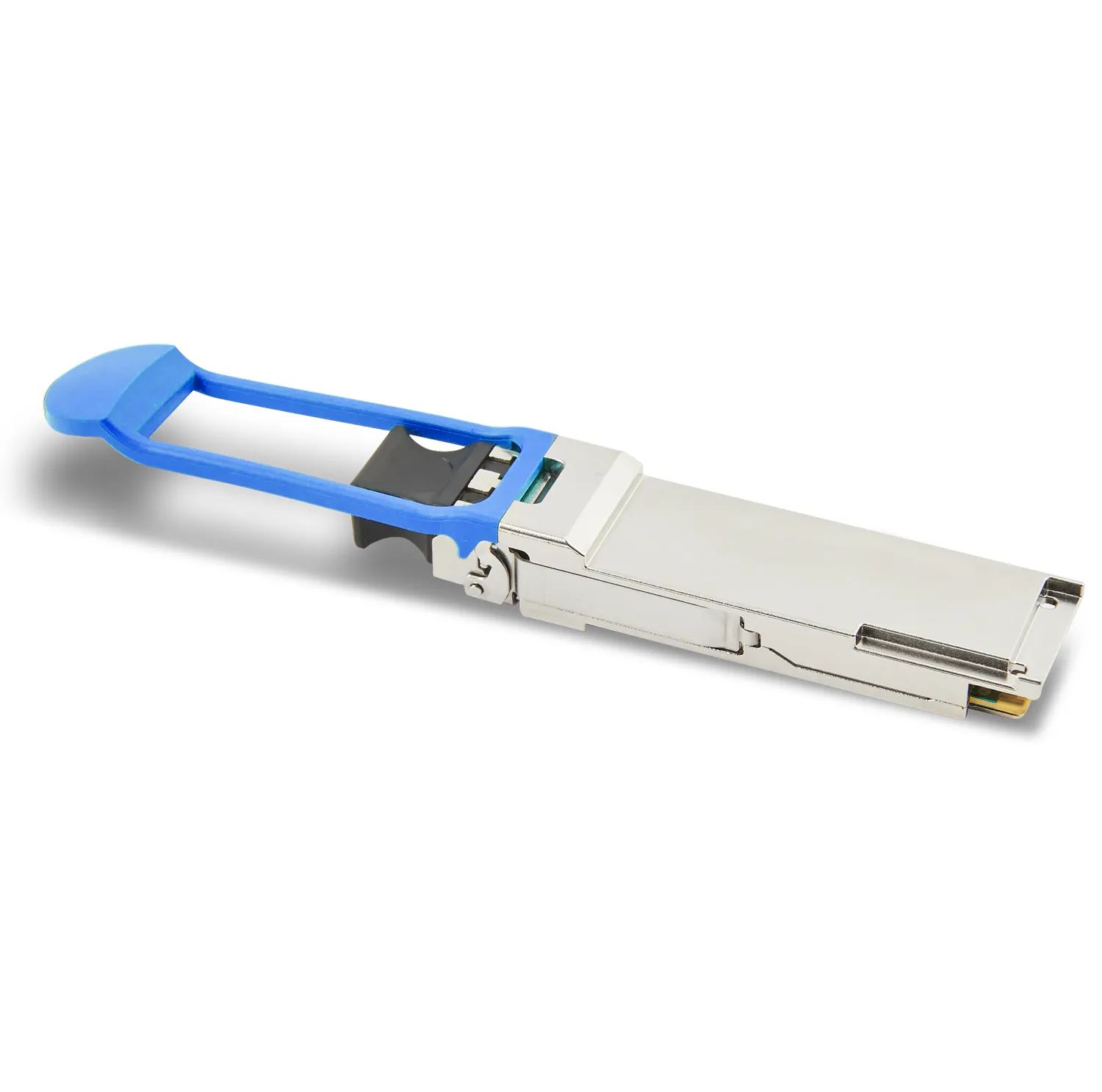

TSQL4-F22LE4C, 200GBASE-LR4, hot pluggable optical transceiver is a high-performance solution for 200GE links for up to 10km over single mode fiber (SMF).

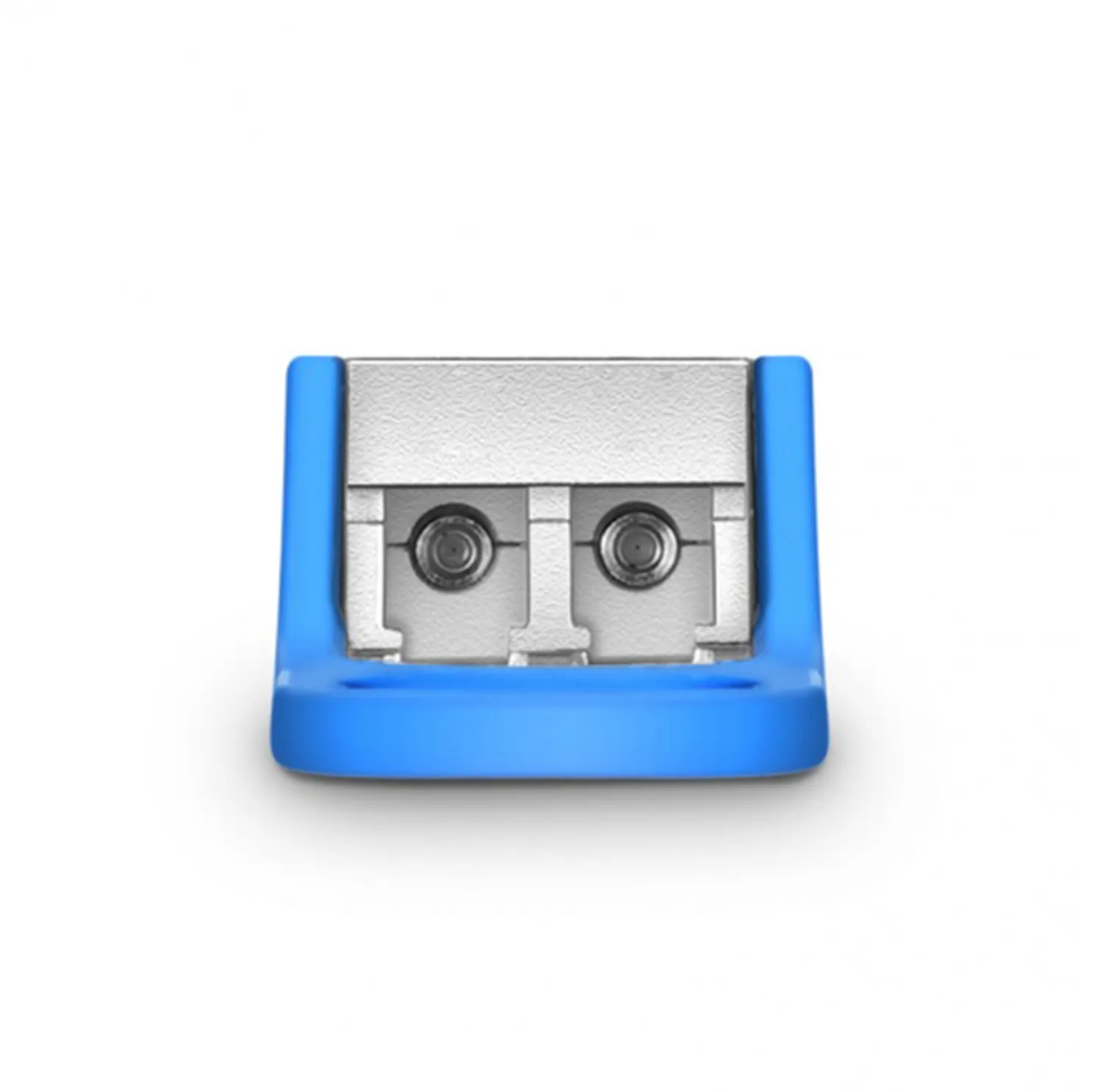

It combines 4x26.5625 GBd PAM4 electrical lanes into four 26.5625 GBd PAM4 optical channels in compliance with IEEE 200GBASE-LR4. Superior performance and reliability is achieved through advanced transmitter and receiver design using cooled EA-DFB-LDs each at a LAN- WDM 1.3 µm wavelength and 4x PIN PDs with low-power TIAs. The 4 optical transmit and receive lanes are WDM’ed on to a single fiber pair through an LC connector.
RoHS/ UL/ CE/ TUV/ ISO14001/ ISO45001/ ISO9001
