200G QSFP-DD to 2x100GBASE QSFP28 Active Optical Cable, Armored

Name: 200G QSFP-DD to 2x100GBASE QSFP28 Active Optical Cable, Armored
Brand: T&S Communications Co., Ltd.

Identifier: 120085

60mm | ≤4W@QSFP-DD, ≤2.5W@QSFP28

Features

8-channel full-duplex active optical cable
Data rate up to 25.78125 Gbps per lane
Compliant to the QSFP-DD MSA V5.0/QSFP28 MSA and CMIS V4.0/SFF-8636
VCSEL Array Transmitter and PIN Array Receiver
Low Power Dissipation: QSFP-DD <4W; QSFP28 <2.5W
RoHS compliant

Specification Drawings Request Quote

Product Description of 200G QSFP-DD to 2x100GBASE QSFP28 Active Optical Cable, Armored

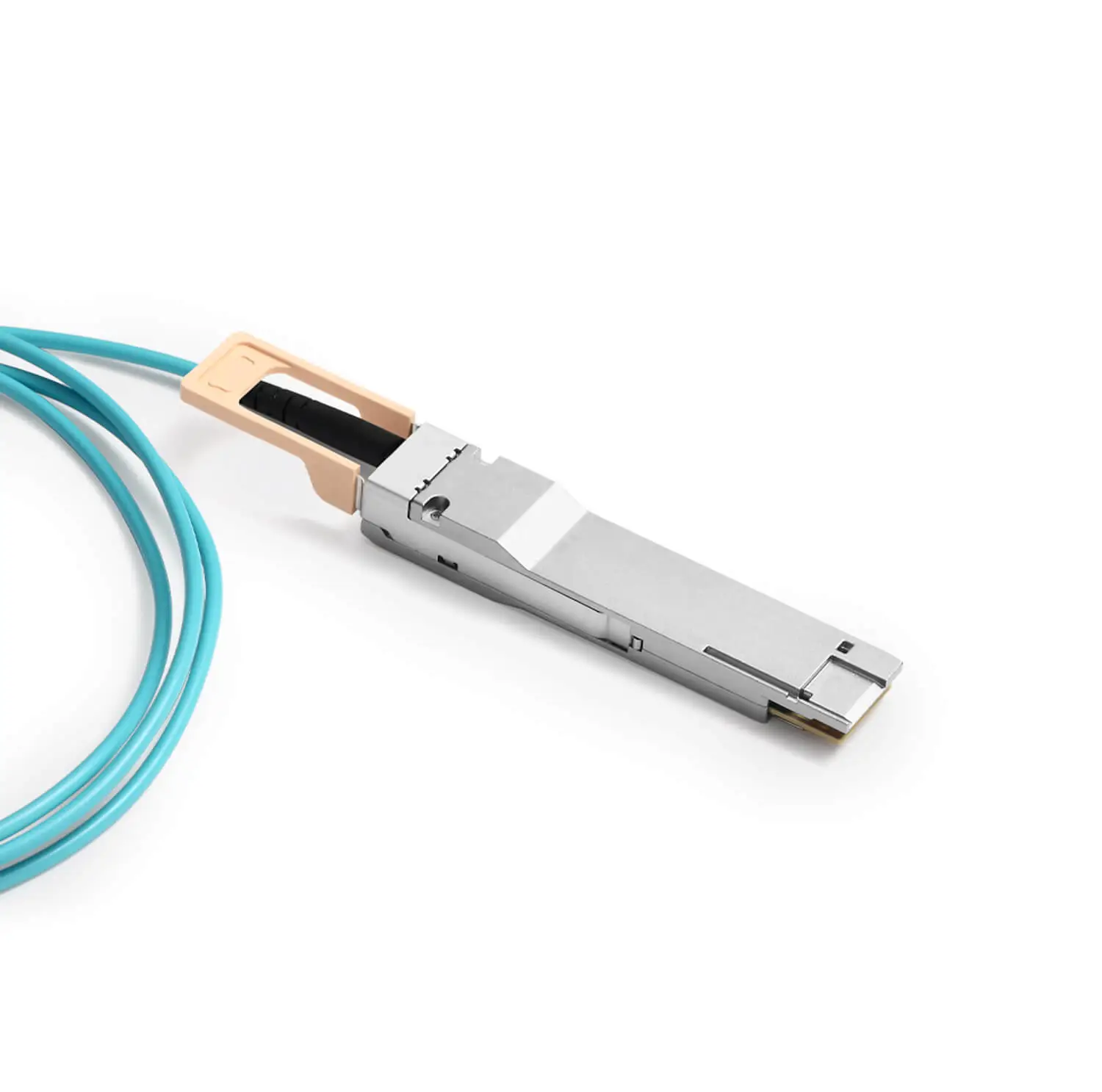

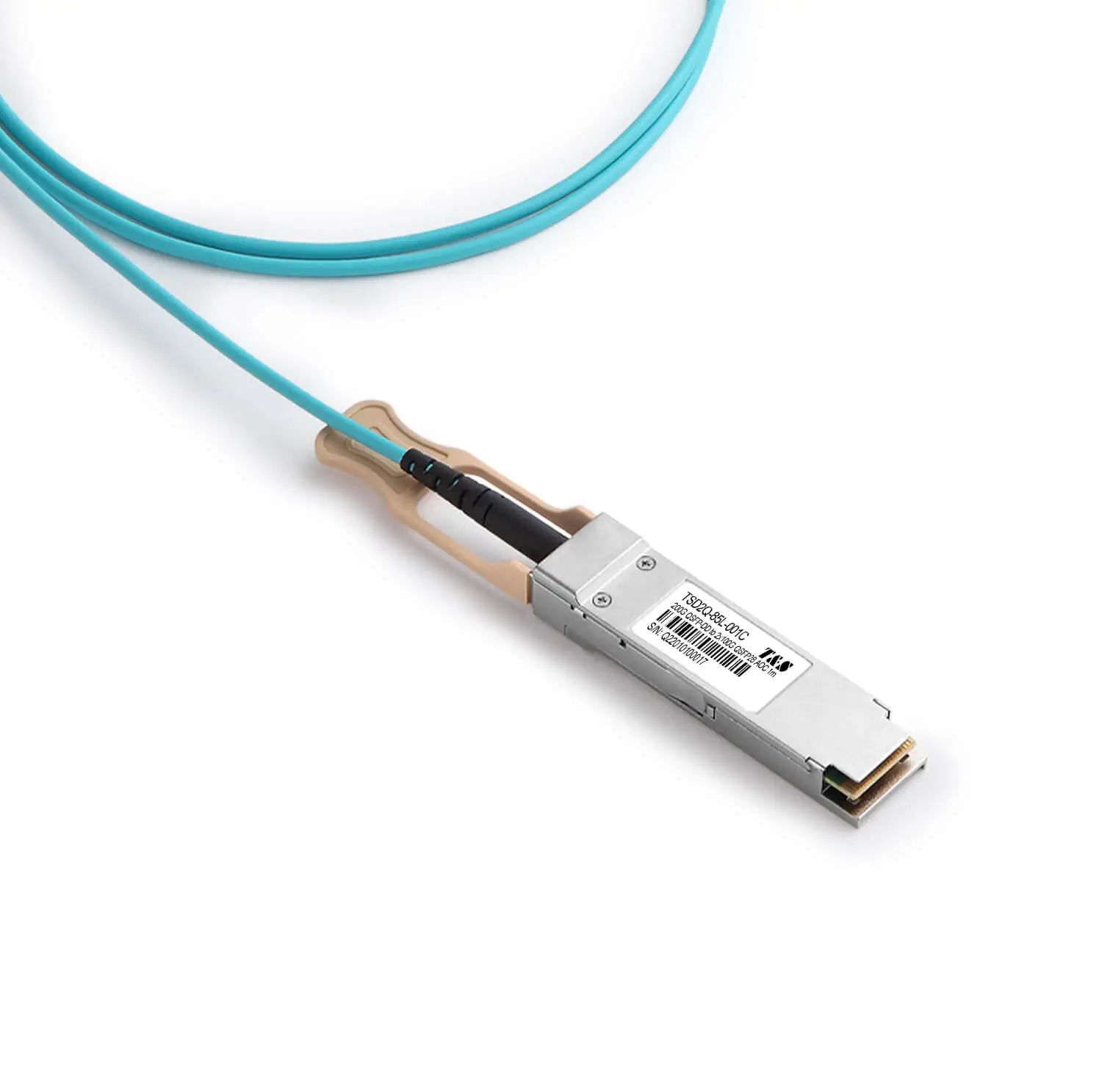

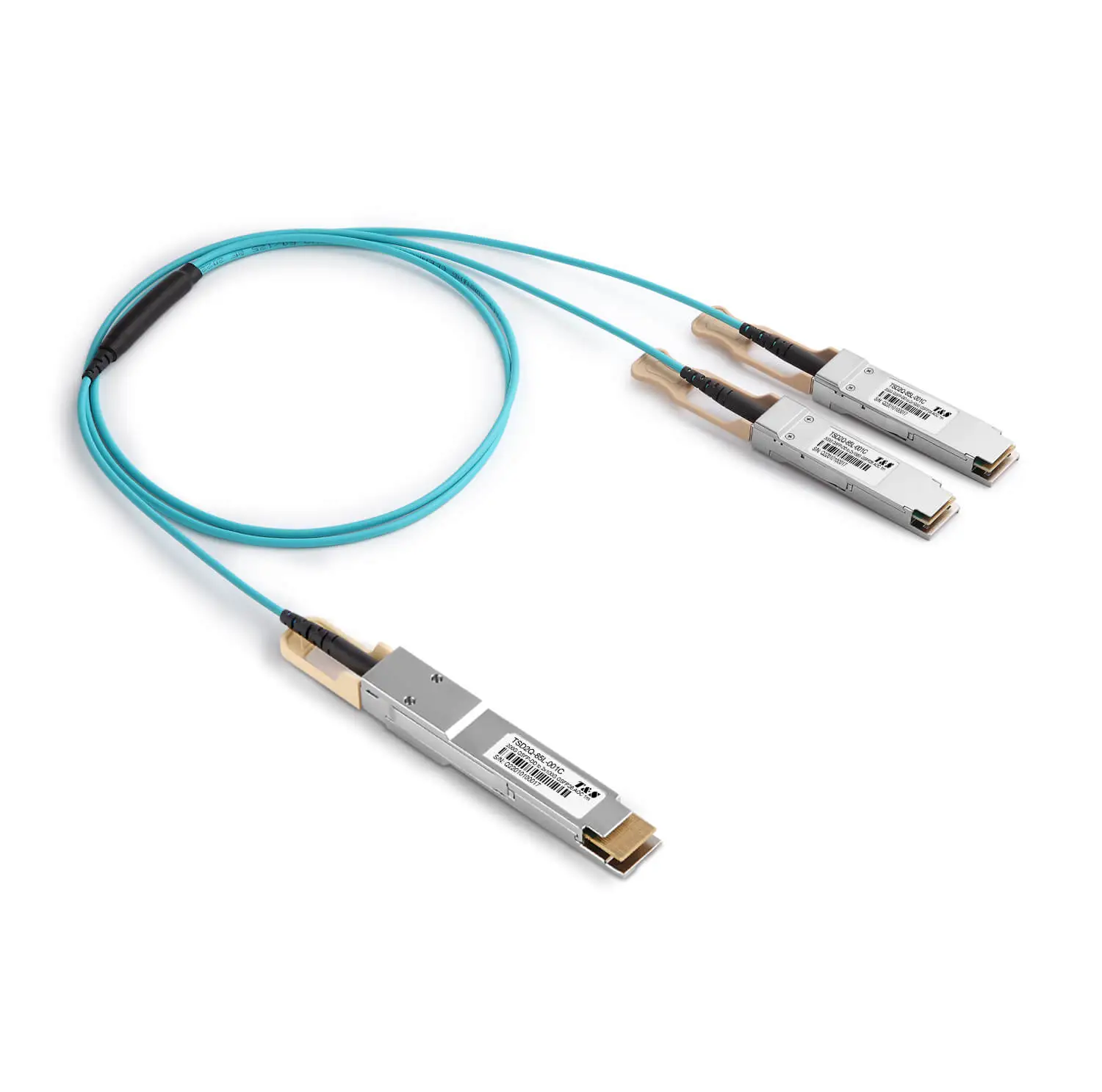

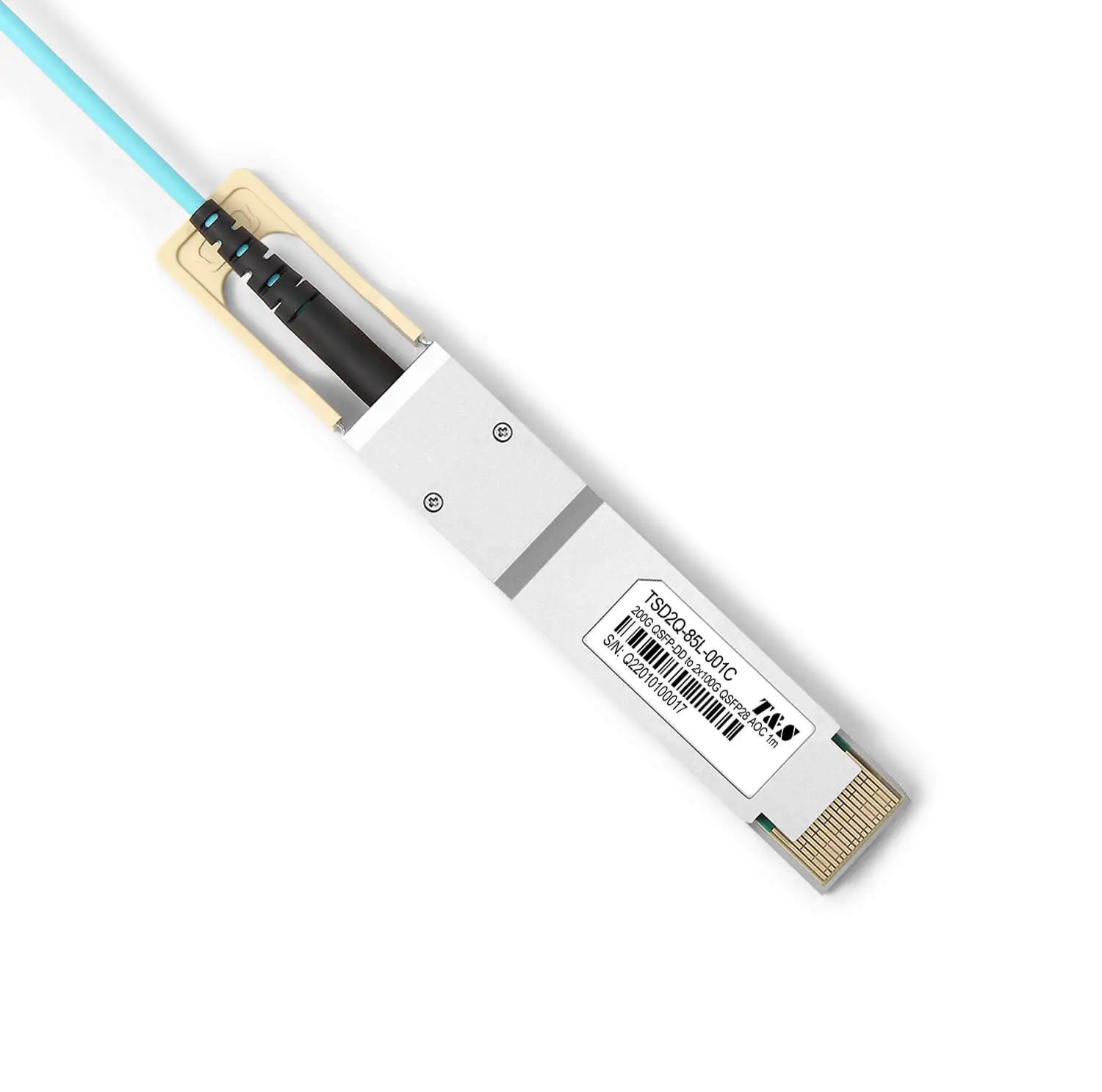

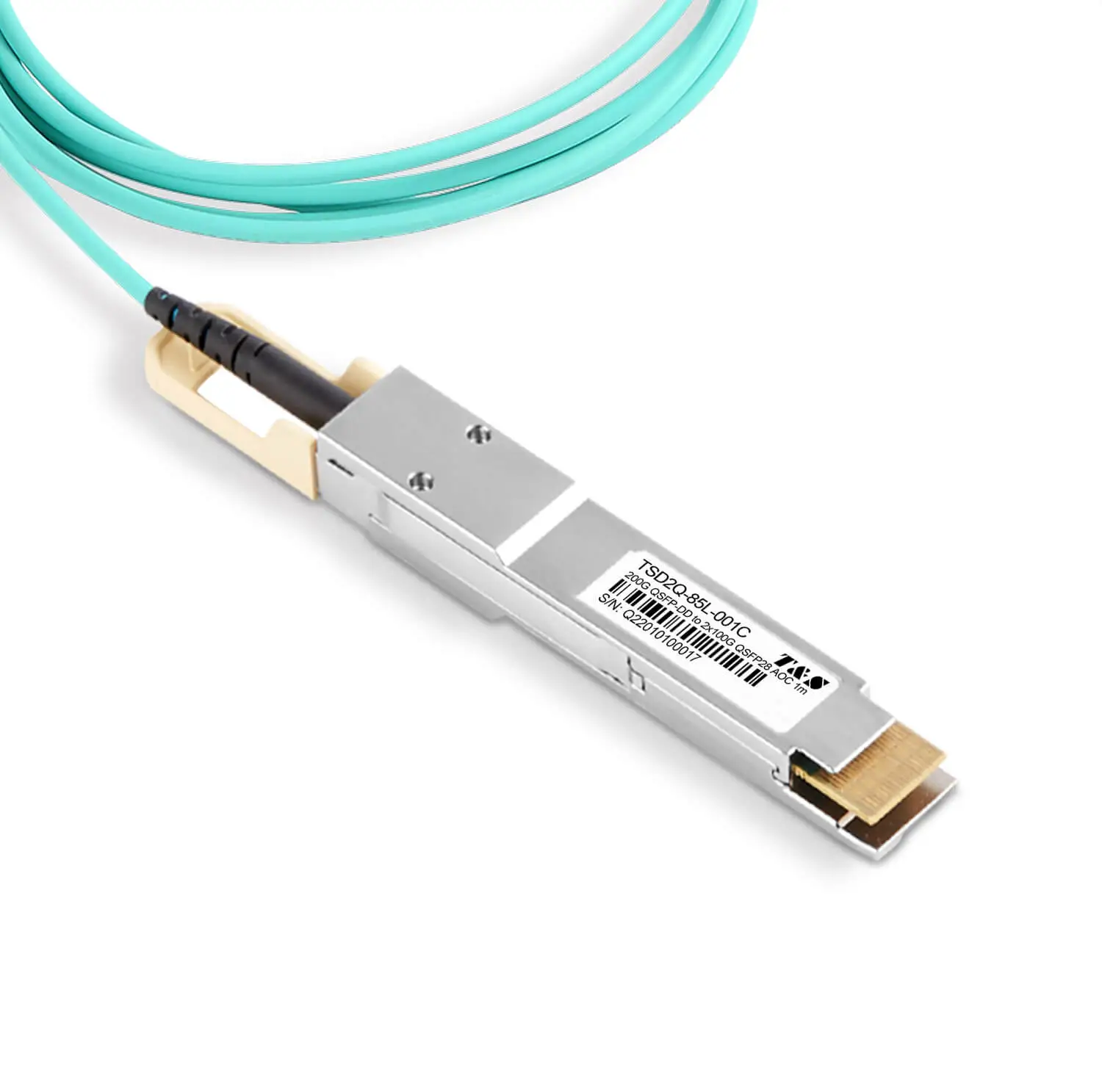

The TSD2Q-85L-XXXD is a 8-Channel, Pluggable, Parallel, Fiber-Optic 200G QSFP-DD to 2X100G QSFP28 AOC. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates 8 data lanes in each direction with 200Gbps bandwidth.

These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 76@QSFP-DD and 38@QSFP28 contact edge type connector.

Specifications

Part Number	TSD2Q-85L-XXXD	Application	2x100G Ethernet，100G Ethernet
Form Factor	QSFP-DD to QSFP28	Data Rate	206.25Gbps
Wavelength	850nm	Max Length	70m
Cable Jacket	LSZH	Fiber	OM3
Min. Bending Radius	60mm	Receiver	PIN
Transmitter	VCSEL	Power Comsumption	≤4W@QSFP-DD,≤2.5W@QSFP28
Power Supply	3.3V	DDM/DOM	Supported
Packaging	COB	Modulation	NRZ
CDR	Yes	Inbuilt FEC	No
Storage Temperature	-40℃ ~ + 85℃	Operating Temperature	0℃ ~ + 70℃
Compatibility	Generic	Class	Commercial
Protocols	IEEE 802.3bm	Warranty

Applications

2x100GBASE SR4 Ethernet
100GBASE SR4 Ethernet

Compliance

RoHS/ UL/ CE/ TUV/ ISO14001/ ISO45001/ ISO9001
