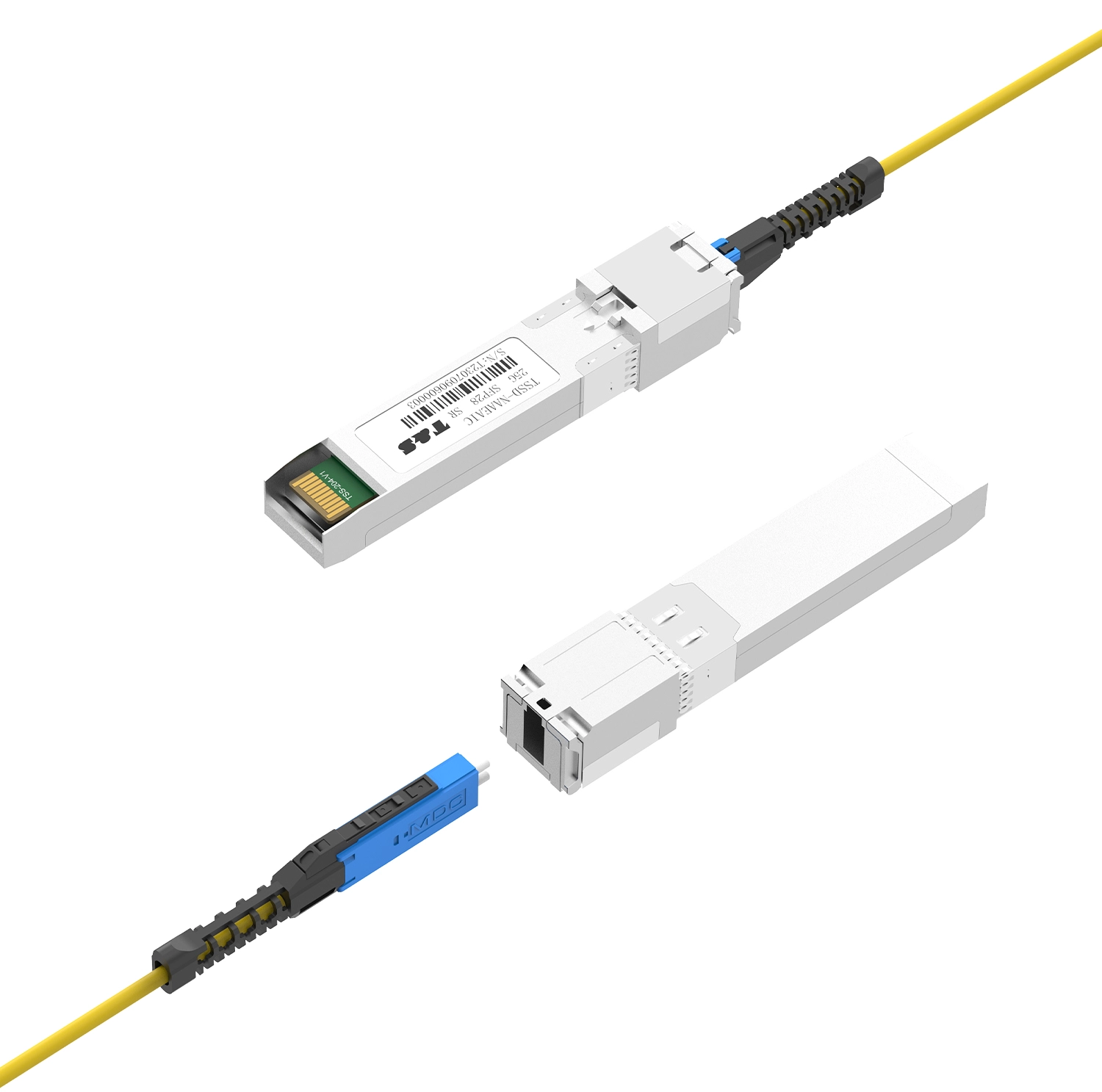

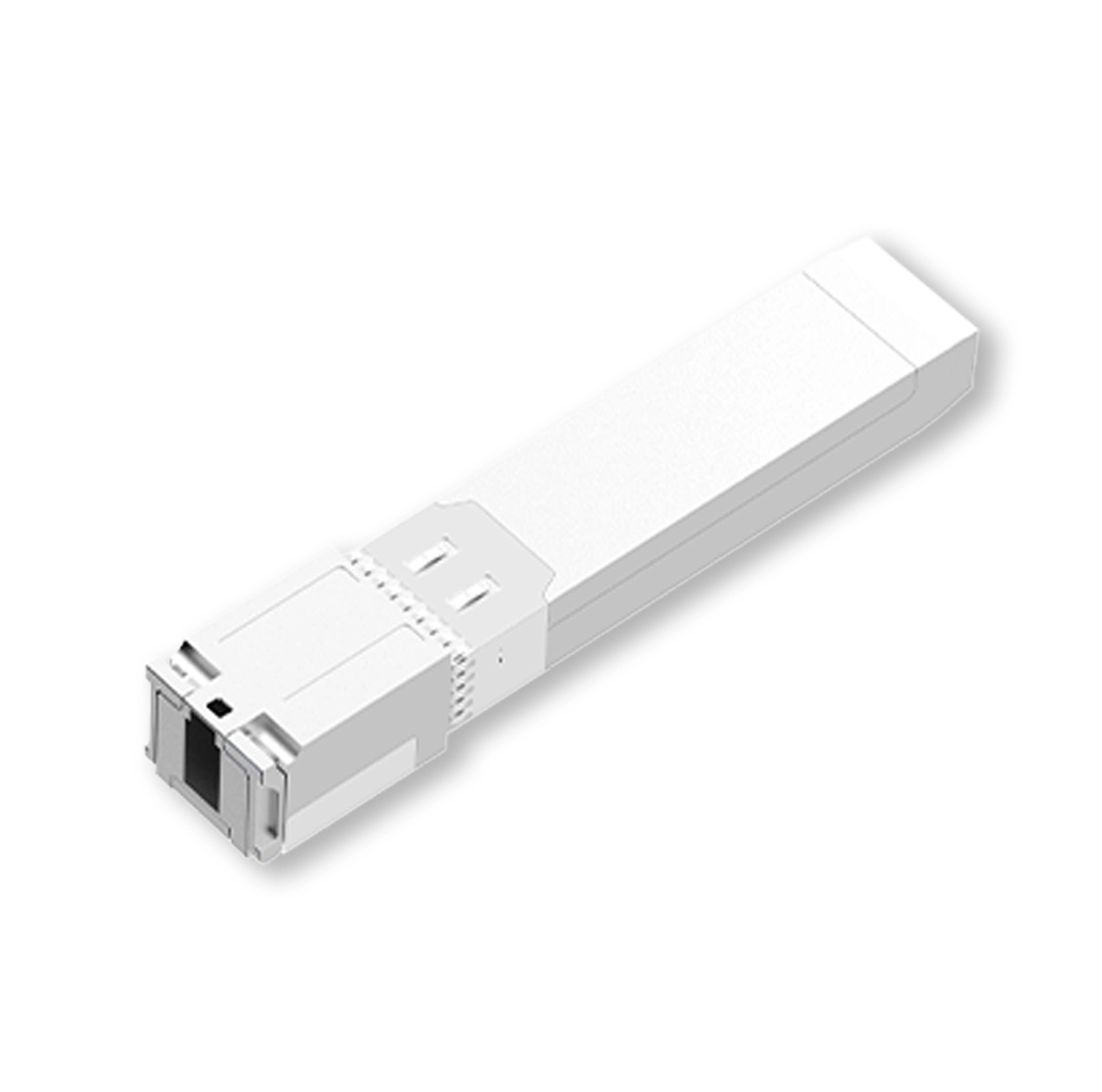

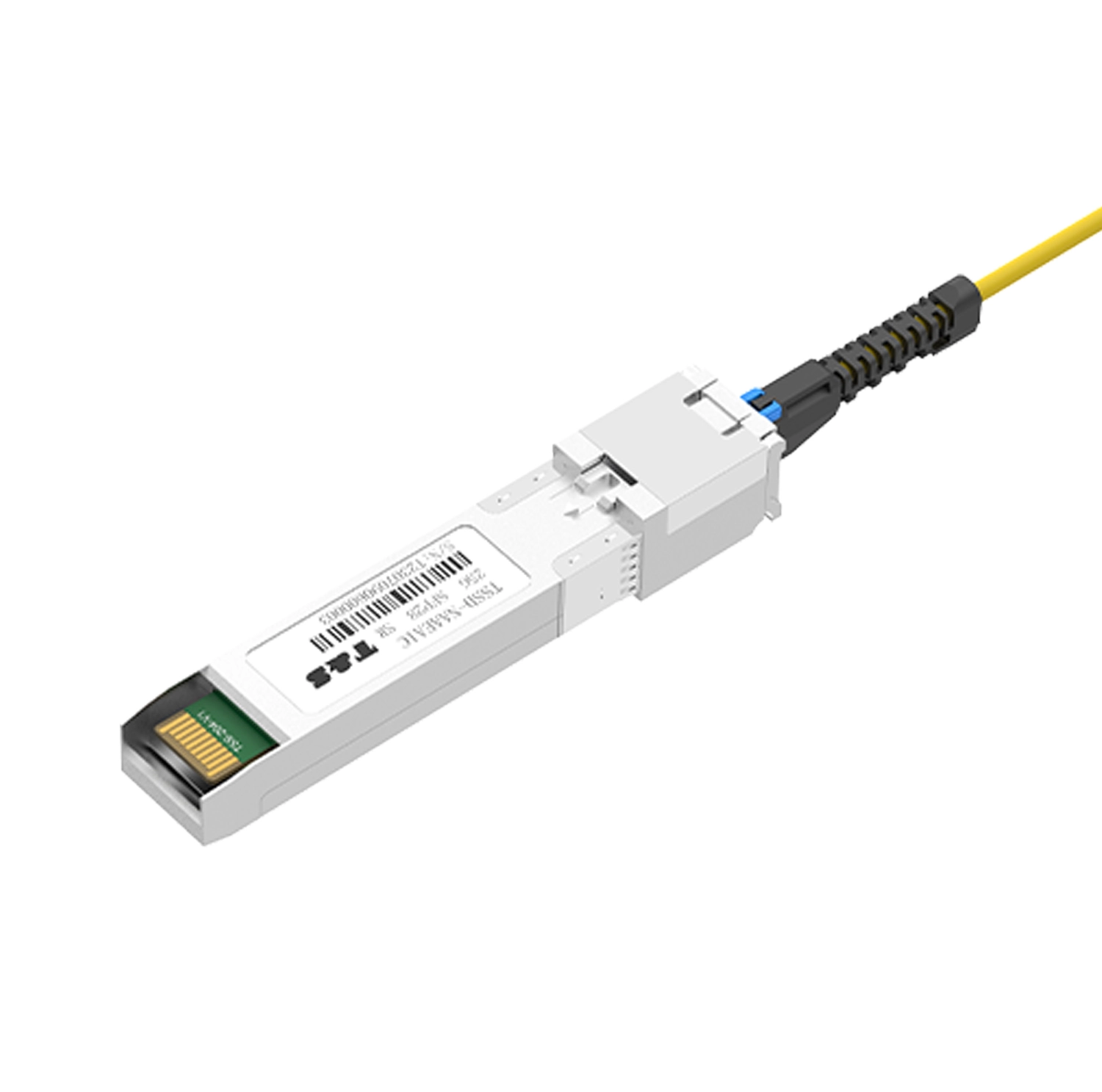

10G SFP+ SR Fiber Optic Transceiver (MDC)

Name: 10G SFP+ SR Fiber Optic Transceiver (MDC)
Brand: T&S Communications Co., Ltd.

Identifier: 110013

MDC | ≤1W

Features

Duplex SFP+ Transceiver
Hot Pluggable
MDC connector receptacle
Optical interface compliant to IEEE 802.3ae
Electrical interface compliant to SFF-8431
2-wire interface with integrated Digital Diagnostic monitoring
Data rate up to 11.3Gbps
850nm VCSEL transmitter, PIN photo-detector
Maximum link length of 300m on OM3 MMF
Power Dissipation < 1.0W
Case operation temperature range ：
Standard: temperature 0°C to 70°C
Industrial temperature: -40°C to 85°C
RoHS6 compliant (lead free)

Specification Drawings Request Quote

Product Description of 10G SFP+ SR Fiber Optic Transceiver

The TSSDS-NAACB1 is a Single-Channel, Pluggable, Fiber-Optic SFP+ for 10.3125Gbps SR Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 10.3125Gbps up to 82m on OM2 MMF and 300m on OM3 MMF.

This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 20 contact edge type connector. The optical interface uses MDC receptacle.

Specifications

Part Number	TSSDS-NAACB1	Application	10G Ethernet
Form Factor	SFP+	Max Data Rate	11.3Gbps
Wavelength	850nm	Distance	300m
Connector	MDC	Fiber	MMF
Transmitter	VCSEL	Receiver	PIN
TX Power	-6~-1dBm	Minimum Receiver Power	-11.1dBm
Power Budget	5.1dB	Receiver Overload	-1dBm
Power Comsumption	≤1W	Extinction Ratio	＞3dB
Packaging	COB	Modulation	NRZ
CDR	No	Inbuilt FEC	No
Storage Temperature	-40℃ ~ + 85℃	Operating Temperature	-40℃ ~ + 85℃
Compatibility	Generic	Class	Industrial
Protocols	IEEE 802.3ae, SFF-8431	Warranty

Applications

10GBASE-SR at 10.3125Gbps
10GBASE-SW at 9.95Gbps

Compliance

RoHS/ UL/ CE/ TUV/ ISO14001/ ISO45001/ ISO9001
