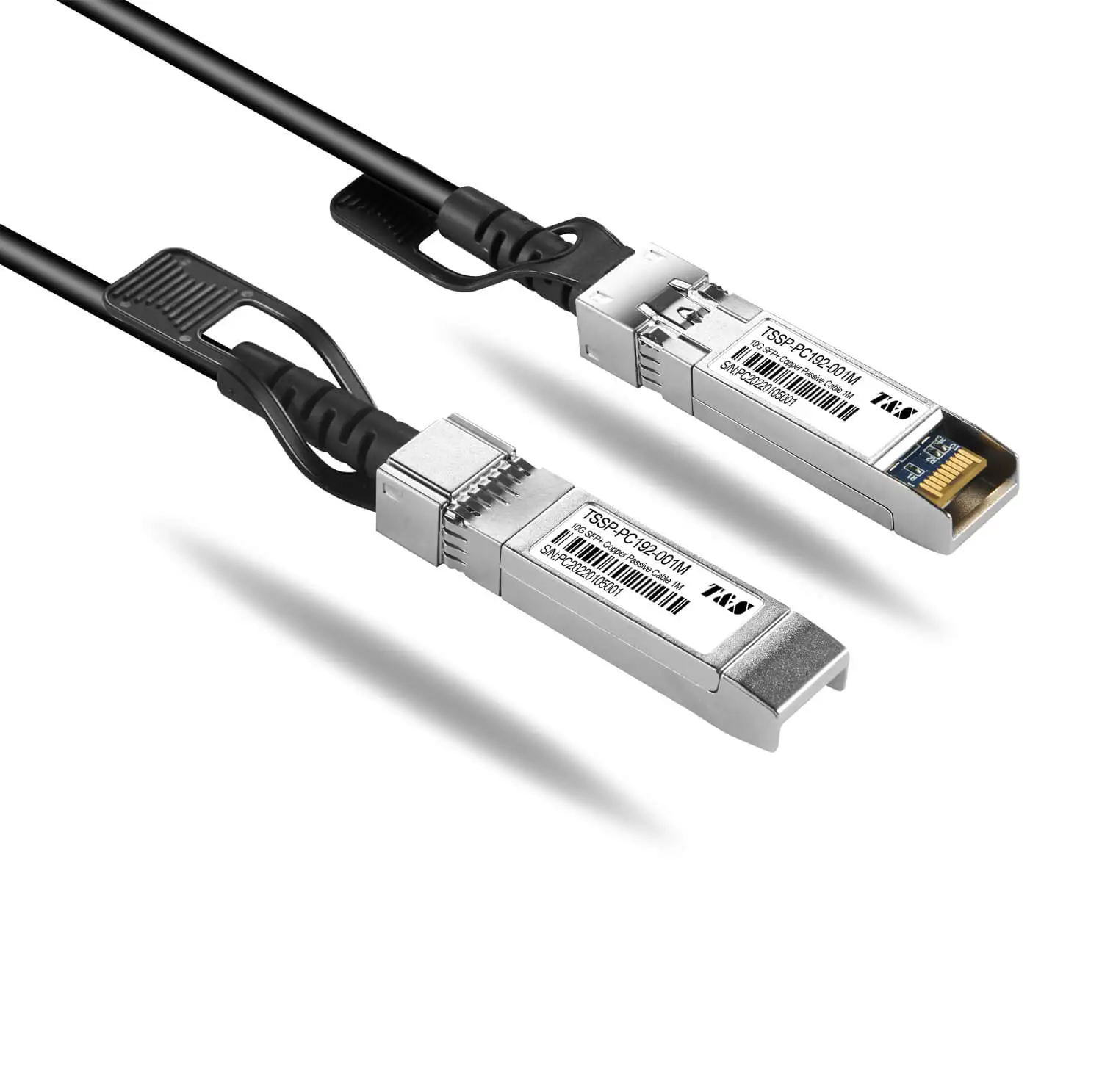

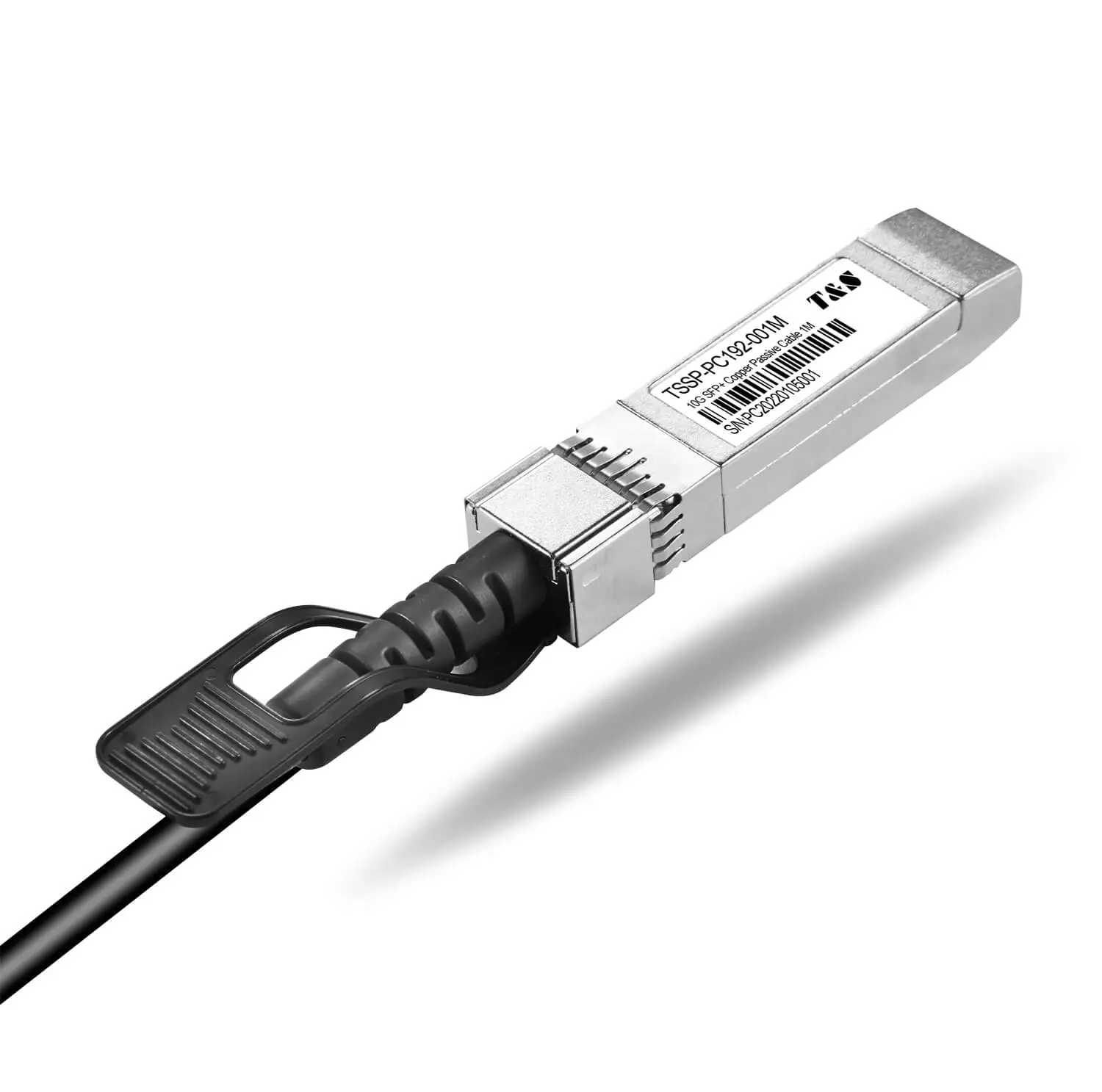

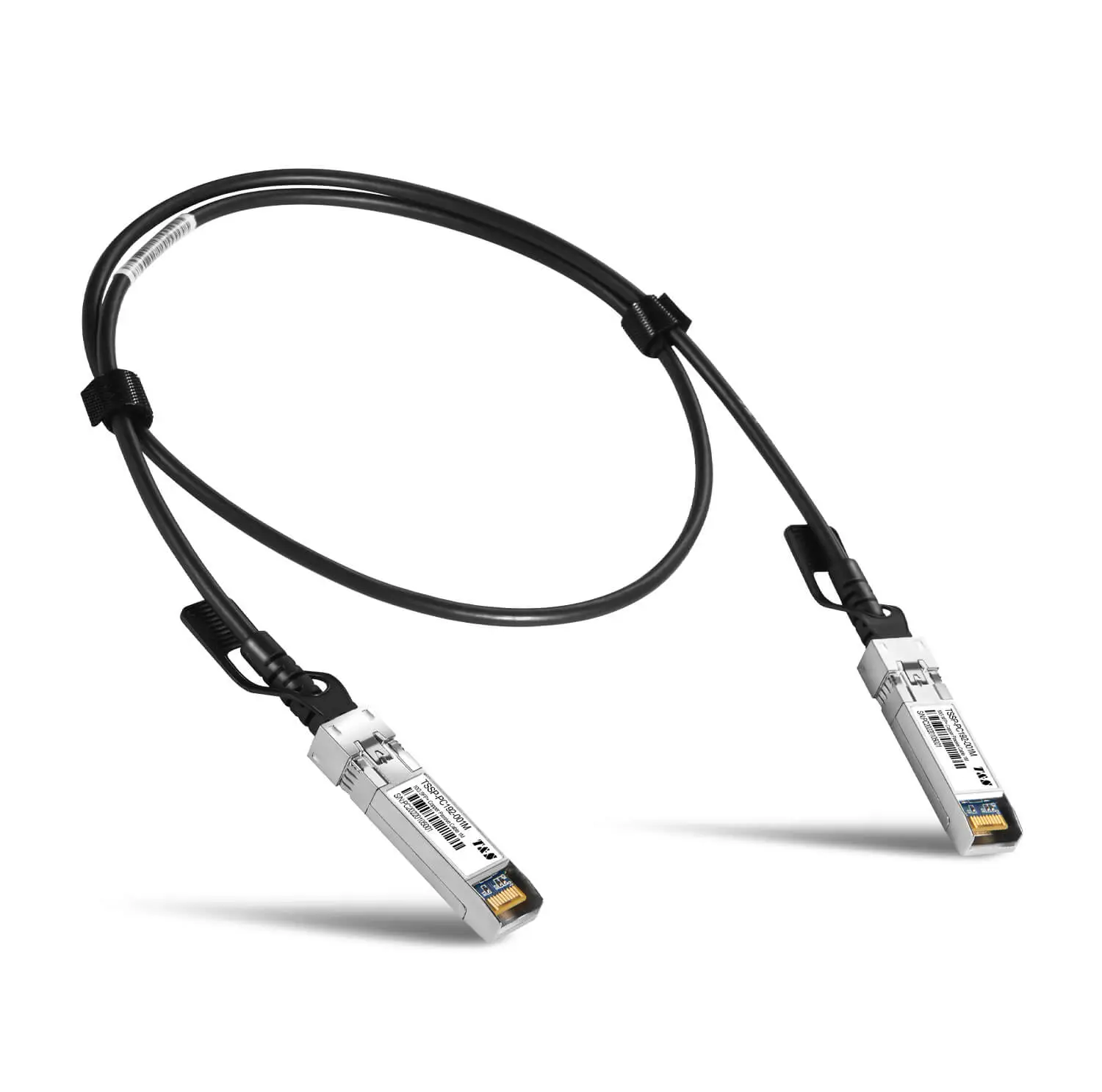

10G SFP+ Direct Attach Cable, Passive, Twinax Copper

Name: 10G SFP+ Direct Attach Cable, Passive, Twinax Copper
Brand: T&S Communications Co., Ltd.

Identifier: 130001

10GBASE-CR | ≤0.1W | 24/30AWG | 30mm/23mm

Features

Compliant with SFF-8431, 8432 and 8472.
Up to 10.3125Gbps data rate per channel
Up to 7m transmission
Single 3.3V power supply
Temperature Range: 0 °C to 70 °C
RoHS compliant

Specification Drawings Request Quote

Product Description of 10G SFP+ Direct Attach Cable, Passive, Twinax Copper

SFP+ Direct Attach Cables are compliant with the SFF-8431, SFF-8432 and SFF-8472 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 7m).

Specifications

Part Number	TSSP-PC192-xxM	Application	10G Ethernet
Form Factor	SFP+ to SFP+	Max Data Rate	10.3125 Gbps
Cable	Copper	Cable Jacket	PVC(OFNR)
Wire AWG	24/30AWG	Length	up to 7m
Min. Bending Radius	30mm/23mm	Cable Type	Passive Twinax
Power Comsumption	≤0.1W	Compatibility	Generic
Storage Temperature	-40℃ ~ + 75℃	Operating Temperature	0 ~ 70°C
Protocols	SFF-8432，SFF-8472	Warranty	5 Years

Applications

Low EMI radiation Switches, servers and routers
Data Center networks
Storage area networks
High performance computing
Telecommunication and wireless infrastructure
Medical diagnostics and networking
Test and measurement equipment

Compliance

RoHS/ REACH/ UL/ FCC/ CE
