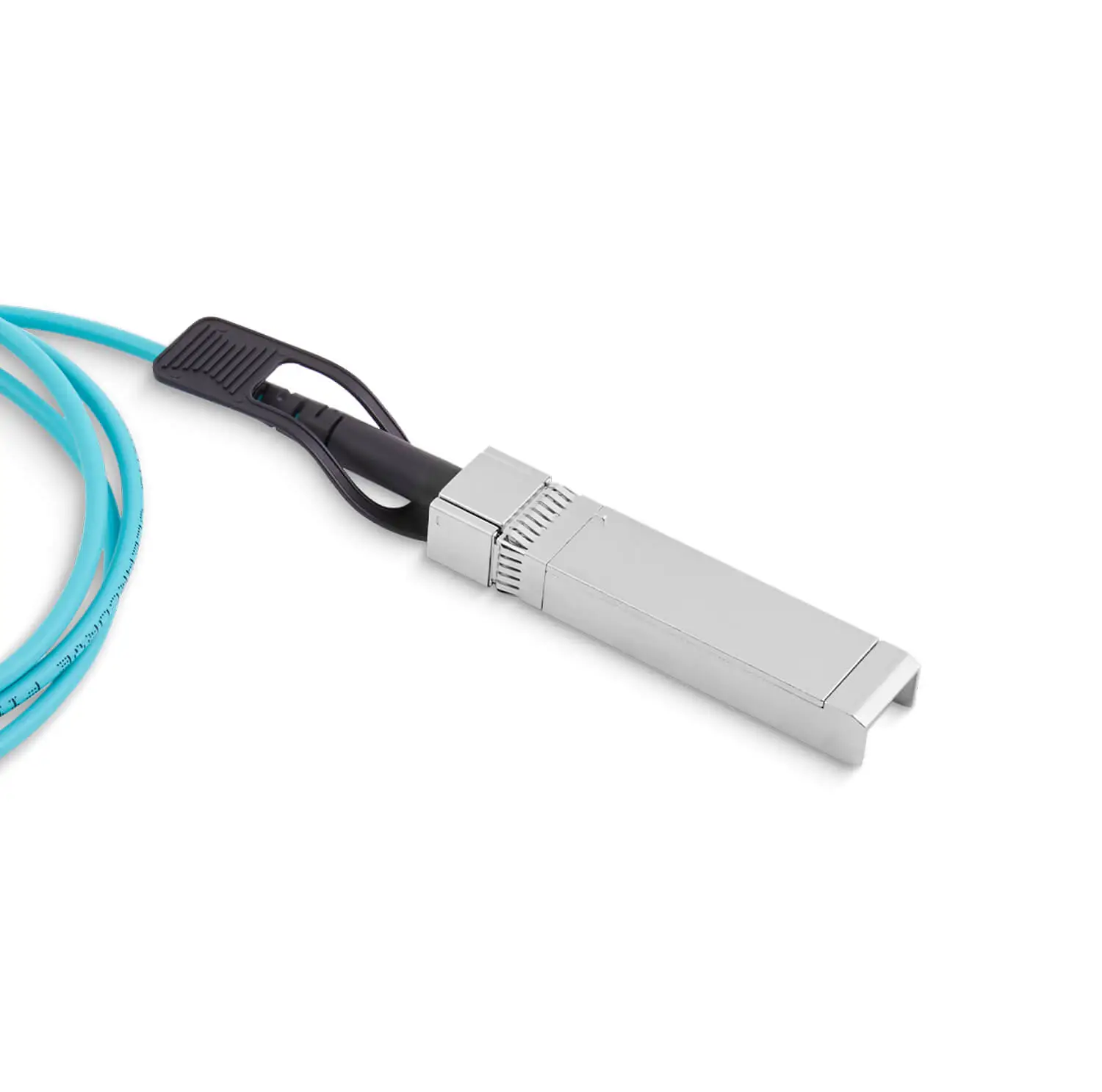

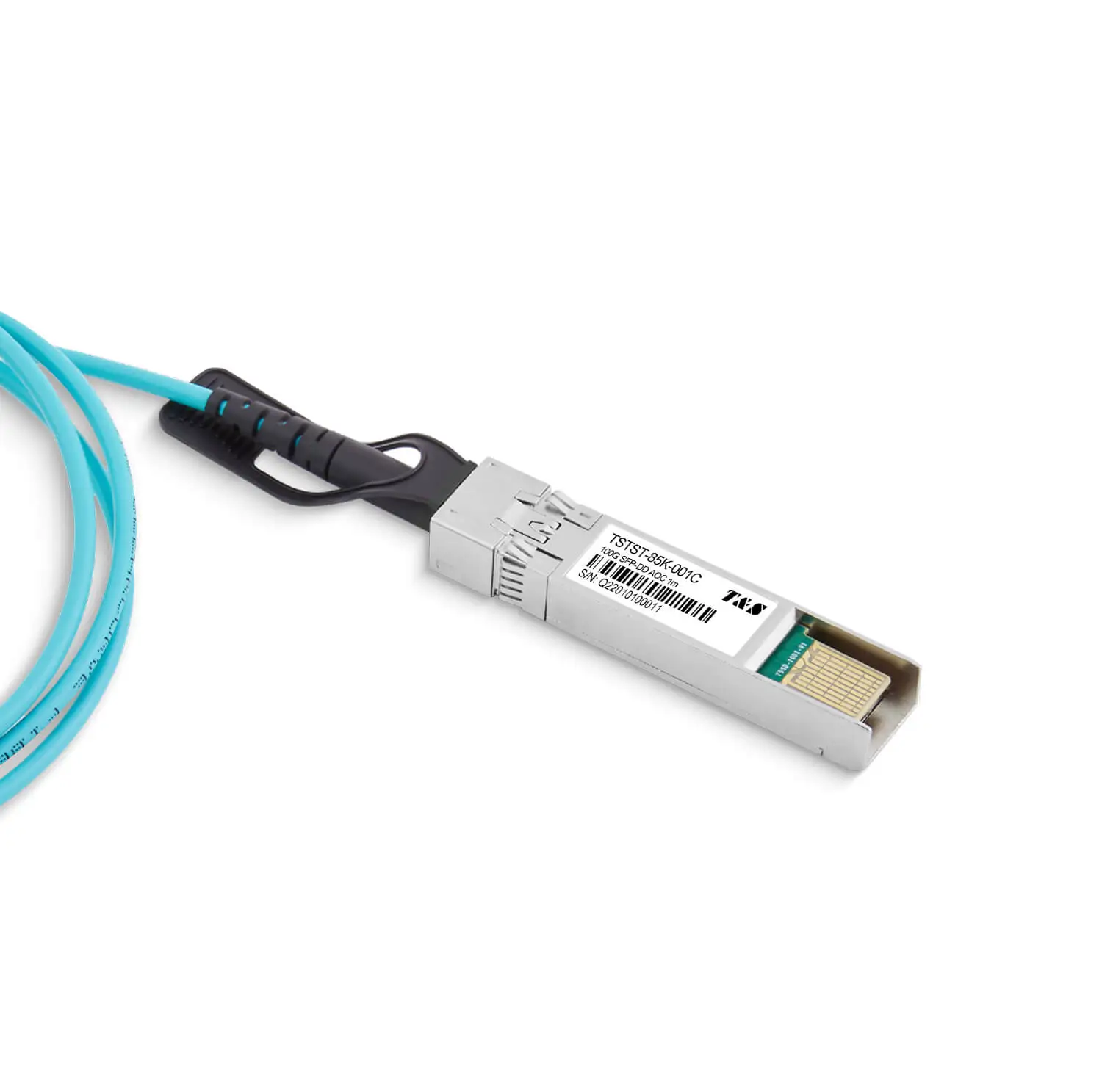

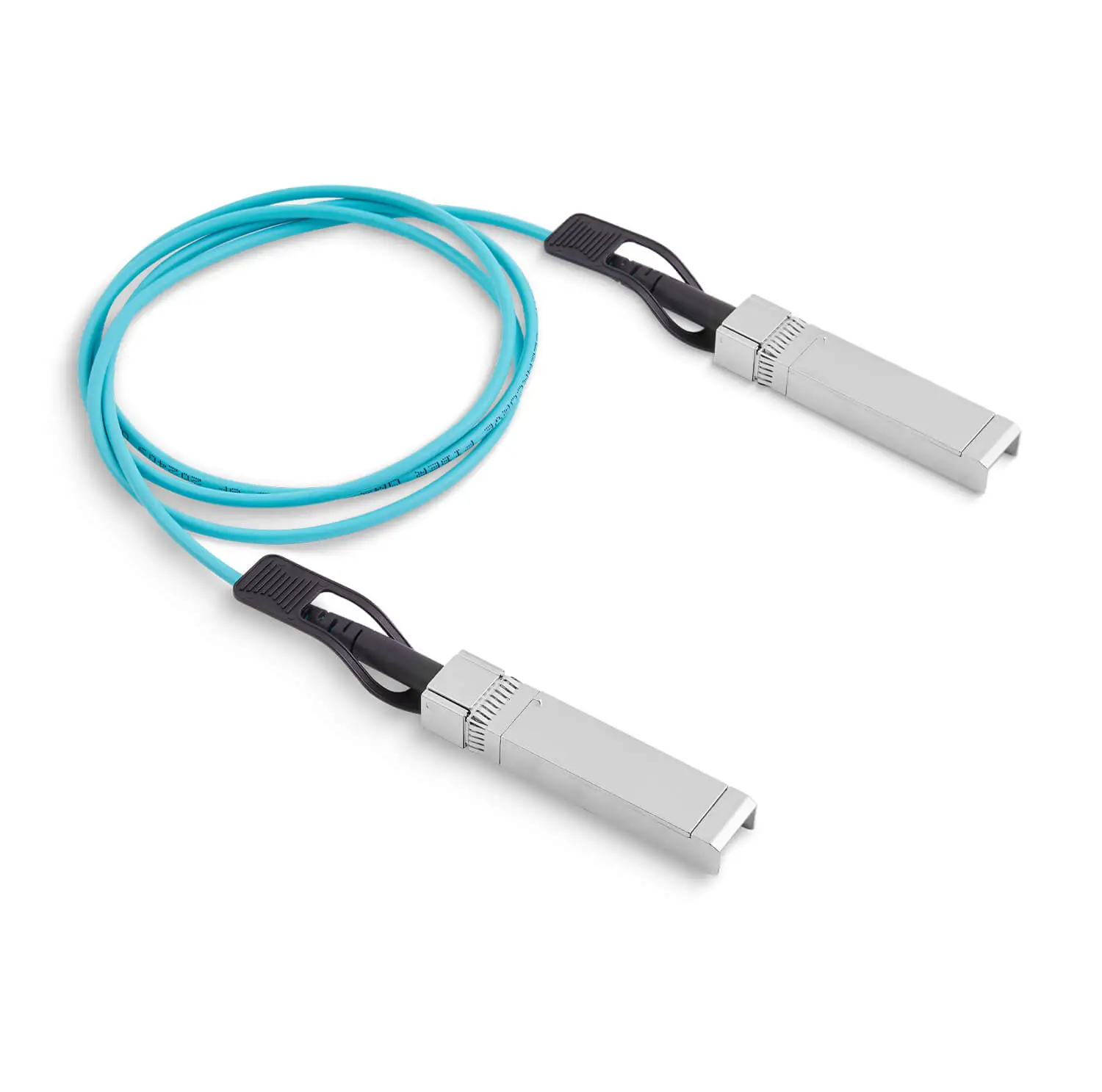

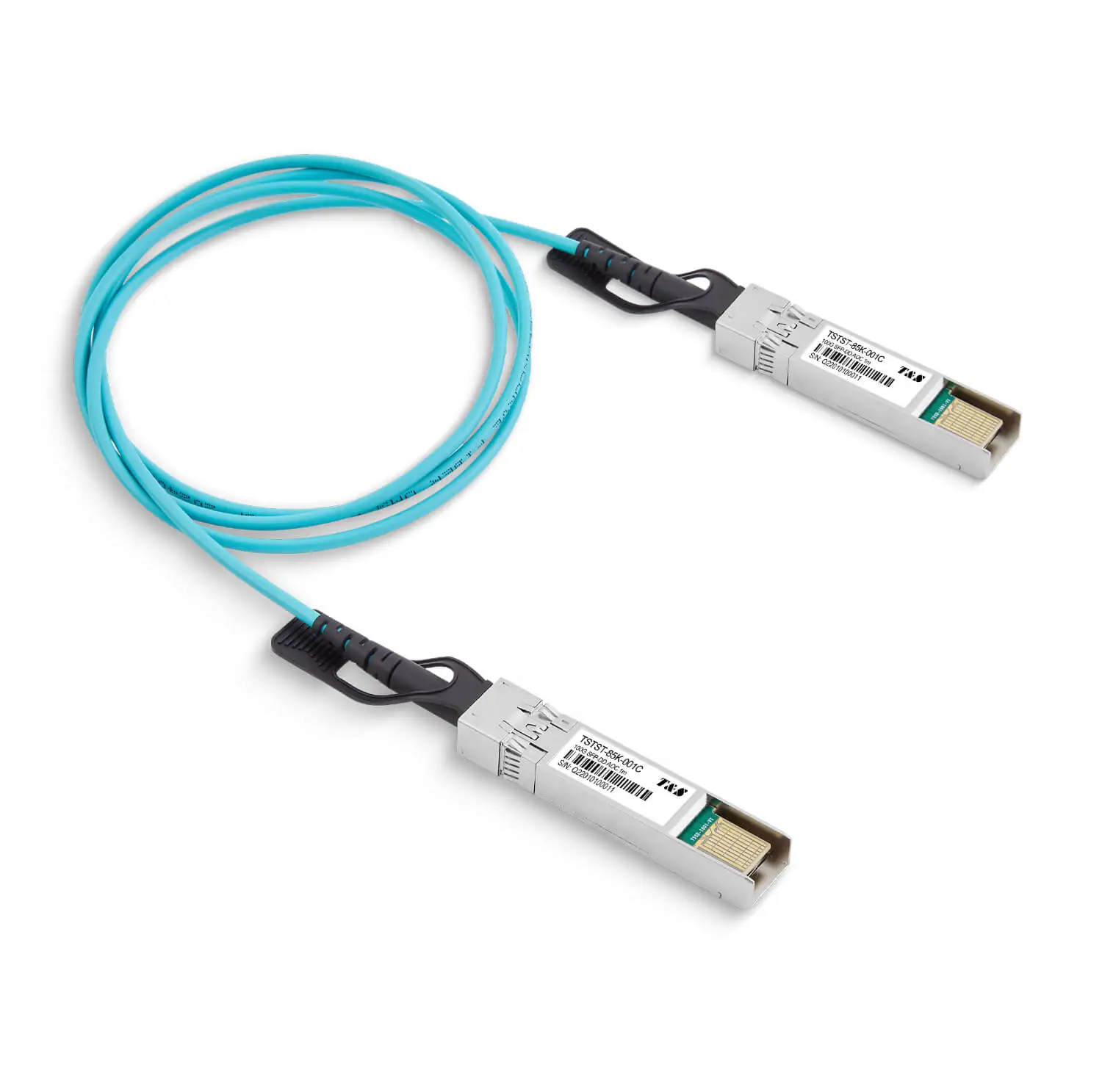

100G SFP-DD Active Optical Cable

Name: 100G SFP-DD Active Optical Cable
Brand: T&S Communications Co., Ltd.

Identifier: 120025

60mm | ≤3.5W

Features

Hot-pluggable SFP-DD form-factor connectors
2 channels 850nm VCSEL laser array and 2 channels PIN photo-detector array
Internal CDR circuits on both receiver and transmitter channels
Compliant with SFP-DD MSA and SFP-DD MIS
Data rate up to 53.125Gbps per lane
2x53Gbps PAM4 transmitter and PAM4 receiver
3.3V power supply voltage
Power consumption < 3.5W
Case operation temperature range ：0°C to 70°C
RoHS compliant (lead free)

Specification Drawings Request Quote

Product Description of 100G SFP-DD Active Optical Cable

T&S SFP-DD Active Optical Cables are direct-attach fiber assemblies with SFP-DD connectors. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. The module is a Double-Channel, Pluggable, Fiber-Optic SFP-DD for 100 Gigabit Ethernet Applications.

This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 40 contact edge type connector.

Specifications

Part Number	TSTST-85K-XXXC	Application	100G Ethernet
Form Factor	SFP-DD	Data Rate	106.25Gbps
Wavelength	850nm	Max Length	70m
Cable Jacket	LSZH	Fiber	OM3
Min. Bending Radius	60mm	Receiver	PIN
Transmitter	VCSEL	Power Comsumption	≤3.5W
Power Supply	3.3V	DDM/DOM	Supported
Packaging	COB	Modulation	PAM4
CDR	Yes	Inbuilt FEC	No
Storage Temperature	-40℃ ~ + 85℃	Operating Temperature	0℃ ~ + 70℃
Compatibility	Generic	Class	Commercial
Protocols	IEEE 802.3cd	Warranty

Applications

100GBASE SR Ethernet

Compliance

RoHS/ UL/ CE/ TUV/ ISO14001/ ISO45001/ ISO9001
