MPO12 | ≤2.5W
4 channels full-duplex Transceiver
Transmission data rate 25.78125Gbps per channel
4 channels 850nm VCSEL array
4 channels PIN photo detector array

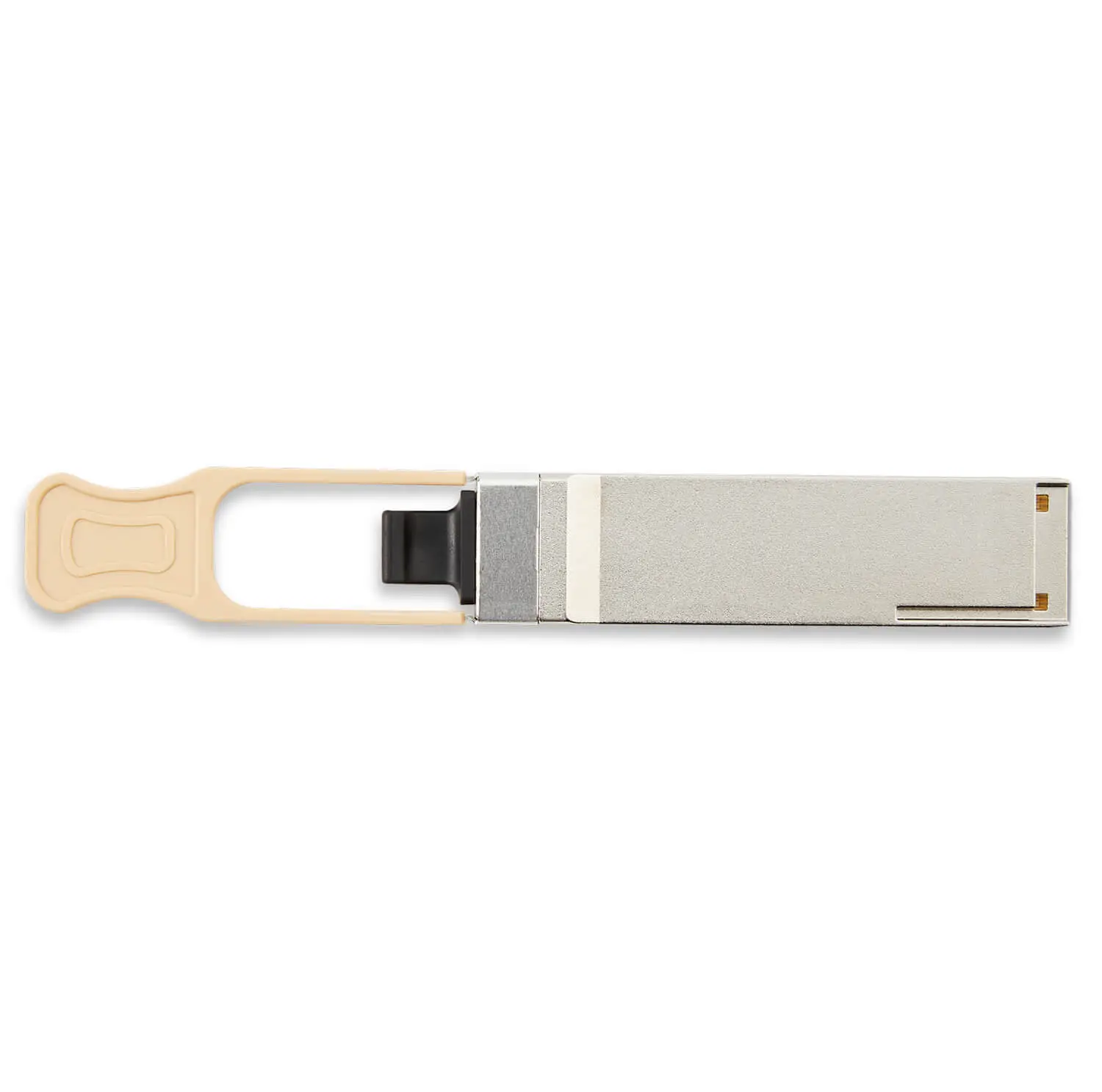

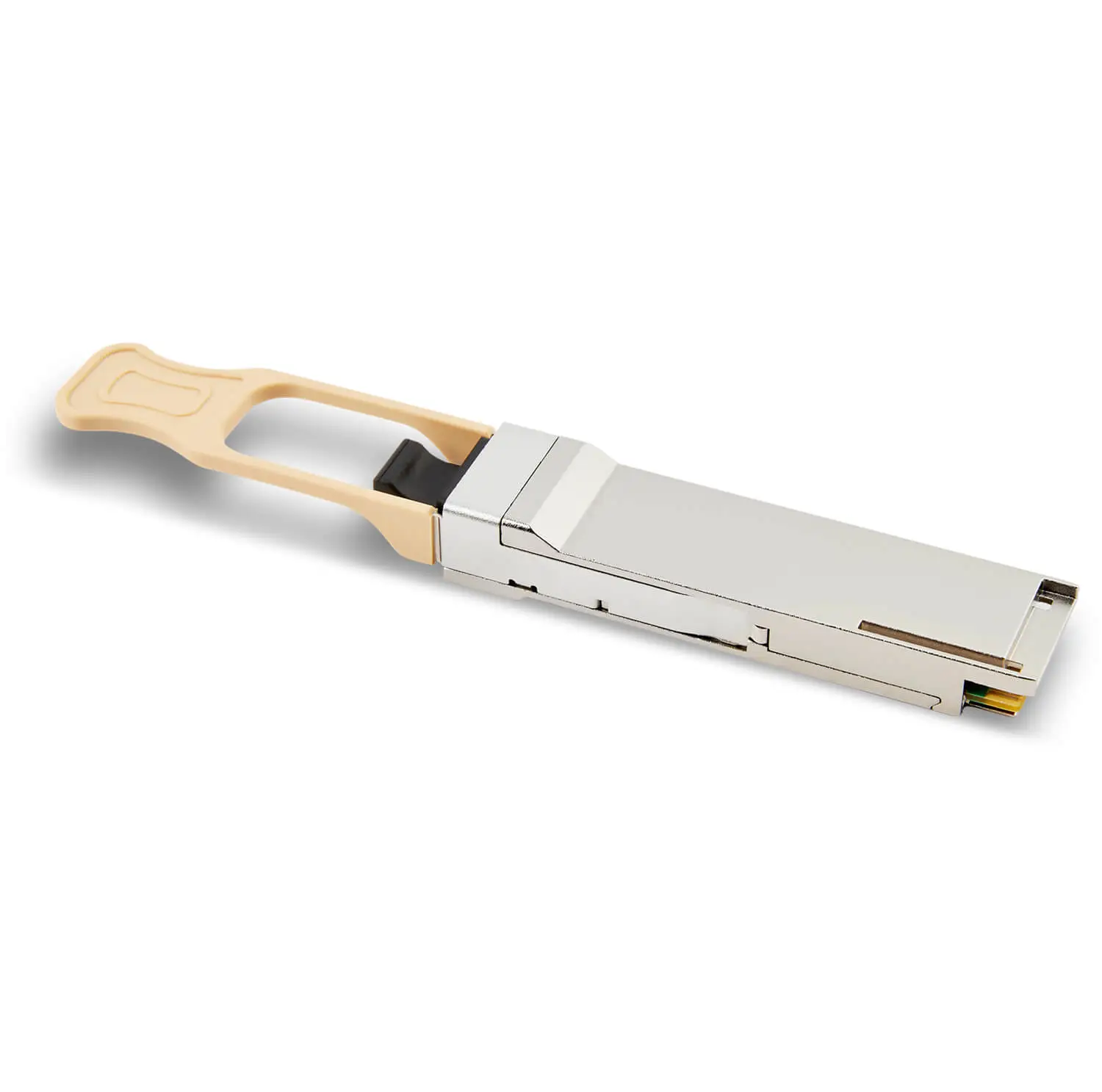

Hot-pluggable QSFP28 form factor
Low power consumption < 2.5W

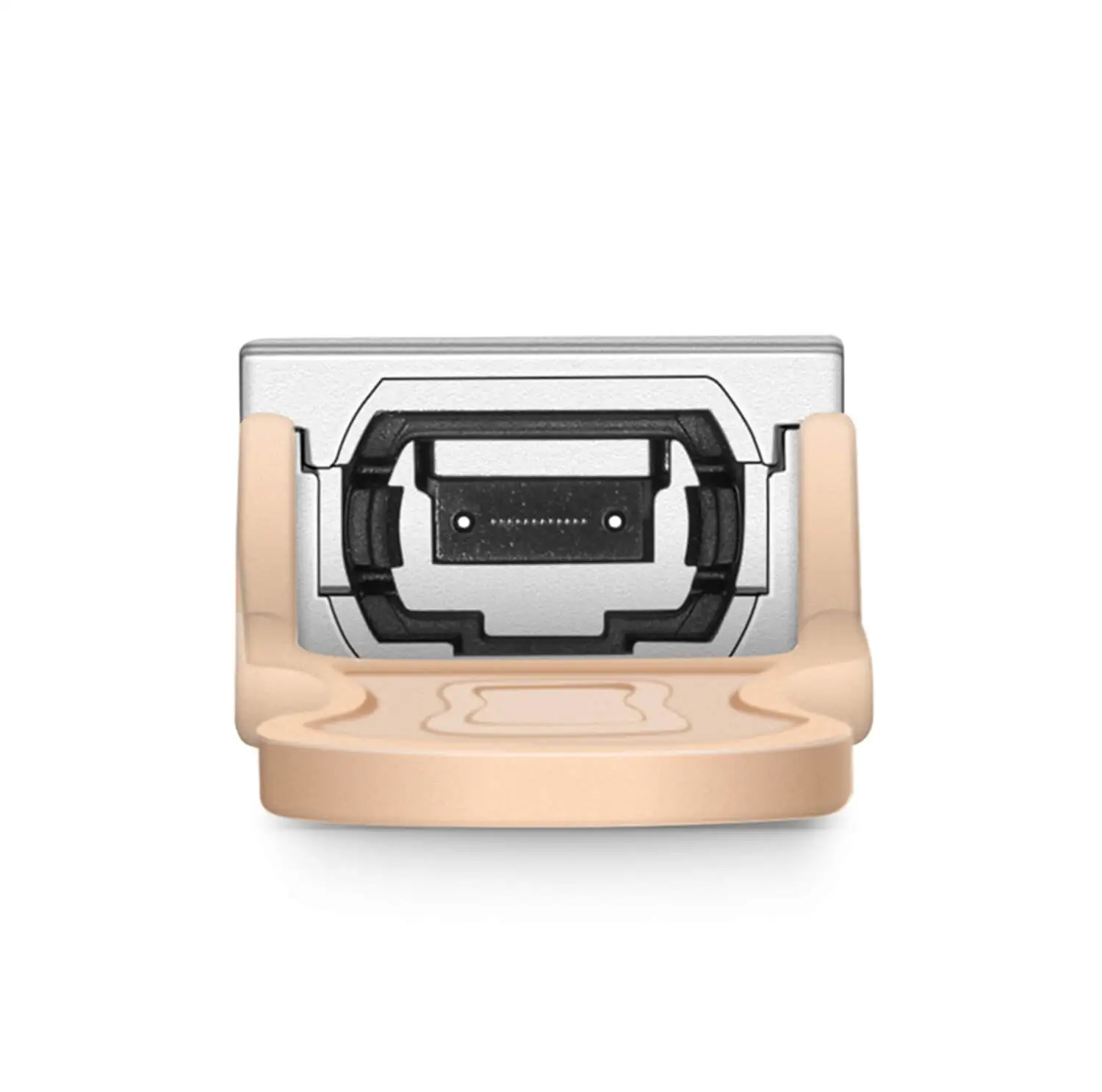

Single 1X12 MPO connector receptacle

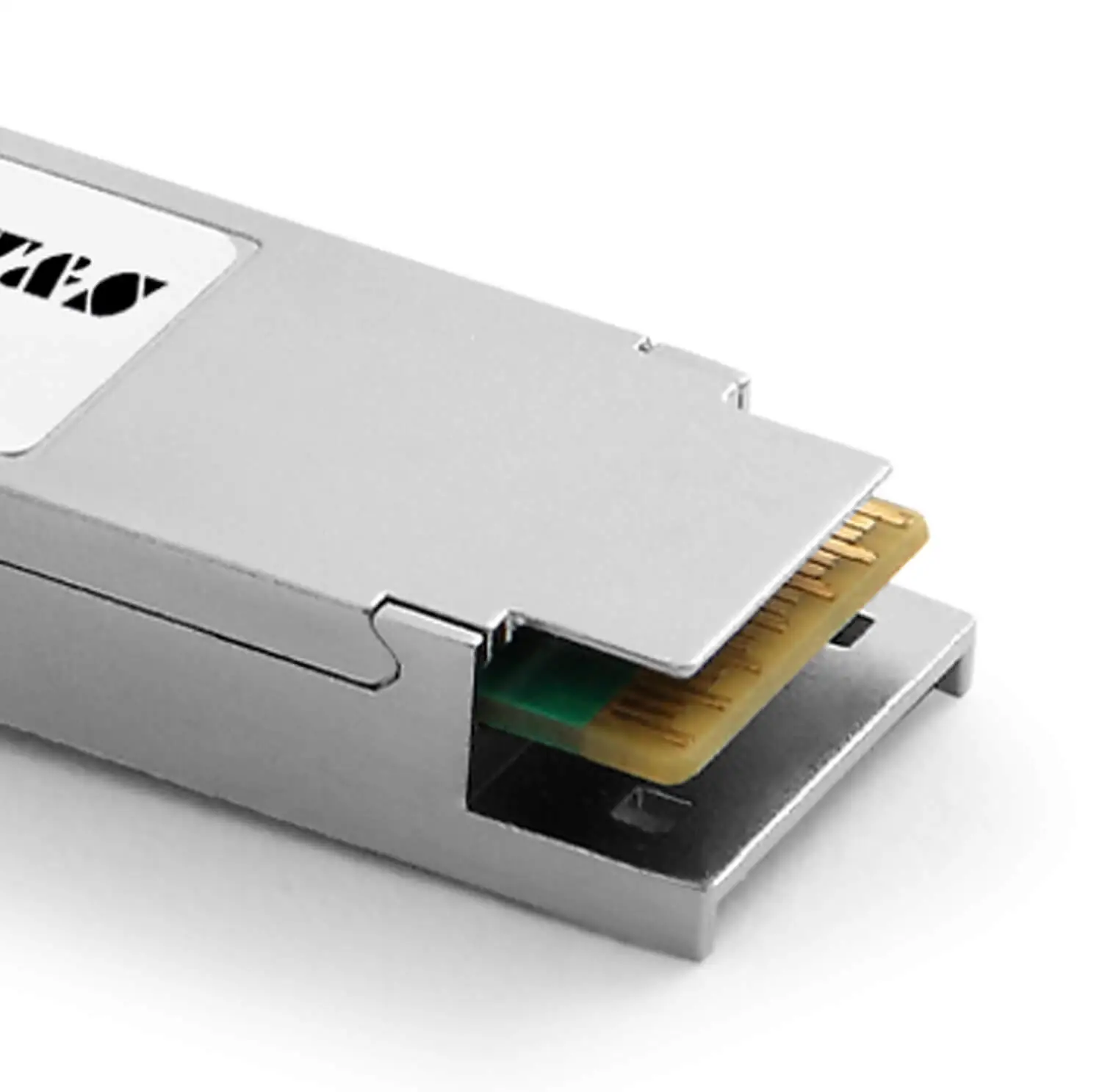

Hot-pluggable electrical interface
Operating case temperature: 0°C ~+70°C/-20°C ~+85°C/-40°C ~+85°C
RoHS6 compliant (lead free)

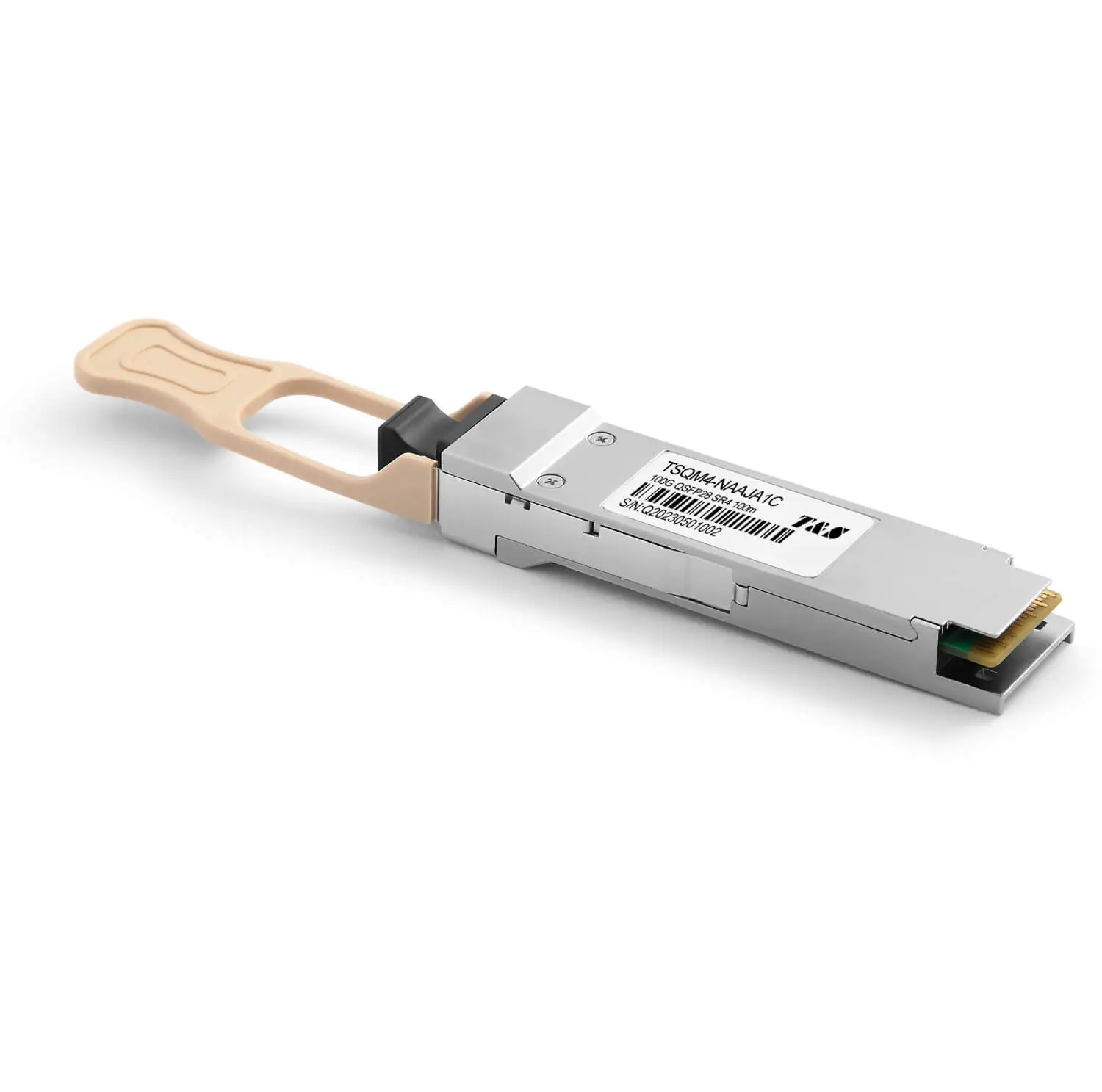

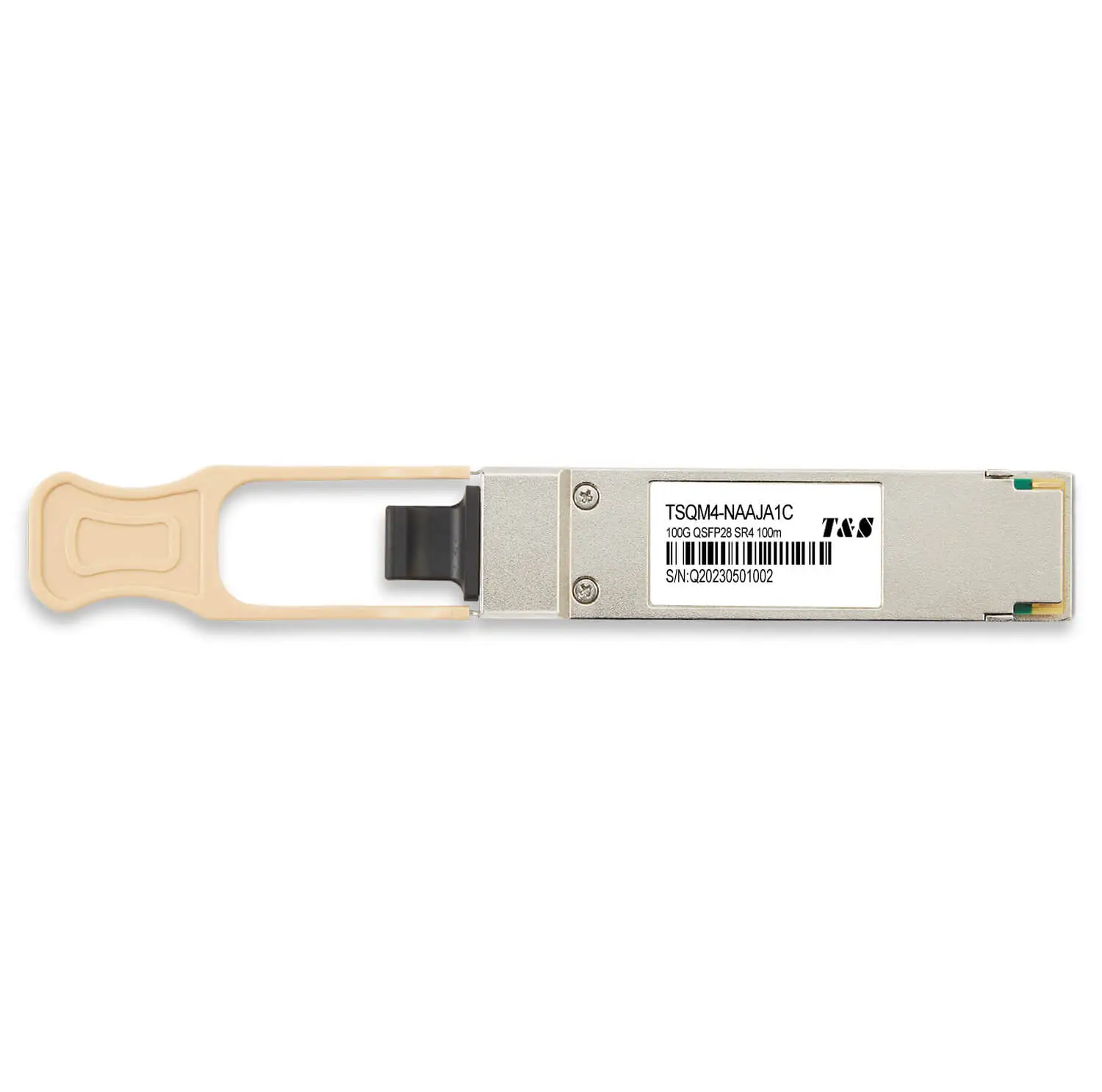

The TSQM4-NAAJA1 module is a highly integrated 4x25G transceiver focused on reach, bandwidth, density and cost for high port-count 100G systems, and client-side 100G interfaces. Each lane can operate at 25Gbps up to 70m using OM3 fiber or 100m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38-contact edge type connector. The optical interface uses a 12-fiber MPO connector.
Part Number | TSQM4-NAAJA1 | Application | 100G Ethernet |
Form Factor | QSFP28 | Max Data Rate | 103Gbps |
Wavelength | 850nm | Distance | 100m |
Connector | MPO12 | Fiber | MMF |
Transmitter | VCSEL | Receiver | PIN |
TX Power | -6~2.4dBm | Minimum Receiver Power | -10.3dBm |
Power Budget | 4.3dB | Receiver Overload | 2.4dBm |
Power Comsumption | ≤2.5W | Extinction Ratio | >3dB |
Packaging | COB | Modulation | NRZ |
CDR | Yes | Inbuilt FEC | No |
Storage Temperature | -40℃ ~ + 85℃ | Operating Temperature | -40℃ ~ + 85℃ |
Compatibility | Generic | Class | Industrial |
Protocols | IEEE 802.3bm | Warranty |
IEEE 802.3bm 100GBASE SR4
RoHS/ UL/ CE/ TUV/ ISO14001/ ISO45001/ ISO9001
