MMC Solution

US Conec's Very Small Form Factor (VSFF) multi-fiber optical connector that redefines high-density connectivity with its cutting-edge TMT ferrule technology and intuitive Direct-Conec™ push-pull boot design.

MMC Certificate

Features

3x cabling port density over the MPO format
DirectConec™ push-pull boot for effortless connector insertion and extraction
Utilizes proven MT or MT-16mechanical and fiber alignment structures
Compatible with standard 250 micron OD and pitch optical fibers
TMT Elite™ low-loss, IEC Grade B insertion loss performance
(0.25 dB 97% random intermate)
APC for both SM and MM applications
Available in 1x12, 1x16 and 2x12 variants
Tested to Telcordia GR-1435
Cables up to 2.5 mm OD
Standard cabling industry infrastructure support including
One-Click™ cleaners, polishers, interferometers, and optical testing equipment

Applications

Co-packaged optics and on-board connectivity
High bandwidth transceivers
Maximum density, low-loss, pre-terminated cabling infrastructure

mmc connector

MMC 12

MMC 16

MMC 2x12

Designed in accordance with IEC 61755 and IEC 61754 standards, the TMT ferrule ensures precise alignment for MT and MT-16 configurations. Its 250μm pitch fiber holes accommodate standard 250μm OD single-mode and multimode fibers, as well as reduced OD fibers such as 200μm and 165μm.

MMC Jr.

The compact footprint of the MMC Jr. connector ensures a secure and reliable connection while conserving valu-able space in space-constrained environments. It is optimized for use in fiber optic transceivers, on-board optics, module cassettes, and data center interconnect applications.

mmc jr

MMC Adapter

MMC adapters are available in multiple port configurations, including versions that support direct mating be-tween MMC and MMC Jr.connectors. The 2-port adapter fits standard MPO cutouts, enabling a straightforward upgrade from MPO to MMC with double the port density. For higher-density applications, 4-port and 6-port op-tions are also available. Optional port covers are offered to block unused ports when needed.

MMC

2-Port MMC

4-Port MMC

4-Port MMC to MMC Jr.

6-Port MMC to MMC Jr.

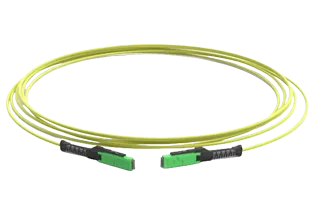

MMC Cable Assemblies

T&S’s MMC cable terminations are fully certified by US Conec, ensuring high performance and reliability. With over 20 years of industry-recognized manufacturing expertise, T&S offers a comprehensive portfolio of MMC cable assemblies designed to meet evolving market demands. Leveraging our unparalleled processing know-how and flexible production capacity, we support extensive customization, enabling tailored solutions for diverse application scenarios. Guided by customer needs, T&S delivers precision, scalability, and fast turnaround to empower next-generation high-density optical interconnect deployments.

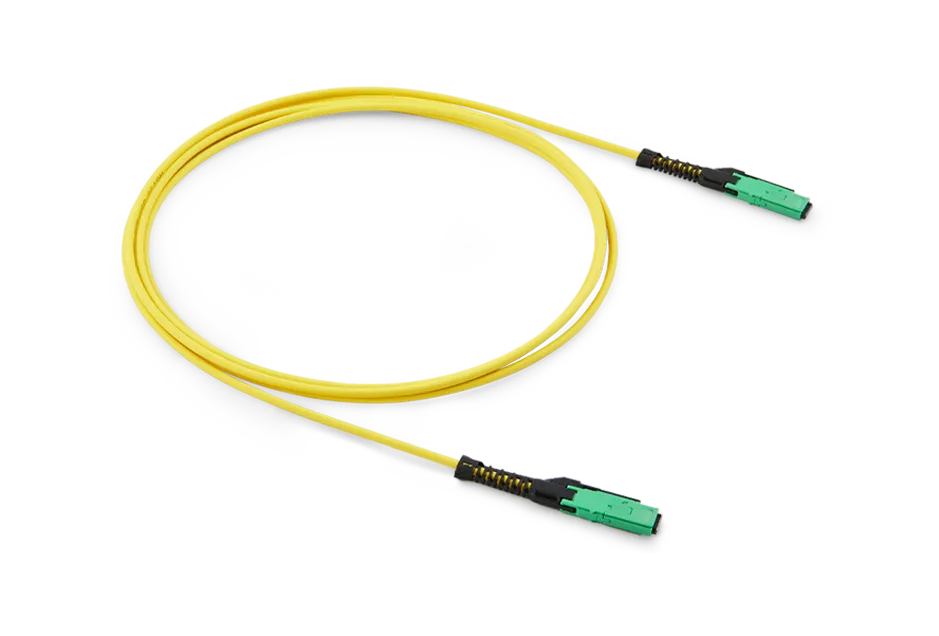

MMC12 Cable<br>
MMC16 Cable<br>
MMC24 Cable

MMC12 Cable
MMC16 Cable
MMC24 Cable

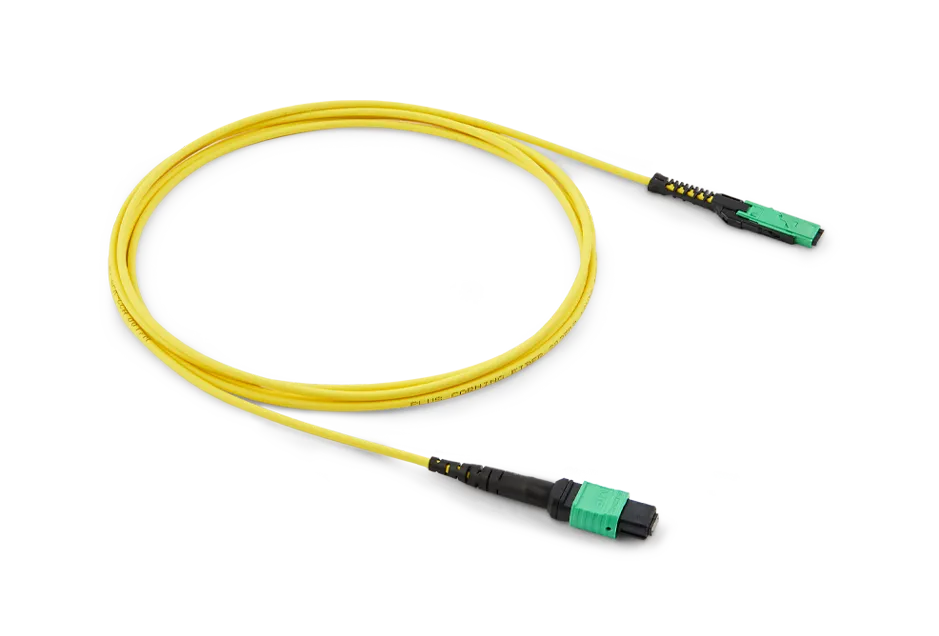

MMC16 to MTP16 Cable<br>
MMC24 to MTP24 Cable

MMC16 to MTP16 Cable
MMC24 to MTP24 Cable

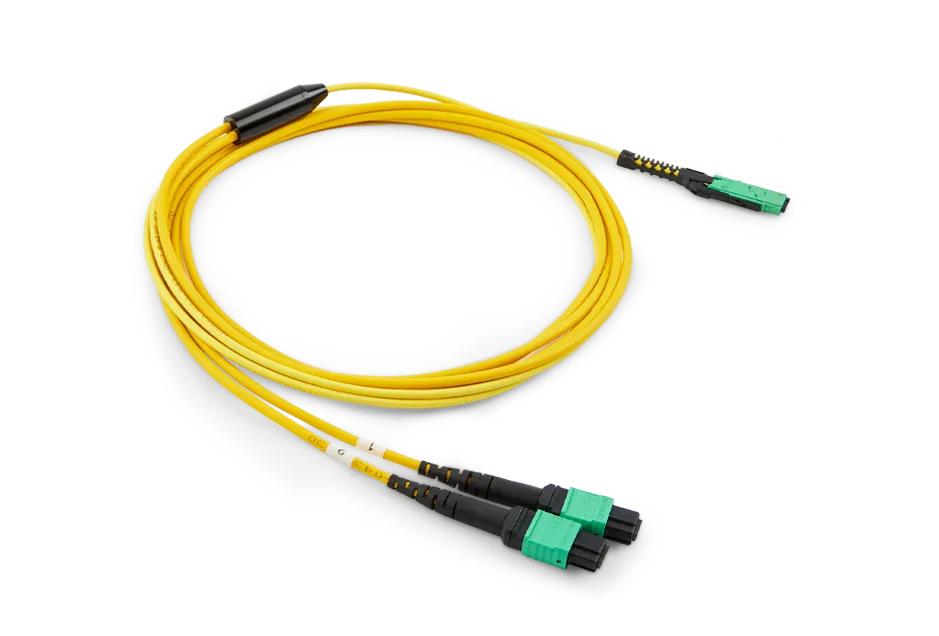

MMC16 to 2x MTP12 Harness<br>
MMC24 to 2x MTP12 Harness

MMC16 to 2x MTP12 Harness
MMC24 to 2x MTP12 Harness

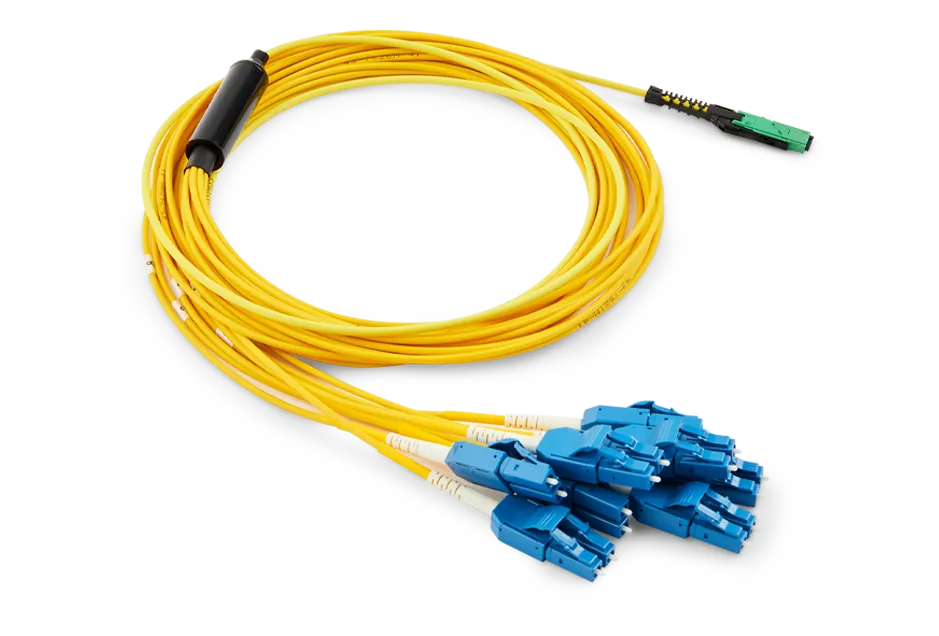

MMC16 to 8x ELiMENT
LC Uniboot

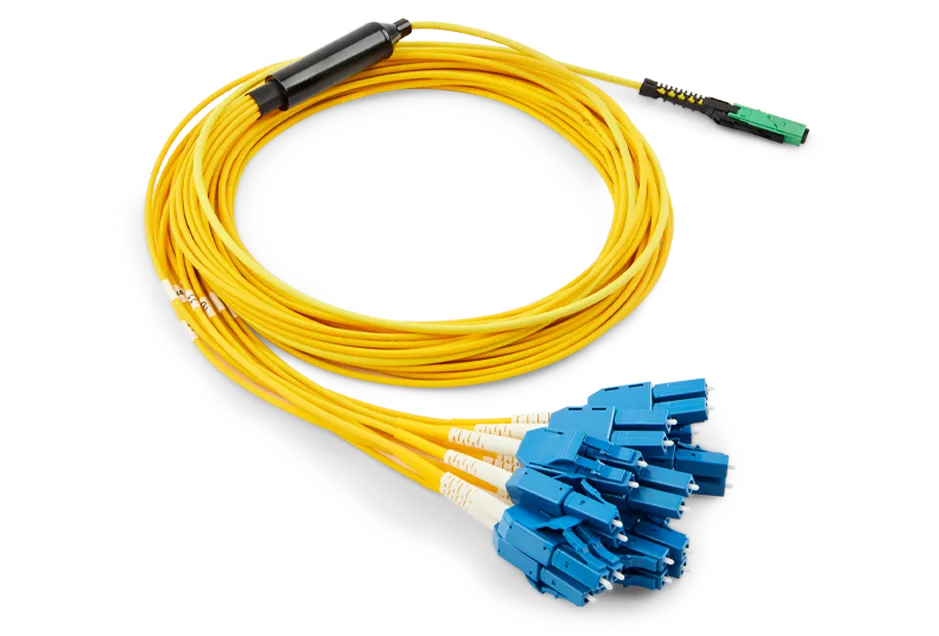

MMC24 to 12x ELi-<br>MENT LC Uniboot
Harness

MMC24 to 12x ELi-
MENT LC Uniboot Harness

MMC Interface Shuffle Enclosure

Modern hyperscale data centers demand ultra-high-speed parallel optical connections, but traditional spine-leaf architectures create cabling complexity—each leaf switch must connect to every spine switch, leading to tangled fiber bundles and inefficient layouts. T&S’s 4U Shuffle Enclosure with FOFC (Fiber Optic Flex Circuit) Technology overcomes this challenge in a revolutionary way:
