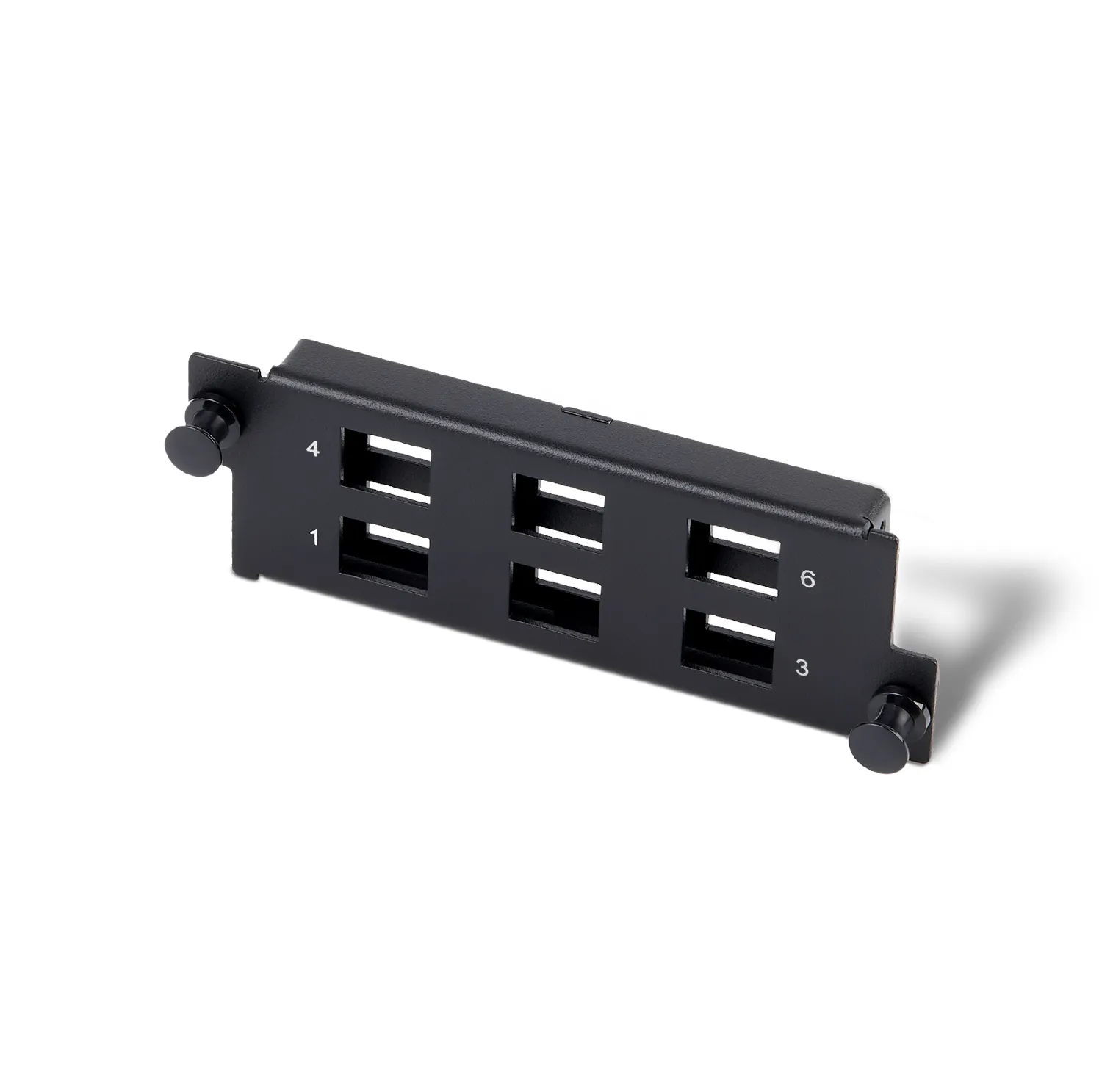

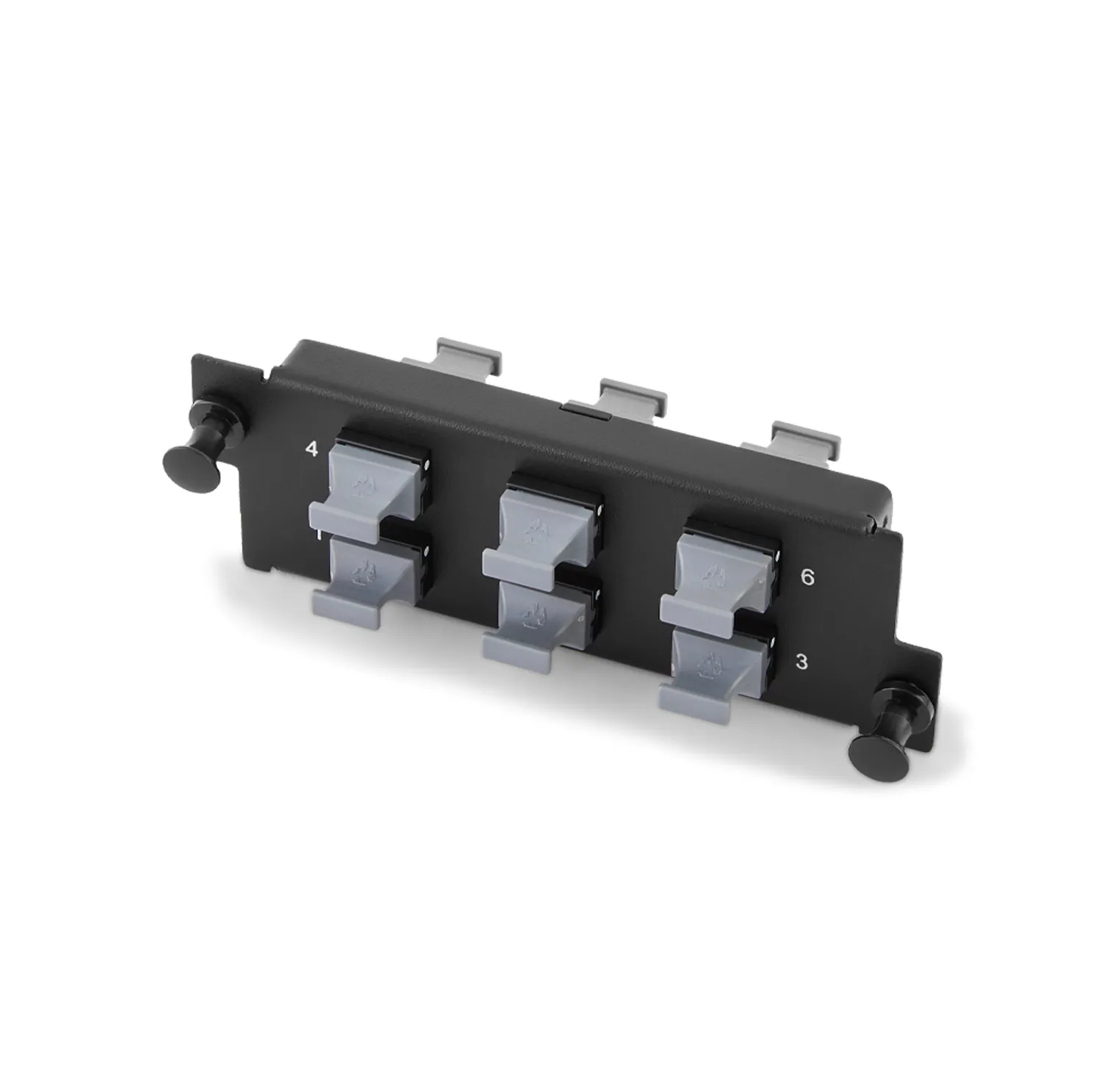

The MPO Adapter Panel in the Ultra product family comes pre-loaded with fiber adapters, enabling efficient connections between backbone-to-backbone or backbone-to-horizontal fiber cabling. When paired with Ultra series enclosures, it offers a stable and compact solution that greatly streamlines the deployment of optical network infrastructure.
| Cassette Material | Front Adapter | Adapter Color | Capacity |
| Aluminum | MPO | Black/Gray/Yellow or Others | 144F(MPO-24F) |
| Standard | Dimension(mm) | Weight(g) | Applications |
| RoHS/REACH | 109.5x35 | 117① | Match for UltraX/Y/N/S Enclosure |
note
① The weight includes the weight of adapters.
