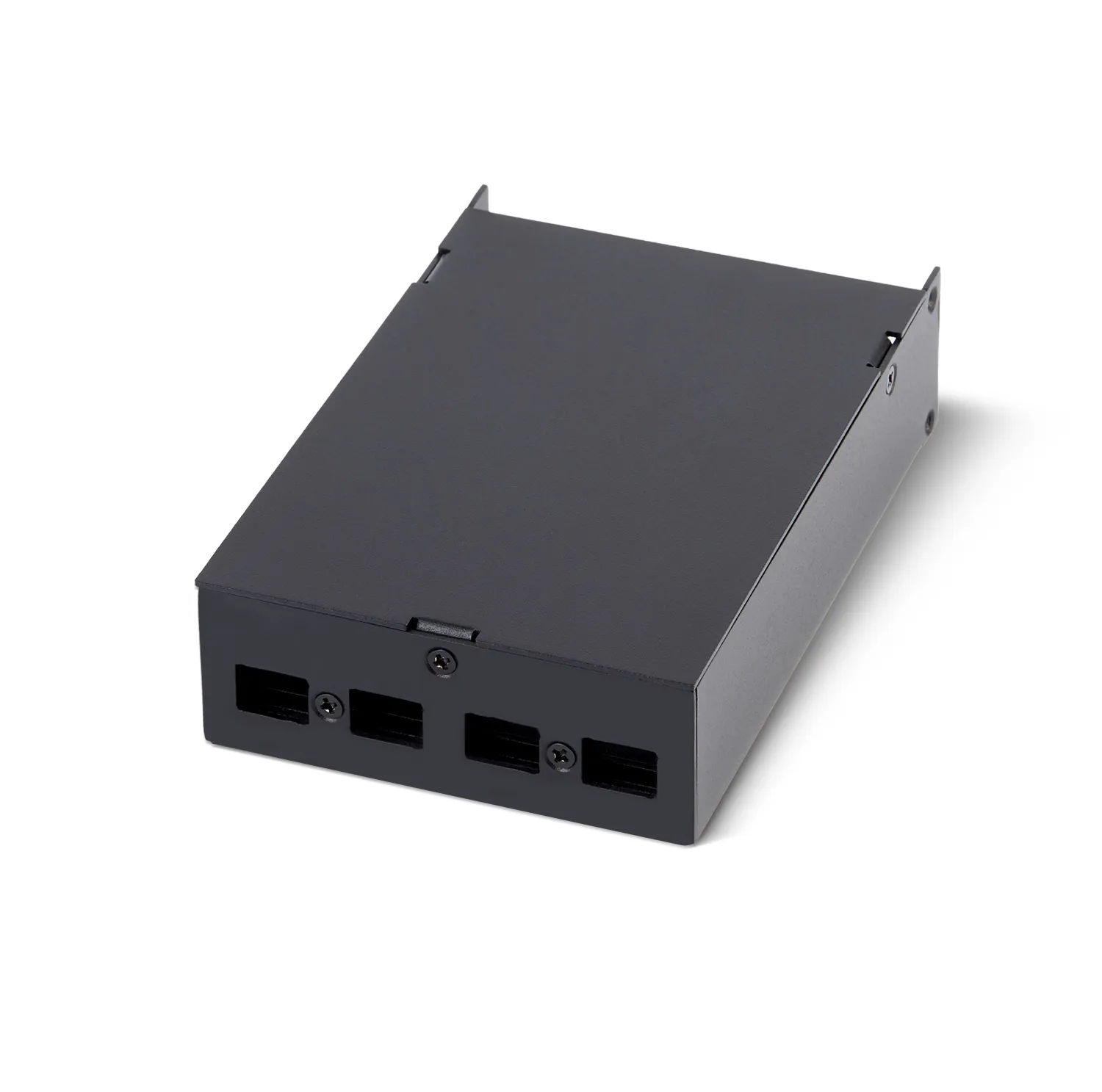

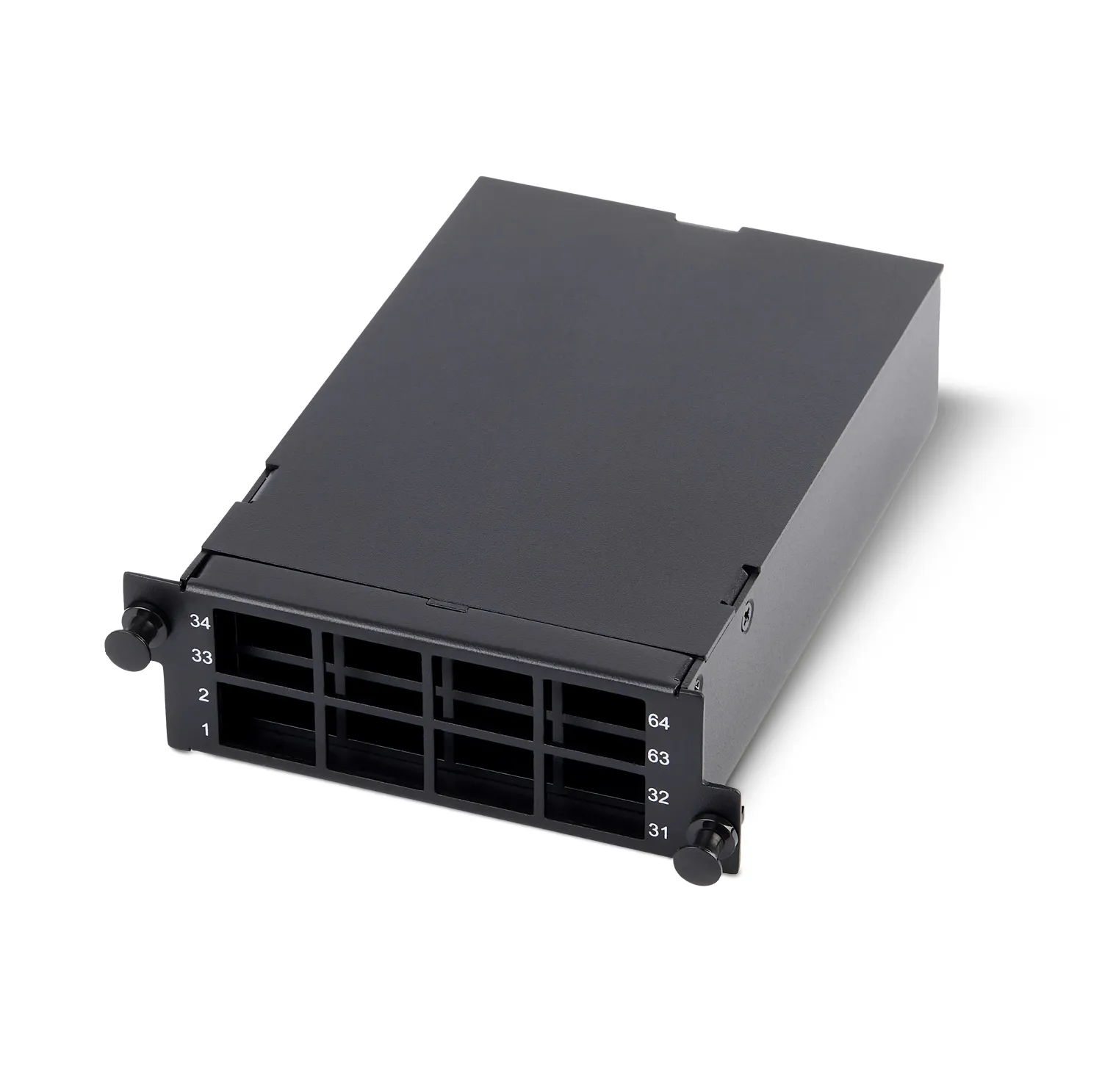

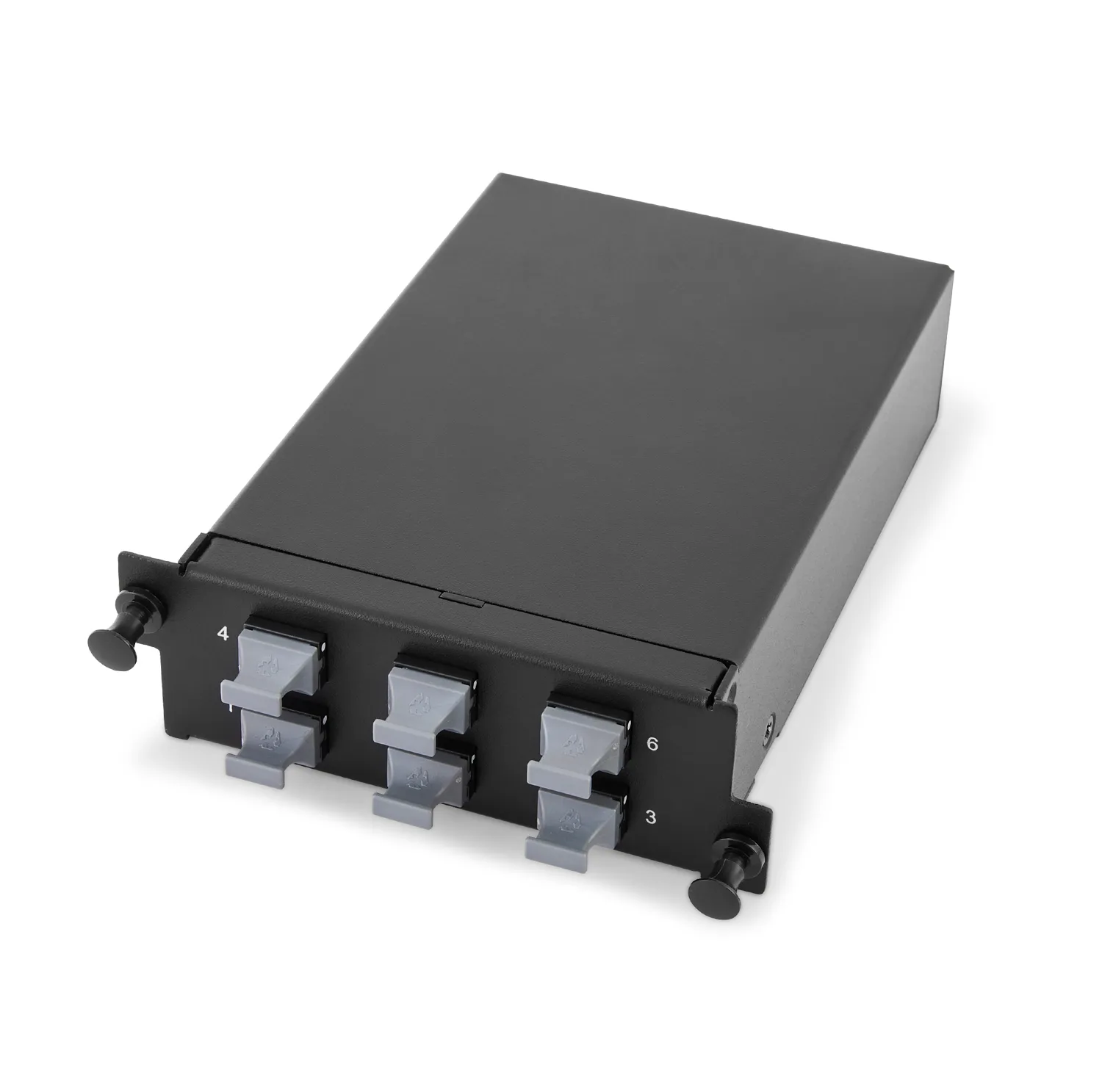

T&S optical module cassettes from the Ultra family are designed to efficiently break out four MPO/MTP® connectors into six MPO/MTP® connectors. The six metal cassettes accommodate up to 144 channels within a 1U space with 24F MPO/MTP® connectors, streamlining the deployment of optical networks in a modular fashion. This makes it an ideal solution for projects requiring compact, fast cabling and provides an easy upgrade path for existing installations.
| Parameters | SM | SM | MM(OM3) | MM(OM4) |
| MPO/UPC-MPO/MTP® | MPO/APC-MPO/MTP® | MPO/PC-MPO/MTP® | MPO/PC-MPO/MTP® |
| Max Insertion Loss (dB) | 0.6 | 0.6 | 0.6 | 0.6 |
| Typical (dB) | 0.35 | 0.35 | 0.3 | 0.3 |
| Min Return Loss (dB) | 55 | 60 | 20 | 20 |
General Information
| Cassette Material | Front Adapter | Rear Adapter | Adapter Color (Front)① | Adapter Color (Rear)① |
| Aluminum | MPO/MTP® | MPO/MTP® | Black/Gray/Yellow or Others | Black/Gray/Yellow or Others |
| Capacity | Standard | Dimension(mm) | Weight(g)② | Applications |
| 144F (MPO-24F) | RoHS/REACH | 109.5x35x140 | 280 | Match for UltraX/Y/N/S Enclosure |
note
① More housing colors are available upon request；
② The weight includes the weight of the front and rear adapters, but excludes the weight of the cables.
