200G QSFP56 AOC

200G QSFP56 AOC

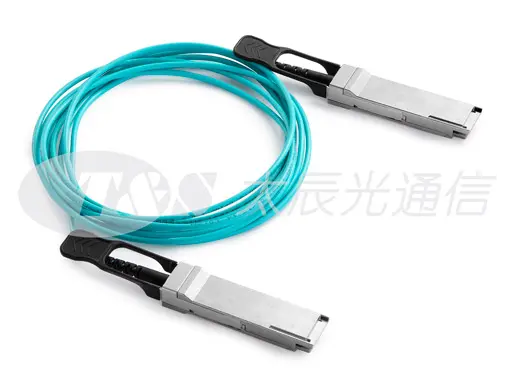

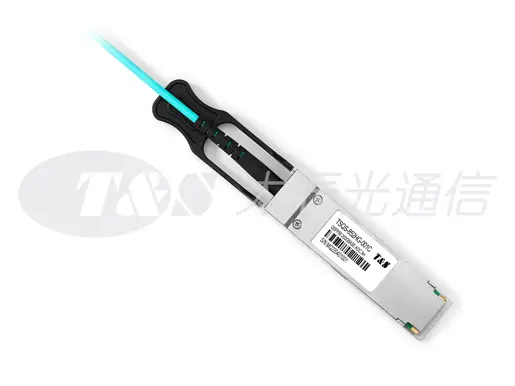

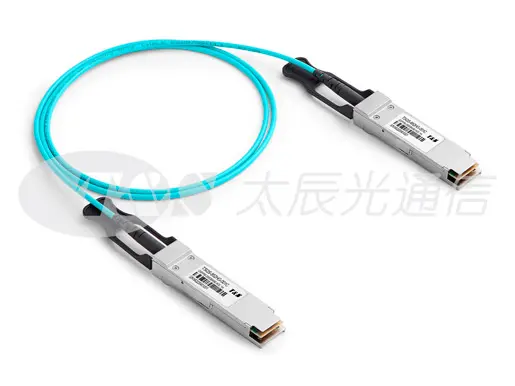

The TSQS-852HG-XXXC is a Four-Channels, Pluggable, Parallel, Fiber-Optic QSFP56 for 200 Gigabit Ethernet Applications, Infiniband HDR Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 200Gbps bandwidth.

This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector.

Features of 200G QSFP56 AOC

  • Supports IBTA InfiniBand HDR

  • Up to 200Gb/s data rate

  • 4x 50Gb/s PAM4 modulation

  • SFF-8665 compliant QSFP56 port

  • SFF-8636 compliant I2C management

  • Single 3.3V power supply

  • 4.5W power dissipation each end, with retiming

  • Operating case tempcommercial:0°C to +70°C

  • RoHS6 compliant (lead free)



Applications of 200G QSFP56 AOC

  • 200Gb/s InfiniBand HDR systems

  • Other optical links

Specifications of 200G QSFP56 Active Optical Cables

Absolute Maximum Ratings
Recommended Operating Environment
Transmitter Specifications
Receiver Specifications

Parameter

Symbol

Min

Typical

Max

Unit

Storage Temperature

TS

-20

-

85

Relative Humidity

RH

0

-

85

%

Case Operating Temperature

TCase

0

-

70

Supply Voltage

VCC

-0.5

-

3.6

V


Parameter

Symbol

Min

Typical

Max

Unit

Power Supply Voltage

VCC

3.135

3.300

3.465

V

Operating Case Temperature

TC

0

25

70

°C


Parameter

Symbol

Min

Typical

Max

Unit

Signaling Speed per Lane

-

PRBS31Q@26.5625Gbd PAM4

Gb/s

Center Wavelength

C

840

850

860

nm

Differential Input Impedance

Zin

90

100

110

Ohm

Differential Input Voltage

Vin

--

900

-

mVp-p

Differential termination mismatch

-

-

-

10

%

DC common mode voltage

-

-350

-

2850

mV


Parameter

Symbol

Min

Typical

Max

Unit

Signaling Speed per Lane

-

PRBS31Q@26.5625Gbd PAM4

Gb/s

Center Wavelength

lC

840

850

860

nm

Differential termination mismatch

-

-

-

10

%

Differential Output Impedance

Zout

90

100

110

Ohm

Differential Output Voltage

Vout

-

-

900

mVp-p

DC common mode voltage

-

-350

-

2850

mV

Error Bit Rate

BER

-

-

2.4E-4

PRBS31Q@26.5625Gbd PAM4

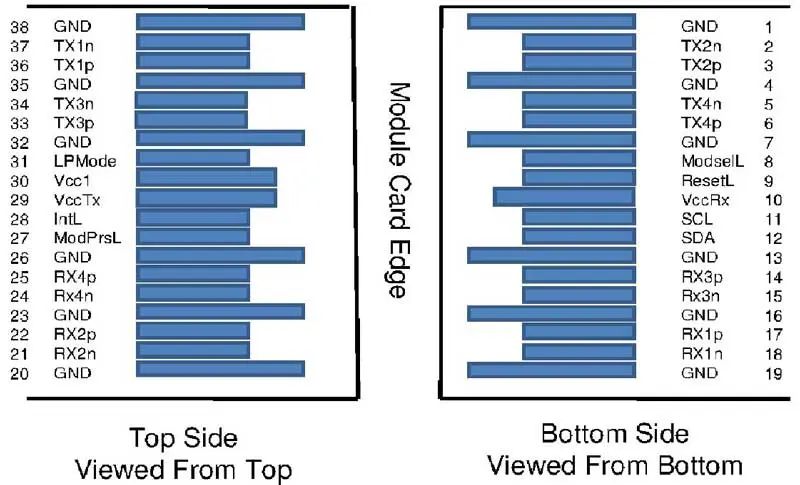

Electrical Pad Layout of 200G QSFP56 AOC


Electrical Pad Layout of 200G QSFP56 AOC



Pin definition of 200G QSFP56 AOC

Pin

Symbol

Name/Description

1

GND

Ground

2

Tx2n

Transmitter Inverted Data Input

3

Tx2p

Transmitter Non-Inverted Data Input

4

GND

Ground

5

Tx4n

Transmitter Inverted Data Input

6

Tx4p

Transmitter Non-Inverted Data Input

7

GND

Ground

8

ModSelL

Module Select

9

ResetL

Module Reset

10

Vcc Rx

+3.3 V Power supply receiver

11

SCL

2-wire serial interface clock

12

SDA

2-wire serial interface data

13

GND

Ground

14

Rx3p

Receiver Non-Inverted Data Output

15

Rx3n

Receiver Inverted Data Output

16

GND

Ground

17

Rx1p

Receiver Non-Inverted Data Output

18

Rx1n

Receiver Inverted Data Output

19

GND

Ground

20

GND

Ground

21

Rx2n

Receiver Inverted Data Output

22

Rx2p

Receiver Non-Inverted Data Output

23

GND

Ground

24

Rx4n

Receiver Inverted Data Output

25

Rx4p

Receiver Non-Inverted Data Output

26

GND

Ground

27

ModPrsL

Module Present

28

IntL

Interrupt

29

VCC Tx

+3.3 V Power supply transmitter

30

VCC1

+3.3 V Power Supply

31

LPMode

Low Power Mode

32

GND

Ground

33

Tx3p

Transmitter Non-Inverted Data Input

34

Tx3n

Transmitter Inverted Data Input

35

GND

Ground

36

Tx1p

Transmitter Non-Inverted Data Input

37

Tx1n

Transmitter Inverted Data Input

38

GND

Ground

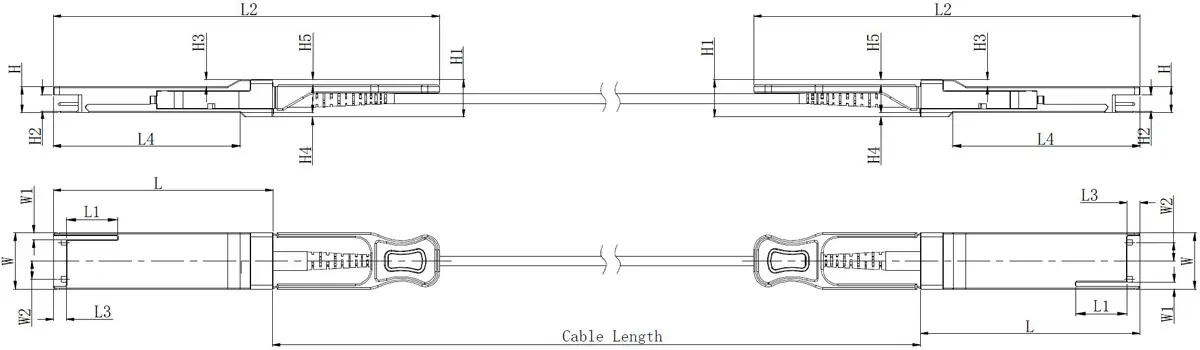

Drawing of 200G QSFP56 AOC

Drawing of 200G QSFP56 Active Optical Cables

Unit mm


L

L1

L2

L3

L4

W

W1

W2

H

H1

H2

H3

H4

H5

Max

72.2

-

128

4.35

61.4

18.45

-

6.2

8.6

12.4

5.35

2.5

1.6

2.0

Type

72.0

-

-

4.20

61.2

18.35

-

-

8.5

12.2

5.2

2.3

1.5

1.8

Min

68.8

16.5

124

4.05

61.0

18.25

2.2

5.8

8.4

12.0

5.05

2.1

1.3

1.6



Ordering information of 200G QSFP56 AOC

Part Number

Product Description

TSQS-852HG-XXXC

QSFP56 200G AOC  0°C ~ +70°C

XXX: 001~070,1~70 Length in meters on OM3 MMF

XXX: 001~100,1~100 Length in meters on OM4 MMF
