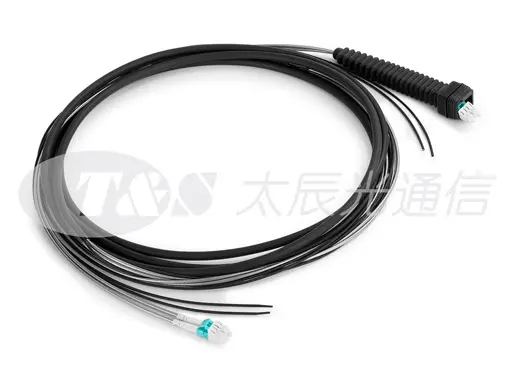

ADSS fiber patch cord, armored fiber patch cord, OPGW fiber patch cord, all the same type is the outdoor application, mostly it is waterproof. PE or LSZH outdoor cable is required for flame resistance or long-term outdoor exposure. Normally fanout of connectors for access.

Features of Outdoor Fiber Optic Cable Assembly

  • Factory terminated (tested cables) or Field installable version available

  • The material in the jumper cable are all-weather and UV-resistant

  • Mechanical performance: IEC 61754-20, IEC 61754-4 standard

  • RoHS and REACH materials compliant

  • minimum of 500 repetitions insert and extract

  • Wide range of operational temperature for outside plant — 40°C/70°C



Applications of Outdoor Fiber Optic Cable Assembly

  • FTTA Remote traction of the outdoor base station

  • RRU to BBU port interconnection

  • 3G, 4G, LTE and distributed base stations

  • Power communication systems, etc.



Standard Compliance of Outdoor Fiber Optic Cable Assembly

  • IEC 61754 series compliant

  • Qualified to Telcordia GR-326-Core

  • Reach, RoHS compliant


Specifications of Outdoor Fiber Optical Cable Assembly

Product Parameters
Cable Parameters
Mechanical Capacity

Performance

Standard

Connector

Mode

End face

IL (dB)

RL (dB)

LC/SC/FC

SM

APC

≤0.30

≥60

UPC

≤0.20

≥50

MM

PC

≤0.20

≥20



Test wavelength: SM@1310/1550nm, MM@850/1300nm


Fiber Count

2/4

Outer Jacket Material

LSZH, UV resistant

Outer Jacket Color

Black

Branch Cable Color

SM: Blue, Yellow

MM: Orange, Gray

Cable Overall Diameter

7.0 +/- 0.5mm

Outer Jacket Thickness

1.0 +/- 0.3mm

Subunit Overall Diameter

1.9 +/- 0.3mm

Subunit Jacket Thickness

0.35 +/- 0.3mm

Number of Fillers

2

Filler Element Diameter

1.9 +/- 0.3mm

Strength Member

Aramid yarns (Kevlar or equivalent)





Tensile

Short term

400N

Long term

200N

Crush

Short term

2200N

Long term

1100N

Impact

1N.m, add attenuation≤0.1dB

Bending

20N, 300time, add attenuation≤0.1dB

Twist

20 N, 20time, ±180°,add attenuation≤0.1dB

Bending Radius

dynamic

20D(cable diameter)

static

10D(cable diameter)

Operation Temperature (℃)

-40~+70

Storage Temperature (℃)

-40~+70


Cable Structure of Outdoor Fiber Optic Cable Assembly

Cable Structure
